Aspes AFD1145 Cyclical 2-Door Refrigerator

Introduction

Thank you for choosing the Aspes AFD1145 Cyclical 2-Door Refrigerator. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read these instructions carefully before using the refrigerator and keep them for future reference. Proper use and care will ensure optimal performance and longevity of your appliance.

Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for household use only.

• Electrical Safety: Ensure the appliance is connected to a properly grounded electrical outlet. Do not use extension cords or adapters. Unplug the refrigerator before cleaning or performing any maintenance.
• Ventilation: Maintain adequate ventilation around the appliance to prevent overheating. Do not block ventilation openings.
• Flammable Materials: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Disposal: When disposing of the appliance, do so in an environmentally responsible manner. Remove the doors to prevent children from becoming trapped.

Product Overview

The Aspes AFD1145 is a freestanding 2-door refrigerator with a top freezer configuration. It features cyclical cooling technology for efficient food preservation.

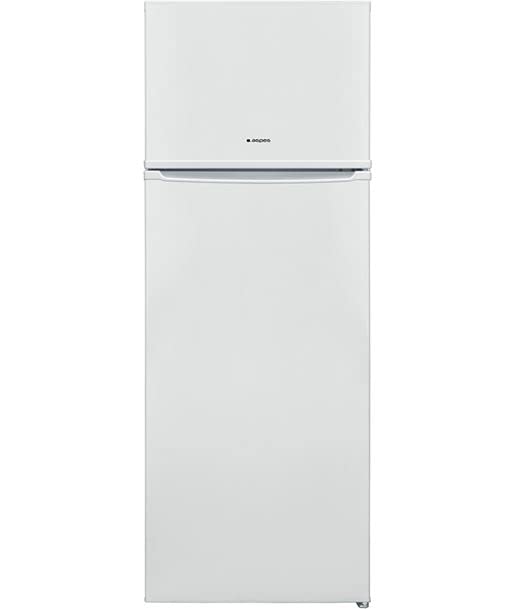

Image: Front view of the Aspes AFD1145 2-Door Refrigerator. This image shows the appliance in white, with two distinct doors for the refrigerator and top freezer compartments.

Setup

1. Unpacking

Carefully remove all packaging materials, including foam, tape, and protective films. Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately.

2. Placement

• Place the refrigerator on a firm, level surface. Use the adjustable feet to ensure the appliance is stable and level.
• Allow sufficient space around the refrigerator for proper ventilation. A minimum of 10 cm (4 inches) should be left at the back and sides, and 30 cm (12 inches) above the appliance.
• Avoid placing the refrigerator in direct sunlight or near heat sources such as stoves, heaters, or radiators, as this will increase energy consumption.
• This appliance is designed for a climate class N, meaning it operates optimally in ambient temperatures between 16°C and 32°C.

3. Electrical Connection

Before plugging in the appliance, ensure the voltage and frequency indicated on the rating plate match your household power supply. Connect the refrigerator to a dedicated, grounded electrical outlet. Do not switch on the appliance immediately after moving it; allow it to stand for at least 2-4 hours to allow the refrigerant to settle.

4. Door Reversal

The door swing of this refrigerator can be reversed to suit your kitchen layout. This procedure should be performed by a qualified technician or by carefully following the detailed instructions provided in a separate technical service manual. Incorrect reversal can damage the door seals or hinges.

Operating

1. First Use

After connecting the appliance to power and allowing it to stand for the recommended time, clean the interior with a mild detergent and warm water. Wipe dry thoroughly. Set the temperature control to a medium setting and allow the refrigerator to cool for several hours (at least 4-6 hours) before loading food items. This ensures the compartments reach their optimal storage temperatures.

2. Temperature Control

The Aspes AFD1145 features adjustable temperature control. The control dial is typically located inside the refrigerator compartment. Turn the dial to adjust the cooling intensity. Higher numbers usually indicate colder temperatures. Start with a medium setting and adjust as needed based on ambient temperature and food load. The freezer compartment maintains a temperature suitable for 4-star freezing.

3. Food Storage Guidelines

• Refrigerator Compartment: Store fresh foods, dairy products, fruits, and vegetables. Ensure food is covered to prevent drying out and odor transfer.
• Freezer Compartment: Suitable for long-term storage of frozen foods. Do not place hot food directly into the freezer.
• Avoid overloading the compartments, as this can hinder air circulation and cooling efficiency.

4. Cyclical Operation Technology

This refrigerator utilizes cyclical operation technology, which means the refrigerator compartment automatically defrosts. During this process, ice that forms on the evaporator coils melts and the water drains into a tray located above the compressor, where it evaporates. This helps maintain optimal humidity levels and reduces the need for manual defrosting in the refrigerator section. The freezer compartment, however, may require manual defrosting periodically.

Maintenance

1. Cleaning

• Interior: Unplug the appliance before cleaning. Clean the interior regularly with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners, harsh chemicals, or sharp objects.
• Exterior: Wipe the exterior surfaces with a soft, damp cloth. For stubborn stains, use a mild detergent.
• Door Seals: Clean door seals regularly to ensure a tight seal and prevent energy loss.
• Condenser Coils: Periodically clean the condenser coils at the back of the appliance (if accessible) with a soft brush or vacuum cleaner to maintain efficiency.

2. Defrosting the Freezer

The freezer compartment of the Aspes AFD1145 will accumulate frost over time. When the frost layer becomes approximately 5mm thick, it is recommended to manually defrost the freezer to maintain efficiency. To defrost:

1. Unplug the refrigerator from the power outlet.
2. Remove all frozen food and store it in a cool place or insulated container.
3. Leave the freezer door open to allow the frost to melt naturally. Place towels at the bottom to absorb water.
4. Once defrosted, clean and dry the interior thoroughly.
5. Plug the appliance back in and allow it to cool for a few hours before returning food.

3. Care During Holidays/Long Absences

For short absences, leave the refrigerator operating normally. For long absences (several weeks or more), unplug the appliance, empty all food, clean the interior thoroughly, and leave the doors ajar to prevent odors and mold growth.

Troubleshooting

Before contacting service, check the following common issues and solutions:

If the problem persists after checking these points, please contact your retailer or a qualified service technician.

Specifications

Below are the technical specifications for the Aspes AFD1145 Refrigerator:

Warranty and Support

Your Aspes AFD1145 Refrigerator comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details. For technical support, service requests, or warranty claims, please contact your retailer or the authorized Aspes service center in your region. Ensure you have your proof of purchase and the appliance's model and serial number available when contacting support.
