MOUNTUP Triple Monitor Mount MU8004 Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your MOUNTUP Triple Monitor Mount MU8004. Please read this manual thoroughly before installation to ensure correct setup and safe usage. Keep this manual for future reference.

2. Safety Information

Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or faulty.
Verify that your desk surface can support the combined weight of the mount and three monitors.
Do not exceed the maximum weight capacity of 19.8 lbs (9 kg) per arm.
Always follow the installation steps carefully. Improper installation may result in equipment damage or personal injury.
Keep children and pets away during installation.

3. Product Features

Upgraded Compatibility: Fits most flat/curved computer screens from 17 to 32 inches with VESA 75x75mm or 100x100mm mounting patterns. Each arm supports monitors weighing 4.4-19.8 lbs.
Full Motion Adjustment: Allows for height adjustment, swivel, tilt, and rotation to achieve optimal viewing angles and ergonomic posture.
Two Mounting Options: Supports both C-clamp and grommet mounting methods to suit various desk types.
Space Saving Design: Frees up desktop space compared to traditional monitor stands.
Integrated Cable Management: Conceals cables for a tidy and organized workspace.
Durable Construction: Made from heavy-gauge steel with a premium gas spring for stable and secure monitor support.

4. Compatibility

The MOUNTUP Triple Monitor Mount MU8004 is designed for a wide range of monitors and desk types. Please verify the following specifications before installation:

Screen Size: Compatible with monitors from 17 to 32 inches.
Weight Capacity: Each arm supports monitors weighing between 4.4 lbs (2 kg) and 19.8 lbs (9 kg).
VESA Compatibility: Supports VESA mounting patterns of 75x75mm and 100x100mm.
Desk Thickness (C-clamp): 0.39 inches to 3.15 inches (10mm to 80mm).
Desk Thickness & Hole Diameter (Grommet): Thickness 0.39 inches to 1.97 inches (10mm to 50mm), Hole Diameter 0.39 inches to 3.15 inches (10mm to 80mm).

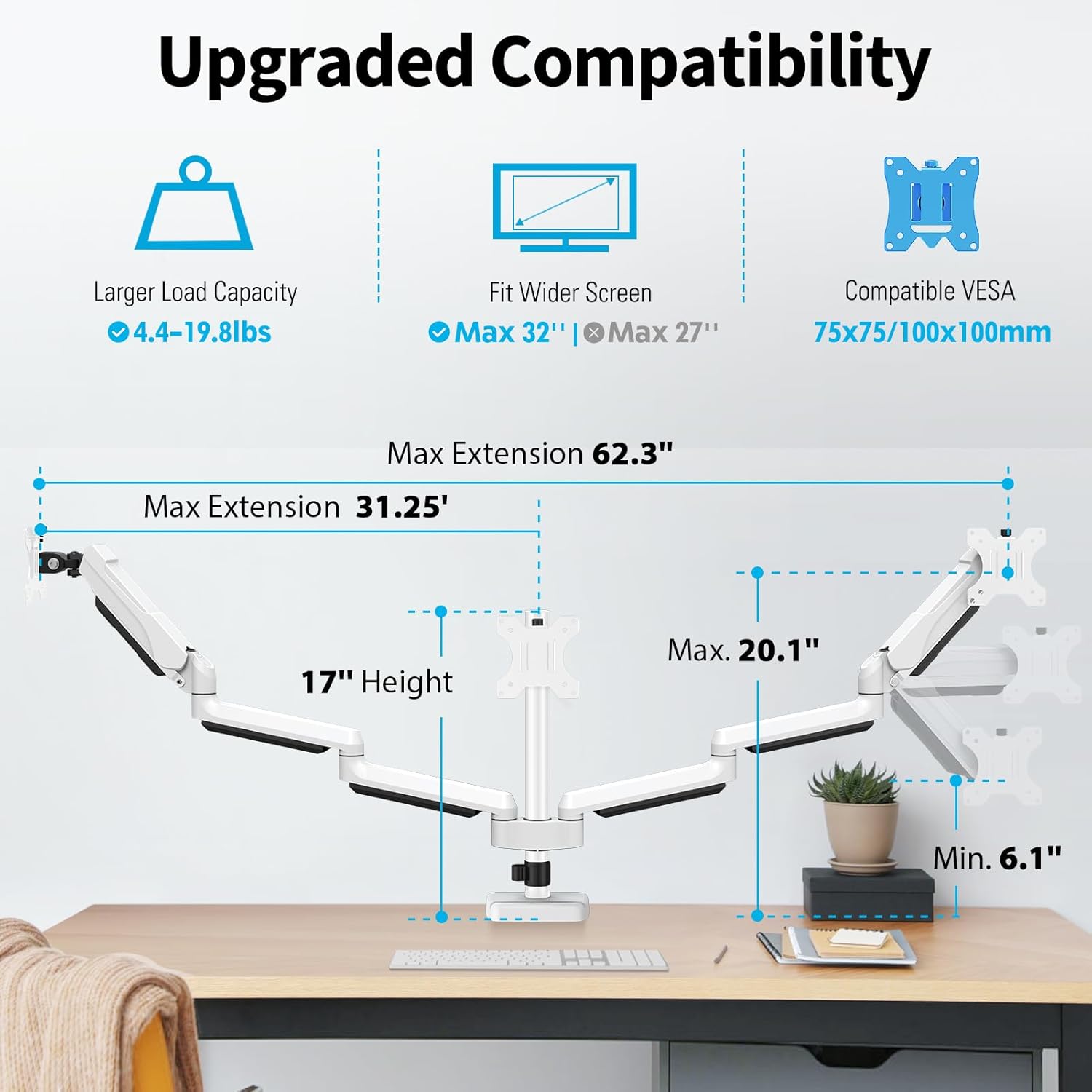

Diagram showing the MOUNTUP Triple Monitor Mount's compatibility: supports 4.4-19.8 lbs per arm, fits screens up to 32 inches, VESA 75x75mm or 100x100mm, with maximum extension and height. — This diagram illustrates the key compatibility specifications of the MOUNTUP Triple Monitor Mount. It supports monitors weighing between 4.4 and 19.8 lbs per arm, fits screens up to 32 inches, and is compatible with VESA 75x75mm and 100x100mm mounting patterns. The maximum extension is 62.3 inches, with a maximum height of 20.1 inches and a minimum height of 6.1 inches.

5. Installation

The MOUNTUP Triple Monitor Mount offers two installation methods: C-clamp and Grommet. Choose the method that best suits your desk.

5.1 Mounting Options Overview

Illustration of the two mounting options for the MOUNTUP Triple Monitor Mount: C-clamp and grommet installation. — The mount offers two installation methods: C-clamp for desk thicknesses between 0.39 and 3.15 inches, and grommet mount for desk thicknesses and hole diameters between 0.39 and 1.97 inches.

5.2 Installation Video Guide

This official video from MOUNTUP US provides a visual guide to the installation process and showcases the various functional adjustments of the MU8004 Triple Monitor Desk Mount, including tilt, swivel, and rotation capabilities, as well as cable management.

For detailed step-by-step instructions, please refer to the video above and the included printed manual. The installation process is designed to be straightforward, typically taking less than 20 minutes.

6. Adjustments and Operation

The MOUNTUP Triple Monitor Mount allows for extensive adjustments to customize your viewing experience and achieve an ergonomic setup.

6.1 Gas Spring and Tilt Adjustment

Instructions for adjusting the gas spring tension and tilt angle on the MOUNTUP Triple Monitor Mount. — This image provides guidance on adjusting the monitor mount. To prevent the monitor from dropping, turn the gas spring adjustment screw clockwise ('-') to reduce tension for lighter monitors. To prevent the monitor from raising, turn counter-clockwise ('+') to increase tension for heavier monitors. Tilt angle adjustment involves loosening a bolt, setting the desired angle, and retightening.

To adjust the gas spring tension, hold the arm horizontally. If the monitor faces down, turn the adjustment screw clockwise ('-') to reduce tension. If the monitor drops down, turn counter-clockwise ('+') to increase tension. For tilt angle adjustment, loosen the tilting bolt, adjust to your desired angle, and then retighten the bolt.

6.2 Full Range of Motion: Tilt, Swivel, and Rotation

Diagram demonstrating the full range of motion for the MOUNTUP Triple Monitor Mount, including tilt, swivel, and rotation capabilities. — This image highlights the full range of motion offered by the monitor mount. Monitors can be tilted ±90 degrees, swiveled ±90 degrees, and rotated ±180 degrees, allowing for flexible positioning in landscape or portrait mode.

The monitor arms allow for a wide range of movement:

Tilt: Adjust your monitors up or down by ±90 degrees.
Swivel: Pivot your monitors left or right by ±90 degrees.
Rotation: Rotate your monitors 360 degrees (±180 degrees) to switch between landscape and portrait orientations.

6.3 Multiple Screen Setups

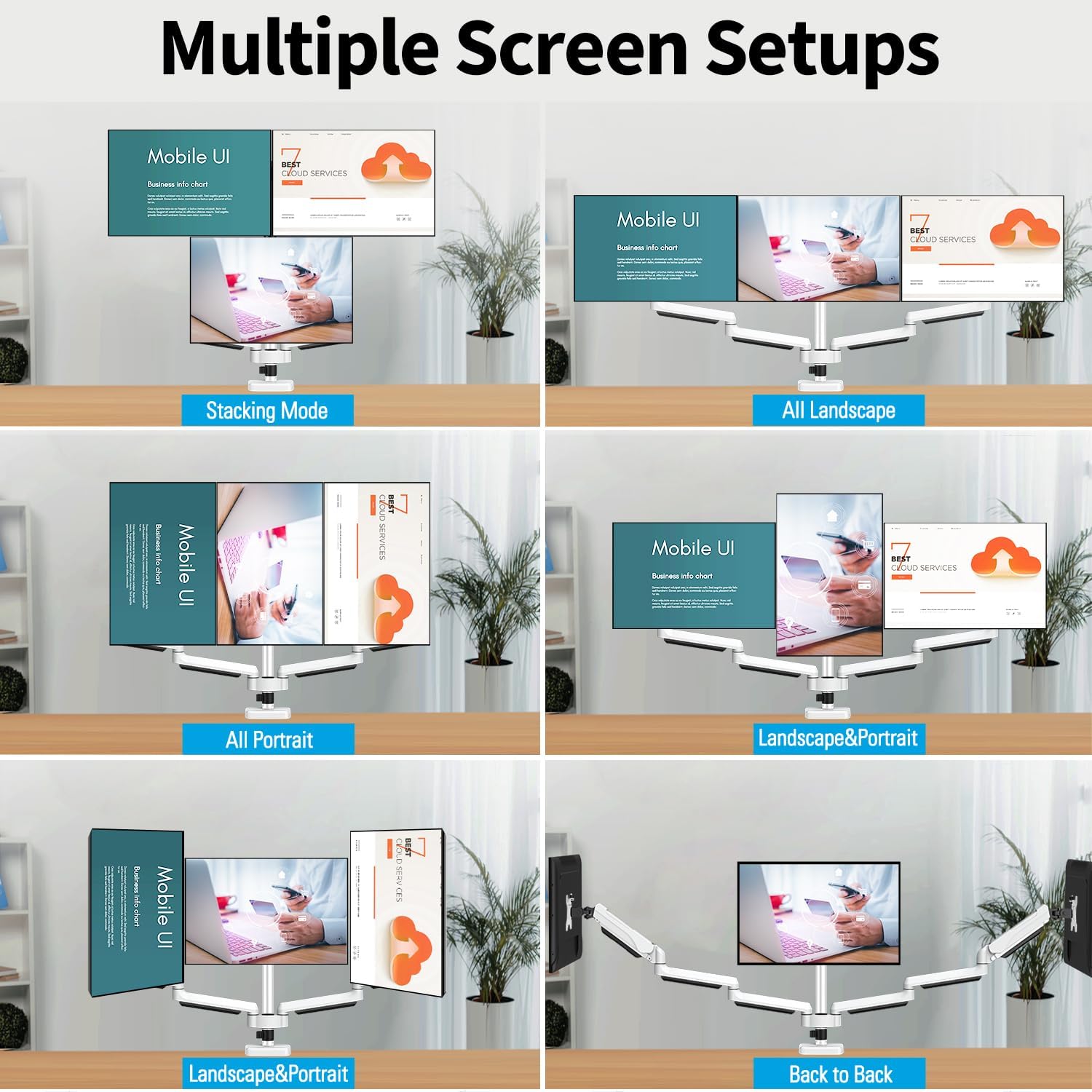

Examples of multiple screen setups possible with the MOUNTUP Triple Monitor Mount, including stacking, all landscape, all portrait, and mixed orientations. — This image demonstrates various configurations for your triple monitor setup, including stacking mode, all monitors in landscape, all in portrait, and combinations of landscape and portrait orientations.

Experiment with different screen combinations to find your ideal setup, whether it's all landscape, all portrait, stacked, or a mix of orientations.

7. Cable Management

Maintain a clean and organized workspace with the integrated cable management system.

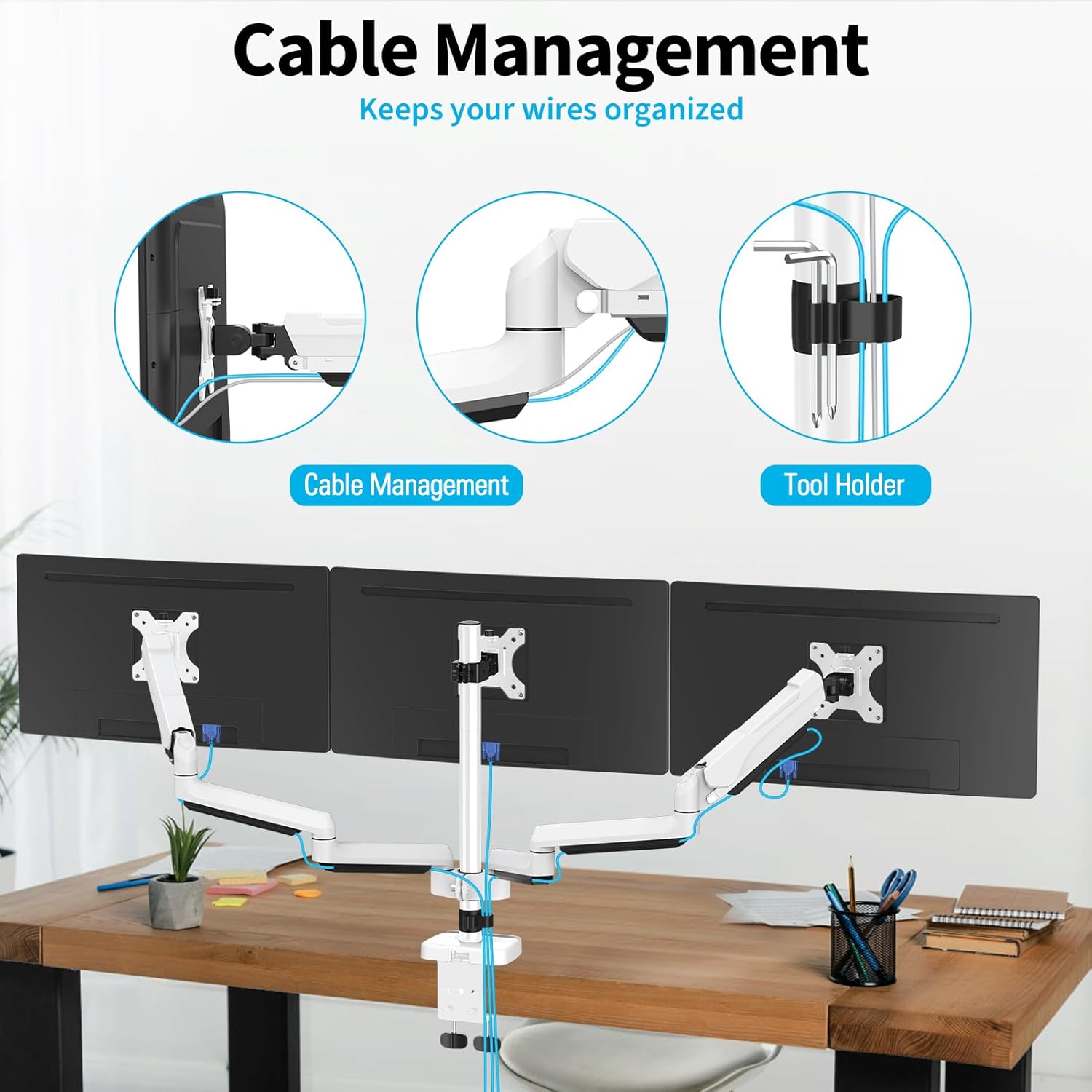

Diagram illustrating the cable management system and tool holder integrated into the MOUNTUP Triple Monitor Mount. — The mount features integrated cable management clips to keep wires organized and a tool holder for convenience, contributing to a clutter-free workspace.

Route your monitor and power cables through the detachable cable covers and clips along the arms and pole to keep them out of sight and prevent clutter.

Before and after comparison showing a cluttered desk versus a clean, organized desk with the MOUNTUP Triple Monitor Mount. — This visual comparison highlights how the MOUNTUP Triple Monitor Mount helps transform a cluttered desk into an organized and efficient workspace by elevating monitors and managing cables.

8. Specifications

Feature	Specification
Mounting Type	Tabletop Mount (C-clamp & Grommet)
Movement Type	Rotate, Swivel, Tilt, Articulating
Brand	MOUNTUP
Material	Alloy Steel
Color	White
Compatible Devices	Monitor
Maximum Tilt Angle	90 Degrees (±90°)
Maximum Supported Screen Size	32 Inches
Minimum Supported Screen Size	17 Inches
Item Weight (Mount Only)	15.85 Pounds
Load Capacity Per Arm	4.4-19.8 lbs (2-9 kg)
VESA Compatibility	75x75mm, 100x100mm
C-Clamp Desk Thickness	0.39''-3.15'' (10-80mm)
Grommet Desk Thickness & Hole Diameter	Thickness: 0.39''-1.97'' (10-50mm), Hole Diameter: 0.39''-3.15'' (10-80mm)

9. Troubleshooting

If you encounter issues with your MOUNTUP Triple Monitor Mount, please refer to the following common solutions:

Monitor Sags or Won't Stay Up: Adjust the gas spring tension. Turn the screw counter-clockwise ('+') to increase tension for heavier monitors. Ensure the monitor weight is within the specified range (4.4-19.8 lbs per arm).
Monitor Floats Up or Won't Stay Down: Adjust the gas spring tension. Turn the screw clockwise ('-') to reduce tension for lighter monitors.
Monitors Are Not Level: Check that the VESA plates are securely attached and that the arms are properly aligned on the pole. Minor adjustments can be made by slightly loosening and re-tightening the VESA plate screws or arm clamps.
Mount Feels Unstable: Ensure the C-clamp or grommet mount is tightened securely to the desk. If using a C-clamp on a thin table, consider using a reinforcement plate (not included) to prevent damage and improve stability.
Difficulty Adjusting Movement: Check all pivot points and ensure they are not overtightened. Lubrication may be applied to moving parts if necessary, following manufacturer guidelines.

10. Warranty and Customer Support

The MOUNTUP Triple Monitor Mount MU8004 is backed by a MOUNTUP 3-year support warranty. This warranty covers defects in materials and workmanship under normal use.

For any questions, concerns, or assistance with your product, please do not hesitate to contact MOUNTUP customer support. Our team is available to provide friendly and knowledgeable assistance.

Please retain your proof of purchase for warranty claims.

MOUNTUP MU8004
