Vivi Z8 Folding Electric Bicycle Ebike

User Manual

Introduction

Welcome to the world of electric cycling with your new Vivi Z8 Folding Electric Bicycle. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your ebike. Please read it thoroughly before your first ride to ensure a safe and enjoyable experience.

Vivi Z8 Folding Electric Bicycle in its full form, with a smaller folded version in the top right corner.

Figure 1: Vivi Z8 Folding Electric Bicycle (Unfolded and Folded)

The Vivi Z8 is a versatile folding electric bicycle designed for adults and teens, offering a convenient and efficient mode of transportation. It features a 350W motor, a 48V 20Ah removable lithium-ion battery, and a single-speed Shimano gear system, providing a top speed of 20 Mph.

Safety Guidelines

Your safety is paramount. Adhere to the following guidelines to prevent accidents and ensure a safe riding experience:

  • Always wear a certified helmet that fits properly.
  • Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
  • Perform a pre-ride inspection before each use, checking brakes, tires, battery level, and all quick-release mechanisms.
  • Do not ride under the influence of alcohol or drugs.
  • Be aware of your surroundings and ride defensively, anticipating potential hazards.
  • Avoid riding in adverse weather conditions such as heavy rain, snow, or ice.
  • Ensure proper lighting is used when riding at dawn, dusk, or night.
  • Do not exceed the maximum weight recommendation of 220 pounds.

Components Overview

Understand the key components of your Vivi Z8 Ebike:

  • Frame: Lightweight and durable aluminum folding frame.
  • Motor: 350W powerful brushless motor, providing efficient propulsion.
  • Battery: 48V 20Ah removable Lithium-Ion battery, integrated into the frame for protection.
  • Brakes: Front and rear disc brakes for reliable stopping power.
  • Suspension: Features both front and rear shock absorption for a smoother ride.
  • Handlebars: Adjustable handlebars with an integrated LED display for controls and information.
  • Seat: Adjustable seat for rider comfort. Includes a rear rack for additional carrying capacity.
  • Pedals: Standard pedals for manual pedaling.
Close-up of the Vivi Z8 ebike's removable 48V 20Ah battery, highlighting its capacity and charging time.

Figure 2: Removable 48V 20Ah Lithium-Ion Battery

The removable battery provides up to 65 miles of pedal assist or 45 miles of pure electric drive on a single charge, with a charging time of 4-6 hours.

Detailed view of the 350W powerful brushless motor and drivetrain of the Vivi Z8 ebike.

Figure 3: 350W Brushless Motor

The 350W brushless motor delivers a top speed of 20 Mph and 65NM of max motor torque, ensuring efficient and powerful assistance.

Diagram showing the front and rear shock absorption systems on the Vivi Z8 ebike.

Figure 4: Front and Rear Shock Absorption

The dual suspension system enhances ride comfort by absorbing shocks from uneven terrain.

Setup

Your Vivi Z8 Ebike comes mostly pre-assembled. Follow these steps for final setup:

  1. Unfolding the Ebike:
    • Place the folded bike on a flat surface.
    • Turn on the safety lock and open the latch on the main frame hinge.
    • Carefully unfold the frame until it locks into place. Secure the latch and safety lock.
    • Unfold the handlebars and secure the stem latch.
  2. Handlebar Adjustment: Adjust the handlebar height to a comfortable riding position and secure it firmly.
  3. Seat Adjustment: Adjust the seat post height so your feet can comfortably touch the ground when stopped. Secure the quick-release lever.
  4. Pedal Installation: Attach the pedals to the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right. Ensure they are tightened securely.
  5. Initial Battery Charge: Before your first ride, fully charge the battery. Connect the charger to the battery port and then to a power outlet. The indicator light on the charger will change when fully charged.
Diagram illustrating the three steps to fold the Vivi Z8 ebike: turn on safety lock, open latch, fold secure latch.

Figure 5: Folding Mechanism

The Vivi Z8 is designed for easy folding, making it convenient for carrying and storage. Dimensions when folded are approximately 28.7 inches by 22.4 inches.

Operating Instructions

Learn how to operate your Vivi Z8 Ebike effectively:

  1. Power On/Off: Press and hold the power button on the LED display unit located on the handlebars to turn the bike on or off.
  2. LED Display: The display shows battery level, current speed, and selected riding mode.
  3. Riding Modes: Your Vivi Z8 offers three riding modes:
    • Regular Pedal: Ride the bike like a traditional bicycle without electric assistance.
    • Pedal Assist: The motor provides assistance as you pedal. Use the mode buttons on the display to select low, mid, or high levels of assistance.
    • Electric Throttle: Engage the throttle (typically a twist grip or thumb lever) for pure electric power without pedaling.
  4. Braking: Use the brake levers on the handlebars to engage the front and rear disc brakes. Apply both brakes simultaneously for optimal stopping power.
Diagram showing the three riding modes of the Vivi Z8 ebike: Regular Pedal, Pedal Assist, and Electric Throttle, along with the LED display and handlebar controls.

Figure 6: Three Riding Modes

The handlebar controls allow for easy switching between modes and monitoring of battery and speed.

Maintenance

Regular maintenance ensures the longevity and performance of your ebike:

  • Battery Care:
    • Charge the battery regularly, even if not in use, to maintain its health.
    • Avoid completely draining the battery.
    • Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
  • Tire Pressure: Check tire pressure before each ride. Maintain the recommended PSI (usually found on the tire sidewall) for optimal performance and safety.
  • Brake Inspection: Regularly inspect brake pads for wear and ensure brake levers provide firm and responsive braking. Adjust or replace as needed.
  • Chain Lubrication: Keep the chain clean and lubricated to ensure smooth operation and prevent rust.
  • General Cleaning: Clean your ebike with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
  • Fastener Checks: Periodically check all bolts, nuts, and quick-release levers to ensure they are securely tightened.

Troubleshooting

Here are solutions to common issues you might encounter:

ProblemPossible CauseSolution
Ebike does not power on.Battery not charged, battery not properly seated, power button not pressed correctly, fuse issue.Ensure battery is fully charged and securely installed. Press and hold the power button. Check battery fuse if accessible.
Motor not providing assistance.Low battery, wrong riding mode selected, brake levers engaged.Charge battery. Switch to Pedal Assist or Electric Throttle mode. Ensure brake levers are fully released.
Battery not charging.Charger not connected properly, faulty charger, faulty battery.Verify charger connections to battery and power outlet. Try a different outlet. If issue persists, contact customer support.
Brakes feel weak or spongy.Worn brake pads, loose brake cable, air in hydraulic system (if applicable).Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. For hydraulic brakes, professional service may be required.

Specifications

FeatureDetail
Bike TypeElectric Bike
Model NameVIVI-Z8
Age Range (Description)Adult
BrandVivi
Number of Speeds1 (Single Speed Drivetrain)
Wheel Size14 Inches
Frame MaterialAluminum
Suspension TypeRear, Front
Included ComponentsFolding bike, seat, pedals, handlebars, front fork, rear rack
Brake StyleDisc
Item Weight57 Pounds
Power SourceElectric motor (rechargeable battery)
Wattage350W
Lithium Battery Energy Content230.4 Watt Hours (48V 20Ah)
Maximum Weight Recommendation220 Pounds
Item Dimensions LxWxH (Unfolded)50.4 x 9.4 x 38.2 inches
Assembly RequiredNo (Minor assembly required)
UPC762053248999

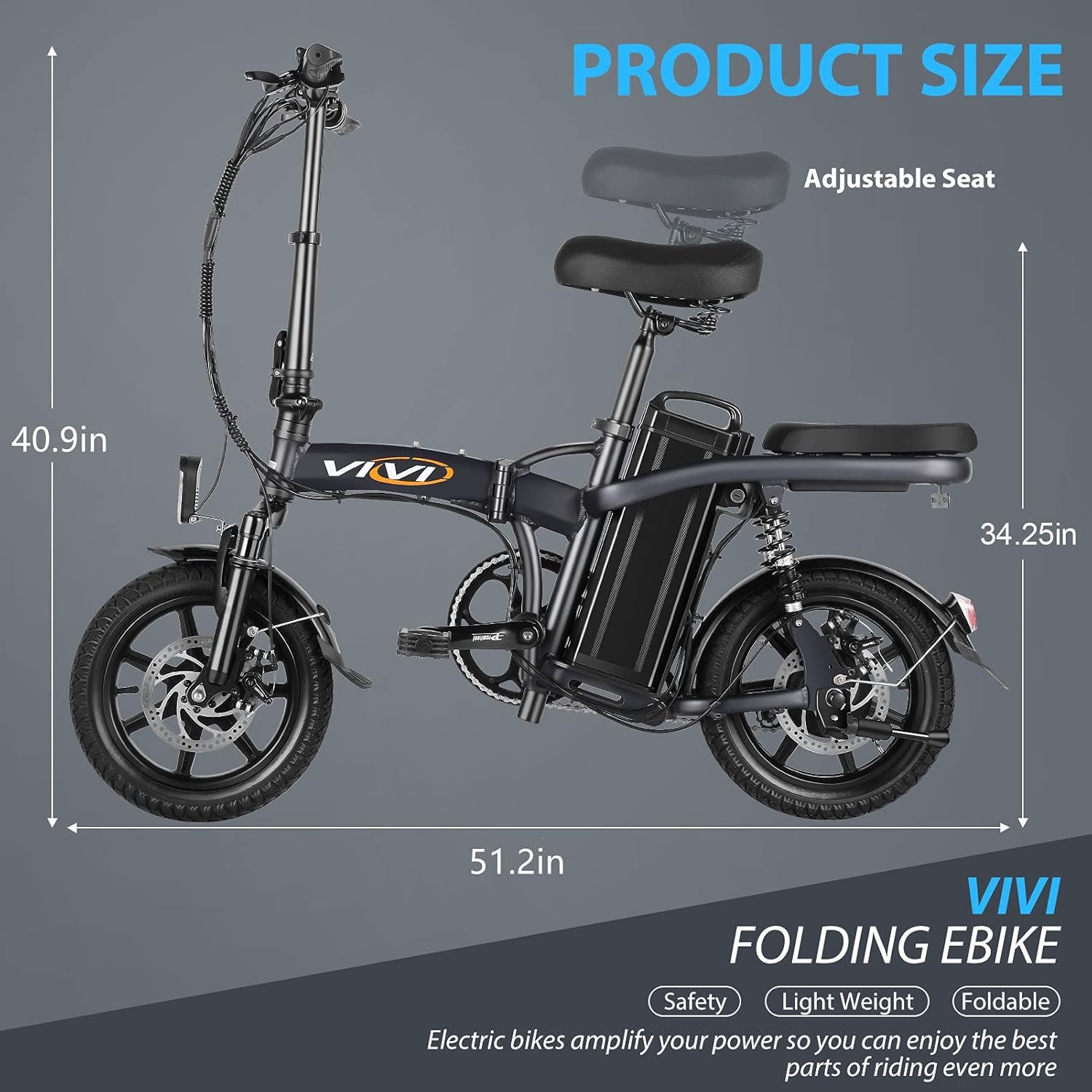

Diagram showing the dimensions of the Vivi Z8 Folding Electric Bicycle when unfolded.

Figure 7: Product Dimensions (Unfolded)

The ebike measures approximately 51.2 inches in length and 40.9 inches in height when unfolded, with an adjustable seat.
