1. Introduction
Thank you for choosing the Devoko Patio Bar Stools Set of 2. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor furniture. Please read these instructions thoroughly before assembly and retain them for future reference.
2. Safety Information
- Weight Capacity: Each bar stool is designed to support a maximum weight of 300 pounds (136 kg). Do not exceed this limit.
- Stable Surface: Always place the bar stools on a flat, stable, and level surface to prevent tipping.
- Assembly: Ensure all bolts and fasteners are securely tightened before use. Periodically check and retighten as necessary.
- Children: Keep children away from the assembly area. Do not allow children to climb or play on the stools unsupervised.
- Environmental Conditions: While designed for outdoor use, prolonged exposure to extreme weather conditions, such as heavy rain, snow, or intense humidity, may affect the product's longevity. Consider covering or storing the stools during adverse weather.
- Moving: Do not drag the stools. Lift them to move to prevent damage to the legs or frame.
3. Package Contents
Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- 2 x Patio Bar Chairs (unassembled)
- Hardware Pack (bolts, washers, nuts, Allen wrench)
- Instruction Manual
Image: Two fully assembled Devoko patio bar stools, showcasing their design and beige textile fabric.
4. Assembly Instructions
Assembly is required for this product. It is recommended to have two people for easier and quicker assembly. Please refer to the detailed Installation Manual (PDF) for visual guidance.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent scratches.
- Identify Parts: Refer to the parts list in the separate PDF manual to identify each component.
- Assemble Base: Attach the leg frames together using the provided hardware. Do not fully tighten bolts until all components are loosely assembled.
- Attach Seat and Backrest: Secure the seat and backrest to the assembled base. Ensure proper alignment.
- Install Swivel Mechanism: Connect the swivel plate to the seat and the base according to the PDF instructions.
- Adjusting Knob: Each bar stool is equipped with an adjusting knob to ensure the legs are even and stable after assembly. Turn the knob as needed to eliminate any wobbling.
- Final Tightening: Once all parts are correctly aligned and loosely assembled, gradually tighten all bolts securely using the Allen wrench. Do not overtighten.
Image: A diagram illustrating the dimensions of a single Devoko bar stool, including height, width, and depth measurements.
5. Operating Instructions
The Devoko Patio Bar Stools are designed for comfortable outdoor seating.
- Swivel Function: The chairs feature a 360-degree swivel function for ease of movement and enhanced comfort. Simply rotate the seat in any direction.
- Footrest: Utilize the integrated metal bar footrest for added comfort and support, allowing you to rest your feet while seated.
- Placement: These stools are suitable for various outdoor settings such as patios, lawns, gardens, backyards, porches, courtyards, or poolside areas. They can also be used indoors if desired.
Image: Close-up showing the 360-degree swivel function with directional arrows and the comfortable footrest design.
6. Maintenance
Proper care will extend the life and appearance of your Devoko bar stools.
- Cleaning: Wipe with a dry cloth to remove dust and light debris. For more stubborn dirt, use a damp cloth with mild soap and water, then dry thoroughly. Avoid harsh chemicals or abrasive cleaners.
- Fabric Care: The Textilene mesh fabric is breathable and quick-drying. Clean spills promptly to prevent staining.
- Frame Care: The steel frame is rust and weather-resistant. Inspect the frame periodically for any signs of rust or damage. Touch up any scratches with appropriate outdoor paint to prevent rust.
- Hardware: Regularly check all bolts and nuts to ensure they remain tight. Retighten as needed to maintain stability.
- Storage: During off-season or prolonged periods of non-use, store the stools in a dry, protected area or cover them with suitable outdoor furniture covers to protect against elements.

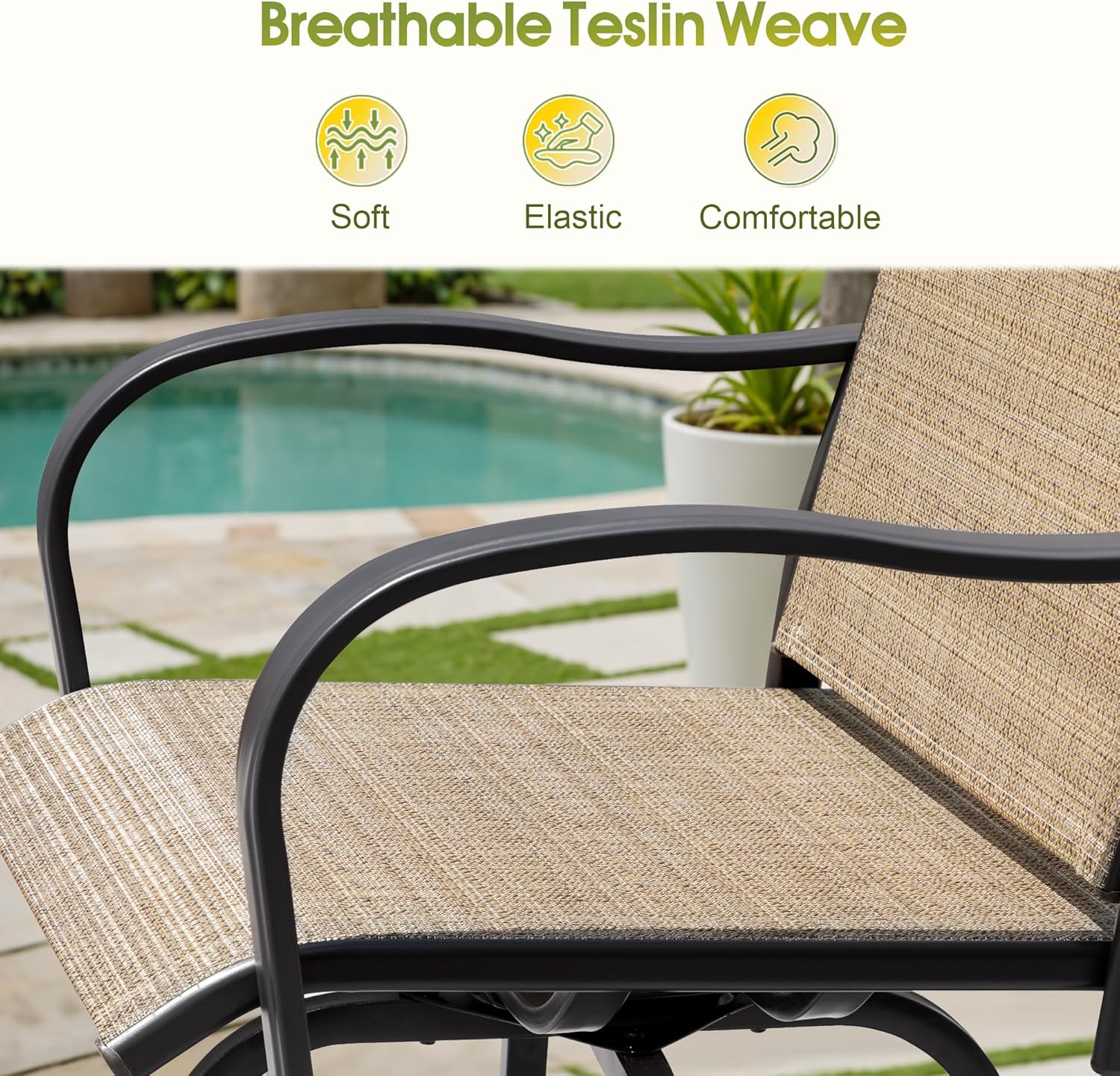

Image: A close-up view highlighting the breathable Teslin weave fabric, emphasizing its soft, elastic, and comfortable properties.
7. Troubleshooting
If you encounter any issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Stool is wobbly or uneven. | Loose hardware; uneven floor; adjusting knob not set. | Ensure all bolts are tightened. Adjust the leveling knob on the legs. Move to a level surface. |
| Difficulty during assembly. | Parts misalignment; bolts not starting correctly. | Do not fully tighten any bolts until all parts are loosely assembled. Refer to the PDF manual for detailed diagrams. Ensure correct orientation of parts. |
| Swivel mechanism is stiff. | Lack of lubrication; debris in mechanism. | Clean the swivel plate area. Apply a silicone-based lubricant if necessary (avoid oil-based lubricants that attract dirt). |
8. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 26.5"D x 24"W x 52"H |
| Seat Height | 30 Inches |
| Color | Beige |
| Brand | Devoko |
| Model Number | VCD-20H0BG |
| Material | Steel frame / Textilene mesh fabric |
| Maximum Weight Recommendation | 300 Pounds |
| Assembly Required | Yes |
| Number of Pieces | 2 |
| Item Weight | 49.4 pounds (total for set) |
9. Warranty & Support
Devoko products are manufactured with quality and care. For specific warranty details or support inquiries, please refer to the documentation included with your purchase or visit the official Devoko Store on Amazon.
For assistance with assembly or any product-related questions, please contact Devoko customer service.
