YardLine Sky Climber II Playset

1. Introduction

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your YardLine Sky Climber II Playset. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This playset is designed for outdoor residential use only.

2. Safety Information

Your safety and the safety of others are paramount. Failure to follow these instructions can result in serious injury or property damage.

2.1 General Safety Guidelines

• Adult supervision is required at all times when children are using the playset.
• Ensure the playset is installed on level ground, at least 6 feet (1.8 meters) from any structures or obstructions such as fences, garages, houses, overhanging branches, or laundry lines.
• Install appropriate protective surfacing (e.g., wood chips, sand, rubber mulch) under and around the playset to absorb falls. Refer to consumer product safety commission guidelines for recommended depths.
• Regularly inspect all components for wear, damage, or loose connections. Tighten all hardware securely before each use.
• Do not allow children to wear loose-fitting clothing, scarves, or clothing with drawstrings that could become entangled in playset components.
• Maximum weight capacity for individual components (swings, slide) must not be exceeded.
• Do not modify the playset in any way. Use only manufacturer-approved replacement parts.

2.2 Age and User Restrictions

This playset is intended for children aged 3-10 years. A maximum of 6 children should use the playset simultaneously, with no more than one child per swing or slide component.

3. Parts List

Before assembly, verify that all components listed in your product packaging are present and undamaged. Common components include:

• Pre-cut and pre-drilled cedar lumber components
• Slide sections (typically plastic)
• Swing seats and chains
• Climbing wall rocks/handles
• Steering wheel, telescope, and other accessories
• Hardware kit (bolts, nuts, washers, screws, anchors)
• Assembly tools (Allen wrenches, drill bits, etc.)

Figure 1: Overview of the YardLine Sky Climber II Playset in an outdoor setting, showing various play features including a slide, swings, and a climbing wall, with children actively engaged.

4. Setup and Assembly Instructions

Assembly of the Sky Climber II Playset requires at least two adults and several hours. Follow the step-by-step instructions provided in the separate assembly guide included with your product packaging. Ensure all safety warnings are observed during assembly.

4.1 Site Preparation

• Select a level, well-drained area for installation.
• Clear the area of any rocks, stumps, or other potential hazards.
• Establish the safety perimeter (minimum 6 feet clear zone around all sides).

4.2 Assembly Steps (General)

1. Unpack all components and organize them according to the parts list.
2. Assemble the main tower structure, ensuring all bolts are finger-tight initially.
3. Attach the slide, swings, and climbing features.
4. Once the main structure is complete and stable, fully tighten all hardware using appropriate tools. Do not overtighten.
5. Install ground anchors as specified in the assembly guide to secure the playset.
6. Apply protective surfacing material around the playset.

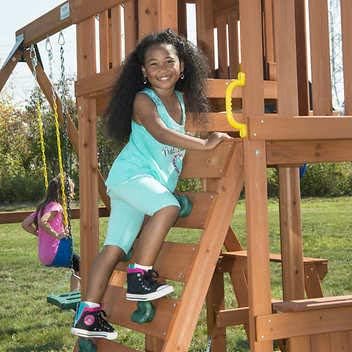

Figure 2: A child ascending the playset's ladder, demonstrating the climbing feature. Ensure all climbing holds and steps are securely fastened during assembly.

5. Operating Instructions (Usage)

To ensure a safe and enjoyable experience, instruct children on the proper use of each playset component.

5.1 Slide Usage

• Slide feet first, sitting upright.
• Ensure the landing area is clear before sliding.
• Only one child should use the slide at a time.

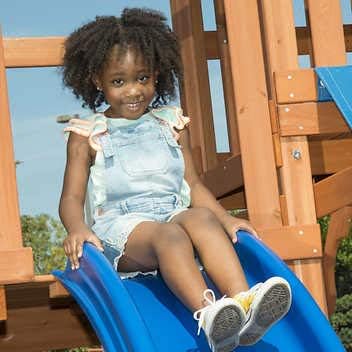

Figure 3: A child seated at the top of the playset slide, ready to descend. Emphasize proper sliding posture and ensuring the landing area is clear.

5.2 Swing Usage

• Sit in the center of the swing seat.
• Do not twist chains or swing empty seats.
• Maintain a safe distance from other children.

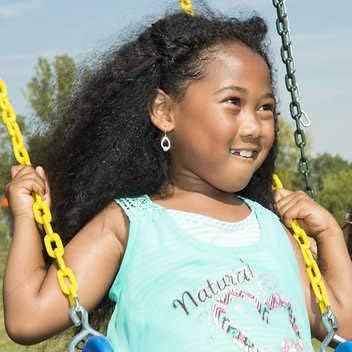

Figure 4: A child enjoying a swing on the playset. Remind users to hold on firmly and avoid excessive swinging that could endanger others.

5.3 Accessory Usage

• Steering wheels and telescopes are for imaginative play; they do not provide actual steering or magnification.
• Ensure children do not hang from or misuse accessories.

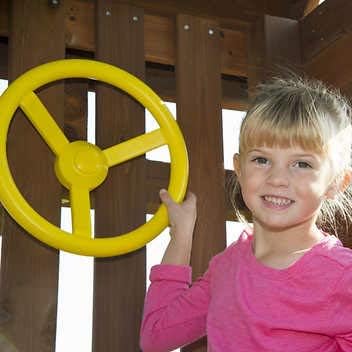

Figure 5: A child interacting with the playset's steering wheel. These accessories are designed for imaginative play and should not be used for support.

Figure 6: A child looking through the playset's mounted telescope. This accessory is for pretend play and does not offer actual magnification.

6. Maintenance

Regular maintenance is crucial for the longevity and safety of your playset.

6.1 Daily/Weekly Checks

• Inspect for any loose hardware, sharp edges, or protruding bolts. Tighten or replace as needed.
• Check for debris or foreign objects in the play area.

6.2 Monthly Checks

• Examine all wood components for cracks, splinters, or signs of rot. Sand down splinters or replace damaged parts.
• Check swing chains, ropes, and hangers for wear or corrosion. Replace if necessary.
• Ensure ground anchors are secure and playset is stable.
• Rake and replenish protective surfacing material to maintain adequate depth.

6.3 Annual Maintenance

• Apply a water-repellent stain or sealant to the cedar wood to protect against weathering and prolong its life.
• Thoroughly clean all plastic components with mild soap and water.

7. Troubleshooting

This section addresses common issues you might encounter with your playset.

7.1 Loose Hardware

Symptom: Bolts or screws appear loose, or components wobble.
Solution: Use appropriate tools to tighten all hardware. Do not overtighten. If hardware is stripped or damaged, replace it immediately.

7.2 Squeaky Swings

Symptom: Swings produce a squeaking noise during use.
Solution: Apply a small amount of lubricant (e.g., silicone spray or graphite) to the swing hangers and chain connections. Avoid oil-based lubricants that can attract dirt.

7.3 Wood Splinters

Symptom: Rough spots or splinters on wood surfaces.
Solution: Carefully sand down any rough areas or splinters. For larger splinters or damaged wood, consider replacing the affected component.

8. Specifications

9. Warranty Information

The YardLine Sky Climber II Playset comes with a manufacturer's limited warranty covering defects in materials and workmanship. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

10. Customer Support

For technical assistance, missing parts, or warranty inquiries, please contact YardLine customer service. Refer to your product packaging or the manufacturer's website for current contact information.
