Product Overview
Key Features
- Durable Construction
- Ideal for small to medium inflatables
- Manual Hand Operation
- Versatile for various inflatables including resistance balls, air mattresses, and pool floats.
- Designed for personal, non-commercial use.
Setup Guide
Unpacking and Component Identification
Upon opening the package, identify the main pump body, the flexible hose, and the various nozzle attachments. Ensure all components are present and undamaged.

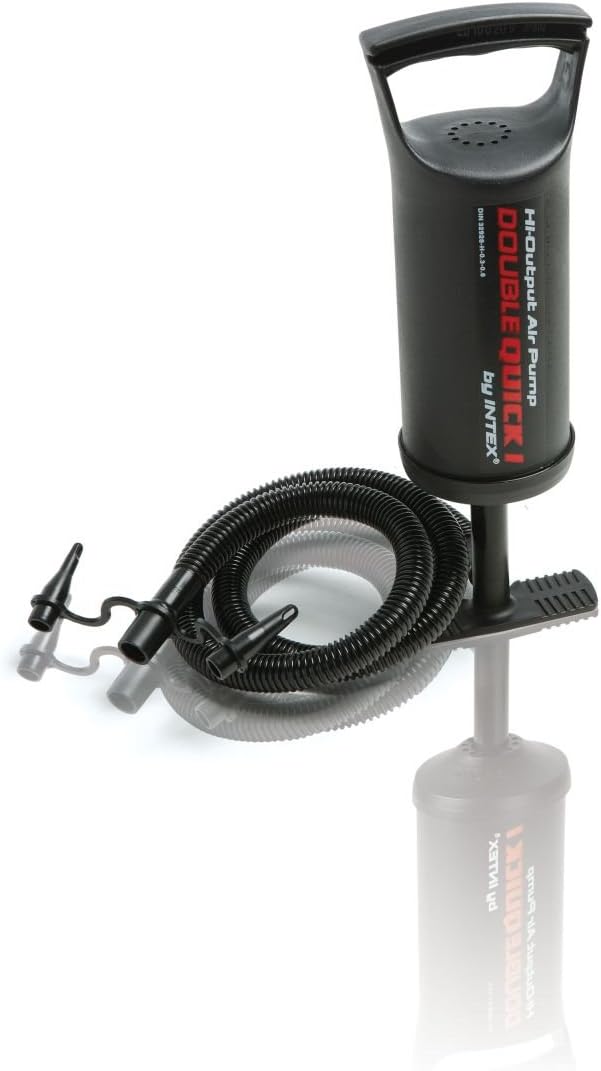

Figure 1: Intex Double Quick Hand Pump with hose and nozzles.
Attaching the Hose
The pump features dual ports for both inflation and deflation. These ports are typically located at the top and bottom of the pump cylinder.
- For inflation, securely connect the flexible hose to the port located at the top of the pump.
- For deflation, securely connect the flexible hose to the port located at the bottom of the pump.
Selecting the Correct Nozzle
The pump includes multiple nozzle attachments designed to fit various valve sizes on different inflatables.
- Choose the nozzle that best fits the air valve of the item you intend to inflate or deflate.
- Firmly attach the selected nozzle to the free end of the flexible hose.

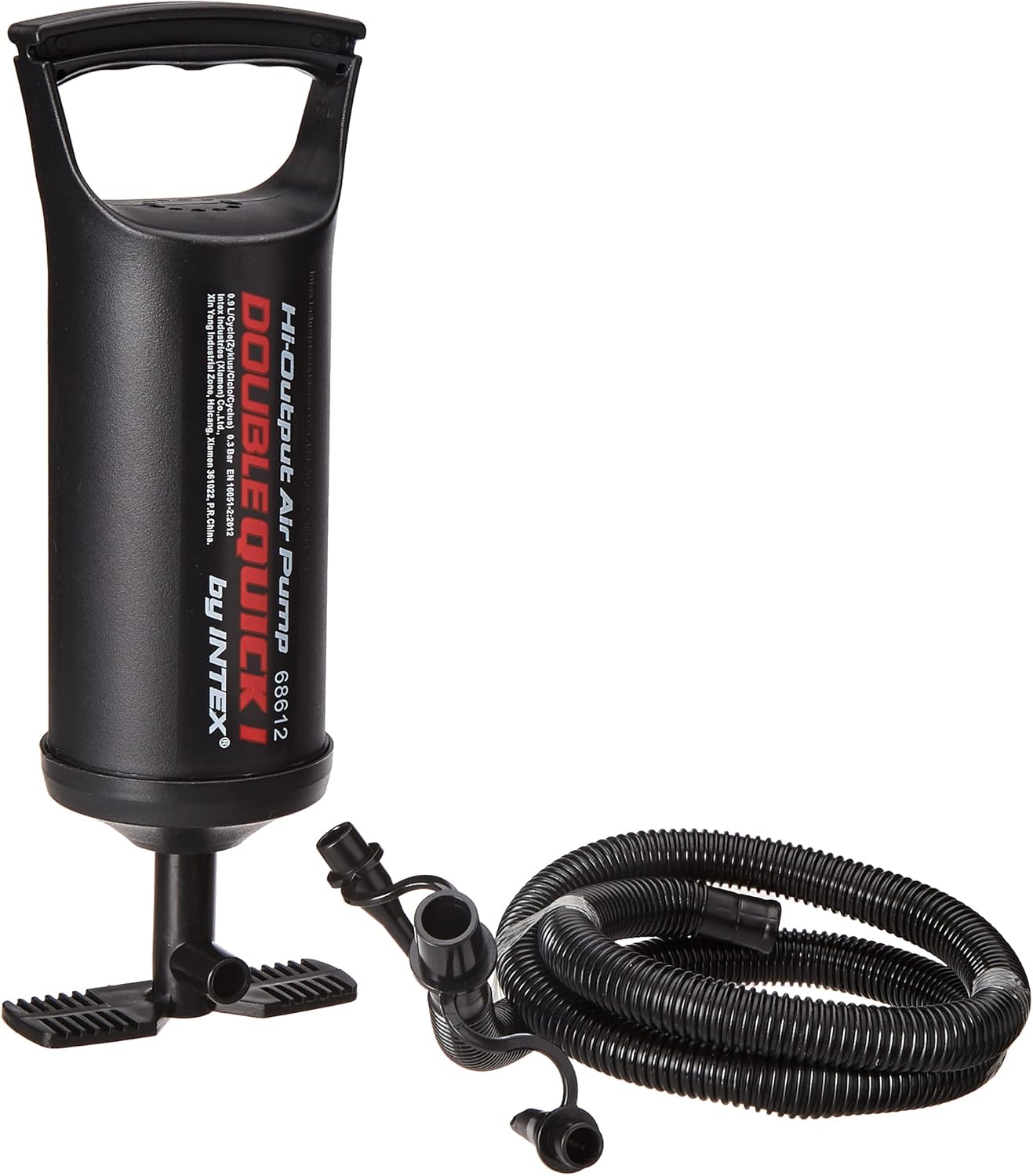

Figure 2: Intex Double Quick Hand Pump showing hose and nozzle attachments.
Operating Your Pump
Inflation
- Ensure the hose is connected to the inflation port (top of the pump).
- Insert the selected nozzle firmly into the inflatable's air valve.
- Place your feet on the footrests at the base of the pump for stability.
- Grip the handle and move it up and down in a steady, continuous motion. The pump is designed to inflate on both the upstroke and downstroke, providing efficient air flow.
- Continue pumping until the inflatable reaches the desired firmness. Do not over-inflate.
- Remove the nozzle from the valve and securely close the inflatable's air cap.
Video: Demonstration of the Intex Double Quick Hand Pump's inflation and deflation capabilities, including nozzle attachment.
Deflation
- Connect the flexible hose to the deflation port (bottom of the pump).
- Insert the appropriate nozzle firmly into the inflatable's air valve.
- Move the handle up and down. The pump will draw air out of the inflatable, assisting in quick deflation for compact storage.
- Continue until the inflatable is sufficiently deflated.
- Remove the nozzle and securely close the inflatable's air cap.
Care and Maintenance
- After each use, wipe down the pump with a damp cloth to remove any dirt or debris.
- Ensure the hose and nozzles are clean and free of obstructions.
- Store the pump in a cool, dry place away from direct sunlight and extreme temperatures to prolong its lifespan.
- Avoid exposing the pump to harsh chemicals or abrasive cleaners.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not inflating/deflating efficiently | Loose hose connection | Ensure hose is securely attached to the correct port (inflation or deflation) and the nozzle is firmly in the valve. |
| Air leaking from nozzle connection | Incorrect nozzle size or worn seal | Try a different nozzle size. Check for damage to the nozzle or hose seal. |
| Handle is stiff or difficult to move | Internal friction or debris | Ensure the pump shaft is clean. A small amount of silicone-based lubricant can be applied to the shaft if needed (avoid petroleum-based lubricants). |
If issues persist, contact Intex customer support for further assistance.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Intex |
| Model Name | Double Quick |
| Model Number | 68612E |
| Size | 11 1/2 in (29cm) |
| Color | Black |
| Material | Plastic |
| Item Weight | 0.83 Pounds |
| Product Dimensions | 4.29"L x 4.25"W x 12.28"H |
| Power Source | Manual |
| Operation Mode | Manual |
| Maximum Pressure | 0.56 Bars |
| Included Components | Air Pump, multiple nozzle attachments |
Warranty Information
According to product specifications, this item is sold without a manufacturer's warranty. For specific return or guarantee policies, please refer to your point of purchase.
Safety Information
- Do not use the pump near open flames or heat sources.
- Keep out of reach of children when not in use.
- Do not attempt to inflate objects beyond their recommended pressure.
- Use only the provided nozzles and hose.
- Avoid prolonged exposure to direct sunlight or extreme weather conditions.
- This pump is designed for air inflation/deflation only. Do not use for other gases or liquids.
Legal Disclaimer
The information provided in this manual is for general guidance only. Intex Recreation Corp. is not responsible for any damages or injuries resulting from improper use of this product.
Note: A specific seller's disclaimer states "Private sale, no guarantee or return possible." This may apply depending on your purchase source.
