Introduction
Thank you for choosing the CREATE WINDSTYLANCE Ceiling Fan. This manual provides essential information for the safe and efficient operation of your new ceiling fan. Please read it thoroughly before installation and use, and keep it for future reference.
The CREATE WINDSTYLANCE ceiling fan is designed to provide optimal air circulation with its powerful yet quiet DC motor. Featuring six speed settings, a programmable timer, and reversible blades for summer and winter operation, it ensures comfort throughout the year. This model comes with dark wood blades and is controlled via a convenient remote.
Safety Information
Always follow basic safety precautions when installing and operating electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Ensure the power supply is disconnected before installation or maintenance.
- Installation must be performed by a qualified electrician.
- Mount the fan securely to a ceiling joist or a structure capable of supporting the fan's weight.
- Maintain a minimum clearance of 2.3 meters (7.5 feet) from the floor to the fan blades.
- Do not insert objects into the path of the rotating blades.
- Keep children and pets away from the fan during operation.
- Use only the remote control provided with the fan.
Package Contents
Verify that all components are present before beginning installation:
- Ceiling Fan Motor Assembly
- Fan Blades (3x Dark Wood)
- Mounting Bracket
- Downrods (15 cm and 25 cm)
- Canopy
- Remote Control
- Remote Control Holder
- Hardware Kit (screws, washers, wire nuts)
- User Manual
Image: The CREATE WINDSTYLANCE ceiling fan with dark wood blades and its accompanying remote control.
Setup and Installation
Proper installation is crucial for the safe and efficient operation of your ceiling fan. Please follow these steps carefully. If you are unsure about any step, consult a qualified electrician.
1. Pre-Installation Check
- Turn off power at the circuit breaker.
- Ensure the mounting location can support the fan's weight (approx. 7.05 kg).
- Verify that the ceiling box is securely attached to the building structure.
2. Mounting the Bracket
Attach the mounting bracket to the ceiling electrical box using the screws provided. Ensure it is firmly secured.
3. Assembling the Downrod and Fan Motor
Choose the appropriate downrod (15 cm or 25 cm) based on your ceiling height and desired fan clearance. The fan comes with two mounting rods of 15 and 25 cm, allowing for installation at the most suitable distance from the ceiling.
Image: Diagrams illustrating the fan installation with both the 15 cm and 25 cm downrods, showing the resulting fan height from the ceiling.
Feed the electrical wires from the fan motor through the chosen downrod. Secure the downrod to the fan motor assembly.
4. Wiring the Fan
Carefully connect the fan's electrical wires to the household wiring according to the wiring diagram in the full manual. Use wire nuts to secure connections. Ensure all connections are tight and properly insulated.
5. Attaching the Fan Blades
Attach each fan blade to the motor housing using the provided screws. Ensure all screws are tightened securely.

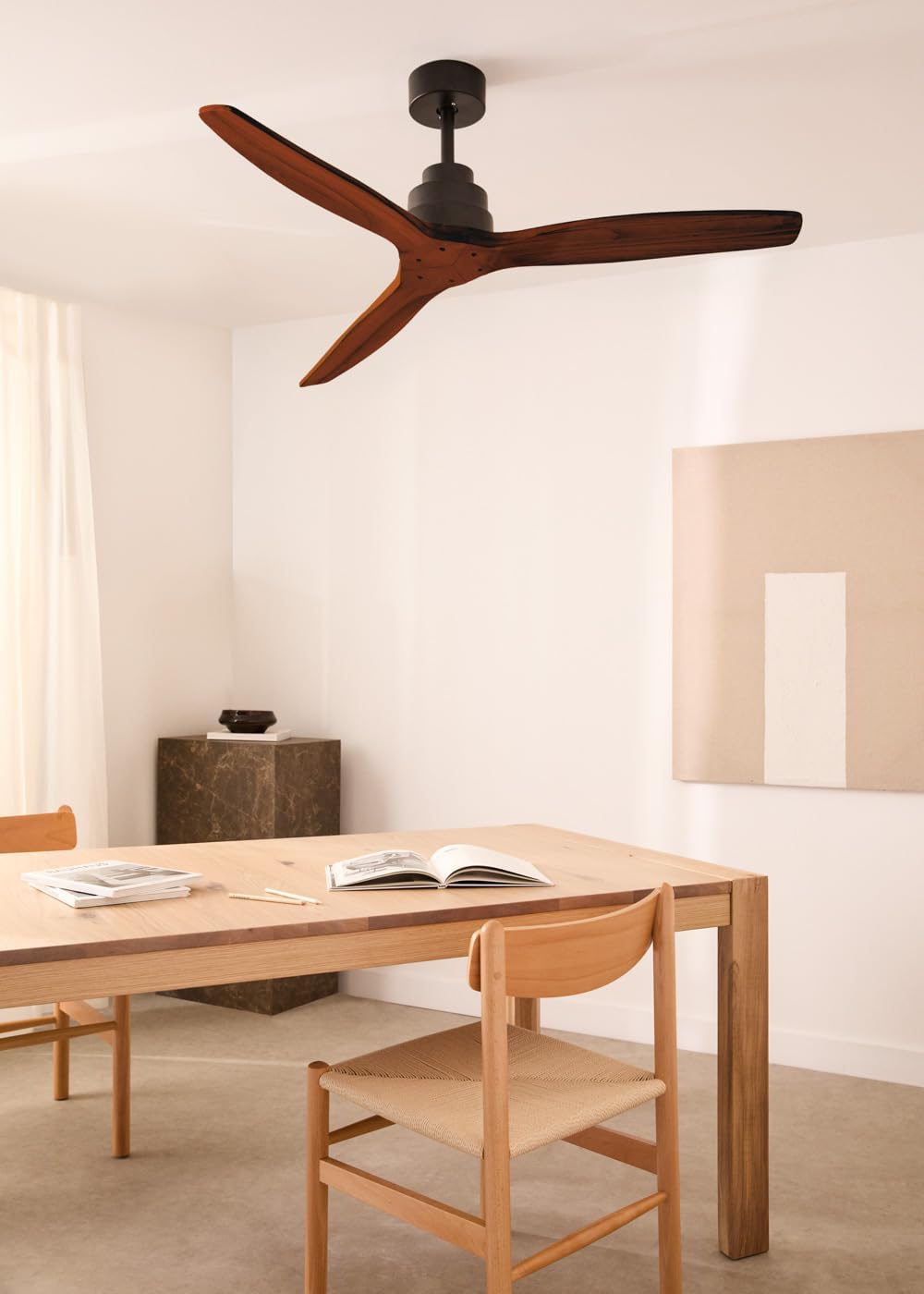

Image: The CREATE WINDSTYLANCE ceiling fan with dark wood blades installed in a contemporary living space, demonstrating its aesthetic integration.
6. Final Assembly
Lift the fan assembly and hang it on the mounting bracket. Secure the canopy to cover the wiring connections. Restore power at the circuit breaker.
Operating Instructions
Your CREATE WINDSTYLANCE ceiling fan is operated using the included remote control.
Remote Control Functions
Image: The remote control for the fan, highlighting buttons for power, speed settings (1-6), timer (1H, 2H, 4H), and summer/winter mode.
- Power Button: Turns the fan On/Off.
- Speed Control (1-6): Adjusts the fan speed. Level 1 is the lowest, 6 is the highest. An efficient and durable motor has six speed levels that generate different airflows, so you can always select the appropriate air circulation rate.
- Timer (1H, 2H, 4H): Sets the fan to automatically turn off after 1, 2, or 4 hours. You can program its timer from 1 to 4 hours, so it automatically switches off after the selected time.
- Summer/Winter Mode: Changes the direction of blade rotation.
Summer Mode Operation
In summer mode, the fan blades rotate counter-clockwise, pushing cool air downwards. This creates a wind-chill effect, making the room feel cooler and dissipating heat.
Image: Diagram illustrating the airflow pattern in summer mode, where the fan pushes air downwards to create a cooling effect.
Winter Mode Operation
In winter mode, the fan blades rotate clockwise, drawing cool air upwards and pushing warm air (which rises to the ceiling) downwards. This helps to evenly distribute heat throughout the room, improving heating efficiency.
Image: Diagram illustrating the airflow pattern in winter mode, where the fan draws air upwards to circulate warm air downwards.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan.
- Cleaning: Dust the fan blades and motor housing regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Tightening Screws: Periodically check and tighten all screws on the fan blades and mounting bracket to prevent wobbling and noise.
- Blade Balance: If the fan wobbles, ensure all blades are securely attached and balanced. A balancing kit (not included) may be used if necessary.
Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Loose wiring; Remote control battery dead. | Check circuit breaker; Verify wiring connections; Replace remote control battery. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use a balancing kit; Ensure mounting bracket is secure. |
| Noisy operation | Loose screws; Motor issues; Blades hitting an obstruction. | Check and tighten all screws; Ensure no obstructions; If motor noise persists, contact support. The unique design of the ultra-light blades combined with the highly efficient DC motor generates hardly any noise. |
| Remote control not working | Dead battery; Remote not paired; Obstruction between remote and receiver. | Replace battery; Refer to pairing instructions in the full manual; Remove obstructions. |
Specifications
| Feature | Specification |
|---|---|
| Brand | CREATE |
| Model Number | 83190_167452 |
| Product Diameter | 132 cm |
| Product Weight | 7.05 Kilograms |
| Motor Type | DC Motor |
| Number of Speeds | 6 |
| Timer Function | 1, 2, 4 hours |
| Operation Modes | Summer / Winter |
| Noise Level | 50 dB |
| Power Source | Corded Electric |
| Included Components | Cord, Remote Control |
| Room Type | Bedroom (Recommended) |
| Finish Type | Painted |
Image: Technical diagram of the fan, indicating its 132 cm diameter and suitability for rooms between 10m² and 25m².
Warranty and Support
For warranty information and customer support, please refer to the contact details provided in your product packaging or visit the official CREATE website. Keep your purchase receipt as proof of purchase for any warranty claims.
If you require further assistance or have questions not covered in this manual, please contact CREATE customer service.
