DELINIA Thomas Kitchen Faucet with Pull-Out Spray

Introduction

Thank you for choosing the DELINIA Thomas Kitchen Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read this manual thoroughly before installation and keep it for future reference.

A front view of the DELINIA Thomas kitchen faucet, showcasing its modern chrome finish, high-arc design, and integrated pull-out spray head with a flexible spring hose.

The DELINIA Thomas kitchen faucet seamlessly integrated into a contemporary kitchen setting with a wooden countertop and stainless steel sink.

Safety Instructions

Always follow basic safety precautions when installing or maintaining plumbing fixtures:

• Ensure water supply is turned off before beginning installation.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection.
• If you are unsure about any part of the installation, consult a qualified plumber.
• Do not use abrasive cleaners or harsh chemicals on the faucet's surface.
• Keep small parts away from children.

Package Contents

Verify that all components are present before beginning installation:

• DELINIA Thomas Kitchen Faucet body with pull-out spray
• Mounting hardware (plastic supports, fixing material)
• Connection hoses
• Sealing gaskets
• User Manual (this document)

An overhead view displaying all parts included in the faucet package: the main faucet body with its spring hose, two flexible connection hoses, mounting nut, plastic support, rubber gasket, and a small red tool.

Installation Guide

Pre-Installation

1. Turn off the main water supply to your kitchen sink.
2. Clear the area under the sink for easy access.
3. Ensure the mounting hole on your sink or countertop is compatible with a single-hole installation. Refer to the technical drawing for dimensions.

Installation Steps

1. Insert the faucet body into the mounting hole on the sink or countertop.
2. From underneath the sink, place the rubber gasket, plastic support, and then the metal fixing material onto the threaded rod of the faucet.
3. Secure the faucet by tightening the mounting nut. Ensure the faucet is properly aligned before fully tightening.
4. Connect the hot and cold water supply lines to the corresponding inlets on the faucet. The connection hoses are included.
5. Connect the pull-out spray hose to the designated connection point on the faucet body.
6. Attach the counterweight (if included and not pre-installed) to the pull-out spray hose, typically below the sink, to ensure smooth retraction.
7. Once all connections are secure, slowly turn on the main water supply and check for leaks.

A detailed technical diagram showing the dimensions of the DELINIA Thomas kitchen faucet, including height, spout reach, and mounting hole requirements, crucial for proper installation planning.

Operation

Water Flow and Temperature Control

The DELINIA Thomas faucet features a single lever handle for controlling both water flow and temperature. Move the lever up to increase flow and down to decrease it. Move the lever left for hot water and right for cold water.

Pull-Out Spray Functionality

The pull-out spray head offers two distinct jet types:

• Laminar Jet: Provides a smooth, splash-free stream, ideal for filling pots and general washing. This jet is designed to be very quiet.
• High-Pressure Jet: Delivers a powerful spray, perfect for rinsing stubborn food residues from dishes or cleaning fruits and vegetables.

To switch between jet types, press the button located on the spray head. The spray head retracts automatically thanks to its spring mechanism.

360° Rotation

The faucet body can rotate 360 degrees, providing maximum flexibility and reach for single or double sinks.

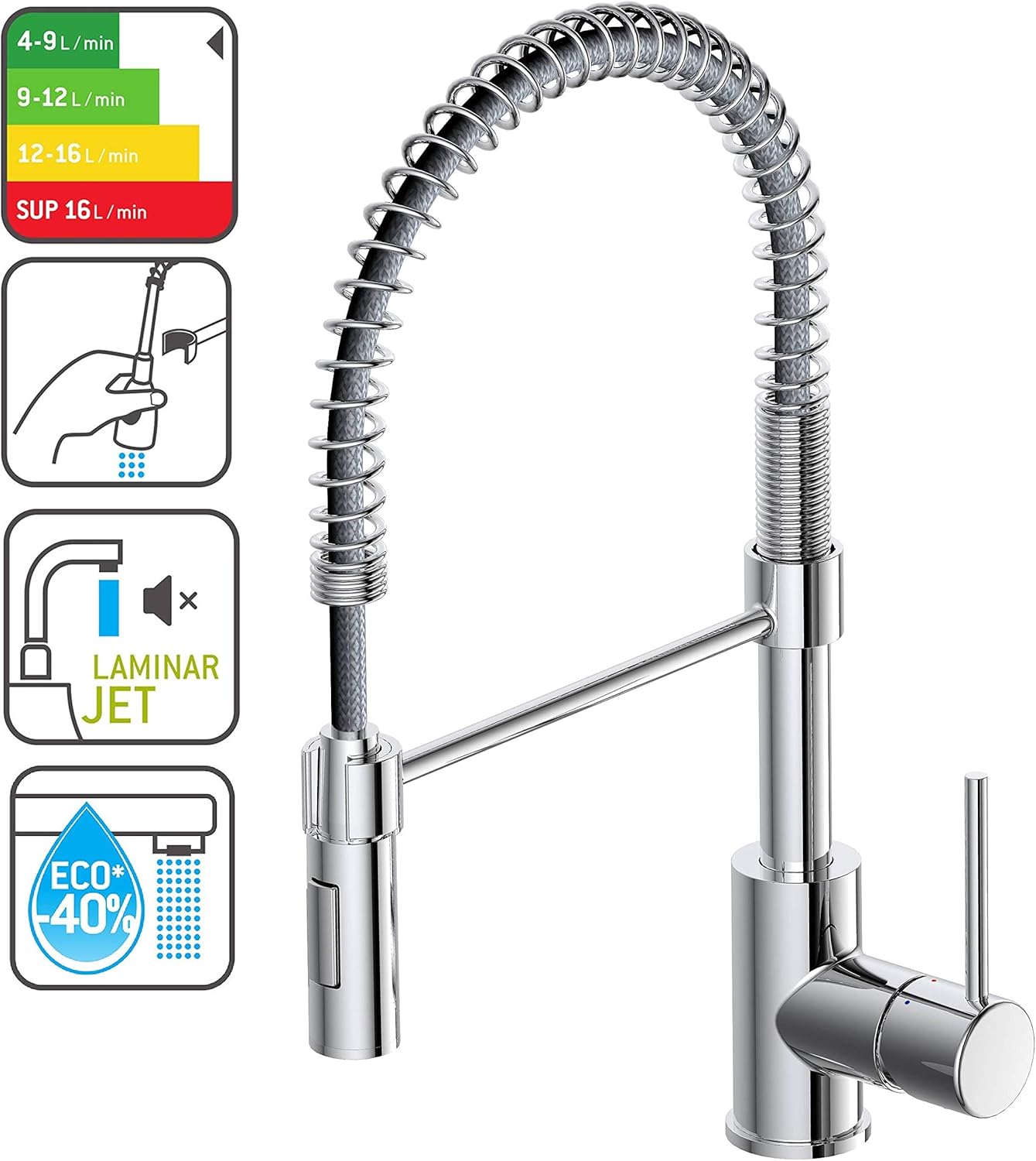

An image highlighting key features of the DELINIA Thomas faucet, including icons for water flow rates (4-9 L/min, 9-12 L/min, 12-16 L/min, >16 L/min), a visual of the pull-out spray, a 'Laminar Jet' icon indicating quiet operation, and an 'ECO -40%' icon for water saving.

The DELINIA Thomas kitchen faucet in operation, demonstrating water flowing from the pull-out spray head into a sink.

Maintenance and Care

Proper care will ensure the longevity and appearance of your DELINIA Thomas faucet:

• Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
• Avoid: Do not use abrasive cleaners, harsh chemicals, ammonia-based products, or scouring pads, as these can damage the chrome finish.
• Aerator Maintenance: Periodically unscrew the aerator from the spray head and clean any mineral deposits or debris. This helps maintain optimal water flow.
• Hose Inspection: Regularly inspect the pull-out hose for any signs of wear or damage.

Troubleshooting

Specifications

Warranty and Support

DELINIA products are manufactured to high-quality standards. For warranty information, technical support, or to order replacement parts, please contact DELINIA customer service through their official website or the retailer where the product was purchased.

Please retain your proof of purchase for warranty claims.
