DELINIA LOLA 360° Swivel Kitchen Faucet

1. Introduction

Thank you for choosing the DELINIA LOLA 360° Swivel Kitchen Faucet. This high-quality, chrome-plated brass faucet is designed for durability, ease of use, and aesthetic appeal in your kitchen. This manual provides essential information for safe installation, operation, and maintenance of your new faucet. Please read it thoroughly before installation and keep it for future reference.

Figure 1: DELINIA LOLA 360° Swivel Kitchen Faucet. This image shows the complete chrome-plated faucet with its curved spout and single lever handle.

2. Safety Information

• Always turn off the main water supply before beginning any installation or maintenance work.
• Ensure all connections are secure to prevent leaks.
• Do not use abrasive cleaners or harsh chemicals on the faucet's surface, as this may damage the finish.
• If you are unsure about any step, consult a qualified plumber.

3. Package Contents

Please check that all components are present before starting the installation:

• DELINIA LOLA Kitchen Faucet
• Plastic supports
• Fastening material (nuts, washers, threaded rod)
• Connection tubes (flexible hoses)

Figure 2: All components included with the DELINIA LOLA faucet. This image displays the faucet body, two flexible connection hoses, plastic and metal mounting plates, a threaded rod, and rubber O-rings.

4. Setup and Installation

The DELINIA LOLA kitchen faucet is designed for quick and easy installation. No professional installer is typically required.

1. Prepare the Sink: Ensure the mounting hole on your sink or countertop is clean and free of debris. The faucet requires a single hole for installation.
2. Install the Faucet: Insert the faucet body into the mounting hole. Ensure the base gasket is properly seated to prevent leaks.
3. Secure the Faucet: From underneath the sink, slide the plastic support, rubber washer, and metal washer onto the threaded rod extending from the faucet base. Secure with the fastening nut. Tighten firmly but do not overtighten.
4. Connect Water Lines: Attach the flexible connection tubes to the hot and cold water supply lines. Ensure a tight seal to prevent leaks. The faucet can be mounted for left or right-hand operation depending on your preference.
5. Test for Leaks: Slowly turn on the main water supply and check all connections for any signs of leakage.

Figure 3: Technical drawing showing the dimensions and installation details of the DELINIA LOLA faucet. This diagram includes measurements for height, reach, and the 360-degree swivel capability, aiding in proper installation planning.

5. Operating Instructions

The DELINIA LOLA faucet features a single lever for controlling both water flow and temperature.

• Water Flow: Lift the lever upwards to increase water flow. Push it downwards to decrease or turn off the flow.
• Temperature Control: Move the lever to the left for hot water and to the right for cold water. Adjust the position to achieve your desired temperature.
• 360° Swivel Spout: The faucet spout can rotate 360 degrees, making it highly flexible and suitable for both single and double sinks. You can position the spout as needed for various tasks.
• Laminar Water Jet: This faucet provides a laminar water jet, which is very quiet and minimizes splashing, ensuring a comfortable user experience.

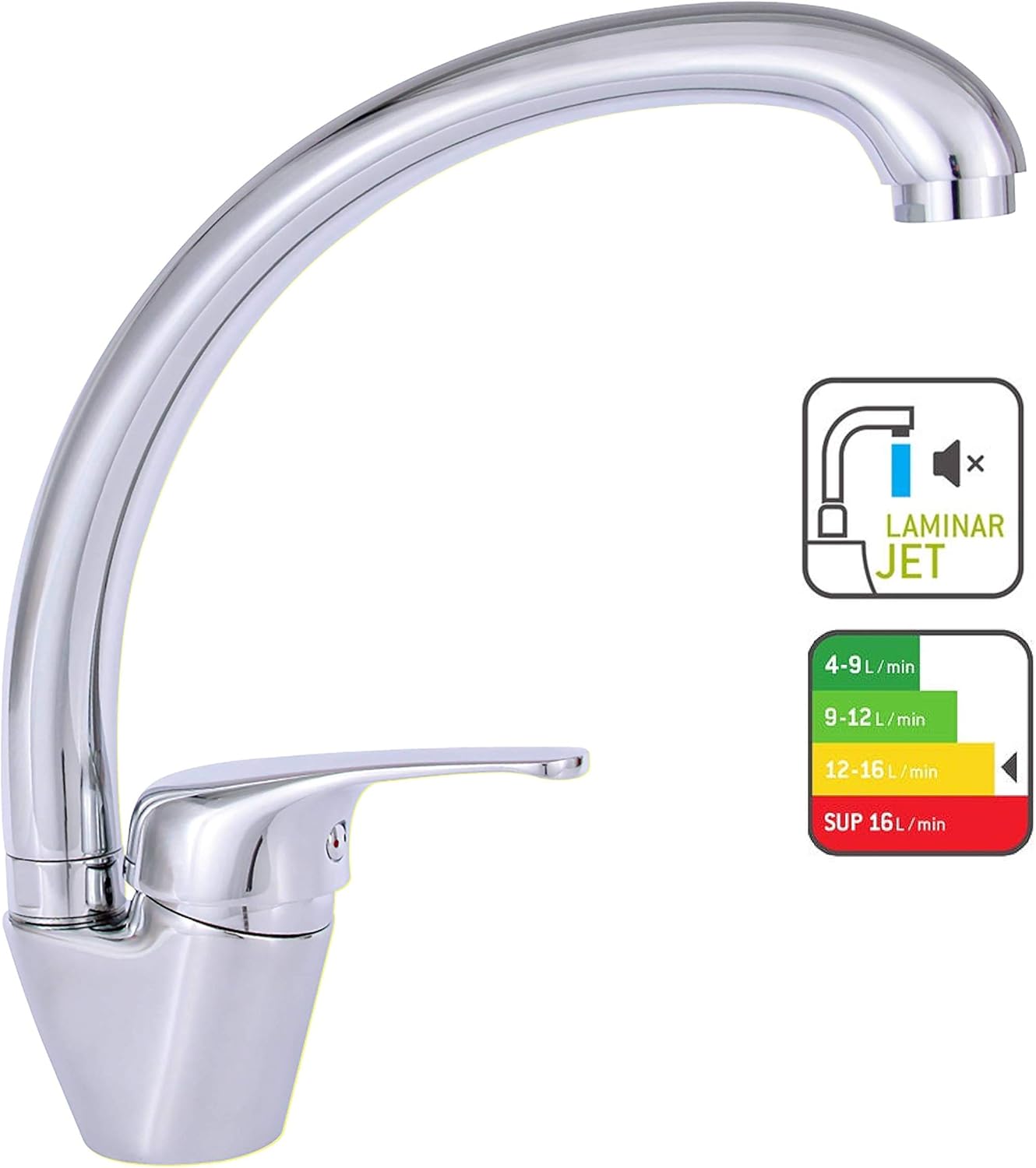

Figure 4: The DELINIA LOLA faucet highlighting its laminar jet feature and water flow rate efficiency. This image includes graphical indicators for different flow rates (L/min), emphasizing the faucet's quiet and splash-free operation.

Figure 5: The DELINIA LOLA faucet installed in a modern kitchen setting. This image demonstrates the faucet's appearance and functionality when in use, positioned over a kitchen sink.

6. Maintenance

To ensure the longevity and appearance of your DELINIA LOLA faucet, follow these simple maintenance guidelines:

• Cleaning: The faucet is very easy to clean. Use a soft cloth and mild soap and water to wipe down the surface regularly.
• Avoid Harsh Cleaners: Do not use abrasive pads, scouring powders, or cleaners containing ammonia, bleach, or alcohol, as these can damage the chrome finish.
• Aerator Cleaning: Periodically unscrew and clean the aerator at the tip of the spout to remove any mineral buildup that might affect water flow.

7. Troubleshooting

If you encounter any issues with your faucet, refer to the following common troubleshooting tips:

• Low Water Flow: Check if the aerator is clogged. Clean it as described in the Maintenance section. Also, ensure the water supply valves are fully open.
• Leaks: If leaks occur at the connections, ensure all fittings are tightened securely. Do not overtighten. If leaks persist from the faucet body, contact customer support.
• Temperature Issues: Verify that both hot and cold water supply lines are connected correctly and that the water heaters are functioning properly.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please contact DELINIA customer service through your point of purchase or visit the official DELINIA website. Please have your model number (3276000592143) and purchase date ready when contacting support.
