Focusrite Red 8Line 58-in / 64-out Thunderbolt 3 Audio Interface User Manual

Introduction

The Focusrite Red 8Line is a high-performance Thunderbolt 3 audio interface designed for professional studio environments. It offers extensive connectivity and superior audio quality, integrating seamlessly into various audio production workflows. This manual provides essential information for setting up, operating, and maintaining your Red 8Line interface.

Image: Front view of the Focusrite Red 8Line audio interface, showcasing its controls and display.

What's in the Box

Upon unboxing your Focusrite Red 8Line, ensure all the following components are present:

• Red 8Line unit
• IEC AC mains cable
• Thunderbolt 3 cable
• Focusrite Pro Important Information Guide

Setup

Follow these steps to set up your Red 8Line audio interface:

1. Power Connection: Connect the supplied IEC AC mains cable to the Red 8Line unit and a suitable power outlet.
2. Driver Installation: Before connecting, download and install the latest drivers and RedNet Control software from the official Focusrite Pro website.
3. Thunderbolt Connection: Use the provided Thunderbolt 3 cable to connect the Red 8Line to your computer's Thunderbolt 3 port.
4. Audio Connections: Connect your microphones, instruments, monitors, and other studio equipment to the appropriate inputs and outputs on the Red 8Line. Refer to the "Connectivity Overview" section for details on available ports.
5. Power On: Power on the Red 8Line unit. The front panel displays will illuminate.
6. Software Configuration: Launch the RedNet Control software to configure your audio routing, sample rates, and other settings.

Connectivity Overview

The Red 8Line offers a comprehensive range of connectivity options to integrate into any professional audio setup:

• Thunderbolt 3: Dual Thunderbolt ports provide ultra-low-latency drivers for Mac and PC, allowing for real-time DAW plug-in usage and daisy-chaining of devices.
• Dante: Dual Dante ports enable connection to the industry-standard Audio-over-IP protocol, offering network redundancy and I/O expansion.
• Pro Tools | HD: Twin mini-DigiLink ports provide direct connectivity to Pro Tools | HD Native and HDX cards, eliminating the need for additional device expansion.
• ADAT & S/PDIF: Features 16 channels of ADAT I/O and S/PDIF connectivity for integrating older digital gear.
• Word Clock: Standard BNC Word Clock for synchronization with other digital audio devices.

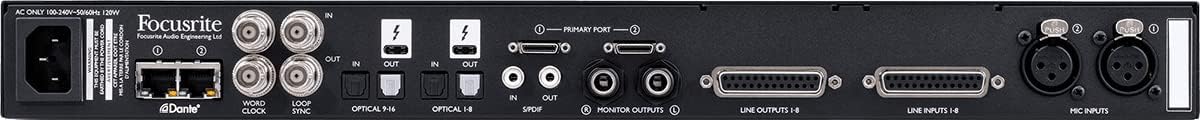

Image: Rear view of the Focusrite Red 8Line, showing Thunderbolt, Dante, DigiLink, ADAT, S/PDIF, and analog I/O ports.

Analog I/O

The Red 8Line is equipped with versatile analog input and output capabilities:

• Eight Line Inputs: Available on DB25 connectors for connecting various line-level sources.
• Two Red Evolution Mic Preamps: Remote-controllable mic preamps offering up to 63dB of ultra-clean gain, with phantom power, high-pass filter, phase reverse, and Air mode.
• Two Direct Instrument Inputs: Located on the front panel for easy connection of guitars, basses, and other instruments.
• Ten Analog Outputs: Including independent L/R monitor outputs and additional line outputs on DB25.
• Two Stereo Headphone Outputs: Independent outputs for monitoring.

Front Panel Controls

The front panel of the Red 8Line provides intuitive controls and displays for managing your audio:

• Precision Metering and Display: Three LCDs offer highly accurate level metering for any input or output block, as well as main monitor and headphone outputs.
• Input Channel Selectors: Buttons to select analog or digital input channels, pulling up specific channel settings on the LCD.
• Gain Control Knobs: Adjust gain for selected input channels.
• Input Options: Easily switch between mic, line, and instrument input types, and toggle phantom power, polarity, high-pass filter, and Air mode.
• Monitor/Headphone Volume Control: Dedicated dial for adjusting monitor and headphone output volumes, with mute and dim functions.
• Hardware Setup Screen: Access advanced settings like host mode (Thunderbolt/Pro Tools), clock source, preamp retention, and firmware version.

For a visual demonstration of the front panel controls and their functionality, please refer to the "Video: Focusrite Red Range Overview" in the "Connectivity Overview" section, specifically from the 02:00 mark onwards.

Operating System Compatibility

The Focusrite Red 8Line is compatible with the following operating systems:

• Mac OS
• Windows OS

Ensure you download the correct drivers for your operating system from the official Focusrite Pro website.

Specifications

Troubleshooting

If you encounter issues with your Focusrite Red 8Line, consider the following common troubleshooting steps:

• No Power: Ensure the IEC AC mains cable is securely connected to both the unit and a working power outlet. Check the power switch.
• No Audio Input/Output: Verify all audio cables are correctly connected. Check input/output routing in the RedNet Control software. Ensure phantom power is enabled for condenser microphones.
• Connectivity Issues: Confirm the Thunderbolt 3 cable is properly seated. Check for the latest drivers and firmware updates. Ensure the correct host mode (Thunderbolt/Pro Tools) is selected in the hardware setup.
• Software Not Recognizing Device: Restart your computer and the Red 8Line. Reinstall drivers if necessary. Check your operating system's audio device settings.
• Distorted Audio: Check input gain levels to prevent clipping. Ensure sample rates are matched across all devices in your setup.

For more detailed troubleshooting, refer to the comprehensive support resources on the official Focusrite Pro website.

Maintenance

To ensure the longevity and optimal performance of your Focusrite Red 8Line, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to clean the exterior of the unit. Avoid abrasive cleaners or solvents. Do not spray liquids directly onto the device.
• Ventilation: Ensure the unit has adequate ventilation to prevent overheating. Do not block ventilation openings.
• Storage: When not in use for extended periods, store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.
• Firmware Updates: Regularly check the Focusrite Pro website for firmware updates to ensure your device has the latest features and bug fixes.

Warranty and Support

The Focusrite Red 8Line comes with a 3-year manufacturer's warranty. For warranty claims, technical support, or additional product information, please visit the official Focusrite Store or contact Focusrite customer service.

Official Focusrite Store: Focusrite Store on Amazon
