ELENKER Upright Rollator Walker (Model HFK-9240B) Instruction Manual

1. Introduction

Thank you for choosing the ELENKER Upright Rollator Walker. This manual provides essential information for the safe assembly, operation, and maintenance of your new mobility aid. Please read all instructions carefully before use to ensure optimal performance and user safety.

The ELENKER Upright Rollator Walker is designed to provide stable support and assist individuals with mobility challenges in maintaining an upright posture while walking. Its features include adjustable armrests, a comfortable seat, dual hand brakes, and a compact folding design for easy transport and storage.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or damage to the product.

• Weight Capacity: Do not exceed the maximum weight capacity of 300 pounds.
• Brakes: Always engage the hand brakes to lock the rear wheels before sitting on the seat or when standing still. Regularly test the brakes for proper function.
• Stability: Ensure all parts are securely assembled and tightened before each use. Do not lean excessively on one side of the walker.
• Surface Use: The walker is designed for use on smooth, even surfaces. Exercise caution on uneven terrain, inclines, or slippery surfaces. Avoid gravel or dirt paths.
• Adjustments: Adjust the armrest height to a comfortable level that allows you to maintain an upright posture without straining your shoulders or back.
• Folding: Ensure the walker is fully unfolded and locked into position before use, and fully folded before transport.
• Obstacles: Use the foot lift (curb climber) to safely navigate small obstacles like curbs and thresholds. Do not attempt to roll over large obstacles.
• Supervision: Individuals with cognitive impairments or severe balance issues should use the walker under supervision.

3. Package Contents

Please verify that all components are present and undamaged upon opening the package:

• Main Frame (pre-assembled with seat and backrest straps)
• Front Wheels (2)
• Handle Bars with Armrests and Brake Levers (2)
• Sit-to-Stand Handles (2)
• Storage Bag (1)
• Cane Holder (1)
• Cup Holder (1)
• User Manual (this document)

4. Assembly Instructions

Assembly of the ELENKER Upright Rollator Walker is straightforward and requires no tools. Follow the steps below or refer to the assembly video for visual guidance.

Step 1: Open the Main Frame

Carefully lift the main frame of the walker and pull the sides apart until it locks into the open position. Ensure the seat is flat and secure.

Step 2: Front Wheels Assembly

Insert the front wheels into the designated slots on the front legs of the main frame. Push firmly until they click into place. Ensure they are securely attached and can swivel freely.

Step 3: Handle Bar Assembly

Insert the handle bars with armrests into the vertical tubes on the main frame. Adjust them to your desired height by pressing the adjustment buttons and sliding the bars up or down. Ensure the height is comfortable for an upright posture. Secure them by tightening the locking knobs.

Step 4: Handgrip Assembly

Attach the handgrips to the top of the handle bars. Ensure they are oriented correctly for comfortable gripping and brake operation. Tighten any securing mechanisms.

Step 5: Sit-to-Stand Handle Bar Assembly

Attach the sit-to-stand handles to the lower part of the main frame, near the seat. These handles provide additional support when transitioning from a seated to a standing position. Ensure they are firmly secured.

Step 6: Storage Bag Assembly

Attach the storage bag to the designated hooks or straps beneath the seat. Ensure it is securely fastened and does not interfere with the wheels or folding mechanism.

Step 7: Backrest Assembly

The backrest is typically pre-attached or easily slides into slots on the rear uprights. Ensure it is positioned correctly to provide comfortable support when seated.

Step 8: Cane Holder Assembly

Attach the cane holder to the side of the walker frame, usually near one of the rear wheels. This allows for convenient storage of a cane or umbrella.

Step 9: Cup Holder Assembly

Attach the cup holder to one of the handle bars or a designated spot on the frame for easy access to beverages.

Step 10: Secure Brake Cables

Use the provided hook and loop straps to secure any loose brake cables along the frame. This prevents them from snagging or interfering with movement.

5. Operating Instructions

5.1 General Usage and Upright Posture

The ELENKER Upright Rollator Walker is designed to help you walk with a straight back and maintain an active lifestyle. Position yourself between the armrests, resting your forearms comfortably on the padded supports. Look forward, not down, to maintain balance and proper posture.

5.2 Adjusting Armrest Height

The padded armrests are height-adjustable to ensure your forearms are at a natural level, relieving stress on your shoulders and back. To adjust, locate the adjustment buttons on the vertical tubes, press them, and slide the armrests up or down to your preferred height. Release the buttons to lock them in place. Ensure both armrests are at the same height.

5.3 Using the Dual Hand Brakes

The walker features ergonomic dual hand brakes for safety and control.

• To Slow Down: Gently squeeze the brake levers towards the handgrips.
• To Lock Wheels: Push the brake levers down until they click into the locked position. This is crucial before sitting on the seat or when you need the walker to remain stationary.
• To Unlock Wheels: Pull the brake levers up to release the lock.

Image: Operating the dual hand brake system. Squeeze to slow down, push down to lock the rear wheels.

5.4 Using the Seat and Backrest

The wide backrest support and breathable mesh seat provide comfort and safety when taking rests. Always engage both hand brakes to lock the rear wheels before sitting down. Use the sit-to-stand handles for assistance when sitting or standing up.

Image: Comfortable seat with backrest. Allows you to take a break anytime and anywhere.

5.5 Utilizing Storage Bag, Cane Holder, and Cup Holder

The detachable polyester storage bag, cane holder, and cup holder allow you to carry personal items, a cane, or a beverage, leaving your hands free for better balance and control.

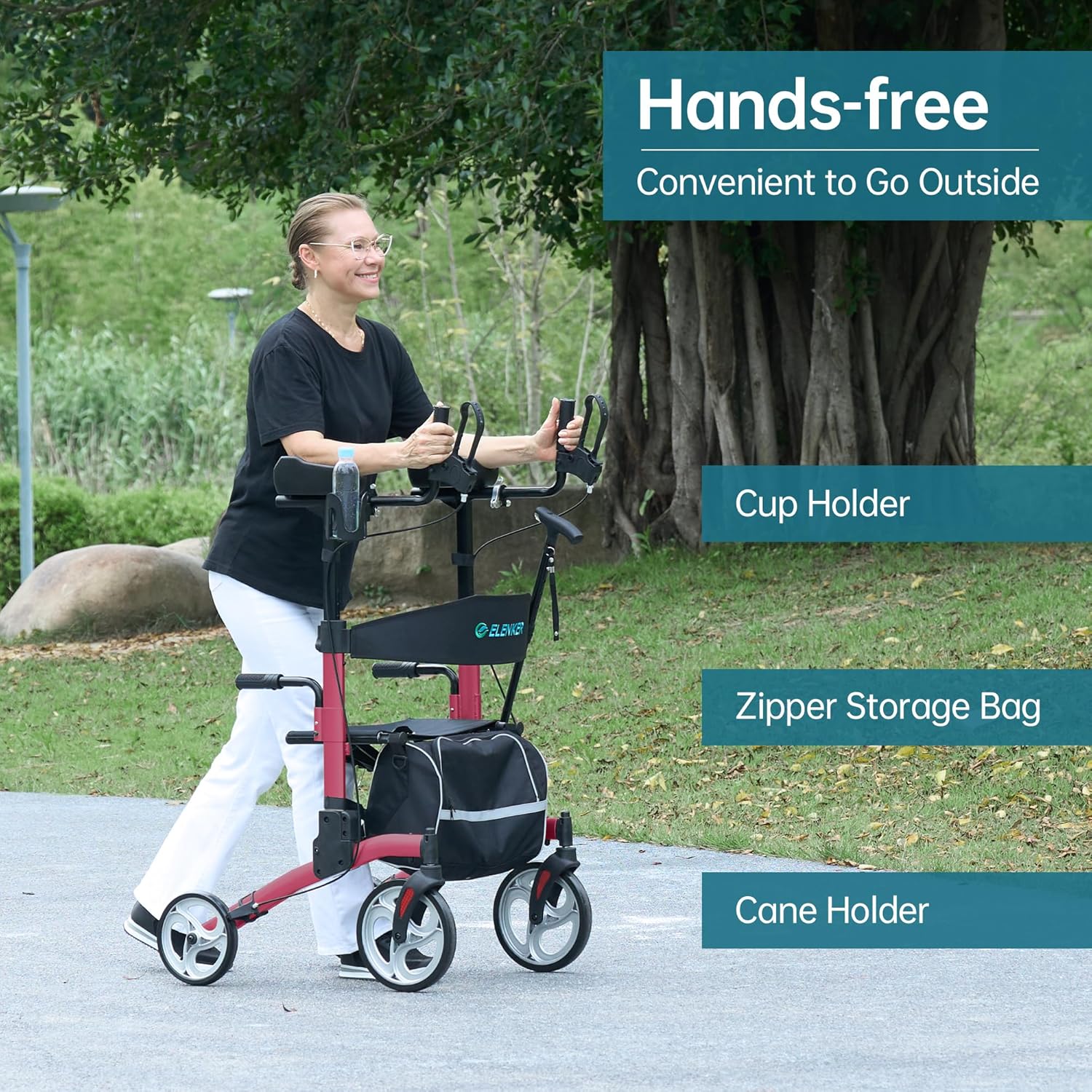

Image: Hands-free convenience with cup holder, zipper storage bag, and cane holder.

5.6 Folding and Transporting

The walker features an easy-to-use compact folding design for convenient storage and transportation. To fold, pull up the strap located on the center of the seat. This will cause the walker to collapse inward. For more compact storage, you may also need to loosen the locking knobs on the handle bars and slide them down.

Image: Compact size for storage and transportation, fitting most car trunks.

5.7 Using the Curb Climber

The walker is equipped with a foot lift (curb climber) to assist in navigating small obstacles. To use, place your foot on the curb climber lever located near the rear wheel and gently press down while simultaneously pushing the walker forward. This will lift the front wheels over the obstacle.

Image: The curb climber in action, used to overcome obstacles like curbs and thresholds.

6. Maintenance

• Cleaning: Wipe down the frame and components regularly with a damp cloth and mild detergent. Avoid abrasive cleaners.
• Inspection: Periodically check all screws, bolts, and locking mechanisms to ensure they are tight and secure. Inspect the wheels for wear and tear.
• Brakes: Test the brakes regularly to ensure they are functioning correctly. If the brakes feel loose or ineffective, consult a professional for adjustment or repair.
• Storage: Store the walker in a dry, clean place when not in use.

7. Troubleshooting

8. Specifications

9. Warranty & Support

ELENKER products are 100% tested before leaving the factory. For any questions, concerns, or warranty claims, please contact ELENKER customer service. Our team is available to provide 24-hour friendly email customer service to assist you.

Please retain your proof of purchase for any warranty claims.
