EDISON ELECTRIC AF521T/BK 14.5 Liter Digital Air Fryer Instruction Manual

1. Introduction

Thank you for choosing the EDISON ELECTRIC AF521T/BK 14.5 Liter Digital Air Fryer. This appliance is designed to provide a healthy and convenient way to cook a variety of delicious meals with little to no oil. With its generous capacity, 16 pre-set functions, and user-friendly digital controls, you can fry, roast, grill, and bake with ease. Please read this manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

3. Product Overview and Components

Familiarize yourself with the parts of your EDISON ELECTRIC Air Fryer.

Figure 3.1: Main Air Fryer Unit with Digital Display and Viewing Window.

This image shows the primary unit of the EDISON ELECTRIC AF521T/BK Air Fryer. It features a sleek black exterior, a prominent digital control panel, and a large transparent window for monitoring cooking progress without opening the unit.

Included Accessories:

• Mesh Basket: Ideal for frying items like chicken, fries, and vegetables.


  Figure 3.2: Mesh Basket.

  A rectangular mesh basket designed for even air circulation around food, perfect for achieving crispy results.

• Rotating Cage: A circular cage for tumbling items like burgers, nuts, or small vegetables.

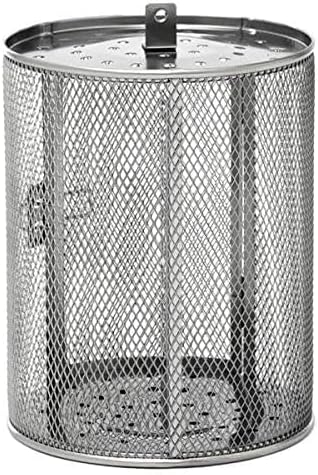

  Figure 3.3: Rotating Cage.

  A cylindrical mesh cage that rotates during cooking, ensuring all sides of the food are exposed to hot air for uniform cooking.

• Rotisserie Skewer: For roasting whole chickens or larger cuts of meat and fish.


  Figure 3.4: Rotisserie Skewer.

  A metal rod with two sets of forks, designed to hold food securely for rotisserie cooking, allowing for even browning.
• Metal Racks: Spaced shelves for cooking multiple layers or items like samosas, meat slices, and vegetables.


  Figure 3.5: Metal Racks.

  Multiple metal racks that can be inserted into the air fryer, providing additional cooking surface and allowing for multi-level cooking.

• Drip Tray: Collects excess oil and food particles, making cleanup easier.
• Accessory Handle: For safely removing hot accessories from the air fryer.


  Figure 3.6: Accessory Handle.

  A specialized handle designed to securely grip and lift hot cooking accessories, preventing burns.

4. Setup and First Use

Unpacking:

1. Carefully remove all packaging materials from the air fryer and its accessories.
2. Check that all components listed in the "Product Overview" section are present and undamaged.
3. Remove any stickers or labels from the appliance.

Cleaning Before First Use:

1. Wipe the exterior of the air fryer with a damp cloth.
2. Wash all removable accessories (mesh basket, rotating cage, rotisserie skewer, metal racks, drip tray, accessory handle) in warm, soapy water. Rinse thoroughly and dry completely.
3. Do not immerse the main unit in water or any other liquid.

Placement:

• Place the air fryer on a stable, heat-resistant, and level surface.
• Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance to allow for proper ventilation.
• Do not place the air fryer directly under wall cabinets as hot steam may damage them.

5. Operating Instructions

General Operation:

1. Plug the power cord into a grounded wall outlet. The digital display will illuminate.
2. Prepare your food and place it into the appropriate accessory (e.g., mesh basket, rotating cage). Do not overfill.
3. Insert the accessory into the air fryer.
4. Use the digital control panel to select one of the 16 pre-set cooking functions or manually set the desired temperature and cooking time.
5. Press the Start/Pause button to begin cooking.
6. You can monitor the cooking progress through the large viewing window.
7. Some recipes may require shaking or turning food halfway through cooking. Use the accessory handle for safety.
8. Once cooking is complete, the air fryer will beep. Carefully remove the cooked food using heat-resistant utensils and the accessory handle.
9. Unplug the appliance after use.

Using Pre-set Functions:

The air fryer comes with 16 pre-set functions for common dishes. Refer to the appliance's display for specific icons and default settings. These settings can often be adjusted manually after selection.

Manual Temperature and Time Setting:

• Press the Temperature button to adjust the cooking temperature.
• Press the Time button to adjust the cooking duration.
• Refer to a reliable cooking chart for recommended temperatures and times for various foods.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your air fryer.

Before Cleaning:

• Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.

Cleaning the Main Unit:

• Wipe the exterior with a damp cloth and mild detergent.
• Clean the interior cavity with a soft, damp cloth. For stubborn food residue, use a non-abrasive sponge.
• Never immerse the main unit in water or other liquids.

Cleaning Accessories:

• All removable accessories (mesh basket, rotating cage, rotisserie skewer, metal racks, drip tray, accessory handle) can be washed in warm, soapy water.
• For baked-on food, soak the accessories in warm water for about 10 minutes before cleaning.
• Rinse thoroughly and dry completely before storing or next use.
• Some accessories may be dishwasher safe; refer to specific accessory instructions if available.

7. Troubleshooting

If you encounter any issues with your air fryer, please refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official EDISON ELECTRIC website.

If you require assistance, please contact EDISON ELECTRIC customer service through their official channels.
