Edison Electric Pressure Cooker 6 Liter

Introduction

Thank you for choosing the Edison Electric Pressure Cooker. This appliance is designed to simplify your cooking process, allowing you to prepare a variety of delicious meals efficiently. Its 6-liter capacity and multiple cooking programs make it a versatile addition to any kitchen. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance cooks under pressure. Improper use may result in scalding injury. Make certain unit is properly closed before operating.
• Never force open the pressure cooker. Ensure the internal pressure is completely released before opening.
• Do not fill the unit over 2/3 full. When cooking foods that expand during cooking, such as rice or dried vegetables, do not fill the unit over 1/2 full.
• Always check the steam release valve and anti-block shield for clogging before use.

Product Overview

The Edison Electric Pressure Cooker consists of several key components designed for safe and efficient cooking.

Main Components

• Main Unit: Houses the heating element and control panel.
• Inner Pot: Removable stainless steel pot where food is cooked.
• Lid: Features a sealing ring, steam release valve, and safety lock.
• Steam Release Valve: Controls the release of pressure.
• Control Panel: Digital display and buttons for program selection and settings.

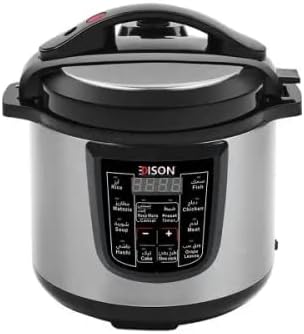

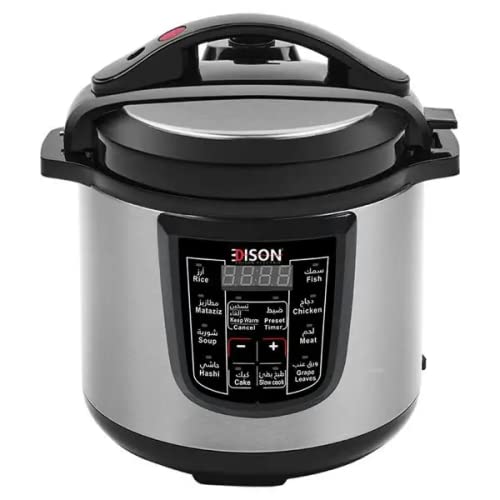

Figure 1: Edison Electric Pressure Cooker with lid securely in place.

Figure 2: The pressure cooker with the lid removed, revealing the stainless steel inner pot and control panel.

Figure 3: Close-up view of the removable stainless steel inner pot.

Control Panel Functions

The digital control panel allows for easy selection of cooking programs and adjustments.

• Digital Display: Shows cooking time, pressure level, and status.
• Program Buttons: Dedicated buttons for various food types (e.g., Rice, Fish, Chicken, Meat, Soup, Mash, Cake, Slow Cook, Grape Leaves).
• Timer Function: Allows for delayed start of cooking.
• Keep Warm: Automatically activates after cooking to maintain food temperature.
• +/- Buttons: Adjust cooking time or other settings.

Setup

1. Unpacking: Carefully remove all packaging materials and accessories. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, wash the inner pot, lid, and sealing ring with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the pressure cooker on a stable, level, heat-resistant surface, away from heat sources and flammable materials. Ensure adequate ventilation around the unit.
4. Insert Inner Pot: Place the clean inner pot into the main unit. Ensure it sits correctly and is not tilted.
5. Power Connection: Plug the power cord into a grounded electrical outlet. The digital display will light up.

Operating Instructions

Basic Operation

1. Add Ingredients: Place your food and liquids into the inner pot. Do not exceed the MAX fill line (2/3 full for most foods, 1/2 full for expanding foods like rice).
2. Close the Lid: Align the lid with the main unit, then rotate it clockwise until it locks into place. Ensure the lid is fully sealed.
3. Set Steam Release Valve: Position the steam release valve to the 'Sealing' position for pressure cooking.
4. Select Cooking Program: Press the desired program button (e.g., Rice, Chicken, Soup). The default cooking time for that program will appear on the digital display.
5. Adjust Time (Optional): Use the '+' and '-' buttons to adjust the cooking time if needed.
6. Start Cooking: The cooker will automatically begin preheating and building pressure. Once pressure is reached, the cooking timer will start counting down.
7. Pressure Release: Once cooking is complete, the cooker will beep and automatically switch to 'Keep Warm' mode. You can release pressure using one of two methods:
   • Natural Release: Allow the pressure to dissipate naturally. This can take 10-30 minutes depending on food volume. The float valve will drop when pressure is fully released.
   • Quick Release: Carefully turn the steam release valve to the 'Venting' position. Steam will rapidly escape. Keep hands and face away from the steam. The float valve will drop when pressure is fully released.
8. Open the Lid: Once the float valve has dropped, indicating all pressure is released, rotate the lid counter-clockwise and lift it carefully away from you to avoid residual steam.

Using the Timer (Delayed Start)

The timer function allows you to set a delay before cooking begins.

1. Prepare ingredients and close the lid as described above.
2. Select your desired cooking program.
3. Press the 'Timer' button. Use the '+' and '-' buttons to set the desired delay time (e.g., in hours).
4. The cooker will start counting down the delay time, and then automatically begin the selected cooking program.

Cleaning and Maintenance

Regular cleaning ensures the longevity and safe operation of your pressure cooker.

1. Unplug and Cool: Always unplug the appliance and allow it to cool completely before cleaning.
2. Inner Pot: The stainless steel inner pot is dishwasher safe. For hand washing, use warm, soapy water and a non-abrasive sponge.
3. Lid: Wash the lid, including the sealing ring, steam release valve, and anti-block shield, with warm, soapy water. Ensure all food particles are removed. The sealing ring can be removed for thorough cleaning.
4. Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or rinse it under running water.
5. Storage: Ensure all parts are completely dry before storing. Store the pressure cooker in a dry place.

Troubleshooting

If you encounter issues with your pressure cooker, refer to the following common problems and solutions.

Specifications

• Brand Name: EDISON ELECTRIC
• Capacity: 6 Liters
• Material: Stainless Steel
• Color: Silver/Black
• Finish Type: Silver/Black
• Product Dimensions (Depth x Width x Height): 31.6 cm x 31.6 cm x 37.8 cm
• Special Features: Dishwasher Safe (Inner Pot), Lockable Lid
• Control Method: Touch
• Operation Mode: Automatic
• Dishwasher Safe: Yes (Inner Pot)
• Controller Type: Digital
• Locking Type: External Lid
• Model Number: 6285360253530
• Part Number: GT601-WSS
• Included Components: 1 x Edison Electric Pressure Cooker, 6 Liter, Stainless Steel, Silver/Black
• Product Type Name: Electric Pressure Cooker
• Manufacturer: Edison

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Edison Electric customer service. Keep your purchase receipt as proof of purchase.
