1. Introduction
The Einhell FREELEXO 450 BT Solo robotic lawn mower is part of the powerful Power X-Change series, offering cordless flexibility for lawn maintenance. This intelligent robotic mower is designed for lawns up to 450 m² and can be controlled and programmed via Bluetooth using a mobile app or its intuitive control panel. It features multi-zone mowing, automatic charging, and a comprehensive set of safety sensors to ensure efficient and safe operation.
Image: The Einhell FREELEXO 450 BT Solo robotic lawn mower, showcasing its compact design.
2. Safety Instructions
Always read and understand all safety warnings and instructions before operating the robotic lawn mower. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Keep Clear: Ensure children, pets, and bystanders are kept away from the mowing area when the mower is in operation.
- Sharp Blades: The mower is equipped with sharp blades. Exercise extreme caution when handling or replacing blades. Always switch off the mower and remove the battery before performing any maintenance.
- Proper Installation: Install the boundary wire correctly to define the mowing area and prevent the mower from entering hazardous zones.
- Obstacles: Remove all foreign objects from the lawn before mowing to prevent damage to the mower or injury.
- Emergency Stop: Familiarize yourself with the emergency stop function on the mower.
- Battery Safety: Use only approved Power X-Change batteries and chargers. Do not expose batteries to extreme temperatures or moisture.
3. Package Contents
Verify that all items listed below are included in your package. If any parts are missing or damaged, contact Einhell customer service.
- Einhell FREELEXO 450 BT Solo Robotic Lawn Mower
- Charging Station
- 125 m Boundary Wire
- 180 Fixing Hooks (Stakes)
- 3 Spare Blades
- 4 Connection Clamps
- User Manual (this document)

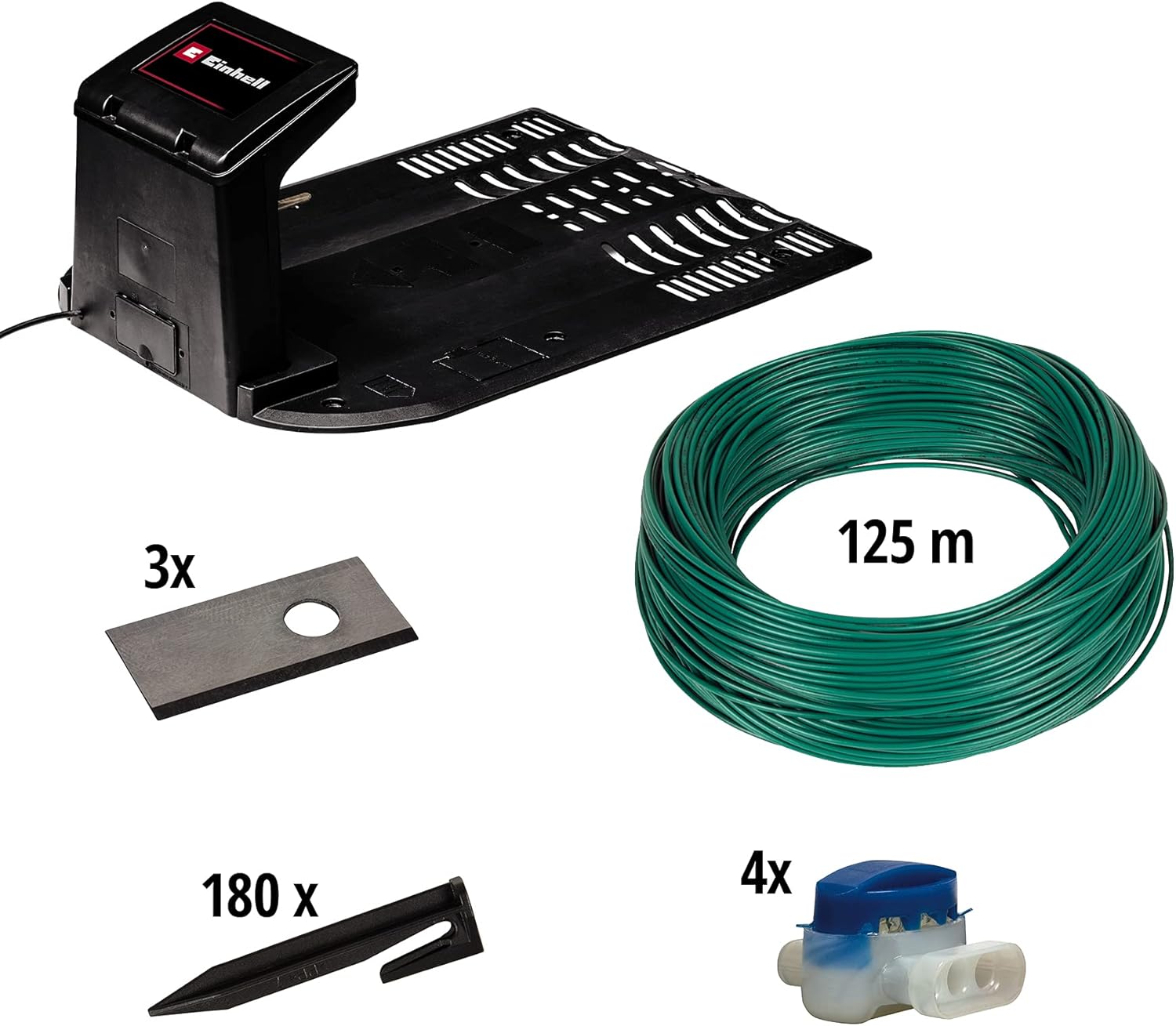

Image: Overview of the included components: the charging station, 125 meters of boundary wire, 3 spare blades, and 180 fixing hooks.
4. Setup
4.1 Charging Station Placement
Select a suitable location for the charging station. It should be on a flat surface, preferably in the shade, and close to a power outlet. Ensure there is enough clear space around the station for the mower to dock easily.
4.2 Boundary Wire Installation
The boundary wire defines the mowing area for your robotic lawn mower. Plan the layout carefully to include all areas you wish to mow and exclude obstacles or restricted zones.
- Lay the boundary wire around the perimeter of your lawn, ensuring it is taut and at the recommended distance from edges and obstacles.
- Use the provided fixing hooks to secure the wire to the ground. The wire will eventually be overgrown by grass.
- Connect the ends of the boundary wire to the charging station as per the diagram in the full manual.
- Ensure the wire forms a continuous loop for the mower to detect it correctly.
Image: An illustrative diagram demonstrating how to lay the boundary wire to define the mowing area, including complex garden layouts with multiple zones.
4.3 Battery Insertion and Initial Charge
The FREELEXO 450 BT Solo uses an 18V Power X-Change battery (not included in this 'Solo' model, but compatible with the series). Insert a charged battery into the designated compartment on the mower. Place the mower in the charging station to ensure it is fully charged before its first operation.
Image: A user inserting an 18V Power X-Change battery into the battery compartment of the robotic lawn mower.
5. Operating the Robotic Lawn Mower
5.1 Control Panel and App Connectivity
The mower can be controlled via its intuitive onboard keyboard or through the Einhell FREELEXO mobile app, connected via Bluetooth. The app allows for advanced programming and monitoring.
Image: The mower's control panel alongside a smartphone displaying the Einhell FREELEXO app, highlighting Bluetooth connectivity for control.
5.2 Programming Mowing Times
Use the mobile app to set specific mowing schedules for different days and times. The mower will automatically start and return to its charging station as programmed.
5.3 Multi-Zone Mowing
For complex or winding gardens, the multi-zone mode allows the mower to navigate and maintain different sections of your lawn effectively.
5.4 Security Features
The mower is protected against theft by a PIN code and an audible alarm. Ensure you set a unique PIN code during the initial setup.
5.5 Safety Sensors
The mower is equipped with shock, tilt, and lift sensors to detect obstacles and potential issues, ensuring safe operation. A rain sensor is also integrated, which can be configured to pause mowing during wet conditions.
6. Maintenance
6.1 Cleaning the Mower
Regularly clean the mower's chassis, wheels, and cutting deck to remove grass clippings and debris. Use a brush or damp cloth. Do not use high-pressure washers.
6.2 Blade Replacement
The blades should be inspected regularly and replaced when dull or damaged. The package includes 3 spare blades. Always wear protective gloves and disconnect the battery before replacing blades.
- Switch off the mower and remove the battery.
- Carefully turn the mower upside down.
- Unscrew the old blades and replace them with new ones, ensuring they are securely fastened.
- Dispose of old blades responsibly.
6.3 Battery Care
For optimal battery life, store the Power X-Change battery in a cool, dry place when not in use. Avoid fully discharging the battery frequently. Charge it regularly, even during long storage periods.
7. Troubleshooting
If you encounter issues with your Einhell FREELEXO 450 BT Solo, refer to the following common problems and solutions. For more complex issues, consult the full manual or contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower does not start | Battery not charged or inserted correctly; Emergency stop activated; PIN not entered. | Check battery charge and insertion; Deactivate emergency stop; Enter PIN. |
| Mower stays in charging station | No mowing schedule set; Boundary wire issue. | Set a mowing schedule via app/panel; Check boundary wire connections and integrity. |
| Mower gets stuck frequently | Obstacles on lawn; Uneven terrain; Sensor malfunction. | Clear lawn of obstacles; Adjust boundary wire for uneven areas; Clean sensors. |
| Poor cutting performance | Dull or damaged blades; Grass too high. | Replace blades; Mow more frequently or adjust cutting height. |
8. Specifications
Key technical specifications for the Einhell FREELEXO 450 BT Solo robotic lawn mower:
| Feature | Specification |
|---|---|
| Model Number | 3413944 |
| Recommended Lawn Area | Up to 450 m²  Icon: 450 m² |
| Power Source | 18V Li-Ion Battery (Power X-Change)  Icon: 18V |
| Cutting Width | 18 cm |
| Cutting Height Adjustment | 20 - 60 mm |
| Max. Slope Capability | 35%  Icon: 35% Slope |
| Control | Bluetooth App / Onboard Control Panel  Icon: App Control |
| Weight | 14.3 kg |
| Noise Level | Quiet Operation  Icon: Silent |
9. Warranty and Support
Einhell products are manufactured to high-quality standards and undergo strict quality controls. This product is covered by a manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Einhell website.
For technical support, spare parts, or service inquiries, please contact Einhell customer service. Have your model number (FREELEXO 450 BT Solo, PN: 3413944) and purchase date ready when contacting support.
You can find more information and support resources on the official Einhell website: www.einhell.nl
