CHiQ 218 Liter Refrigerator Double Door Direct Cool Silver

Introduction

Thank you for choosing the CHiQ 218 Liter Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.

This refrigerator is designed to provide reliable cooling and freezing for your food items, featuring a double-door design with separate compartments for fresh food and a freezer. Its compact footprint and energy-efficient operation make it an ideal choice for various living spaces.

Important Safety Information

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

• Ensure the refrigerator is connected to a properly grounded electrical outlet.
• Do not damage the refrigerant circuit.
• Keep ventilation openings clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or performing any maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Product Overview

The CHiQ CTM218DSK refrigerator is designed for efficient and convenient food storage. Below are key features and a visual representation of the appliance.

Image: The CHiQ 218 Liter Refrigerator with both the freezer and fresh food compartment doors open, revealing the internal layout, shelves, and storage bins. Various food items are shown inside to illustrate capacity.

Key Features:

• Capacity: 218 Liters total, with 128 Liters for fresh food and 40 Liters for the freezer.
• Dual Temperature Zones: Allows for separate storage of fresh and frozen items, minimizing odor transfer.
• Frameless Design: Modern and elegant aesthetic.
• Energy Efficiency: UAE two-star energy certification, designed for energy saving.
• 4-Star Freezer: Provides faster freezing and better preservation.
• 4D Surround Magic Cooling: Ensures efficient and uniform cooling.
• Easy Defrosting & Cleaning: Designed for user convenience.
• Compact Footprint: Occupies less than 0.24 square meters.
• Recessed Handle: Integrated handle for a sleek look.

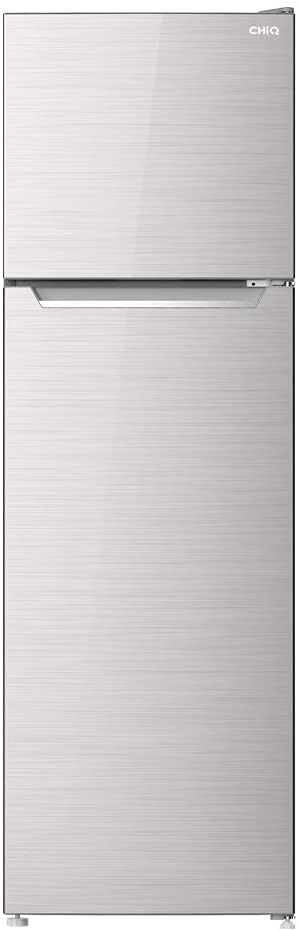

Image: A direct front view of the CHiQ 218 Liter Refrigerator, showcasing its silver finish and frameless double-door design when closed.

Image: A diagram showing the internal airflow of the CHiQ refrigerator, with blue arrows indicating the 4D surround magic cooling system distributing cold air throughout both compartments. This is contrasted with a smaller, less efficient cooling system on the right.

Setup and Installation

1. Unpacking:

Carefully remove all packaging materials, including tape and protective films. Inspect the refrigerator for any shipping damage. Keep packaging materials until you are satisfied with the product.

2. Placement:

Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., stove, radiator). Ensure there is sufficient space around the refrigerator for proper air circulation. A minimum of 10 cm (4 inches) clearance at the back and sides is recommended. The dimensions of the refrigerator are approximately 47 cm (D) x 49 cm (W) x 148 cm (H).

Image: A side-angle view of the CHiQ refrigerator with measurements indicated: 1482mm (height), 500mm (depth), and 474mm (width), providing a clear understanding of its physical dimensions.

3. Leveling:

Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This helps in proper door alignment and efficient operation.

4. Power Connection:

Plug the refrigerator into a dedicated 220 Volt, 50 Hz grounded electrical outlet. Do not use extension cords or adapter plugs. Allow the refrigerator to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.

Operating Instructions

1. Initial Start-up:

After plugging in, set the temperature control to a medium setting. Allow the refrigerator to operate for several hours (at least 4-6 hours) before placing food inside to ensure it reaches the optimal temperature.

2. Temperature Control:

The refrigerator features separate temperature controls for the fresh food and freezer compartments. Adjust the thermostat knob inside the fresh food compartment to your desired cooling level. For the freezer, the 4-star rating indicates its ability to freeze fresh food and store frozen food for extended periods. Refer to the internal markings for specific temperature settings.

Image: A close-up view of the interior of the top freezer compartment of the CHiQ refrigerator, showing the wire shelf and the ice tray area.

Image: A close-up view of the interior of the bottom fresh food compartment of the CHiQ refrigerator, showing the crisper drawer and the lower shelves.

3. Food Storage Guidelines:

• Store fresh foods in the main refrigerator compartment.
• Use the crisper drawer for fruits and vegetables to maintain freshness.
• Store frozen foods and items to be frozen in the freezer compartment.
• Ensure food is properly sealed to prevent odor transfer and maintain freshness.

Care and Maintenance

1. Cleaning:

Regular cleaning helps maintain hygiene and efficiency. Unplug the refrigerator before cleaning. Use a soft cloth with a mild detergent and warm water to clean the interior and exterior surfaces. Avoid abrasive cleaners or solvents. Dry thoroughly after cleaning.

2. Defrosting:

This refrigerator features easy defrosting. When ice buildup in the freezer compartment becomes excessive (around 5mm or 1/4 inch thick), manually defrost the unit. Remove all food, unplug the refrigerator, and leave the doors open to allow ice to melt. Clean and dry the interior before plugging it back in and returning food.

3. Power Saving Tips:

• Avoid placing hot food directly into the refrigerator. Allow it to cool to room temperature first.
• Do not open the doors too frequently or for too long.
• Ensure door seals are clean and intact to prevent cold air leakage.
• Keep the condenser coils at the back clean for efficient heat dissipation.

4. Door Reversal:

The door hinges are reversible, allowing you to change the door swing direction to suit your kitchen layout. This procedure requires specific tools and careful handling. It is recommended to consult a qualified technician or refer to a detailed guide for this process.

Troubleshooting Guide

Before contacting service, check the following common issues and solutions:

Technical Specifications

Warranty and Support

Warranty Information:

Your CHiQ 218 Liter Refrigerator Model CTM218DSK comes with a comprehensive warranty:

• 1 Year Full Warranty: Covers parts and labor for the entire appliance for one year from the date of purchase.
• 5 Years Compressor Warranty: Covers the compressor specifically for five years from the date of purchase.

Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, improper installation, or unauthorized repairs.

Customer Support:

For any questions, technical assistance, or warranty claims, please contact CHiQ customer support. Refer to the contact information provided with your purchase documentation or visit the official CHiQ website for support details.
