Olela Twin Over Full Bunk Beds with Trundle Bed Instruction Manual

Introduction

Thank you for choosing the Olela Twin Over Full Bunk Beds with Trundle Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

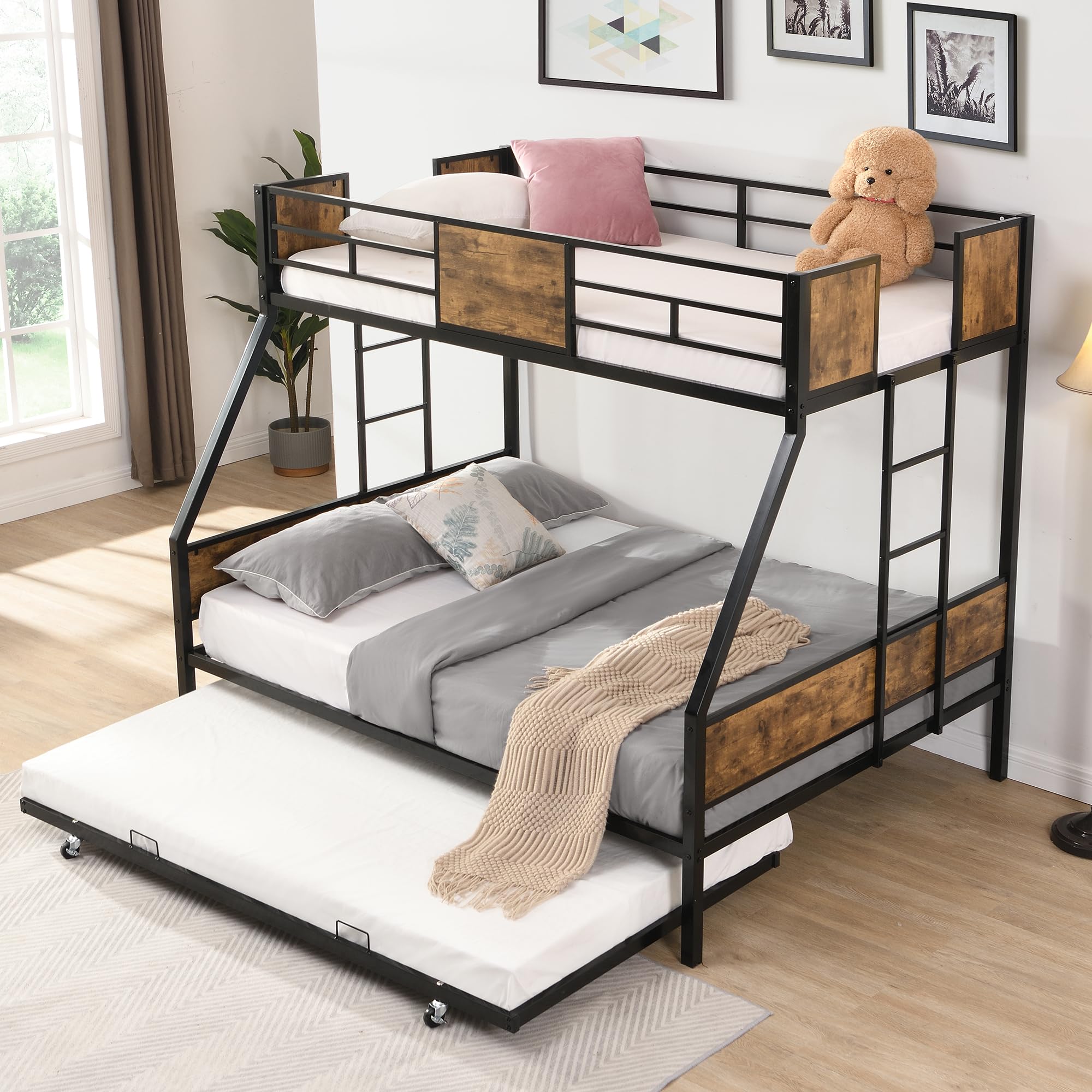

Image: Olela Twin Over Full Bunk Bed with Trundle, Black Frame, shown in a room setting.

Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always assemble according to the provided instructions to prevent instability.
• Keep the area around the bed clear to prevent falls, especially for young children.
• Be cautious of sharp edges during assembly and use.
• Do not exceed the maximum weight capacity of 250 lbs for the upper bed, 350 lbs for the bottom bed, and 250 lbs for the trundle bed.
• Only mattresses meeting the specified dimensions should be used.
• Ensure all connections are tight before use and check periodically.

Image: Visual representation of weight capacities: 250 lbs for the top bunk, 350 lbs for the bottom bunk, and 250 lbs for the trundle bed.

Image: Detail of the full-length guardrails on the top bunk and one of the built-in ladders, highlighting safety features.

Specifications

Image: Technical drawing displaying all key dimensions of the bunk bed and trundle unit.

Setup and Assembly

The Olela Twin Over Full Bunk Bed with Trundle is designed for straightforward assembly. All necessary tools and a clear installation guide are provided. It is recommended to have two adults for assembly.

1. Unpack Components: Carefully unpack all parts and hardware. Verify that all components listed in the parts list are present and undamaged.
2. Review Instructions: Read the included assembly manual thoroughly before starting. Familiarize yourself with each step.
3. Assemble Main Frame: Begin by assembling the main metal frame components for the bottom full bed, followed by the top twin bed. Ensure all bolts are securely tightened.
4. Attach Ladders and Guardrails: Securely attach the two built-in ladders and the full-length guardrails for the top bunk. These are crucial safety features.
5. Install Slats: Place the reinforced slats onto both the top and bottom bed frames. The integrated design eliminates the need for a box spring.
6. Assemble Trundle Bed: Assemble the trundle bed frame, ensuring the easy-roll wheels are properly attached for smooth operation.
7. Final Check: Once assembled, double-check all connections to ensure they are tight and secure.

Operating Instructions

This bunk bed system is designed for versatile sleeping arrangements for up to three individuals.

• Using the Trundle Bed: The trundle bed is located beneath the bottom full bed. To use, gently pull the trundle frame outwards from under the main bed. It is equipped with wheels for easy movement. To store, push the trundle back into its position under the main bed.
• Accessing the Top Bunk: Use the built-in ladders located on each side of the bunk bed to safely access the top twin bunk. Always use the ladders for entry and exit.
• Mattress Placement: Ensure mattresses are placed securely within the bed frames and do not exceed the recommended thickness of 6-8 inches for optimal safety and comfort, especially for the top bunk's guardrail height.

Image: The bunk bed with the trundle bed extended, illustrating its use as an additional sleeping space.

Maintenance

Proper care will extend the life and appearance of your Olela bunk bed.

• Cleaning: Wipe the metal frame and MDF panels with a damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Regular Checks: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
• Weight Limits: Always adhere to the specified weight limits for each bed to prevent structural damage and ensure safety.
• Moving the Bed: When moving the bed, lift it rather than dragging to prevent damage to the frame or flooring.

Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions:

• Squeaking Noises: If the bed squeaks, check all bolts and connections. Tighten any loose hardware. Ensure the bed is on a level surface.
• Instability/Wobbling: Verify that all parts are correctly assembled according to the instructions and that all bolts are fully tightened. Ensure the bed is placed on a flat, stable floor.
• Trundle Not Rolling Smoothly: Check the trundle wheels for any obstructions or damage. Ensure the trundle frame is properly aligned.
• Missing Parts: If you find any parts missing during assembly, please contact customer support immediately with your model number and a description of the missing part.

Warranty and Support

For any questions, concerns, or to report missing/damaged parts, please contact Olela customer support. Keep your purchase receipt and model number (bang-BlackR10007) handy for faster service.

While specific warranty details are not provided in this manual, most products come with a manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact Olela customer service for detailed warranty information.

Contact Information: Please refer to the contact details provided at the point of purchase or on the official Olela website.
