Lucide JOANET 6xE27 Smoked Pendant Light

Introduction

The Lucide JOANET pendant light features six E27 lamp holders elegantly suspended from a rectangular mounting plate. This fixture is designed with stylish glass shades that combine clear and smoked areas, offering a dynamic lighting effect. It is compatible with LED light sources and is height-adjustable prior to installation. The JOANET pendant light can also be connected to a dimmer (not supplied) for adjustable ambiance.

Safety Instructions

• Always disconnect the main power supply at the circuit breaker before installation, maintenance, or bulb replacement.
• Installation must be performed by a qualified electrician in accordance with local electrical codes.
• Ensure proper grounding of the fixture.
• Do not exceed the maximum wattage specified for the light bulbs (40W per E27 bulb).
• Handle glass components with care to prevent breakage.
• This product is designed for indoor use only.

Package Contents

• 1 x Lucide JOANET Pendant Light fixture
• 1 x Instruction Manual
• Mounting hardware (screws, wall plugs)

Note: Light bulbs are not included and must be purchased separately.

Setup and Installation

Follow these steps for safe and correct installation of your Lucide JOANET pendant light.

Step 1: Preparation

• Turn off the main power supply at the circuit breaker to prevent electrical shock.
• Unpack all components and inspect them for any signs of damage. Do not proceed with installation if any parts are damaged.
• Determine the desired hanging height for each pendant. Height adjustment must be done before the final mounting and wiring of the fixture.

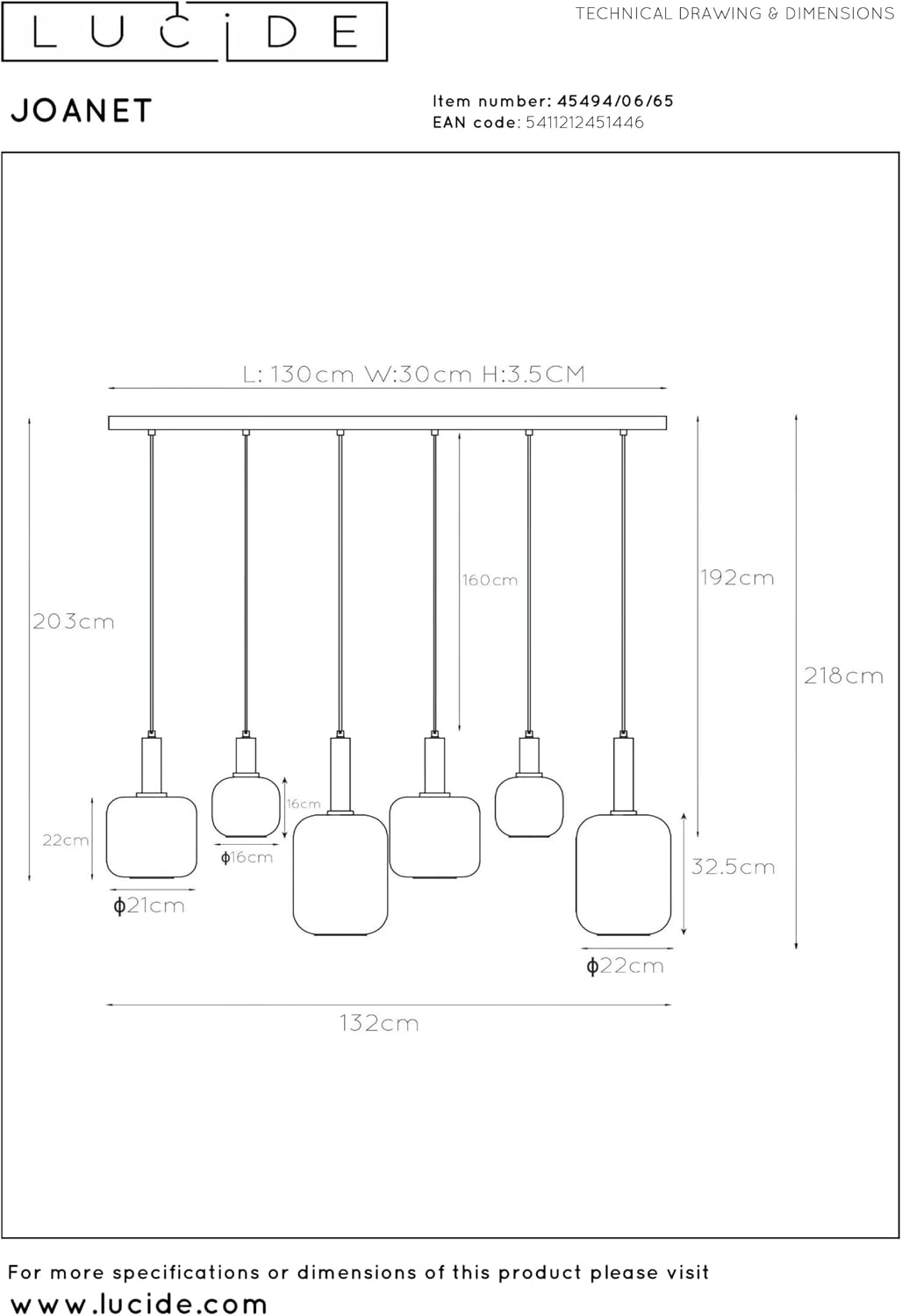

This technical drawing illustrates the dimensions of the Lucide JOANET pendant light, including the overall length (130cm), width (41.5cm), and maximum height (218cm). It also shows the individual pendant heights and shade sizes, which are crucial for planning the installation and adjusting the height before wiring.

Step 2: Mounting the Ceiling Plate

• Hold the mounting plate against the ceiling at the desired location and mark the drilling points.
• Drill holes at the marked points and insert appropriate wall plugs suitable for your ceiling material.
• Secure the mounting plate to the ceiling using the provided screws.

This image shows the rectangular black ceiling plate of the Lucide JOANET pendant light. This plate is secured to the ceiling and houses the electrical connections, providing a stable base for the six suspended lights.

Step 3: Electrical Connection

• Connect the household electrical wires (Live, Neutral, Earth) to the corresponding terminals on the fixture's terminal block.
• Ensure all connections are secure and properly insulated.

Step 4: Attaching the Pendants

• Carefully attach the pendant wires to the ceiling plate, ensuring the pre-set desired height for each is maintained.
• Secure the glass shades to the lamp holders.

This image displays the complete Lucide JOANET pendant light fixture, featuring six individual lights suspended from a rectangular ceiling plate. Each light has a smoked glass shade and a brass-colored fitting, showcasing the varied sizes and arrangement of the pendants.

Step 5: Installing Light Bulbs

• Screw E27 light bulbs (max 40W per bulb, LED compatible) into each of the six lamp holders.

This image shows a recommended filament-style E27 LED bulb (Lucide T32 - Filament bulb - Ø 3 cm - LED Dim. - E27 - 1x4.9W 2200K - Amber, SKU: 49035/05/62, EAN: 5411212491077). While bulbs are not included, this type is suggested for optimal aesthetic and performance with the JOANET fixture.

Step 6: Final Check

• Restore power to the circuit.
• Test the light fixture to ensure all bulbs illuminate correctly.

Operating Instructions

The Lucide JOANET pendant light is operated via a standard wall switch connected to its electrical circuit. If a compatible dimmer switch is installed, you can adjust the light intensity by operating the dimmer control.

Maintenance

Cleaning

• Always disconnect power before cleaning the fixture.
• Wipe the metal and glass surfaces with a soft, dry, or slightly damp cloth.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.

Bulb Replacement

• Disconnect power to the fixture.
• Allow any hot bulbs to cool completely before touching them.
• Carefully unscrew the old bulb and screw in a new E27 bulb. Ensure the new bulb does not exceed 40W.

Troubleshooting

Light does not turn on

• Check the main power supply at the circuit breaker.
• Ensure all light bulbs are correctly installed and are not faulty. Try testing with a known working bulb.
• Verify that all electrical connections are secure and correctly wired.

Light flickers

• If a dimmer is installed, ensure the light bulbs are compatible with the dimmer type.
• Check that all bulbs are screwed in tightly.
• If the issue persists, consult a qualified electrician.

Specifications

Warranty and Support

Warranty Information

This Lucide JOANET pendant light comes with a 2-year manufacturer's warranty, covering defects in materials and workmanship under normal use.

Customer Support

For technical assistance, warranty claims, or inquiries regarding replacement parts, please contact your retailer or visit the official Lucide website for further support.
