1. Introduction and Product Overview
This manual provides detailed instructions for the safe operation, installation, maintenance, and troubleshooting of your new Whirlpool Portable Heat/Cool Air Conditioner, Model WHAP13HBWC. This versatile unit is designed to create a comfortable living space by providing cooling, heating, dehumidification, and fan-only functions. It is suitable for rooms up to 350 square feet. Please read this manual thoroughly before operating the appliance and retain it for future reference.
Figure 1.1: Front view of the Whirlpool Portable Air Conditioner. This image displays the compact and modern design of the unit, featuring a white finish and the Whirlpool logo prominently displayed.
Figure 1.2: Key features of the Whirlpool Portable Air Conditioner. This image illustrates the unit's capabilities including cooling and dehumidification, a programmable 24-hour on/off timer, and a 3-speed fan for air circulation.
2. Safety Information
Your safety and the safety of others are very important. Please read all safety messages in this manual and on your appliance.
Important Safety Instructions:
- Always plug into a grounded 3-prong outlet. Do not remove ground prong.
- Do not use an adapter. Do not use an extension cord.
- Disconnect power before servicing.
- Use two or more people to move and install the air conditioner.
- Do not use this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Parts and Features
Familiarize yourself with the components of your portable air conditioner.
Main Components:
- Portable Air Conditioner Unit
- Exhaust Hose
- Window Exhaust Adapter
- Window Slider Kit
- Remote Control
- Drain Hose (for continuous drainage in dehumidify mode)
- Washable Filter
The unit features rolling casters for easy portability and easy-grip side handles molded into the plastic for ease of movement from room to room.
4. Setup and Installation
Proper installation is crucial for optimal performance.
4.1 Unpacking:
- Remove all packaging materials.
- Inspect the unit for any shipping damage.
- Ensure all accessories listed in Section 3 are present.
4.2 Placement:
- Place the unit on a flat, stable surface.
- Ensure there is at least 20 inches (50 cm) of space around the unit for proper air circulation.
- Position the unit near a window for exhaust hose installation.
4.3 Window Kit Installation:
- Assemble the window slider kit to fit your window opening. The kit is designed for both horizontal and vertical windows.
- Attach the exhaust hose to the unit's exhaust port.
- Connect the other end of the exhaust hose to the window exhaust adapter.
- Insert the window exhaust adapter into the opening of the window slider kit.
- Secure the window kit in the window frame, ensuring a tight seal to prevent air leakage.

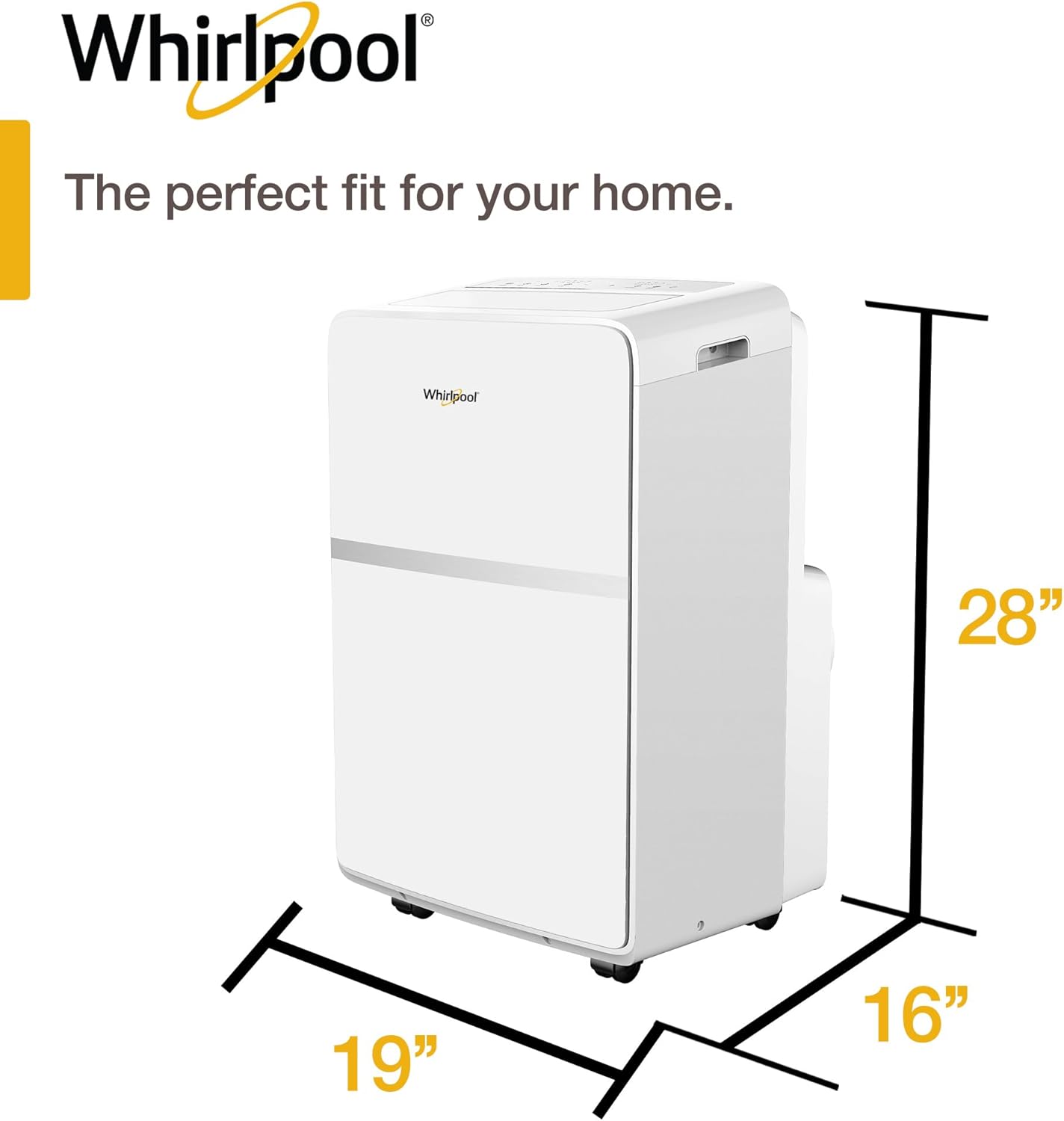

Figure 4.1: Dimensions of the Whirlpool Portable Air Conditioner. The unit measures approximately 28 inches in height, 19 inches in width, and 16 inches in depth, providing a visual reference for placement.
5. Operating Instructions
Your portable air conditioner offers multiple operating modes and settings for customized comfort.
5.1 Control Panel and Remote Control:
The unit can be operated using the on-board electronic panel with a digital display or the included remote control. Ensure batteries are installed in the remote control.
5.2 Operating Modes:
- Cool Mode: Provides powerful cooling for rooms up to 350 square feet. Adjust temperature and fan speed as desired.
- Heat Mode: Provides heating functionality. Adjust temperature and fan speed.
- Dehumidify Mode: Removes excess moisture from the air, removing 2.92 pints of moisture per hour. In this mode, continuous drainage is recommended using the provided drain hose.
- Fan-Only Mode: Circulates air without cooling or heating. Select from 3 fan speeds.
5.3 Settings:
- Temperature Adjustment: Use the up/down arrows on the control panel or remote to set your desired temperature.
- Fan Speed: Choose from 3 fan speeds (Low, Medium, High) for optimal airflow.
- 24-Hour On/Off Programmable Timer: Set the unit to turn on or off automatically at a specified time.
- Automatic Restart: After a power outage, the unit remembers your last settings and automatically restarts once power is restored.
6. Maintenance
Regular maintenance ensures efficient operation and extends the life of your appliance.
6.1 Cleaning the Washable Filter:
The filter helps keep the air free of dust, debris, and contaminants. It should be cleaned regularly, typically every two weeks or more often depending on usage and air quality.
- Turn off and unplug the unit.
- Locate and remove the air filter (usually at the back or side of the unit).
- Wash the filter under running water (warm, soapy water if very dirty).
- Allow the filter to air dry completely before reinserting it into the unit. Do not use a dryer or direct heat.
6.2 Draining Water:
The unit features a bucketless design where water collected during cooling is automatically evaporated. However, in high humidity conditions or when using the dehumidify mode, water may accumulate and need to be drained.
- Manual Drainage: If the internal water tank becomes full, the unit may stop operating and display an error code (e.g., P1). Turn off the unit, place a shallow pan or tray under the drain port, and remove the drain plug to empty the water.
- Continuous Drainage: For continuous dehumidification, attach the provided drain hose to the continuous drain port and route it to a floor drain or a larger collection container.
7. Troubleshooting
Before contacting customer service, refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power, tripped circuit breaker, power cord not fully plugged in. | Check power connection, reset circuit breaker, ensure plug is secure. |
| Unit not cooling effectively | Dirty air filter, exhaust hose not properly installed, room too large, windows/doors open. | Clean air filter, check exhaust hose connection and window seal, close windows/doors, ensure room size is within specifications (up to 350 sq ft). |
| "P1" error code displayed | Water pan full. | Drain the water from the unit. Refer to Section 6.2. |
| Unit is noisy | Unit not on a level surface, fan obstruction. | Ensure unit is on a flat, stable surface. Check for any obstructions near the fan. |
| Remote control not working | Dead batteries, obstruction between remote and unit, remote not pointed directly at unit. | Replace batteries. Ensure clear line of sight to the unit's receiver. Point remote directly at the unit. |
8. Specifications
Technical details for the Whirlpool Portable Air Conditioner, Model WHAP13HBWC.
| Specification | Value |
|---|---|
| Model Number | WHAP13HBWC |
| Cooling Capacity (DOE) | 8,000 BTU |
| Cooling Capacity (ASHRAE) | 13,000 BTU |
| Voltage | 115 Volts |
| Floor Area Coverage | Up to 350 Square Feet |
| Dehumidification Capacity | 2.92 Pints per hour (2.8 Pints listed in specs, using description for more detail) |
| Noise Level | 54.5 dB |
| Product Dimensions (D x W x H) | 15.16" x 18.7" x 27.9" |
| Item Weight | 76 pounds |
| Included Components | Air Conditioner, Manual, Warranty, Vent Kit, Remote, Batteries |
| Energy Efficiency Ratio (SEER) | 10.3 |
Figure 8.1: EnergyGuide label for the Whirlpool Portable Air Conditioner. This label provides an estimated yearly energy cost of $125 and a Combined Energy Efficiency Ratio (CEER) of 7.5, based on standard usage.
Figure 8.2: BTU recommendations for various room sizes. This visual guide helps determine the appropriate BTU capacity for different square footage areas, indicating that 8,000 BTU is suitable for up to 350 sq. ft.
9. Warranty and Support
Your Whirlpool Portable Air Conditioner is covered by a limited warranty.
9.1 Limited Warranty:
This appliance comes with a 1-year limited warranty. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Whirlpool website.
9.2 Customer Support:
For technical assistance, troubleshooting beyond this manual, or to inquire about warranty service, please contact Whirlpool Customer Support.
- Whirlpool Official Website: www.whirlpool.com
- Refer to your product registration card or included documentation for specific phone numbers and service hours.
