1. Introduction
Thank you for choosing the Briloner Leuchten 3019-016 LED Outdoor Wall Light. This manual provides important information for the safe and correct installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
This modern white LED outdoor wall light is constructed from durable plastic and features a sleek design that integrates well into various outdoor settings. The integrated LED module delivers 18W of power, providing 1500 lumens of neutral white light at a color temperature of 4000K. It is ideal for illuminating house walls or entrance areas. With an IP44 protection rating, this light is suitable for outdoor use. The average lifespan of the LED module is approximately 25,000 hours.
2. Safety Instructions
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the main power supply is switched off before installation, maintenance, or repair.
- Voltage: This product operates on 230 Volts AC. Verify your power supply matches this requirement.
- IP44 Rating: This fixture is protected against solid objects larger than 1mm and against splashing water from any direction. It is suitable for outdoor use but should not be submerged in water.
- Heat: Do not cover the light fixture. Ensure adequate ventilation around the unit.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Damage: Do not operate the light if any part is damaged. Contact customer support for replacement parts or service.
3. Package Contents
Verify that all components are present and undamaged:
- 1 x Briloner Leuchten 3019-016 LED Outdoor Wall Light
- Mounting hardware (screws, wall plugs)
- Instruction Manual
4. Setup and Installation
This LED outdoor wall light is designed for wall mounting. Professional installation by a qualified electrician is highly recommended.
- Prepare the Installation Area: Choose a suitable location on an exterior wall. Ensure the surface is flat and capable of supporting the fixture's weight.
- Disconnect Power: Turn off the main power supply at the circuit breaker before beginning any electrical work.
- Mark Drilling Points: Hold the light fixture against the wall at the desired mounting position. Mark the drilling points for the mounting screws.
- Drill Holes: Drill holes at the marked points using an appropriate drill bit for your wall material. Insert wall plugs if necessary.
- Electrical Connection: Connect the household electrical wires to the terminals inside the fixture. Ensure correct polarity (Live, Neutral, Earth) according to local wiring codes. Secure all connections tightly.
- Mount the Fixture: Align the fixture with the drilled holes and secure it to the wall using the provided screws. Ensure the fixture is firmly attached and stable.
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

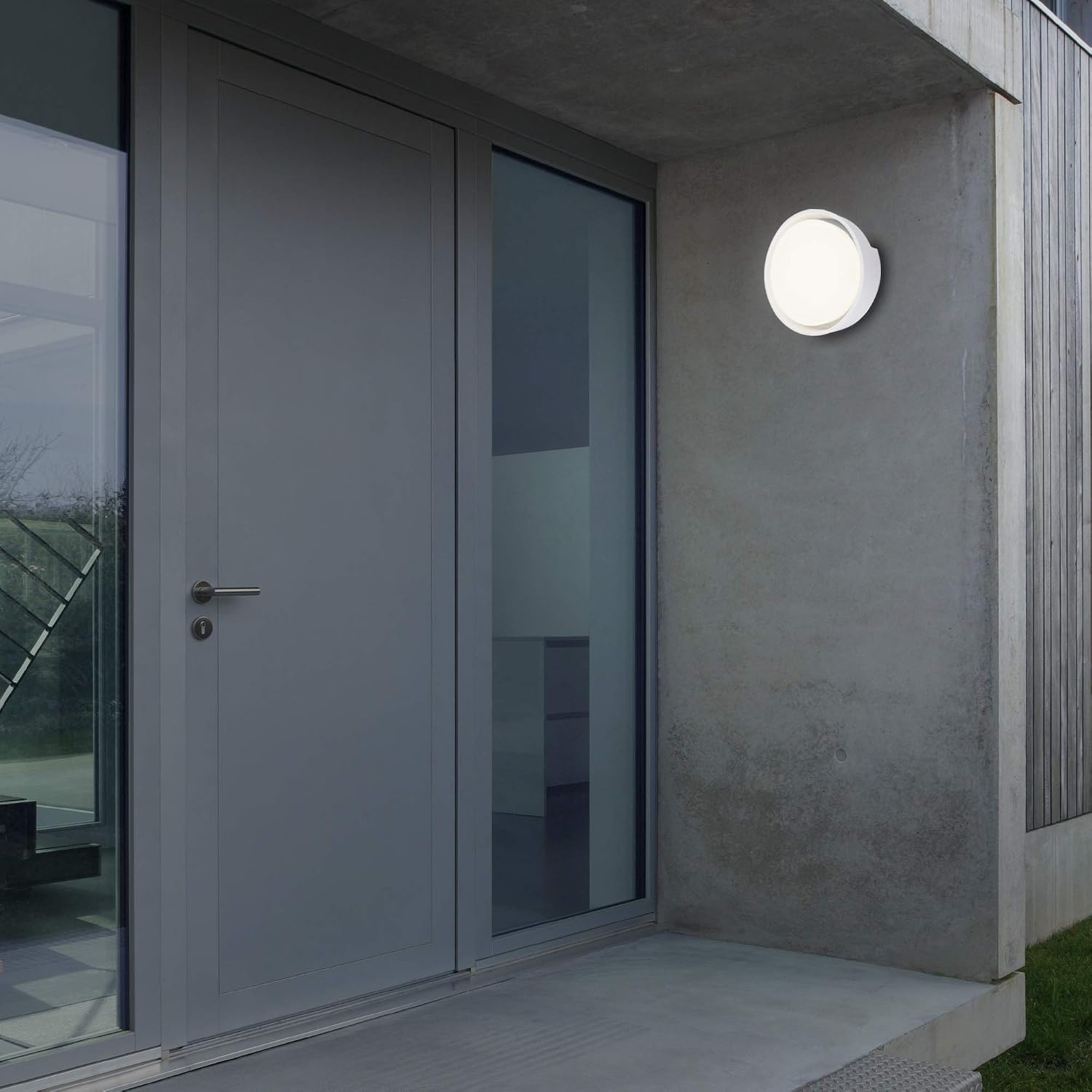

Image: The Briloner 3019-016 LED Outdoor Wall Light installed on a wall, providing illumination for an entrance area.
Image: Detailed view of the Briloner 3019-016 LED Outdoor Wall Light, showing its dimensions of 220mm diameter and 68mm height.
5. Operating Instructions
The Briloner Leuchten 3019-016 LED Outdoor Wall Light operates via your standard household electrical switch. Once installed and connected to the power supply, simply use the wall switch to turn the light on or off.
Image: The Briloner 3019-016 LED Outdoor Wall Light highlighting its features: Neutral white 4000K light, IP44 protection, and suitability for outdoor environments.
6. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your LED outdoor wall light.
- Cleaning: Periodically clean the exterior of the fixture to remove dirt, dust, and debris. Use a soft, damp cloth. Avoid harsh chemicals or abrasive materials that could damage the finish or plastic components. Ensure the power is off before cleaning.
- Inspection: Occasionally inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- LED Module: The integrated LED module is designed for a long lifespan (approximately 25,000 hours) and is not user-replaceable. If the LED module fails, the entire fixture may need replacement.
7. Troubleshooting
If you encounter issues with your Briloner Leuchten 3019-016, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply | Check circuit breaker and wall switch. Ensure power is restored. |
| Light flickers | Loose wiring connection | Disconnect power and check all electrical connections. Consult a qualified electrician. |
| Light output is dim | Dirt or debris on diffuser | Clean the light diffuser with a soft, damp cloth (power off). |
| Water inside fixture | Improper installation or damaged seal | Disconnect power immediately. Inspect for damage. Re-seal or re-install correctly. Consult a qualified electrician. |
If the problem persists after attempting these solutions, please contact Briloner Leuchten customer support or a qualified electrician.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | 3019-016 |
| Brand | Briloner |
| Dimensions (Diameter x Height) | 220 x 68 mm |
| Weight | 420 g |
| Material | Plastic |
| Color | White |
| Power Consumption | 18 Watts |
| Luminous Flux | 1500 Lumens |
| Color Temperature | 4000 Kelvin (Neutral White) |
| Average Lifespan | 25,000 Hours |
| Voltage | 230 Volts AC |
| Protection Rating | IP44 |
| Installation Type | Wall Mount |
| Special Features | Energy-efficient |
9. Warranty and Support
Briloner Leuchten products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Briloner Leuchten website.
If you require technical assistance, have questions about installation, or need to report a defect, please contact Briloner Leuchten customer support. Contact details can typically be found on the product packaging or the manufacturer's website.
Manufacturer: Briloner Leuchten
