Introduction
This manual provides essential information for the safe and efficient installation, operation, maintenance, and troubleshooting of your Hestan KRD365-NG 36-inch 5-burner dual fuel range. Please read all instructions carefully before using the appliance to ensure proper function and to prevent potential hazards. Keep this manual for future reference.
Important Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.
- Read all instructions before using this appliance.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Never use this appliance as a space heater to heat or warm the room. This could result in carbon monoxide poisoning and overheating of the oven.
- Always ensure proper ventilation when operating the range.
- Keep children away from the appliance during operation.
Setup and Installation
The Hestan KRD365-NG is a freestanding dual fuel range, combining gas cooktop burners with an electric oven. Due to its weight (approximately 485 pounds) and the need for both gas and electrical connections, professional installation is highly recommended.
Unpacking and Placement
- Carefully remove all packaging materials. Inspect the range for any shipping damage.
- Ensure the installation area has adequate clearance and is level.
- This appliance requires a proper gas supply line and an electrical outlet. Consult local codes and a qualified technician for specific requirements.
Connecting Utilities
- Gas Connection: A qualified gas technician must connect the range to the gas supply line. Ensure all connections are leak-tested.
- Electrical Connection: The range requires a dedicated electrical circuit. A qualified electrician should perform the electrical hookup according to local codes.

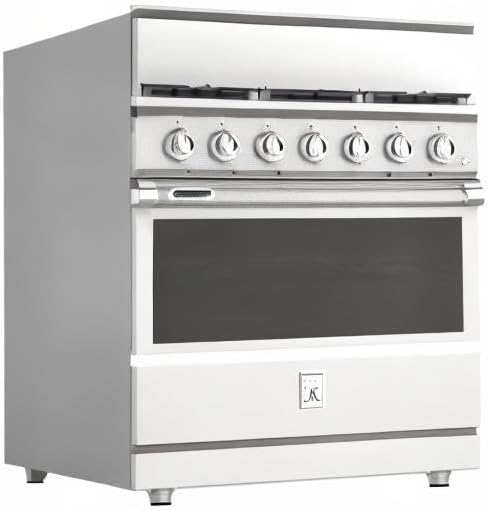

Image: Side view of the Hestan KRD365-NG Dual Fuel Range, showing its freestanding design and robust construction.
Operating Instructions
Your Hestan KRD365-NG range features a powerful 5-burner gas cooktop and a spacious 5.8 cubic feet electric oven, controlled by intuitive knobs.
Cooktop Operation
The cooktop is equipped with five high-performance dual-flow burners, offering precise control from high heat to a gentle simmer.
- Ignition: To ignite a burner, push in and turn the corresponding control knob counter-clockwise to the 'LITE' position. You will hear a clicking sound as the electronic ignitor sparks. Once the burner ignites, continue to hold the knob in for a few seconds, then release and adjust to your desired flame setting.
- Dual-Flow Burner System: Front burners deliver up to 23,000 BTU/hour for rapid heating, while all burners can achieve a continuous simmer as low as 500 BTU/hour for delicate cooking.
- Re-ignition Feature: The robust electronic ignition system will automatically re-ignite a burner if the flame blows out, ensuring continuous operation and safety.
- Grates: Heavy-duty cast-iron grates provide a continuous cooking surface. Ensure cookware is stable on the grates.
Image: The Hestan KRD365-NG 36-inch 5-burner dual fuel range, showcasing its stainless steel finish and control knobs.
Oven Operation
The electric oven offers precise temperature control for baking, roasting, and broiling.
- Setting Temperature: Turn the oven control knob to the desired temperature. The oven will begin to preheat.
- Gentle-Close Door: The oven door features a gentle-close mechanism with a shock absorption system, allowing for stable and effortless closing.
- Broiler/Storage Drawer: The bottom drawer can be used for broiling or for convenient storage of cookware.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hestan range.
Cooktop Cleaning
- Burner Bowls: The patent-pending diamond stainless steel burner bowls are designed for easy cleaning. Allow burners to cool completely before cleaning. Remove grates and burner caps, then wipe down the bowls with a damp cloth and mild detergent.
- Cast-Iron Grates: Clean grates with warm, soapy water. For stubborn stains, use a non-abrasive scrubber. Ensure grates are completely dry before placing them back on the cooktop.
- Stainless Steel Surfaces: Use a soft cloth and a stainless steel cleaner to wipe down the control panel and other stainless steel surfaces. Always wipe in the direction of the grain to prevent streaking.
Oven Cleaning
- Allow the oven to cool completely before cleaning.
- Wipe interior surfaces with warm, soapy water. For baked-on spills, use an oven cleaner specifically designed for electric ovens, following the product instructions carefully.
- Remove oven racks and clean them separately in a sink.
Troubleshooting
Before contacting service, review the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | Gas supply off; ignitor clogged; power outage. | Check gas valve; clean ignitor port; check circuit breaker. |
| Oven not heating or heating unevenly | Power supply issue; incorrect temperature setting; faulty heating element. | Check circuit breaker; verify temperature setting; contact service for element replacement. |
| Gas odor | Gas leak. | IMMEDIATELY turn off gas supply, open windows, and evacuate. Do not operate electrical switches. Contact gas company and qualified technician. |
Specifications
| Feature | Detail |
|---|---|
| Model | KRD365-NG |
| Brand | Hestan |
| Installation Type | Freestanding |
| Fuel Type | Dual Fuel (Gas Cooktop, Electric Oven) |
| Number of Heating Elements | 5 Burners |
| Oven Capacity | 5.8 Cubic Feet |
| Material | Stainless Steel |
| Controls Type | Knob |
| Item Weight | 485 Pounds |
| GTIN/UPC | 842763115054 |
Warranty Information
This Hestan appliance is covered by a manufacturer's warranty. Please refer to your purchase documentation for specific terms and conditions. Typically, Hestan offers a 3-year full warranty on its residential appliances. Keep your proof of purchase for any warranty claims.
Customer Support
For technical assistance, service requests, or to inquire about parts, please contact Hestan customer support. Ensure you have your model number (KRD365-NG) and proof of purchase available when contacting support.
For the most current contact information, please visit the official Hestan website or refer to your warranty card.
