WORX 20V Hydroshot Cordless Pressure Washer WG620.5 Instruction Manual

1. Introduction

Thank you for choosing the WORX 20V Hydroshot Cordless Pressure Washer WG620.5. This portable power cleaner is designed for versatile cleaning tasks, offering convenience and efficiency without the need for a power cord. It is ideal for cleaning vehicles, outdoor furniture, decks, and more, drawing water from various sources.

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Hydroshot pressure washer. Please read it thoroughly before first use and keep it for future reference.

2. Key Features

• Cordless Portability: Lighter and more compact than traditional pressure washers, allowing for easy transport and use anywhere.
• Versatile Water Source: Capable of drawing water from any fresh water source, including lakes, pools, buckets, or a standard garden hose. A bottle cap adapter is also included for use with 2-liter bottles.
• Powerful Cleaning: Delivers up to 320 PSI, providing 5 times more pressure than a standard garden hose with a nozzle.
• 5-in-1 Multi-Spray Nozzle: Features five different pressure settings (0°, 15°, 25°, 40°, and a watering setting) for various cleaning applications.
• WORX Power Share Compatibility: Utilizes the WORX Power Share 20V battery system, allowing the same battery to power other compatible 20V and 40V WORX tools.

Figure 2.1: Overview of WORX Hydroshot WG620.5 key features.

Figure 2.2: The WORX Power Share battery system allows for interchangeable use across multiple tools.

3. What's Included

Your WORX 20V Hydroshot Cordless Pressure Washer WG620.5 package includes the following components:

• WORX Hydroshot Pressure Washer Unit
• 20V 2Ah Battery with indicator (WA3575)
• 20V 0.4A Charger (WA3742)
• 20’ Draw Hose
• Quick Connect Adapter (WA4017)
• Bottle Cap Adapter (WA4038)
• Long Lance (526.5mm)
• Multi-Spray Nozzle
• Soap Bottle (WA4036)

Figure 3.1: All components included with your WORX Hydroshot WG620.5.

4. Setup Instructions

1. Charge the Battery: Before first use, fully charge the 20V 2Ah battery using the provided charger (WA3742). The battery features an indicator to show its charge level.
2. Insert Battery: Slide the fully charged battery into the battery slot on the main unit until it clicks securely into place.
3. Attach Long Lance and Nozzle: Connect the long lance to the main unit. Then, attach the multi-spray nozzle to the end of the long lance. Ensure all connections are secure.
4. Connect Water Source:
   • Using the Draw Hose: Attach the 20’ draw hose to the quick connect adapter (WA4017), then connect the adapter to the water inlet on the pressure washer. Place the other end of the draw hose into a bucket, lake, or any fresh water source. Ensure the filter on the end of the hose is submerged.
   • Using a Garden Hose: For continuous water supply, connect a standard garden hose directly to the water inlet on the pressure washer.
   • Using a 2-Liter Bottle: For ultimate portability, attach the bottle cap adapter (WA4038) to a standard 2-liter bottle filled with water, then connect it to the water inlet.
5. Prime the Pump: Before starting, ensure the unit is properly primed. Point the nozzle away from yourself and others, then press the trigger for a few seconds until a steady stream of water emerges.

5. Operating Instructions

1. Power On: Ensure the battery is inserted and the water source is connected. The unit is ready for operation.
2. Adjust Nozzle Settings: The 5-in-1 multi-spray nozzle allows you to select different spray patterns and pressures by rotating the nozzle head. The settings include:
   • 0° (Pencil Jet): For concentrated, high-impact cleaning on tough spots.
   • 15° (Narrow Fan): For intensive cleaning over a smaller area.
   • 25° (Medium Fan): A balanced spray for general cleaning tasks.
   • 40° (Wide Fan): For gentle cleaning or rinsing large surfaces.
   • Watering Setting: A soft, wide spray suitable for watering plants.


   Figure 5.1: Rotate the nozzle to select desired spray pattern.
3. Begin Cleaning: Point the nozzle at the surface to be cleaned and press the trigger. Maintain a safe distance from the surface to avoid damage, especially with higher pressure settings.
4. Using the Soap Bottle: For tasks requiring detergent, fill the included soap bottle (WA4036) with appropriate cleaning solution. Attach it to the unit's water inlet. The unit will mix the soap with water for application. After applying soap, remove the soap bottle and rinse the surface with clean water.
5. After Use: Release the trigger, disconnect the water source, and remove the battery. Store the unit in a dry, safe place.

Figure 5.2: The Hydroshot provides powerful cleaning for various outdoor surfaces.

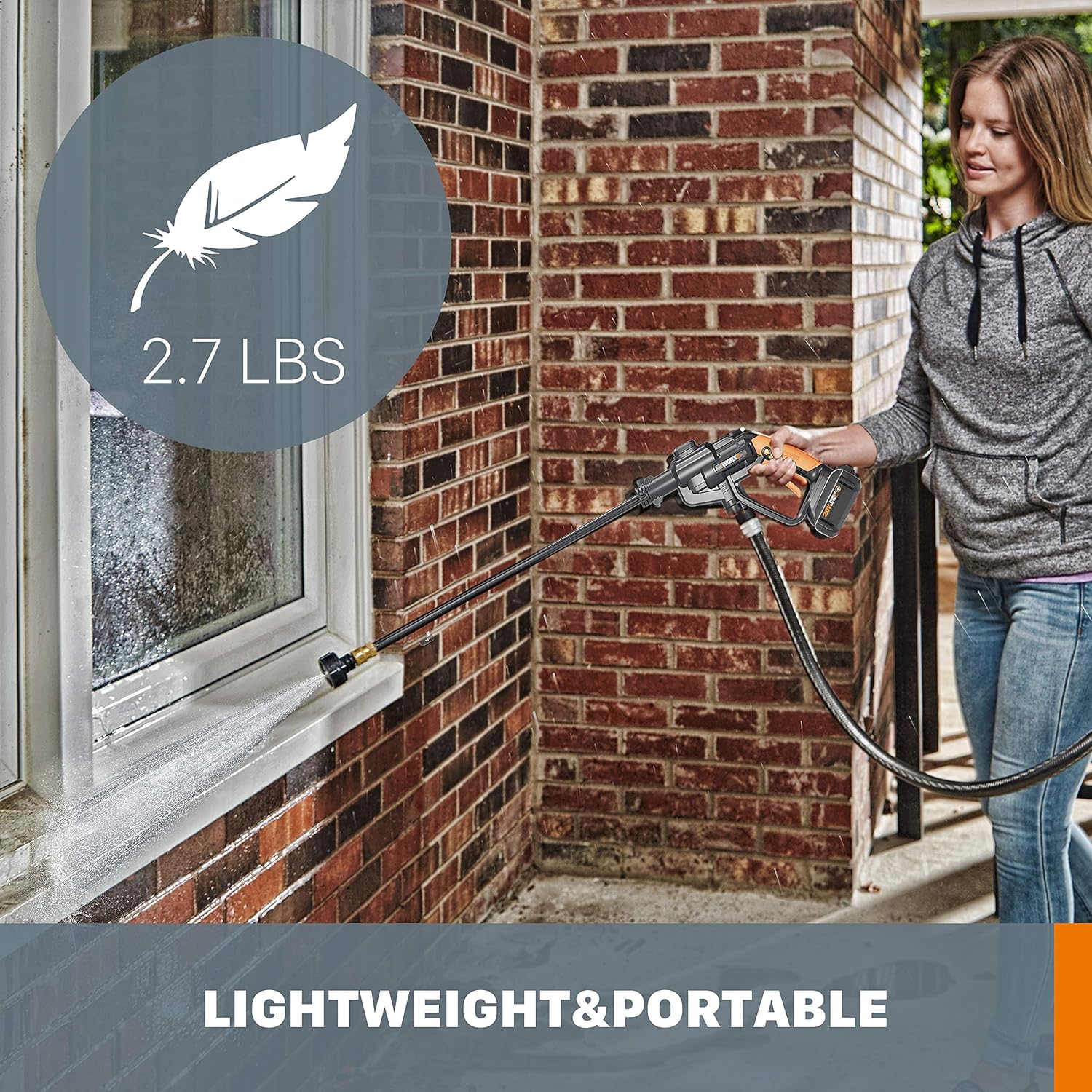

Figure 5.3: Its lightweight design makes it easy to clean elevated or hard-to-reach areas.

6. Maintenance

• Cleaning the Unit: After each use, wipe down the exterior of the pressure washer with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Nozzle Maintenance: Periodically check the multi-spray nozzle for blockages. If clogged, clear any debris using a small pin or the included nozzle cleaning tool (if applicable).
• Hose and Filter: Inspect the draw hose and its filter for damage or blockages. Clean the filter as needed to ensure optimal water flow.
• Battery Care: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. Do not store batteries in a discharged state for extended periods.
• Winter Storage: If storing the unit in freezing temperatures, ensure all water is drained from the pump and hoses to prevent damage.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information, technical support, or to purchase replacement parts and accessories, please refer to the official WORX website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

WORX Official Website: www.worx.com
