1. Safety Information
For your safety and to prevent injury, always adhere to the following guidelines when operating the Greenworks 48V 8-Inch Brushless Edger:
- Always wear eye protection, long pants, and closed-toe shoes.
- Keep a safe distance from the blade and avoid touching it while in operation.
- Ensure the work area is clear of debris, children, and pets.
- Do not operate the edger in wet conditions.
- Remove the battery pack when not in use, before cleaning, or when changing accessories.
2. Product Overview
The Greenworks 48V (24V x 2) 8-Inch Brushless Cordless Edger (Model ED48L4410) is designed for precise lawn edging. It features a powerful brushless motor for efficient operation and extended tool life. The edger is part of the Greenworks 24V battery system, allowing battery interchangeability with other compatible tools.
Key features include:
- 48V Power (2x24V): Utilizes two 24V batteries for enhanced power and runtime.
- 8-Inch Steel Blade: Durable blade for clean and precise edging.

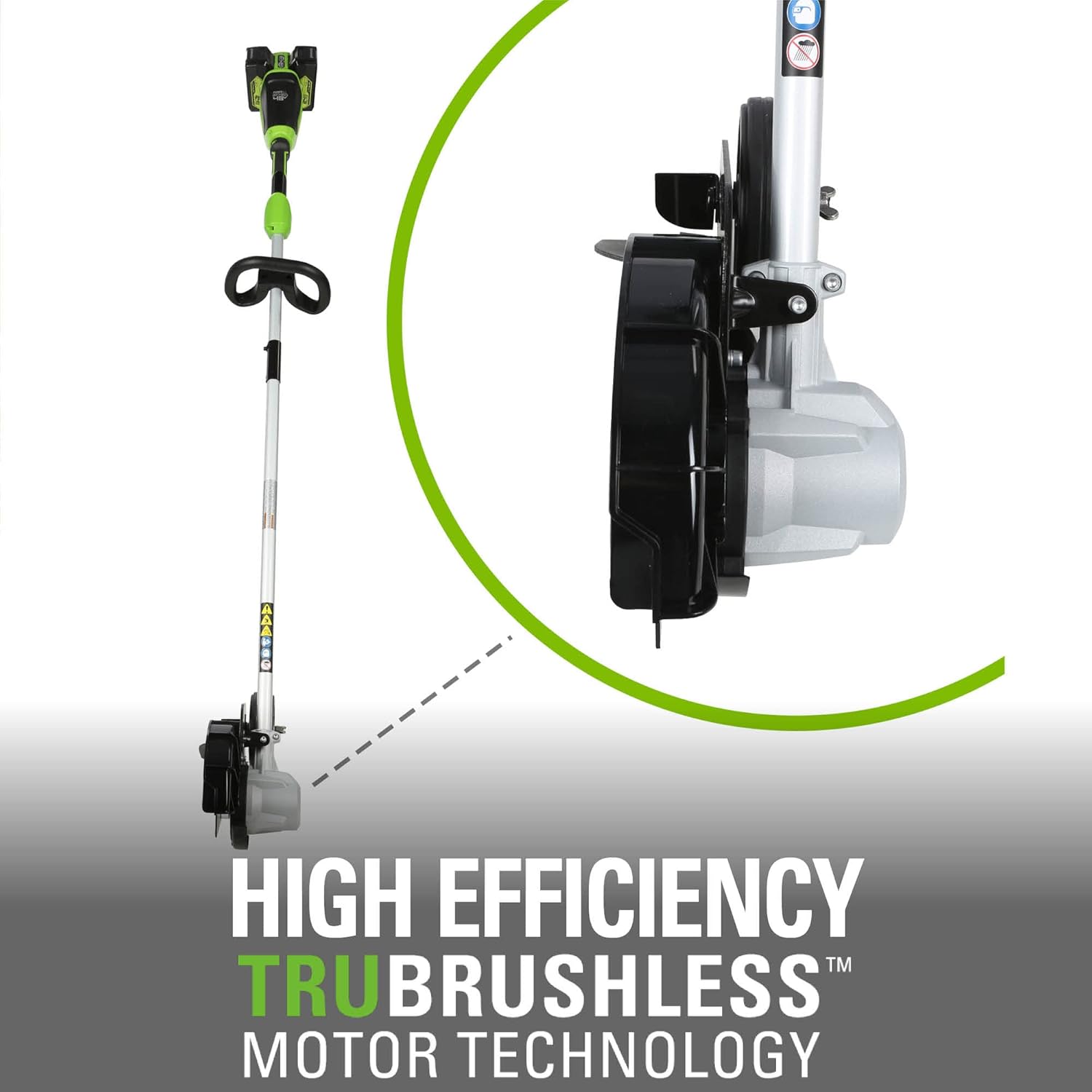

- Brushless Motor: Provides increased torque, quieter operation, and longer tool life compared to brushed motors.
- Tool-less Depth Adjustment: Allows for easy adjustment of cutting depth without additional tools.
- Curb Guide Wheel: Ensures consistent and straight edging along sidewalks and driveways.
- Lightweight Design: Designed for reduced user fatigue during operation.
- Maintenance-Free: No gas, oil, or emissions, offering instant starts and quiet operation.
3. What's Included
Your Greenworks 48V 8-Inch Brushless Edger package includes the following items:
- Greenworks 8-Inch Brushless Edger Unit
- (2) Greenworks 24V 4.0Ah Lithium-Ion Batteries
- (1) Greenworks 4A Dual Port Charger
- Operator's Manual (this document)
4. Setup and Assembly
Follow these steps to assemble your Greenworks 48V 8-Inch Brushless Edger:
- Unpack Components: Carefully remove all items from the packaging.
- Attach Auxiliary Handle: Secure the auxiliary handle to the main shaft at a comfortable position.
- Connect Shaft Sections: If the shaft is in multiple pieces, connect them securely according to the arrows or locking mechanisms.
- Install Blade Guard: Ensure the blade guard is properly installed and secured over the blade.
- Charge Batteries: Fully charge both 24V 4.0Ah batteries using the dual port charger before first use. Insert batteries into the charger and wait for the indicator lights to show a full charge.
- Insert Batteries: Once charged, insert both batteries into the designated slots on the edger unit until they click into place.
5. Operating Instructions
Before operating, ensure all safety precautions are followed and the batteries are fully charged and installed.
- Adjust Cutting Depth: Use the tool-less depth adjustment mechanism to set the desired cutting depth. For initial use, start with a shallower depth and adjust as needed.
- Position the Edger: Place the edger with the curb guide wheel resting on the hard surface (e.g., sidewalk, driveway) and the blade aligned with the edge of the lawn.
- Start the Edger: Engage the safety switch and press the trigger to start the motor. The brushless motor provides high torque for effective cutting.
- Begin Edging: Slowly and steadily guide the edger along the desired edge. Allow the blade to do the work; do not force the tool.
- Maintain Control: Keep a firm grip on both handles for optimal control and stability.
- Stop Operation: Release the trigger to stop the motor. Always remove the batteries when finished or before making adjustments.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your edger.
- Cleaning: After each use, remove the batteries and clean the edger, especially the blade and guard, of any grass clippings or debris. Use a dry cloth or soft brush.
- Blade Inspection: Periodically inspect the 8-inch steel blade for sharpness, damage, or excessive wear. Replace the blade if it is dull or damaged.
- Battery Care: Store batteries in a cool, dry place away from direct sunlight and moisture. Do not store batteries in a discharged state for extended periods.
- Storage: Store the edger in a dry, secure location, out of reach of children.
7. Troubleshooting
If you encounter issues with your edger, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Edger does not start | Batteries not charged or improperly installed; Safety switch not engaged. | Ensure batteries are fully charged and correctly inserted. Engage safety switch before pressing trigger. |
| Poor edging performance | Dull or damaged blade; Incorrect cutting depth; Excessive grass/debris. | Inspect and replace blade if necessary. Adjust cutting depth. Clear excessive grass or debris from the path. |
| Tool stops during operation | Battery charge low; Overload protection activated. | Recharge batteries. Reduce load on the tool by taking smaller passes. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Greenworks |
| Model Number | ED48L4410 |
| Power Source | Battery Powered (2 x 24V) |
| Battery Type | Lithium-Ion (2 x 4.0Ah included) |
| Blade Size | 8 Inches |
| No-Load Speed | 6000 / 5300 RPM |
| Item Weight | 19.37 Pounds |
| Product Dimensions | 70.07"L x 11.61"W |
| Assembly Required | Yes |
9. Warranty and Support
Greenworks offers a 3-Year Tool & Battery Warranty for this product, covering defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical assistance, troubleshooting, or warranty inquiries, please contact Greenworks Customer Support. Refer to the official Greenworks website or your product packaging for the most current contact information.
