Product Overview
The Prolux Core Heavy Duty Single Pad Commercial Polisher is a versatile and powerful machine designed for comprehensive floor care. It is engineered to strip, wax, mop, buff, sand, polish, clean, and refinish various floor surfaces. Featuring a unique random orbit motor, it prevents swirl marks and damage commonly associated with traditional buffers. Its robust construction, combined with user-friendly design elements like a height-adjustable telescopic wand and soft anti-scratch rubber wheels, makes it suitable for both commercial and heavy-duty residential applications.
Figure 1: The Prolux Core Heavy Duty Single Pad Commercial Polisher, equipped with a hard brush for initial use.
Setup Instructions
Before operating your Prolux Core polisher, ensure all components are properly assembled. The unit is designed for quick and easy setup.
- Unpacking: Carefully remove all contents from the packaging. Verify that all parts are present: the main polisher unit, the telescopic handle assembly, and the included hard brush.
- Handle Assembly: Attach the telescopic handle to the main polisher base. Align the connection points and secure them firmly. No tools are typically required for this step.
- Brush/Pad Attachment: Ensure the hard brush (or desired optional pad/brush) is securely attached to the bottom of the polisher. The unit features an easy attachment mechanism.
- Power Cord: Uncoil the included 50-foot extension cord and connect it to the polisher's power input. Ensure the connection is secure before plugging into a grounded 120V AC outlet.

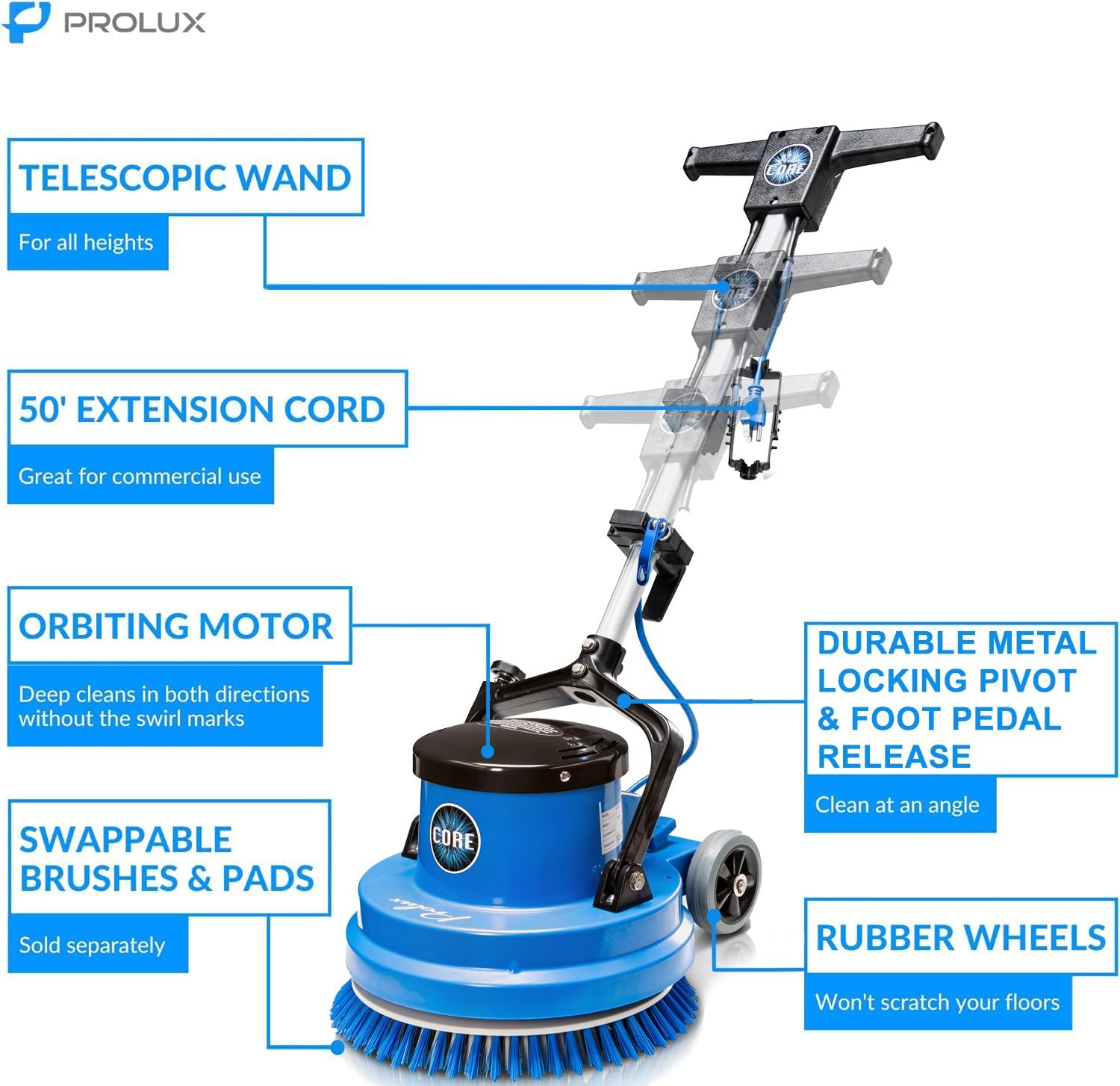

Figure 2: Key components and assembly points of the Prolux Core polisher.
Figure 3: Detailed view of the polisher's ergonomic and functional design features.
Operating the Polisher
The Prolux Core polisher is designed for efficient and safe operation across various floor types. Always ensure the floor area is clear of debris before beginning.
General Operation
- Power On: Once assembled and plugged in, grasp the handle firmly. Engage the power switch, typically located on the handle.
- Movement: Guide the polisher across the floor surface using smooth, overlapping passes. The random orbit motor ensures even cleaning without creating swirl marks.
- Adjusting Handle Height: Utilize the height-adjustable telescopic wand to find a comfortable operating position. This reduces strain during extended use.
- Pivoting Action: The locking pivot with foot pedal release allows for easy maneuvering and cleaning at various angles, enhancing versatility.
- Surface Compatibility: The Prolux Core is suitable for a wide range of surfaces including wood, vinyl, marble, and concrete. Always select the appropriate brush or pad for your specific floor type and task (e.g., scrubbing, buffing, polishing).
Figure 4: The Prolux Core's adaptability for multi-surface cleaning.
Key Operating Features
- Random Orbit Motor: Unlike traditional buffers, this motor design prevents swirl marks and ensures a consistent finish.
- High Torque Motor: Delivers powerful scrubbing and buffing action at 150 RPM for effective cleaning.
- 15-Inch Cleaning Path: Provides efficient coverage for larger areas.
- Soft Anti-Scratch Rubber Wheels: Protect your floors from marks and allow for easy transport.
- 50-Foot Extension Cord: Offers extended reach for commercial applications without needing multiple outlets.
Figure 5: The powerful high torque motor of the Prolux Core.
Figure 6: Overview of the Prolux Core's design and performance specifications.
Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your Prolux Core polisher.
- Cleaning the Unit: After each use, wipe down the exterior of the polisher with a damp cloth. Ensure no cleaning solutions or water enter the motor housing.
- Brush/Pad Care: Remove the brush or pad after each use. Clean brushes thoroughly with water and mild detergent, then allow them to air dry completely before storage. Replace worn-out pads or brushes as needed to maintain cleaning effectiveness.
- Cord Inspection: Periodically inspect the 50-foot power cord for any signs of damage, fraying, or cuts. Do not use the unit if the cord is damaged.
- Storage: Store the polisher in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the handle is in a stable position or lowered for compact storage.
Troubleshooting
This section addresses common issues you might encounter with your Prolux Core polisher. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Not plugged in; power outlet issue; power switch off; damaged cord. | Ensure unit is securely plugged into a working 120V AC outlet. Check circuit breaker. Verify power switch is in the "ON" position. Inspect power cord for damage. |
| Poor cleaning performance. | Worn brush/pad; incorrect brush/pad for surface; insufficient cleaning solution. | Replace worn brushes/pads. Ensure the correct brush/pad is used for the specific floor type and task. Apply appropriate cleaning solution as needed. |
| Unit vibrates excessively or makes unusual noise. | Loose brush/pad; foreign object caught; motor issue. | Ensure brush/pad is securely attached. Check for and remove any foreign objects. If problem persists, discontinue use and contact customer support. |
| Difficulty changing brushes/pads. | Mechanism not fully disengaged; debris obstructing. | Ensure the locking pivot is fully released. Clear any debris from the attachment area. Refer to the setup instructions for proper attachment/detachment. |
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | prolux_core |
| Speed | 150 RPM |
| Item Weight | 30 Pounds |
| Voltage | 120 Volts (AC) |
| Product Dimensions | 15 x 10 x 31 inches |
| Included Components | Polisher, Hard Brush (as per product title) |
| Material | Alloy Steel, Aluminum, Metal, Stainless Steel |
| Color | Blue |
| Power Source | Corded Electric |
| Cleaning Path | 15 inches |
Warranty and Customer Support
Prolux stands behind the quality of its products. The Prolux Core polisher comes with a comprehensive warranty to ensure your peace of mind.
- Motor Warranty: A 5-year limited warranty covers the motor. To be eligible for this extended motor warranty, online registration of your product is required.
- Bumper-to-Bumper Warranty: A 2-year limited bumper-to-bumper warranty covers other parts of the unit.
- Warranty Registration: Please visit the official Prolux website to register your product and activate your warranty.
Figure 7: Prolux warranty information.
Customer Support
For any questions, technical assistance, or warranty claims, please contact Prolux customer support. Refer to the contact information provided in your product packaging or on the official Prolux website.
