NC Ignition Key 6693241 User Manual

For Bobcat Skid Steer Loader Models 751, 753, 763, 773, 863, 873, 883, 963

1. Product Overview

This manual provides instructions for the NC Ignition Key, part number 6693241, designed for various Bobcat Skid Steer Loader models. This key serves as a direct replacement or spare for compatible heavy equipment, ensuring reliable operation.

Two NC Ignition Keys 6693241 for Bobcat Skid Steer Loaders

Image: Two NC Ignition Keys 6693241, showing the Bobcat logo on the key head.

2. Compatibility

The NC Ignition Key 6693241 is compatible with the following Bobcat Skid Steer Loader models:

  • Bobcat 751 Skid Steer Loader
  • Bobcat 753 Skid Steer Loader
  • Bobcat 763 Skid Steer Loader
  • Bobcat 773 Skid Steer Loader
  • Bobcat 863 Skid Steer Loader
  • Bobcat 873 Skid Steer Loader
  • Bobcat 883 Skid Steer Loader
  • Bobcat 963 Skid Steer Loader

3. Key Identification

The key features a distinct design with the Bobcat logo embossed on the head. It is constructed from durable metal, ensuring longevity and reliable performance. The shaft is precisely cut to match the ignition cylinders of the specified Bobcat models.

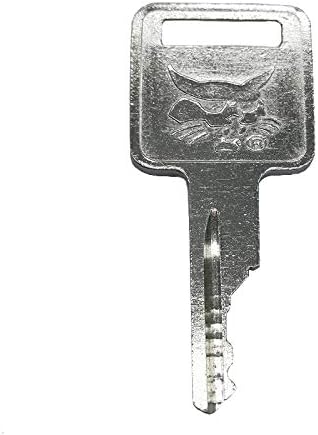

Close-up of a single NC Ignition Key 6693241

Image: A single NC Ignition Key 6693241, highlighting the Bobcat logo and key cut.

4. Setup (Key Insertion)

  1. Ensure the Bobcat skid steer loader is powered off and in a safe, stable position.
  2. Locate the ignition switch on the control panel.
  3. Gently insert the NC Ignition Key 6693241 into the ignition cylinder. Do not force the key.
  4. The key should slide in smoothly until it is fully seated.

5. Operating (Starting the Machine)

  1. With the key fully inserted, turn the key clockwise to the "ON" position. Observe the dashboard lights and indicators to confirm the electrical system is active.
  2. Continue turning the key clockwise to the "START" position. Hold it there until the engine starts.
  3. Once the engine starts, release the key. It will automatically return to the "ON" position.
  4. To turn off the machine, turn the key counter-clockwise to the "OFF" position and remove it.

6. Maintenance

  • Keep the key clean and free from dirt, grease, or debris.
  • Avoid using the key for purposes other than its intended function (e.g., prying, opening packages).
  • Store the key in a secure location to prevent loss or damage.
  • If the key becomes bent or damaged, replace it immediately to prevent damage to the ignition cylinder.

7. Troubleshooting

IssuePossible Solution
Key does not turn in ignition
  • Ensure the key is fully inserted.
  • Check for any obstructions in the ignition cylinder.
  • Verify that the correct key is being used for the specific Bobcat model.
  • If the steering wheel is locked, gently jiggle the steering wheel while turning the key.
Engine does not start when key is turned
  • Confirm the machine's battery is charged.
  • Check for any safety interlocks that might prevent starting (e.g., seatbelt, armrests, parking brake).
  • Consult the Bobcat skid steer loader's primary operator's manual for specific starting procedures and safety checks.

8. Specifications

  • Brand: NC
  • Model Number: 6693241 (also compatible with 6709527 systems)
  • Item Weight: Approximately 0.704 ounces
  • Package Dimensions: Approximately 4.41 x 4.29 x 0.35 inches
  • Material: Durable Metal Alloy

9. Warranty and Support

For information regarding warranty coverage or technical support, please contact the original seller or distributor of this product. Ensure you have your purchase details and the product model number (6693241) available when seeking assistance.
