1. Introduction
This user manual provides essential information for the proper use and understanding of the SUPERBAT SMA Adapter Splitter 2-Way. This product is designed to split a single SMA male connection into two SMA female connections, facilitating various RF applications. Please read this manual thoroughly before use to ensure optimal performance and safety.
2. Product Overview
The SUPERBAT SMA Adapter Splitter is a high-quality coaxial connector designed for reliable signal transmission. It comes in a pack of three units.
Key Features:
- Type: SMA male to 2 female coax splitter cable adapter.
- Impedance: 50 Ohm.
- Construction: Shell made of brass with gold plating, ensuring lower VSWR for higher transmission efficiency.
- Durability: Features corrosion resistance and high-quality construction for long-term use.
- Ease of Use: Designed for easy installation.
- Signal Integrity: Facilitates fast signal transmission.
Product Components:
Figure 2.1: Three units of the SUPERBAT SMA Adapter Splitter.
Figure 2.2: Visual representation of key product features.
3. Specifications
| Specification | Value |
|---|---|
| Type | SMA Male to Dual SMA Female |
| Impedance | 50 Ohm |
| Material | Brass (Gold-plated shell) |
| Connector Type | Radio Frequency (RF) |
| Package Dimensions | 3.27 x 1.81 x 0.28 inches |
| Item Weight | 0.634 ounces |
| Model Number | GP-AD-SMA-05 |
Figure 3.1: Detailed product specifications.

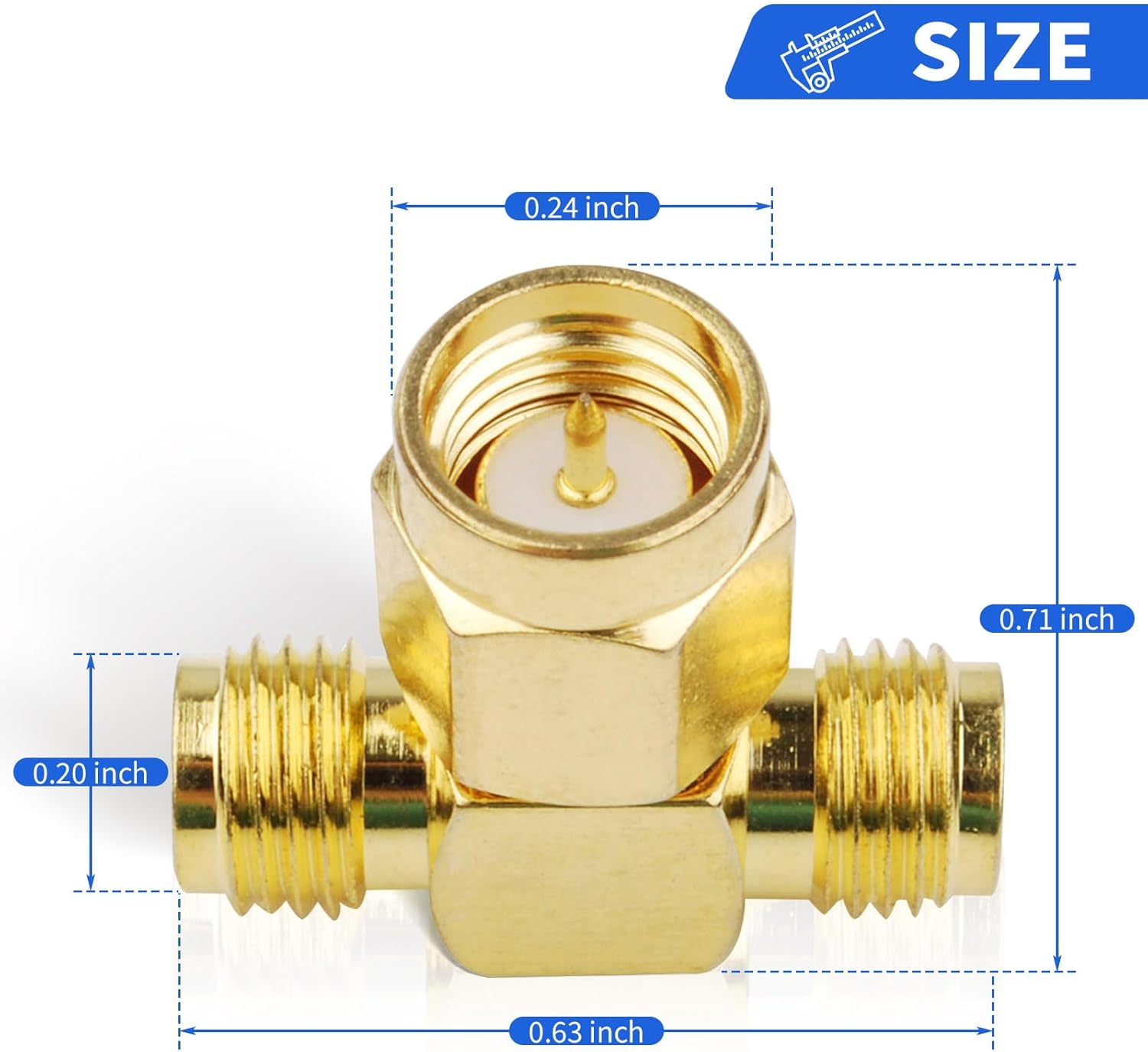

Figure 3.2: Physical dimensions of the SMA Adapter Splitter.
4. Setup and Installation
The SMA Adapter Splitter is designed for straightforward installation. Follow these steps to connect your devices:
- Identify the SMA male connector on your source device or cable.
- Carefully screw the SMA male end of the splitter onto the SMA female port of your source. Ensure a snug fit to maintain signal integrity.
- Connect your two SMA female cables or devices to the two SMA female ports on the splitter.
- Ensure all connections are secure but do not overtighten.
Important Note: This SMA Connector is NOT fit for TV coaxial cables (F-type connectors). It is specifically designed for SMA connections.

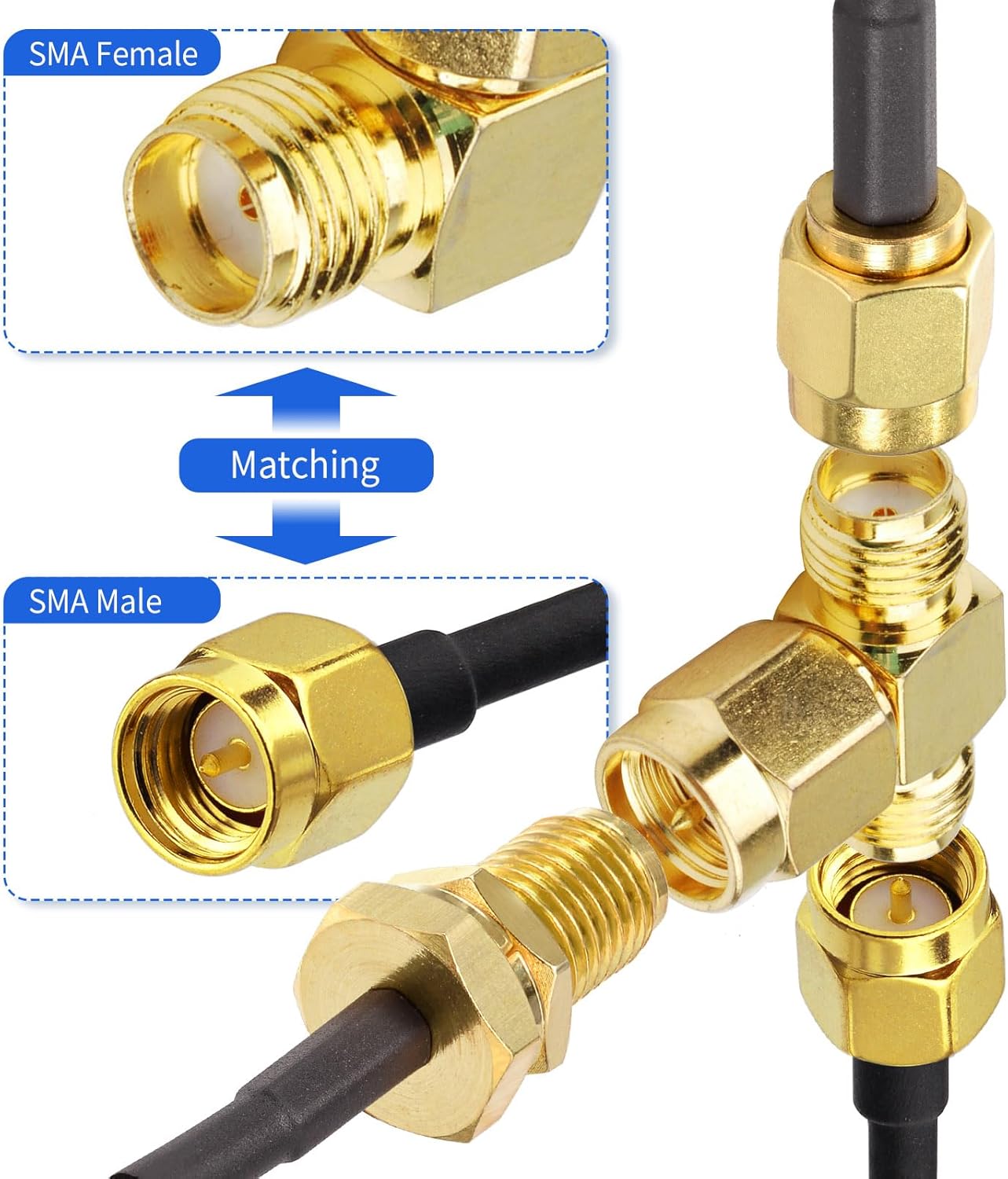

Figure 4.1: Illustration of SMA Male and Female connector matching.
Figure 4.2: Clarification on connector type and incompatibility with TV F-type connectors.
5. Operating Instructions and Applications
The SMA Adapter Splitter allows a single SMA output to be distributed to two SMA inputs. This is useful in various scenarios where signal splitting is required for compatible devices.
Common Applications:
- Antenna Systems: Splitting an antenna signal to multiple receivers or devices.
- MMDVM Hotspot Boards: For amateur radio applications.
- RF Test Equipment: Used in laboratory or field testing setups.
- Software Defined Radio (SDR) Equipment: Connecting multiple SDRs to a single antenna.
- Drones: For specific drone communication or signal distribution needs.
- GPS Equipment: Certain GPS devices utilize SMA connectors for external antennas.
- Wi-Fi 3G 4G LTE Antennas: Expanding connectivity options.
- Ham Radios: For various amateur radio setups.
Figure 5.1: Examples of compatible devices and applications.
Product Demonstration Video:
Video 5.1: A demonstration of the SMA splitter adapter, showcasing its authenticity and physical characteristics. This video is provided by the seller, wlaniot.
6. Maintenance
To ensure the longevity and optimal performance of your SMA Adapter Splitter, follow these simple maintenance guidelines:
- Keep the connectors clean and free from dust or debris. Use a soft, dry cloth for cleaning.
- Avoid exposing the adapter to extreme temperatures or moisture.
- Do not apply excessive force when connecting or disconnecting cables to prevent damage to the threads or internal pins.
- Store the adapters in a dry, protected environment when not in use.
7. Troubleshooting
If you encounter issues with your SMA Adapter Splitter, consider the following common troubleshooting steps:
- No Signal or Poor Signal:
- Ensure all connections are securely tightened. Loose connections can lead to signal loss.
- Verify that the connected cables are compatible SMA type cables and not F-type (TV) cables. This adapter is not designed for TV connections.
- Check the integrity of the cables themselves for any damage.
- Adapter Does Not Fit:
- Confirm that the connectors you are attempting to mate are indeed SMA male and SMA female. There are many types of RF connectors.
- Do not force the connection. If it does not screw on smoothly, it may be an incompatible connector type or damaged threads.
If the issue persists after following these steps, please contact customer support.
8. Warranty and Support
SUPERBAT stands behind the quality of its products. The SMA Adapter Splitter comes with a 1 MONTHS Replacement Warranty and a 100% Satisfaction Guarantee.
If you receive a defective product or have any questions or concerns regarding your purchase, please do not hesitate to contact our customer support team. We are committed to providing excellent service and resolving any issues promptly.
For support, please refer to the contact information provided with your purchase or visit the official Superbat store on Amazon.
