1. Product Overview
The Elk Home Thane Outdoor Sconce (Model 69690/1) is a 1-light wall-mounted fixture designed for both indoor and outdoor use, including porches, covered patios, and sunrooms. It features a durable metal construction with a hematite finish, offering a contemporary style. This sconce is hardwire electric, dimmable, and compatible with incandescent, halogen, and LED E26 medium base bulbs up to 60 watts.

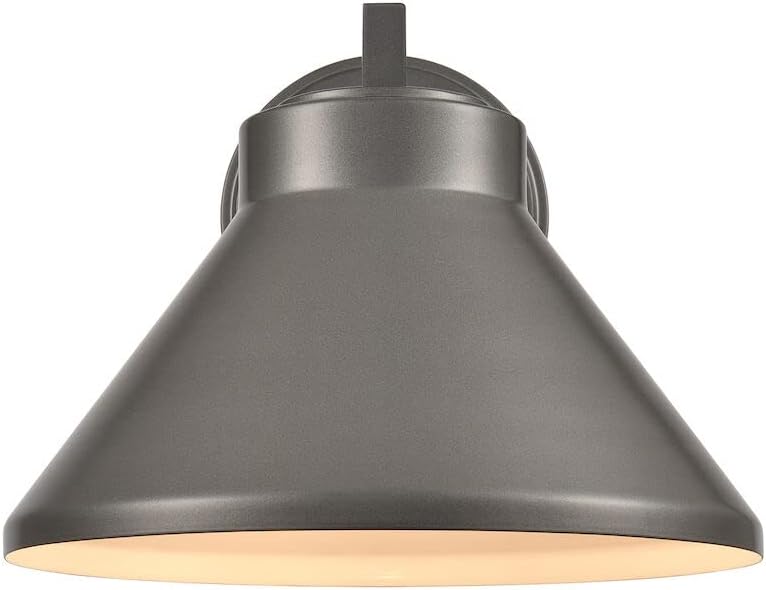

Image 1.1: The Elk Home Thane Outdoor Sconce, showcasing its hematite finish and contemporary design.
2. Important Safety Information
WARNING: RISK OF ELECTRIC SHOCK. Turn off power at the circuit breaker or fuse box before installation or servicing.
- Read all instructions carefully before beginning installation.
- All wiring must be in accordance with national and local electrical codes. If you are unsure about wiring, consult a qualified electrician.
- Ensure the fixture is properly grounded.
- Do not exceed the maximum wattage specified for the bulb.
- This fixture is water-resistant and suitable for damp locations, but not for direct water exposure.
- Keep flammable materials away from the light bulb.
3. Package Contents
Verify that all components are present before beginning installation:
- Light Fixture (Sconce)
- Mounting Backplate
- Hardware Pack (mounting screws, wire connectors)
- Shade (integrated)
- Cord (pre-wired)
Image 3.1: Diagram showing the dimensions of the Elk Home Thane Outdoor Sconce: 10 inches wide, 10.5 inches deep, and 8.25 inches high.
4. Installation Instructions
Professional installation is recommended if you are not familiar with electrical wiring.
4.1. Tools Required (Not Included)
- Phillips Head Screwdriver
- Flathead Screwdriver
- Wire Strippers
- Electrical Tape
- Pliers
4.2. Pre-Installation
- Turn off power: Locate the circuit breaker or fuse box controlling the power to the desired installation location and turn it off.
- Prepare the mounting surface: Ensure the electrical box is securely mounted and capable of supporting the fixture's weight.
- Unpack: Carefully remove all contents from the packaging.
4.3. Mounting the Fixture
- Attach the mounting backplate to the electrical box using the provided mounting screws. Ensure the backplate is level and secure.
- Feed the electrical wires from the electrical box through the center hole of the mounting backplate.
Image 4.1: A close-up view of the sconce's circular mounting base and arm, showing the attachment point to the wall.
4.4. Wiring Connections
Connect the fixture's wires to the electrical box wires using the provided wire connectors:
- Connect the black wire from the fixture to the black (hot) wire from the electrical box.
- Connect the white wire from the fixture to the white (neutral) wire from the electrical box.
- Connect the green or bare copper ground wire from the fixture to the green or bare copper ground wire from the electrical box. If no ground wire is present in the electrical box, attach the fixture's ground wire to the green grounding screw on the mounting backplate.
- Ensure all connections are secure. Wrap electrical tape around each wire connector for added safety.
4.5. Final Assembly
- Carefully tuck all wires into the electrical box.
- Align the fixture with the mounting backplate and secure it using the provided screws.
- Install one E26 medium base bulb (not included) into the socket. Do not exceed 60 watts.
- Restore power: Turn the power back on at the circuit breaker or fuse box.
- Test the fixture to ensure it functions correctly.
Image 4.2: The Elk Home Thane Outdoor Sconce illuminated, demonstrating its downward light distribution.
5. Operating Instructions
The Elk Home Thane Outdoor Sconce is operated via a standard wall switch. If connected to a compatible dimmer switch, the light output can be adjusted.
- Turning On/Off: Use the wall switch connected to the fixture to turn the light on or off.
- Dimming (Optional): If a dimmable bulb and a compatible dimmer switch are installed, adjust the dimmer switch to control the brightness level.
6. Maintenance
6.1. Cleaning
- Always turn off power to the fixture before cleaning.
- Wipe the fixture with a soft, dry cloth.
- Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
6.2. Bulb Replacement
- Turn off power to the fixture at the circuit breaker.
- Allow the bulb to cool completely before touching it.
- Carefully unscrew the old bulb from the E26 medium base socket.
- Screw in a new E26 medium base bulb, ensuring it does not exceed 60 watts.
- Restore power and test the new bulb.
Image 6.1: A detailed view of the sconce's metal shade, highlighting the bulb area for maintenance reference.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connections Faulty bulb | Check circuit breaker/fuse Verify all wire connections are secure (with power off) Replace bulb |
| Light flickers | Loose bulb Incorrect bulb type for dimmer Loose wire connections | Tighten bulb Ensure dimmable bulb is used with dimmer switch Check wire connections (with power off) |
| Fixture gets too hot | Bulb wattage too high | Replace with a bulb that does not exceed 60 watts |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | 69690/1 |
| Brand | Elk Home |
| Dimensions (L x W x H) | 10" x 10.5" x 8.25" |
| Weight | 3 Pounds |
| Material | Alloy Steel (Metal) |
| Finish | Hematite (Painted) |
| Light Source | Incandescent, Halogen, LED compatible |
| Bulb Base | E26 Medium |
| Number of Lights | 1 |
| Max Wattage | 60 watts |
| Voltage | 120 Volts |
| Indoor/Outdoor Usage | Indoor, Outdoor (Water Resistant) |
| Mounting Type | Wall Mount, Hardwired |
| Control Method | Wall Switch (Touch/Hand Control refers to switch type) |
| Dimmable | Yes (with compatible bulb and dimmer switch) |
9. Warranty Information
This Elk Home product is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, or unauthorized modifications.
For warranty claims, please retain your proof of purchase.
10. Customer Support
If you have any questions regarding the installation, operation, or maintenance of your Elk Home Thane Outdoor Sconce, please contact Elk Home customer service.
- Manufacturer: Elk Home
- Website: www.elkhome.com (Please visit the official website for the most current contact information.)
