Introduction
The SONICWARE Liven 8bit Warps is a versatile 8-bit waveform memory synthesizer featuring a 4-track looper and a 128-step sequencer. Designed for sound creation ranging from chiptune to ambient music, this portable device offers a unique sonic palette and intuitive controls for both studio and live performance environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Liven 8bit Warps.
Image: Top-down view of the SONICWARE Liven 8bit Warps synthesizer, showcasing its control panel, keys, and connectivity ports.
Setup
Follow these steps to set up your Liven 8bit Warps for first use.
1. Power Supply
- DC Power: Connect a compatible DC 9V power adapter (not included) to the DC9V input jack on the rear panel.
- Battery Power: For portable use, insert 6 AA batteries (not included) into the battery compartment on the underside of the unit. Ensure correct polarity.
2. Audio Connections
- Line Out: Connect the LINE OUT jack (3.5mm stereo) to your mixer, audio interface, or headphones.
- Line In: Connect external audio sources (e.g., another synthesizer, drum machine) to the LINE IN jack (3.5mm stereo) for processing or looping.
3. MIDI Connections
- MIDI In: Use a standard 5-pin MIDI cable to connect the MIDI IN port to a MIDI controller or sequencer for external control.
- MIDI Out: Connect the MIDI OUT port to other MIDI devices to transmit MIDI data from the Liven 8bit Warps.
4. Sync Connections
- Sync In/Out: Use 3.5mm mini-jack cables to connect the SYNC IN/OUT ports for synchronization with other compatible devices.
Image: Angled view of the Liven 8bit Warps, highlighting the various input and output ports on the rear panel for power, audio, MIDI, and sync.
Image: The Liven 8bit Warps connected via cables to other synthesizers and music production gear, demonstrating its integration capabilities.
Operating Instructions
This section details the core functions and controls of your Liven 8bit Warps.
1. Synthesizer Engine
The Liven 8bit Warps features an 8-bit waveform memory synth engine with four distinct modes:
- WARP: Cross-fades between two waveforms.
- ATTACK: Modulates the attack portion of the sound with a waveform.
- MORPH: Continuously morphs between multiple waveforms.
- FM: Frequency modulation synthesis using 8-bit waveforms.
Adjust parameters like WAVE1/2, LEVEL/DEPTH, LFO RATE/WAV, DETUNE, and SWEEP using the dedicated knobs to sculpt your sound. The ALIASES NOISE function adds unique digital artifacts.
Image: The Liven 8bit Warps with an overlay emphasizing its capability to recreate classic video game sounds and explore new 8-bit sonic territories.
Warp Engine
Attack Engine
Morph Engine
FM Engine
2. Filter Section
The unit includes a filter section with Low-Pass Filter (LPF) and High-Pass Filter (HPF) options. Use the CUTOFF and RESO (Resonance) knobs to shape the tonal characteristics of your sound.
3. Sequencer
The Liven 8bit Warps features a 128-step sequencer with parameter locking capabilities.
- Step Input: Use the 16 step buttons to input notes and trigger patterns.
- Parameter Lock: Record knob movements and parameter changes per step by holding down a step button and adjusting a knob.
- Pattern Memory: Store up to 128 patterns. Use the MEM button to save and recall patterns.
Image: The Liven 8bit Warps control panel with an overlay highlighting its step sequencer and 4-track looper functionalities.
Image: Graphic illustrating the sequencer's capacity for 128 steps and 128 patterns, along with various note divisions for rhythmic programming.
Image: A user's hands demonstrating the adjustment of control knobs on the Liven 8bit Warps, with text indicating the 'Hold & Change Rate' function, likely for parameter locking or real-time modulation.
4. 4-Track Looper
The integrated 4-track looper allows for recording and layering internal audio and external audio from the line input.
- Track Assignment: Tracks can be assigned to different parts of your performance (e.g., Lead, Rhythm, Bass, Chord).
- External Input: One track is dedicated to looping external audio connected via the LINE IN jack.
- Looping Operation: Use the LOOPER section buttons to record, overdub, and manage your loops.

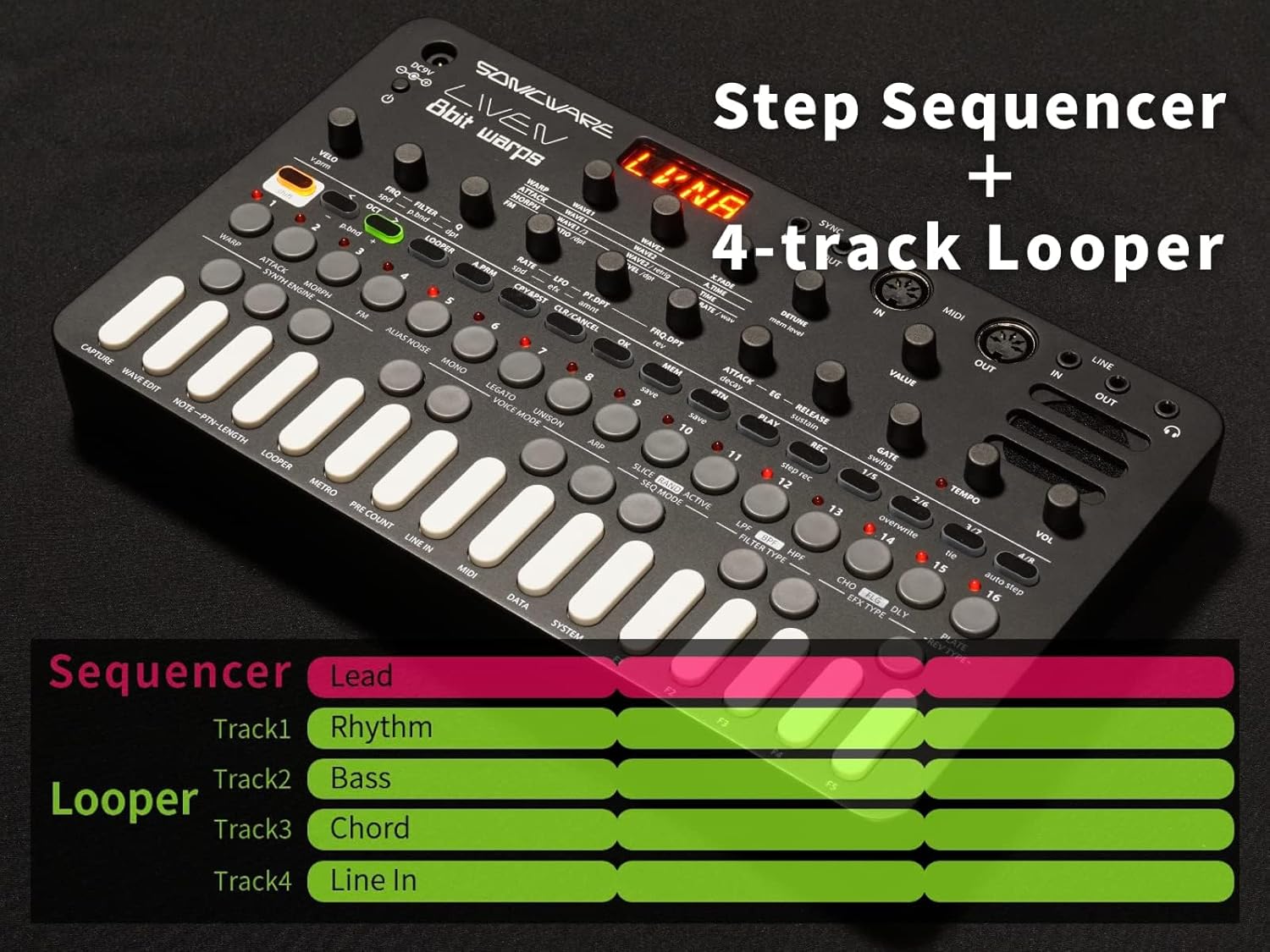

Image: A diagram illustrating the relationship between the sequencer and the 4-track looper, showing how different musical parts can be assigned and layered.
5. Effects
The Liven 8bit Warps includes 10 effects and 6 reverbs. The reverb section can also be switched to a Cassette tape simulator for vintage sound textures.
- Effect Selection: Use the FX and REVERB buttons to select and activate effects.
- Parameter Adjustment: Adjust effect parameters using the dedicated knobs in the FX section.
6. Voice Modes
The synthesizer supports various voice modes:
- POLY: Polyphonic mode, allowing multiple notes to play simultaneously.
- MONO: Monophonic mode, playing one note at a time.
- UNISON: Stacks multiple voices for a thicker sound.
Image: A user's hands actively engaging with the controls of the Liven 8bit Warps, illustrating its design for intuitive operation during jams and live performances.
Maintenance
Proper care ensures the longevity and optimal performance of your Liven 8bit Warps.
1. Cleaning
- Wipe the unit with a soft, dry cloth. Do not use abrasive cleaners, solvents, or waxes.
- Avoid spraying liquids directly onto the unit.
2. Battery Replacement
- When the battery indicator is low, replace all 6 AA batteries with new ones.
- Remove batteries if the unit will not be used for an extended period to prevent leakage.
3. Storage
- Store the unit in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid placing heavy objects on top of the unit.
Troubleshooting
If you encounter issues with your Liven 8bit Warps, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound output | Volume too low, incorrect audio connections, no pattern playing. | Check the VOLUME knob. Ensure LINE OUT is connected correctly. Verify a pattern is playing or notes are being triggered. |
| Sequencer not playing | PLAY/STOP button not pressed, tempo set to zero, no steps programmed. | Press the PLAY/STOP button. Adjust the TEMPO knob. Program steps into the sequencer. |
| MIDI not responding | Incorrect MIDI channel, loose MIDI cable, MIDI settings incorrect. | Check MIDI IN/OUT connections. Verify MIDI channels match between devices. Consult the manual for MIDI settings. |
| Unit freezes or behaves erratically | Temporary software glitch. | Turn the unit off, wait a few seconds, then turn it back on. If the issue persists, perform a factory reset (refer to advanced settings in the full manual). |
Specifications
Key technical specifications for the SONICWARE Liven 8bit Warps.
- Model Number: LVN-010
- Synthesizer Engine: 8-bit waveform memory synth (WARP, ATTACK, MORPH, FM)
- Sequencer: 128 steps, 128 patterns, parameter locking
- Looper: 4-track (3 internal, 1 external LINE IN)
- Effects: 10 effects, 6 reverbs (switchable to Cassette tape simulator)
- Connectivity: MIDI IN/OUT (5-pin DIN), SYNC IN/OUT (3.5mm mini-jack), LINE IN/OUT (3.5mm stereo), DC 9V input
- Power: 6 AA batteries or DC 9V adapter
- Built-in Speaker: Yes
- Dimensions (L x W x H): 11.69 x 19.13 x 1.89 inches (approx. 29.7 x 48.6 x 4.8 cm)
- Weight: 1.74 pounds (approx. 790 grams)
- Body Material: Plastic
Warranty and Support
For warranty information and customer support, please refer to the official SONICWARE website or contact your authorized dealer. Keep your proof of purchase for warranty claims.
- Online Resources: Visit the SONICWARE Store on Amazon for product updates and additional information.
- Contact Support: If you require technical assistance or have questions not covered in this manual, please contact SONICWARE customer support through their official channels.
