1. Product Overview
The NEO-TEC NS872 is a professional-grade 72cc gas chainsaw designed for efficient logging and wood cutting. It features a powerful 2-cycle air-cooled engine, a high-quality HLHIC carburetor for easy starting, and durable magnesium alloy parts for enhanced impact resistance and heat dissipation. This chainsaw is compatible with 24, 25, and 28-inch guide bars, making it suitable for various outdoor wood cutting tasks.
Figure 1: NEO-TEC NS872 72cc Gas Chainsaw with 28-inch bar.

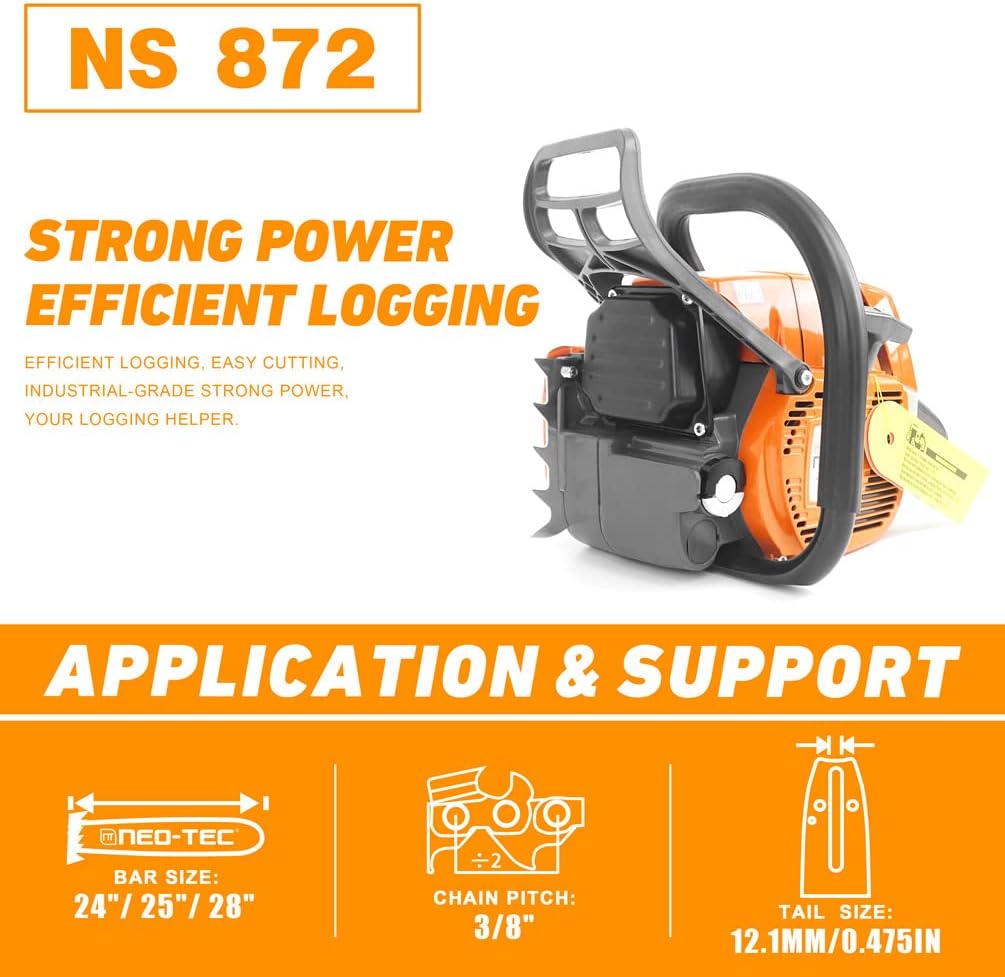

Figure 2: Illustration highlighting the strong power and efficient logging capabilities of the NS872 chainsaw.
2. Setup and Assembly
Before operating the chainsaw, ensure all components are correctly assembled and securely fastened. Refer to the following diagrams and instructions for proper setup.
Figure 3: Detailed diagram of the NEO-TEC NS872 chainsaw components, including the carburetor, muffler, and various handles.
Figure 4: Step-by-step visual guide for installing the guide bar and chain on the chainsaw.
2.1 Guide Bar and Chain Compatibility
The NS872 chainsaw is designed to fit 24, 25, and 28-inch guide bars with a 3/8" chain pitch and 0.063" chain gauge. Ensure the tail mount is D025 (12.1mm) for proper fitment. This model is compatible with parts for MS381, MS380, and 038 chainsaws.
Figure 5: Diagram illustrating the guide bar tail mount specifications (D025, 12.1mm) and compatibility with various chainsaw models.
2.2 Fuel and Oil Mixture
Proper fuel and oil mixture is crucial for engine longevity and performance. Use a 2-stroke engine oil (FB or FD oil). For the first 10 hours of operation, use a 30:1 fuel-to-oil ratio. After 10 hours, a 45:1 or 50:1 ratio can be used depending on the oil type (FB or FD respectively). Always ensure the bar and chain oil is not used for the engine.
Figure 6: Visual guide for selecting the correct 2-stroke engine oil (FB or FD) and corresponding fuel-to-oil ratios for the chainsaw.
3. Operating Instructions
Follow these steps for safe and effective operation of your NEO-TEC NS872 chainsaw.
3.1 Starting the Chainsaw
Always engage the hand brake before starting the chainsaw. Follow the instructions located on the left side of the machine for the correct starting procedure.
Figure 7: Visual steps for starting the chainsaw engine, including engaging the brake, pressing the throttle, and pulling the starter rope.
Video 1: Demonstrates the step-by-step process for starting the NEO-TEC NS872 chainsaw, including engaging the hand brake, setting the choke, and pulling the starter rope until the engine runs.
3.2 General Operation Tips
- Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear.
- Ensure the chain brake is engaged when the saw is not actively cutting or when placing it on the ground.
- Allow the machine to warm up without revving excessively before beginning cutting tasks.
- Maintain a firm grip on both handles during operation.
4. Maintenance
Regular maintenance ensures the longevity and safe operation of your chainsaw.
- Chain Sharpening: Keep the saw chain sharp for optimal cutting performance and safety. A dull chain can cause kickback and strain the engine.
- Bar Maintenance: Regularly clean the guide bar groove and oil holes. Flip the guide bar periodically to ensure even wear.
- Air Filter Cleaning: Clean the air filter frequently, especially in dusty conditions, to maintain proper engine performance.
- Spark Plug Inspection: Check the spark plug for wear and proper gap. Replace if necessary.
- Fuel System: Drain the fuel tank and run the engine dry before long-term storage to prevent fuel degradation.
5. Troubleshooting
This section provides solutions to common issues you might encounter with your chainsaw.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | Incorrect starting procedure, no fuel, fouled spark plug, clogged fuel filter. | Review starting steps, check fuel level, inspect/clean/replace spark plug, replace fuel filter. |
| Loss of power during operation | Dull chain, clogged air filter, incorrect fuel mixture, carburetor issues. | Sharpen chain, clean air filter, verify fuel mixture, adjust carburetor (refer to professional if unsure). |
| Chain not moving | Chain brake engaged, clutch issue, chain tension too tight. | Disengage chain brake, inspect clutch (professional service recommended), adjust chain tension. |
| Excessive smoke from exhaust | Too much oil in fuel mixture, wrong type of oil. | Verify correct fuel-to-oil ratio, use recommended 2-stroke oil. |
For complex issues or repairs, it is recommended to consult a qualified service technician.
6. Specifications
Key technical specifications for the NEO-TEC NS872 Gas Chainsaw.
- Brand: NEO-TEC
- Model Number: NS872
- Power Source: Gas Powered
- Engine Displacement: 72cc
- Horsepower: 4.9 hp
- Item Weight: 15 Pounds
- Product Dimensions: 1"L x 1"W x 1"H (Note: These dimensions appear to be placeholders and may not reflect the actual product size.)
- Chain Length (Compatible): 24, 25, 28 Inches
- Chain Pitch: 3/8"
- Chain Gauge: 0.063"
- Tail Mount: D025 (12.1mm)
- UPC: 641926240578
7. Warranty and Support
For warranty information, product support, or to purchase replacement parts and accessories, please visit the official NEO-TEC store or contact customer service.
- Protection Plans: Extended protection plans are available for purchase, including 2-Year and 3-Year options.
- Online Store: Visit the NEO-TEC Store on Amazon
