Powerextra CP-W126 AC Power Supply Adapter Kit User Manual

1. Introduction

This manual provides instructions for the safe and effective use of your Powerextra CP-W126 AC Power Supply Adapter Kit. This kit is designed to provide continuous power to compatible Fujifilm cameras, replacing the NP-W126 and NP-W126S batteries for extended shooting sessions.

2. Safety Information

• Ensure the power adapter is connected to a power outlet with the correct voltage (AC 100-240V).
• Do not expose the adapter or dummy battery to water or excessive moisture.
• Avoid dropping or subjecting the components to strong impacts.
• Do not attempt to disassemble or modify the product.
• Keep out of reach of children.
• Unplug the adapter from the power outlet when not in use for extended periods.

3. Package Contents

Verify that all items are present in your package:

• 1x AC Power Adapter
• 1x CP-W126 DC Coupler (Dummy Battery)
• 1x US Plug AC Cord
• 1x Microfiber Cleaning Cloth

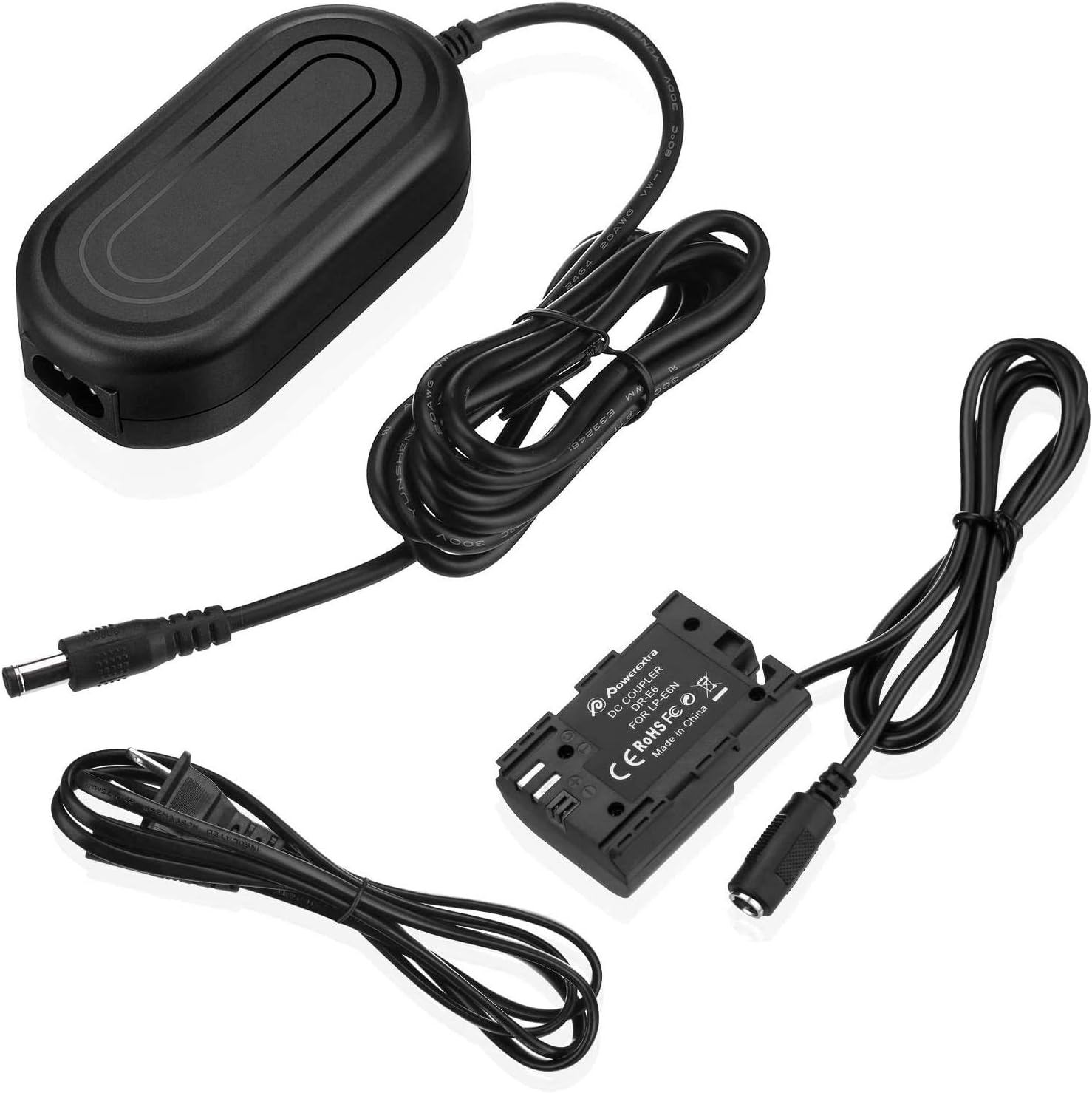

The kit includes the AC power adapter, the DC coupler (dummy battery), and the AC power cord. A microfiber cleaning cloth is also provided.

4. Setup and Installation

Follow these steps to set up and install the AC power supply adapter kit:

1. Connect the AC Power Cord: Insert the AC power cord into the AC power adapter.
2. Connect the DC Coupler: Plug the DC port of the CP-W126 DC Coupler (dummy battery) into the DC port on the AC power adapter.
3. Open Camera Battery Compartment: Open the battery compartment door on your compatible Fujifilm camera.
4. Insert Dummy Battery: Carefully insert the CP-W126 DC Coupler into the camera's battery compartment, ensuring it is oriented correctly.
5. Route the Cable: Locate the small rubber flap or opening on your camera's battery compartment door. Route the DC coupler cable through this opening. This allows the battery door to close properly while the cable exits the camera.
6. Close Battery Compartment Door: Close the camera's battery compartment door securely. The door must be fully closed for the camera to power on.
7. Connect to Power Outlet: Plug the AC power cord into a wall power outlet.
8. Power On Camera: Turn on your camera. It should now receive continuous power from the adapter.

Installation Video Guide

5. Operating Instructions

Once installed, the Powerextra CP-W126 AC Power Supply Adapter Kit provides continuous power to your camera, eliminating the need for frequent battery changes. This is ideal for:

• Long studio shooting sessions
• Time-lapse photography
• Live streaming or video conferencing
• Extended video recording

Compatible Camera Models

This AC adapter kit is compatible with Fujifilm cameras that use NP-W126 or NP-W126S batteries, including but not limited to:

• Fujifilm X100F, X-A1, X-A2, X-A3, X-A5, X-A7, X-A10, X-A20
• Fujifilm X-E1, X-E2, X-E2S, X-E3
• Fujifilm X-Pro1, X-Pro2, X-Pro3
• Fujifilm X-T1, X-T2, X-T10, X-T20, X-T30, X-T100, X-T200, X-H1, X-M1
• Fujifilm FinePix HS30EXR, HS33EXR, HS35EXR, HS50EXR

6. Maintenance

To ensure the longevity and optimal performance of your Powerextra AC Power Supply Adapter Kit:

• Cleaning: Use the provided microfiber cleaning cloth to gently wipe the adapter and cables. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the kit in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Cable Care: Do not bend or crimp the cables excessively. Avoid placing heavy objects on the cables.

7. Troubleshooting

If you encounter issues with your AC power supply adapter kit, consider the following:

• Camera Not Powering On:
  • Ensure all connections are secure between the AC cord, power adapter, and DC coupler.
  • Verify that the battery compartment door on your camera is fully closed. The camera will not power on if the door is open.
  • Check if the wall outlet is functioning correctly by plugging in another device.
• Intermittent Power:
  • Inspect cables for any visible damage or fraying.
  • Ensure the cable from the dummy battery is properly routed through the camera's cable exit port and not pinched.
• Overheating:
  • While the adapter has built-in protection, ensure adequate ventilation around the power adapter during prolonged use.
  • If the adapter feels excessively hot, disconnect it and allow it to cool down before resuming use.

8. Specifications

9. Warranty and Support

Powerextra products are designed for reliability and performance. For any questions, technical support, or warranty claims, please refer to the following:

• Warranty: This product typically comes with a 12-month hassle-free warranty. Please retain your proof of purchase.
• Customer Support: Powerextra offers 12-hour response and 7*24 hour stand-by support, along with lifetime support for its products.
• Contact: For further assistance, please visit the official Powerextra store or contact their customer service directly.
