Introduction
The Superwinch SX Series Winch is engineered to provide users the ideal combination of power, speed, innovation, and proven performance. Building upon the renowned foundation and engineering of the Tiger Shark series, SX Series winches are crafted for those who demand the best in power, performance, and reliability. They are available in 10,000 or 12,000 pound pulling power capacities. Whether navigating through challenging terrains or tackling extreme weather conditions, SX Series winches merge durability and innovation and are the go-to winch for any off-road adventuring. This manual provides essential information for the safe and effective use of your Superwinch SX10 12V DC Winch.
What's in the Box
Upon unpacking, please verify that all components are present and undamaged. The Superwinch SX10 package typically includes:
- SX10 Winch Unit
- Roller Fairlead
- Corded Handheld Remote with integrated flashlight
- Mounting Hardware
- Owner's Guide
- Heavy Duty Clevis Winch Hook
Image: Superwinch SX10 Winch with all included accessories laid out, including the winch unit, roller fairlead, corded remote, mounting hardware, and clevis hook.
Setup and Installation
Proper installation is crucial for the safe and effective operation of your Superwinch SX10. It is recommended to have this installed by a qualified professional if you are not familiar with vehicle electrical systems and heavy equipment mounting.
Mounting the Winch
The winch should be securely mounted to a winch plate or bumper designed to handle the winch's rated capacity. Ensure the mounting surface is flat and strong enough to withstand the maximum pulling force. Use the provided mounting hardware.
Image: Front view of the Superwinch SX10 Winch, showcasing its compact design and integrated components, ready for mounting.
Electrical Connections
Connect the winch to a 12V DC power source, typically your vehicle's battery. Ensure all connections are clean, tight, and properly insulated to prevent short circuits. The control box is relocatable, allowing for flexible installation based on your vehicle's configuration.
Image: Close-up of the Superwinch SX10 label on the side of the winch, displaying model information and important safety warnings.
Fairlead and Rope Installation
Install the roller fairlead to guide the steel wire rope smoothly and reduce wear. Carefully spool the 3/8" x 80' steel wire rope onto the drum, ensuring it is wound tightly and evenly under a light load to prevent damage and ensure proper function during operation.

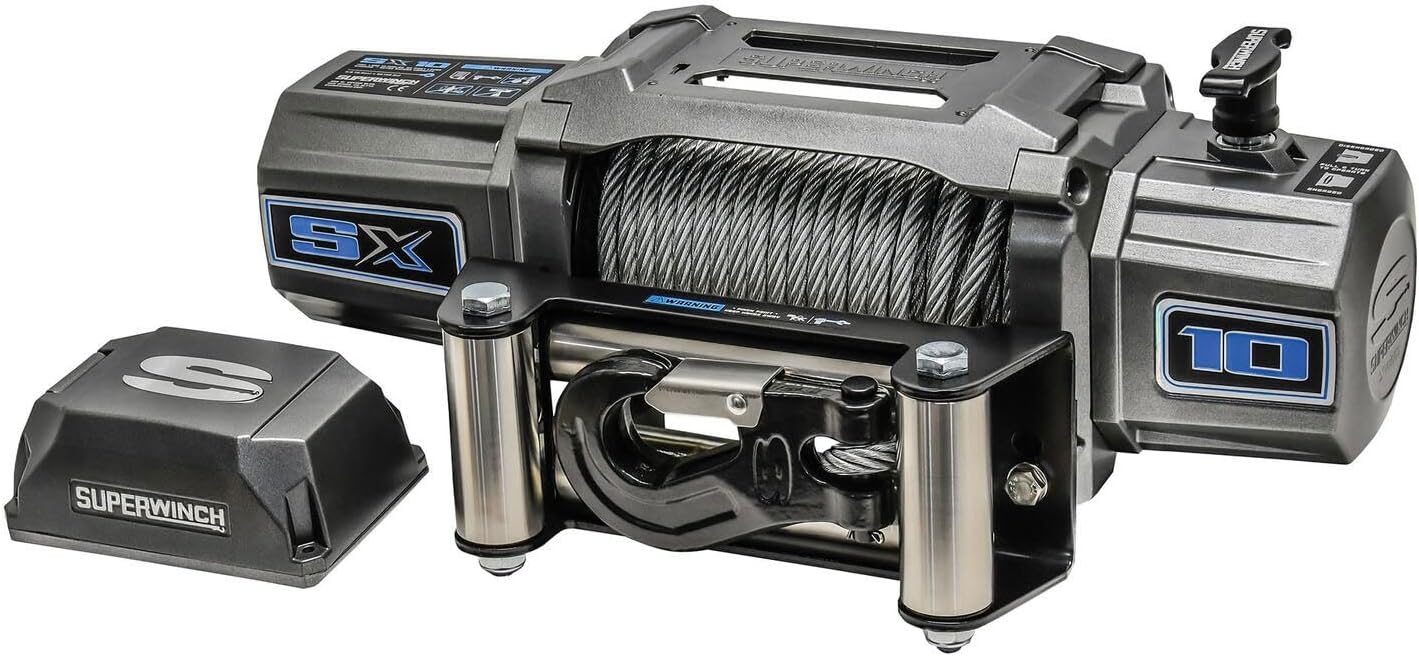

Image: Angled front view of the Superwinch SX10 Winch, highlighting the robust roller fairlead and the steel wire rope wound on the drum.
Operating Instructions
Familiarize yourself with the winch controls and safety procedures before operation.
Clutch Operation
The SX10 features an ergonomic pull-and-turn clutch handle. To disengage the clutch for free-spooling the rope, pull the handle up and rotate it. To engage the clutch for winching, rotate the handle back and push it down firmly.
Image: Close-up view of the Superwinch pull-and-turn clutch handle, showing its robust design and clear branding.
Remote Control Usage
The winch comes with a 12-foot corded handheld remote. This remote features a rechargeable lithium-ion battery flashlight for improved visibility during low-light operations. Simply plug the remote into the winch's control box to operate the winch. Some models may also include a wireless remote for added convenience.
Image: The Superwinch wired remote control with its coiled cable, featuring 'IN' and 'OUT' buttons for winch operation.
Patented Drum Light
The SX10 features a patented drum light, providing illumination of the winch drum and rope during nighttime or low-light recovery situations. This enhances safety and ease of operation.
Image: The Superwinch SX10 winch drum with its internal light illuminated, clearly showing the wire rope wound around it.
General Winching Procedures
- Assess the Situation: Identify the recovery point and ensure it is strong enough to withstand the load.
- Prepare the Winch: Engage the clutch, unspool enough rope to reach the anchor point, and attach the heavy-duty clevis hook securely.
- Clear the Area: Ensure all bystanders are at a safe distance.
- Winch Operation: Use the remote control to slowly reel in the rope, maintaining tension. Monitor the rope and winch for any signs of stress.
- Safety First: Always use proper recovery gear, such as tree savers and snatch blocks, when necessary. Never exceed the winch's rated capacity.
Video: Official Superwinch SX Series Winch Product Video. This video demonstrates the winch in various off-road recovery scenarios, highlighting its features and robust performance in challenging environments.
Maintenance
Regular maintenance ensures the longevity and reliable performance of your Superwinch SX10.
Post-Use Inspection
After each use, especially in harsh conditions, inspect the winch for any signs of damage, wear, or loose connections. Check the steel wire rope for fraying, kinks, or corrosion. Inspect electrical cables for cuts or abrasions.
Cleaning and Storage
Clean the winch thoroughly to remove dirt, mud, and debris. The SX10 features an IP68 rating, ensuring it is waterproof and dustproof, allowing for easy cleaning. Store the winch in a dry environment when not in use. If the rope is wet, allow it to dry before fully spooling and storing.
Rope Care
Periodically unspool the entire rope and inspect it for damage. If any significant damage is found, the rope should be replaced. Ensure the rope is spooled evenly and tightly to prevent crushing or tangling.
Troubleshooting
If you encounter issues with your Superwinch SX10, refer to the following common problems and solutions:
- Winch Not Operating: Check all electrical connections for tightness and corrosion. Ensure the vehicle battery has sufficient charge. Verify the remote control is properly connected and functioning.
- Slow or Weak Operation: This could indicate a low battery charge or poor electrical connections. Check battery voltage and cable integrity.
- Clutch Not Engaging/Disengaging: Ensure the pull-and-turn handle is fully actuated. Check for any obstructions preventing full movement of the clutch mechanism.
- Rope Damage: If the steel wire rope shows signs of severe wear, kinks, or broken strands, it must be replaced immediately to prevent failure.
For more complex issues or if the problem persists, please contact Superwinch customer support or refer to the detailed owner's guide.
Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Superwinch |
| Brand | Superwinch |
| Model | SX10 |
| Item Weight | 88 pounds |
| Product Dimensions | 22.04 x 6.3 x 9.67 inches |
| Item model number | 1710200 |
| Exterior | Powdercoated |
| Manufacturer Part Number | 1710200 |
| Position | Rear |
| Bulb Type | LED |
| ASIN | B08TR3C8G2 |
| Date First Available | January 22, 2021 |
Warranty and Support
The Superwinch SX10 is designed to last and is backed by a 7-year warranty, reflecting the manufacturer's confidence in its durability and performance. For detailed warranty terms and conditions, please refer to the official owner's guide provided with your product.
Protection Plans
Additional protection plans are available for purchase to extend coverage beyond the standard warranty:
- 2-Year Protection Plan: $59.99
- 3-Year Protection Plan: $78.99
- Complete Protect: $16.99/month (covers all eligible past and future purchases)
Customer Support
For any questions, technical assistance, or warranty claims, please contact Superwinch customer support. You can also find more information and resources on the official Superwinch website or through the provided user manual PDF.
User Manual (PDF): Download Here
