Geberit Electro-Welding Device ESG 3 230V User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Geberit Electro-Welding Device ESG 3 230V. Please read it thoroughly before use and keep it for future reference. This device is designed for professional use in electro-fusion welding applications.

2. Safety Instructions

Always adhere to the following safety guidelines to prevent injury or damage to the equipment.

• Electrical Safety: Ensure the power supply matches the device's requirements (230V). Do not operate the device with damaged cables or plugs. Always disconnect power before performing maintenance or adjustments.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, gloves, and protective clothing, when operating the welding device.
• Work Environment: Ensure the work area is well-ventilated and free from flammable materials. Keep children and unauthorized personnel away from the operating area.
• Handling: Handle the device with care. Avoid dropping or subjecting it to severe impacts.
• Maintenance: Only qualified personnel should perform repairs or complex maintenance.

3. Components Overview

Familiarize yourself with the main components of your Geberit Electro-Welding Device ESG 3 230V.

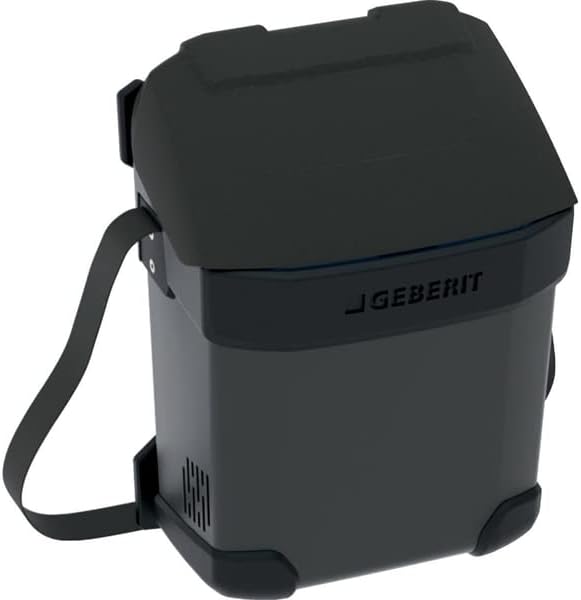

Figure 3.1: Main view of the Geberit Electro-Welding Device ESG 3 230V. This image shows the compact, dark grey unit with a carrying strap and the 'GEBERIT' logo visible on the front.

Figure 3.2: Side view of the welding device, highlighting the robust casing and connection points.

Figure 3.3: Top-down view of the welding device, showing the lid and overall compact design.

4. Setup

Follow these steps to set up your welding device for initial use:

1. Unpacking: Carefully remove the device and all accessories from the packaging. Inspect for any signs of damage during transit.
2. Placement: Place the device on a stable, level, and dry surface. Ensure adequate ventilation around the unit.
3. Power Connection: Connect the power cable to the device and then to a grounded 230V AC power outlet. Ensure the outlet is capable of supplying the required current.
4. Cable Check: Verify that all connection cables (e.g., welding cables) are securely attached and free from damage.

5. Operating Instructions

This section outlines the general procedure for operating the Geberit Electro-Welding Device ESG 3 230V.

1. Power On: Press the power button to turn on the device. The display (if applicable) should illuminate.
2. Parameter Setting: Refer to the specific welding parameters for the material and pipe dimensions you are working with. Input these parameters into the device as per the on-screen instructions or control panel.
3. Pipe Preparation: Ensure the pipe ends are clean, dry, and properly prepared for electro-fusion welding according to industry standards.
4. Fitting Connection: Connect the electro-fusion fitting to the pipe ends.
5. Welding Cable Connection: Attach the welding cables from the device to the terminals on the electro-fusion fitting.
6. Initiate Welding: Start the welding process as instructed by the device's interface. Monitor the welding cycle.
7. Completion: Once the welding cycle is complete, the device will indicate its status. Allow the joint to cool down completely before handling.
8. Power Off: Disconnect the welding cables and turn off the device.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your welding device.

• Cleaning: After each use, clean the exterior of the device with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure no dust or debris accumulates in ventilation openings.
• Cable Inspection: Periodically inspect all cables for cuts, abrasions, or signs of wear. Replace damaged cables immediately.
• Storage: Store the device in a clean, dry place, away from direct sunlight and extreme temperatures. Use the original packaging or a suitable case for protection during transport and storage.
• Calibration: For professional use, periodic calibration of the welding parameters may be required. Consult a qualified service technician for this procedure.

7. Troubleshooting

This section addresses common issues you might encounter and their potential solutions.

8. Technical Specifications

Key technical details for the Geberit Electro-Welding Device ESG 3 230V:

• Manufacturer: Geberit
• Item Number: 359.911.P0.1
• Manufacturer Reference: 359.911.P0.1
• ASIN: B08TQRL4X8
• Voltage: 230V (as per model name)
• First Available on Amazon.de: February 17, 2022

9. Warranty and Support

This Geberit product is manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact your local Geberit distributor.

For technical support, service, or spare parts, please contact your authorized Geberit dealer or visit the official Geberit website for contact information in your region. When contacting support, please have your model number (359.911.P0.1) and ASIN (B08TQRL4X8) ready.
