Teslong TD450D85L1 Articulating Borescope User Manual

Model: TD450D85L1

1. Introduction

The Teslong TD450D85L1 Articulating Borescope is a professional inspection tool designed for visual examination of hard-to-reach areas. It features a two-way 180-degree articulating probe, an integrated 4.5-inch IPS LCD monitor, and high-definition imaging capabilities. This manual provides essential information for the safe and effective use of your borescope.

2. Safety Information

Non-Waterproof Probe: The inspection probe of this borescope is NOT WATERPROOF. Do not submerge the probe or any part of the device in water or other liquids. Doing so will cause damage and void the warranty.
Avoid using the device in environments with extreme temperatures or high humidity.
Keep the device away from strong magnetic fields.
Do not attempt to disassemble or modify the device. Repairs should only be performed by authorized personnel.
Ensure the device is fully charged before use to prevent unexpected power loss during inspections.

Image showing a borescope probe submerged in water with a red 'no' symbol, indicating it is not waterproof. — **Figure 2.1:** A critical safety warning indicating that the borescope probe is not waterproof and should not be used in liquid environments.

3. Package Contents

Verify that all items listed below are included in your package:

TD450D85L1 Articulating Borescope Unit (with integrated 4.5-inch IPS monitor)
USB Type-C Charging Cable
8GB MicroSD Card (pre-installed)
Carrying Case
User's Manual

Contents of the Teslong TD450D85L1 borescope package, including the endoscope, carrying case, USB cable, and user manual. — **Figure 3.1:** An illustration of all items included in the product package: the TD450 Endoscope, a carrying case, a Type-C charging cable, and the User's Manual.

4. Product Overview and Features

The Teslong TD450D85L1 is an advanced inspection camera designed for detailed visual inspections. It features a flexible gooseneck probe with an 8.5mm diameter and a 2.0MP CMOS sensor, providing 1080P HD image and video capture. The integrated 4.5-inch IPS LCD monitor offers a clear view without the need for external devices or Wi-Fi connections.

Key Features:

Two-Way 180° Articulation: Allows precise control of the probe tip for navigating complex spaces and maintaining optimal viewing angles.
Integrated 4.5-inch IPS LCD Monitor: Provides a clear, real-time display of the inspection area. No smartphone, Wi-Fi, or app required.
High-Definition Imaging: 1080P HD resolution with a 2.0MP CMOS sensor for capturing detailed images and videos.
Adjustable LED Illumination: Built-in highlighting LEDs ensure clear visibility in dark conditions.
Photo and Video Recording: Supports JPG image and AVI video recording directly to the included 8GB MicroSD card. Includes a microphone and speaker for audio recording.
Long Battery Life: Equipped with a built-in 5000mAh rechargeable battery for extended operation.

Diagram showing two-way 180-degree articulation control of the borescope probe, navigating around an obstacle. — **Figure 4.1:** This image illustrates how the two-way 180-degree articulation allows the probe to bypass obstacles and navigate to the target area.

Close-up of the 4.5-inch IPS screen on the borescope monitor. — **Figure 4.2:** A close-up view of the 4.5-inch IPS LCD screen, highlighting its size and clarity for detailed inspections.

Borescope image showing high-quality inspection views of internal engine components. — **Figure 4.3:** Example images captured by the borescope, demonstrating the high quality and detail provided for critical inspections.

5. Setup

5.1 Initial Charging

Connect the USB Type-C charging cable to the borescope's charging port.
Plug the other end of the USB cable into a standard USB power adapter (not included) or a computer's USB port.
Allow the device to charge fully before first use. The charging indicator light will change when charging is complete.

5.2 MicroSD Card Installation

The 8GB MicroSD card is typically pre-installed. If it needs to be inserted or replaced:

Locate the MicroSD card slot on the side of the monitor unit.
Gently insert the MicroSD card with the gold contacts facing down until it clicks into place.
To remove, push the card in slightly until it springs out.

Diagram showing the insertion of a MicroSD card into the borescope monitor. — **Figure 5.1:** Illustration of the MicroSD card slot and how to insert the card for storing images and videos.

6. Operating Instructions

6.1 Powering On/Off

To power on, press and hold the Power button until the screen illuminates.
To power off, press and hold the Power button until the screen shuts down.

6.2 Controlling Articulation

The borescope probe features two-way 180-degree articulation. Use the control knob on the handle to adjust the direction of the probe tip:

Rotate the knob clockwise or counter-clockwise to bend the probe tip left or right.
The articulation can be locked in position for stable viewing.

Diagram showing two-way 180-degree articulation control of the borescope probe. — **Figure 6.1:** This image illustrates how to control the two-way 180-degree articulation of the borescope probe using the control knob on the handle, allowing precise navigation.

6.3 Adjusting LED Illumination

The probe tip is equipped with adjustable LED lights to illuminate the inspection area. Use the dedicated button on the monitor unit to cycle through different brightness levels or turn the lights off.

6.4 Taking Photos and Recording Videos

To take a photo: While in live view, press the Photo button (usually indicated by a camera icon) to capture a still image.
To record a video: Press the Video button (usually indicated by a video camera icon) to start recording. Press it again to stop recording. The device will record audio through its built-in microphone.
All captured media is saved to the installed MicroSD card.

6.5 Reviewing Media

Access the playback mode from the main menu to view captured photos and videos. Use the navigation buttons to browse through your media files.

7. Maintenance

Cleaning: Gently wipe the monitor screen and the probe with a soft, dry cloth. For stubborn dirt on the probe, use a slightly damp cloth and ensure it is completely dry before storage. Do not use abrasive cleaners or solvents.
Storage: Store the borescope in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
Battery Care: For optimal battery life, charge the device regularly and avoid fully discharging it for extended periods. If storing for a long time, charge it to about 50% every few months.
Software Updates: Check the manufacturer's website periodically for any available firmware updates.

8. Troubleshooting

Problem	Possible Cause	Solution
Device does not power on.	Low battery.	Charge the device fully.
No image on screen.	Probe cable not securely connected.	Ensure the probe cable is firmly connected to the monitor unit.
Image is blurry or dark.	Insufficient lighting; dirty camera lens; incorrect focus.	Adjust LED brightness. Clean the camera lens. Ensure the object is within the 45-70mm depth of field.
Cannot record photos/videos.	MicroSD card full or not inserted correctly; card error.	Check MicroSD card insertion. Delete unnecessary files or replace the card. Format the card if necessary (this will erase all data).
Articulation is stiff or unresponsive.	Mechanical obstruction; debris in articulation mechanism.	Carefully inspect the probe tip for any obstructions. Do not force articulation. Contact customer support if the issue persists.

9. Specifications

Feature	Specification
Model Name	Articulating Endoscope Inspection Camera (TD450D85L1)
Screen Size	4.5 Inches IPS LCD
Effective Still Resolution	2 MP
Video Capture Resolution	1080p
Probe Diameter	8.5mm
Articulation	Two-Way 180 Degrees
Macro Focus Range (Depth of Field)	45-70mm
Real Angle of View	60 Degrees
Sensor Type	CMOS
Media Type	Micro SD Card (8GB included)
File Format	JPG (images), AVI (videos)
Audio Recording	Yes (with internal microphone)
Connectivity Technology	USB
Battery Capacity	5000mAh (rechargeable)
Water Resistance Level	Not Waterproof (probe)

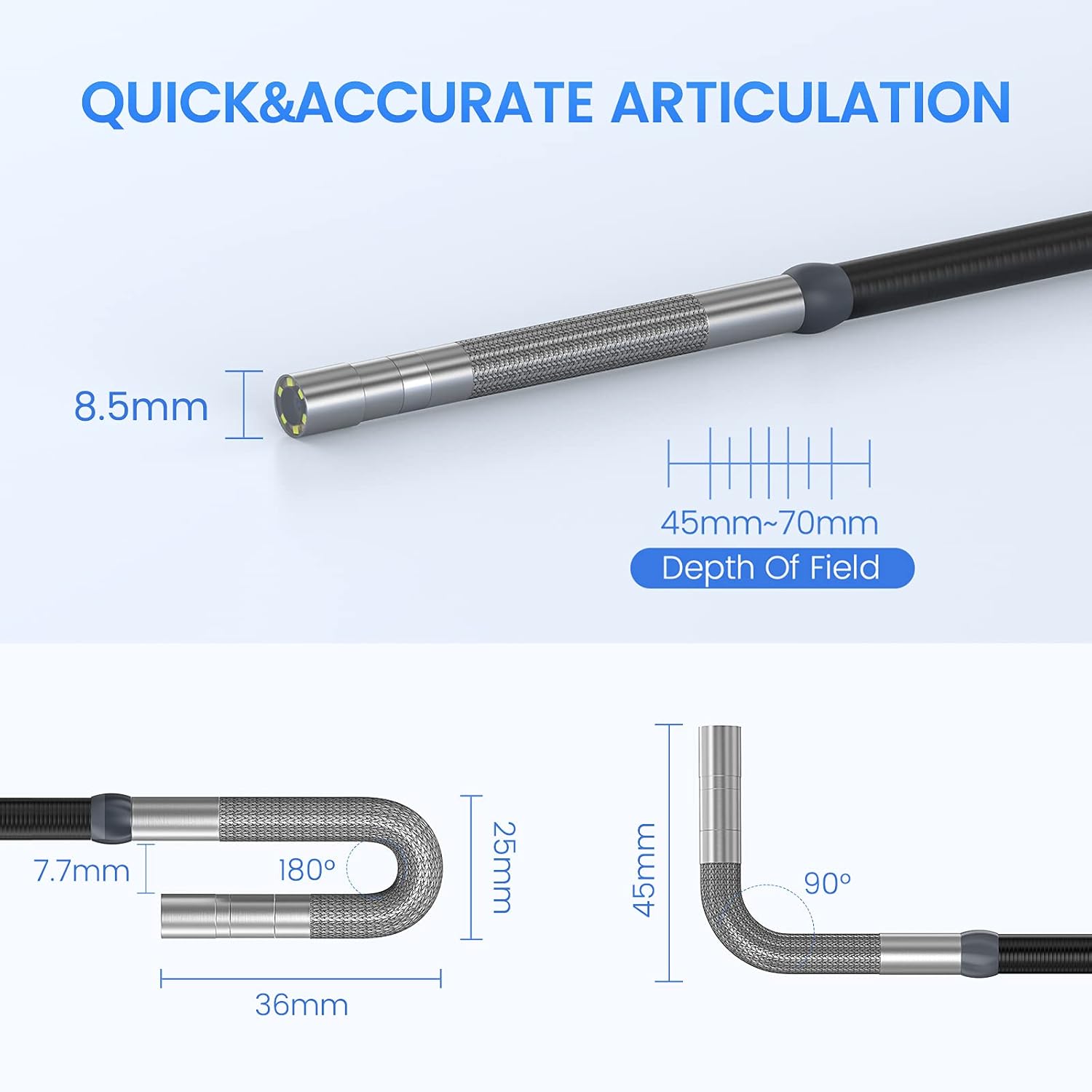

Technical diagram of the borescope probe showing 8.5mm diameter, 45-70mm depth of field, and 90-degree and 180-degree articulation angles. — **Figure 9.1:** Detailed view of the borescope probe's specifications, including its 8.5mm diameter, optimal depth of field (45-70mm), and the 90-degree and 180-degree articulation capabilities.

10. Warranty and Support

Your Teslong TD450D85L1 Articulating Borescope comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures reliable performance under normal use.

For technical assistance, troubleshooting, or warranty claims, please contact Teslong customer service. Refer to the contact information provided on the official Teslong website or in your product packaging for the most up-to-date support channels.

Please have your model number (TD450D85L1) and purchase details ready when contacting support.
