1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Mishimoto MMOC-OO-10SL Universal Heavy-Duty Bar-and-Plate Oil Cooler. Designed for high-performance applications, this oil cooler ensures optimal fluid temperature management for your vehicle's engine. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Safety Information
WARNING:
- Always ensure the vehicle is cool and stable before beginning any installation or maintenance.
- Disconnect the vehicle's battery before working on electrical components.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Oil can be hot and cause burns. Allow engine and oil to cool completely before handling.
- It is the installer's responsibility to check all line fittings and connections to assure they are fully tightened before operating the vehicle.
- Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Components Included
Verify that all components listed below are present before beginning installation:
- (1) Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler
- Mishimoto Lifetime Warranty Information
Image: The Mishimoto MMOC-OO-10SL Universal Heavy-Duty Bar-and-Plate Oil Cooler, shown in both silver and black finishes. This image displays the overall design and dimensions of the cooler.
4. Setup and Installation
The Mishimoto MMOC-OO-10SL is a universal oil cooler designed for custom applications. Installation will vary depending on your specific vehicle and setup. The following steps provide general guidance.
- Planning and Mounting:
Identify a suitable mounting location for the oil cooler that allows for optimal airflow and clearance from other engine components. The cooler features eight M8 flush mounting points with steel threaded inserts for secure attachment to custom brackets (not included). Ensure the mounting location is robust enough to support the cooler's weight and withstand vehicle vibrations.
Image: A technician is shown installing an oil cooler into a vehicle's engine bay, demonstrating the typical placement and handling during installation.
- Fluid Line Routing:
The cooler features -16AN female threaded inlet and outlet ports on opposite sides for simplified line routing. Plan the routing of your oil lines to and from the engine/oil filter relocation kit, ensuring lines are not kinked, pinched, or exposed to excessive heat or abrasion. Use appropriate -16AN fittings and hoses (not included) for a secure and leak-free connection.

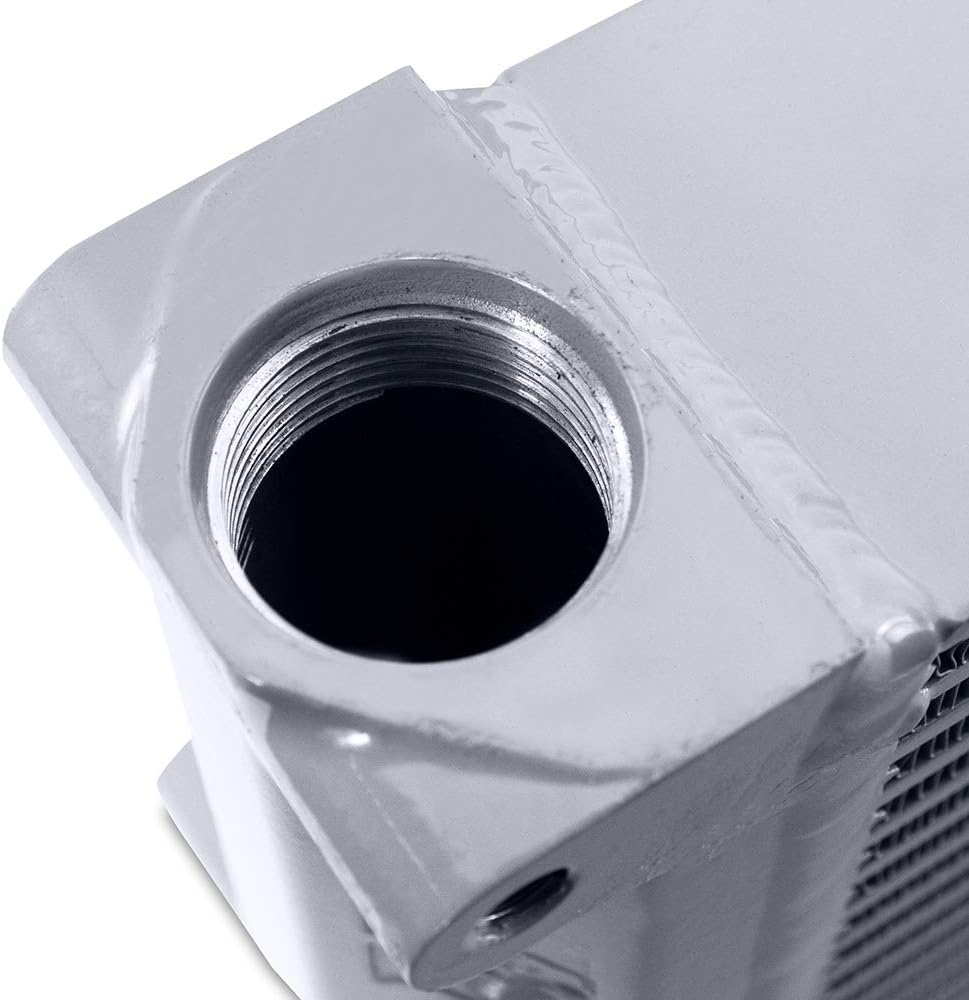

Image: A close-up view of the threaded inlet/outlet port on the Mishimoto oil cooler, showing the internal threading for -16AN fittings.
- Connection and Tightening:
Connect all oil lines to the cooler and the engine/oil filter relocation kit. Hand-tighten all fittings first, then use appropriate wrenches to tighten them securely. It is critical to ensure all connections are fully tightened to prevent leaks.
- Fluid Fill and Bleeding:
After installation, refill your engine oil to the manufacturer's recommended level. Start the engine and allow it to idle, checking for any leaks around the cooler and fittings. Monitor oil pressure and temperature. If necessary, bleed any air from the system according to your vehicle's service manual or oil system specifications.
5. Operating Principles
The Mishimoto MMOC-OO-10SL oil cooler operates on the principle of forced convection. Engine oil flows through the internal passages of the bar-and-plate core, which is designed with turbulated fins to evenly circulate oil and maximize heat transfer. As air passes over the external fins of the cooler, heat is dissipated from the oil, maintaining optimal operating temperatures for the engine. This heavy-duty design ensures efficient cooling even under extreme conditions.
6. Maintenance
- Regular Inspection: Periodically inspect the oil cooler and all associated lines and fittings for any signs of leaks, damage, or corrosion. Check for loose connections.
- Cleaning: Keep the external fins of the cooler free from debris, dirt, and insects to ensure unrestricted airflow. Use compressed air or a soft brush to gently clean the fins. Avoid using high-pressure washers directly on the fins, as this can bend or damage them.
- Fluid Checks: Regularly check your engine oil level and condition. Ensure the oil is clean and at the appropriate level as per your vehicle manufacturer's recommendations.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Oil Leakage | Loose fittings, damaged lines, cracked cooler core. | Tighten all fittings. Inspect lines for damage and replace if necessary. If cooler core is damaged, contact Mishimoto support. |
| Insufficient Cooling (High Oil Temps) | Blocked airflow to cooler, improper line routing, undersized cooler for application. | Clean cooler fins. Re-route lines for better flow. Ensure cooler is appropriately sized for your engine's demands. |
| Low Oil Pressure | Air in system, severe leak, incorrect oil viscosity. | Bleed air from system. Address any leaks immediately. Verify correct oil viscosity for your engine. |
8. Specifications
- Model: MMOC-OO-10SL
- Core Type: Bar-and-Plate
- Core Dimensions: 10" (L) x 7.5" (H) x 2.5" (T)
- Overall Length: 13.85" (352 mm)
- Number of Rows: 17
- Fluid Capacity: 1.4 qt
- Inlet/Outlet Ports: 1 5/16-12 (-16 ORB)
- Material: Aluminum
- Mounting Points: Eight M8 flush mounting points with steel threaded inserts
- Weight: Approximately 8.8 pounds
- Cooling Method: Forced Convection
Image: Top view of the Mishimoto MMOC-OO-10SL oil cooler, highlighting the bar-and-plate core design and the Mishimoto logo.
9. Warranty and Support
This Mishimoto MMOC-OO-10SL Universal Heavy-Duty Bar-and-Plate Oil Cooler is backed by the Mishimoto Lifetime Warranty.
- For warranty claims or technical support, please visit the official Mishimoto website or contact their customer service department.
- Ensure you have your product model number (MMOC-OO-10SL) and any purchase details available when contacting support.
Image: A close-up of the Mishimoto Lifetime Warranty label affixed to the oil cooler, indicating the brand's commitment to product quality.
