SW-Motech PRO Blaze Motorcycle Saddlebag Set User Manual

Introduction

The SW-Motech PRO Blaze Motorcycle Saddlebag Set is designed to provide a lightweight, sporty, and secure luggage solution for your motorcycle. This high version (H) is specifically developed for motorcycles with high-mounted exhausts, ensuring the bags are not affected by exhaust heat. Made from robust and UV-resistant 1680D ballistic nylon with shape-retaining EVA material side walls, these saddlebags protect your belongings from splashes and dust. The intelligent attachment system, featuring removable distance brackets, ensures minimal impact on riding characteristics, even at high speeds.

Figure 1: The SW-Motech PRO Blaze Motorcycle Saddlebag Set, showcasing both bags.

Safety Information

• Always ensure all components are securely fastened before riding. Loose parts can pose a safety hazard.
• Do not exceed the maximum permissible load capacity of your motorcycle or the saddlebags.
• Distribute weight evenly within the saddlebags to maintain motorcycle balance.
• Regularly check the condition of the saddlebags and mounting hardware for wear or damage. Replace worn or damaged parts immediately.
• Be aware that adding saddlebags can change the motorcycle's handling characteristics, especially at high speeds or in crosswinds. Practice riding with loaded bags in a safe environment.
• Ensure the saddlebags do not interfere with any moving parts of the motorcycle (e.g., wheels, chain, suspension) or obstruct lights/indicators.

Components and Package Contents

Your SW-Motech PRO Blaze Saddlebag Set includes the following:

• PRO Blaze H Saddlebags (2 units)
• Model-specific Distance Brackets (2 units)
• Powerful Velcro Strap (for over-seat connection)
• Additional Safety Belt with Click Fastener
• Installation Hardware (as required for specific model)

Setup and Installation

Follow these steps for proper installation of your PRO Blaze Saddlebag Set:

1. Installing the Distance Brackets

1. Identify the model-specific mounting points on your BMW R nineT, Pure, or GS motorcycle. These are typically discreet holders designed for the distance brackets.
2. Attach the permanent, inconspicuous holders for the distance brackets to your motorcycle. This is a one-time installation.
3. Insert the distance brackets into these holders. The design allows for quick attachment and removal with a few simple steps. Ensure they are firmly seated to prevent movement.

Figure 2: Securing the bracket attachment point on the motorcycle frame.

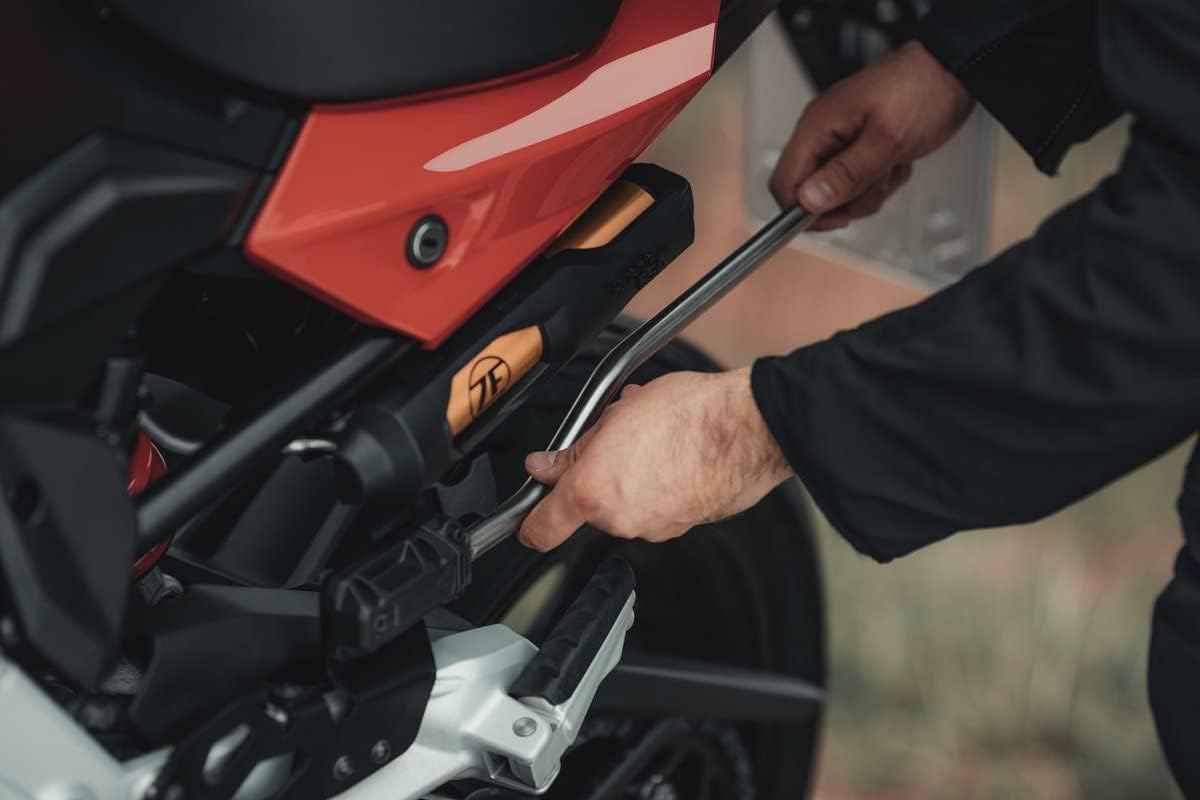

Figure 3: Inserting the PRO Blaze distance bracket into its designated holder on the motorcycle.

2. Attaching the Saddlebags

1. Slide each PRO Blaze saddlebag onto its respective distance bracket. The bags are designed to fit snugly over the brackets.
2. Connect the powerful Velcro strap, which runs over the passenger seat, between the two saddlebags. Adjust the strap to ensure the bags are pulled securely towards the motorcycle and remain stable.
3. Utilize the additional safety belt with a click fastener to further secure the bags, preventing any swaying or flapping, especially at higher speeds. This belt provides an extra layer of security.
4. Ensure the bags are positioned so they do not interfere with the exhaust, especially given this is the "H" (high) version designed for high exhausts.

Figure 4: Sliding the saddlebag onto the installed distance bracket.

Figure 5: Fastening the safety belt buckle for added security.

Figure 6: Adjusting the powerful Velcro strap over the passenger seat to secure both bags.

Operating and Usage

The PRO Blaze saddlebags are designed for ease of use and optimal performance:

• Capacity: Each saddlebag offers a generous capacity of 20 liters, providing ample space for your essentials.
• Quick Conversion: The system allows for quick conversion. When you don't need luggage, the distance brackets can be removed in seconds, leaving only the inconspicuous permanent holders on your motorcycle.
• Stability: The combination of model-specific distance brackets, the powerful Velcro strap, and the additional safety belt ensures excellent grip and prevents the bags from swaying or flapping, even at high speeds.
• Weather Protection: The robust 1680D ballistic nylon and shape-retaining EVA material side walls provide protection against splashes and dust, keeping your contents dry and clean.

Figure 7: The PRO Blaze saddlebags fully installed on a motorcycle, ready for use.

Maintenance

To ensure the longevity and optimal performance of your SW-Motech PRO Blaze Saddlebag Set, follow these maintenance guidelines:

• Cleaning: Clean the ballistic nylon and EVA material surfaces with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the material. Rinse thoroughly and allow to air dry completely before storage.
• Hardware: Periodically check all metal components (distance brackets, fasteners) for signs of corrosion or wear. Clean stainless steel parts as needed.
• Storage: When not in use, store the saddlebags in a cool, dry place away from direct sunlight to prevent material degradation.
• Inspection: Before each ride, inspect the bags and mounting system for any tears, loose stitching, damaged zippers, or bent hardware. Address any issues promptly.

Troubleshooting

If you encounter any issues with your saddlebag set, consider the following:

• Bags Swaying/Flapping:
  • Ensure the distance brackets are fully inserted and locked into their holders.
  • Tighten the over-seat Velcro strap securely.
  • Verify the additional safety belt is fastened and adjusted correctly.
  • Check that the weight distribution inside the bags is balanced.
• Difficulty Attaching/Removing Bags:
  • Ensure the brackets are correctly aligned with the bag's attachment points.
  • Check for any obstructions or debris in the attachment mechanism.
• Water Ingress:
  • While the bags are water-resistant, they are not fully waterproof. For heavy rain, consider using internal dry bags for sensitive items.
  • Ensure zippers are fully closed and flaps are properly secured.

If problems persist, contact SW-Motech customer support for assistance.

Specifications

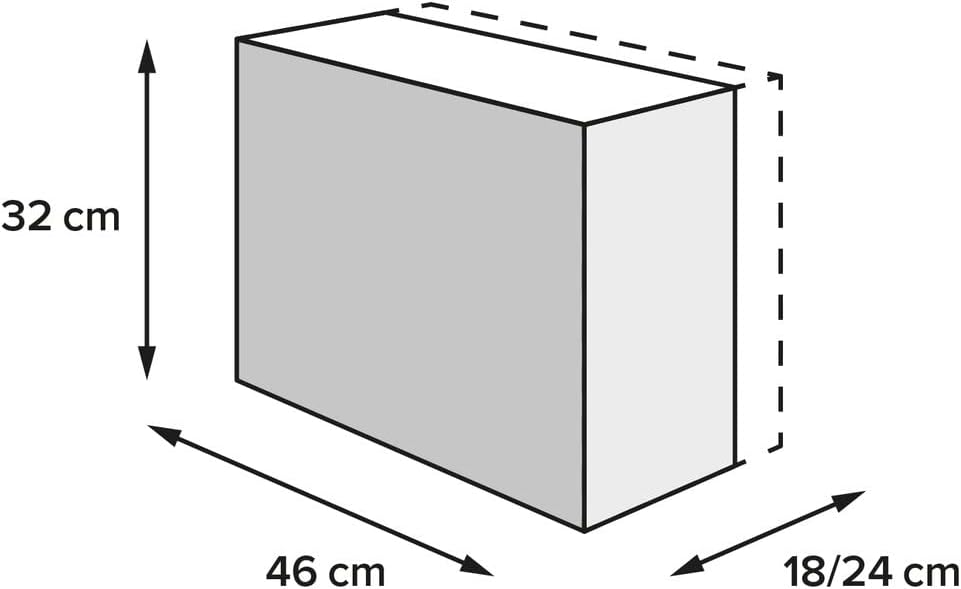

Figure 8: Approximate dimensions of the saddlebags (32cm height, 46cm length, 18/24cm width).

Warranty and Support

SW-Motech products are manufactured to high quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official SW-Motech website. For technical support, spare parts, or any inquiries regarding your PRO Blaze Saddlebag Set, please contact SW-Motech customer service directly. Contact details can typically be found on their official website or product packaging.

Manufacturer: SW-Motech
