CaDA Monster Truck C61008W Instruction Manual

Introduction

The CaDA Monster Truck C61008W is a 4-wheel drive off-road building kit featuring impressive technical details and designed for engaging assembly and play. Comprising 699 pieces, it is suitable for both advanced model builders and beginners. The kit is fully motorized with CaDA Pro Series components, including an L-motor, servo, two LED lights, and a battery box with remote control. Its robust construction includes independent suspension with 6 cm ground clearance and large wheels with soft rubber tires, combined with four-wheel drive. This model can be used indoors and outdoors.

Safety Warnings

WARNING: Contains toys. Adult supervision is recommended.

Package Contents

• 699 building pieces
• Printed instruction manual (91 pages)
• Special carbon fiber and metal parts
• CaDA Pro Series L-Motor
• Servo motor
• Two LED lights
• Battery box
• 2.4 GHz Remote Control
• Sticker kit

Note: 2x AA batteries for the remote control are not included.

Setup

1. Assembly

Follow the included 91-page printed instructions carefully for assembly. The kit consists of 699 pieces, including specialized carbon fiber and metal components for enhanced durability and performance. This model is compatible with LEGO Technic building blocks and elements.

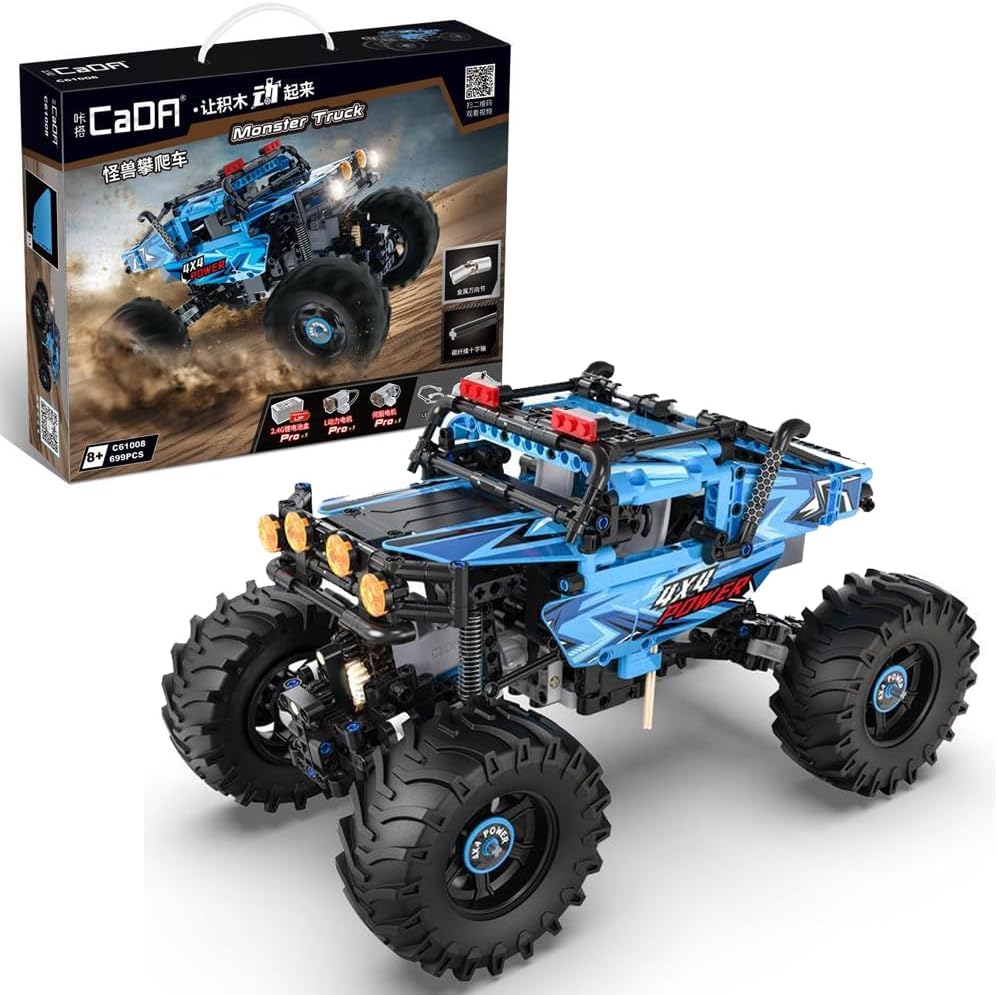

Image: The CaDA Monster Truck C61008W packaging and the fully assembled blue monster truck model.

2. Battery Installation

The main model is powered by the included battery box. The remote control requires 2x AA batteries (not included). Ensure batteries are inserted with correct polarity as indicated in the remote control's battery compartment.

Operating Instructions

1. Remote Control Pairing

Refer to the instruction manual for specific steps on pairing the 2.4 GHz remote control with the Monster Truck. Ensure both the truck and remote control have fresh batteries installed before attempting to pair.

2. Driving

The Monster Truck features 4-wheel drive and independent suspension, allowing for versatile off-road performance. A switch on the model enables selection between full-speed mode and crawl mode for different terrains. The robust construction ensures 100% power transmission to the wheels.

Image: Rear view of the assembled CaDA Monster Truck C61008W, showcasing its large wheels and suspension.

Image: Side view of the assembled CaDA Monster Truck C61008W, highlighting its robust chassis and independent suspension.

3. LED Lights

The model is equipped with front and rear LED lights, enhancing visibility and realism, especially in low-light conditions. These lights operate automatically when the truck is powered on.

4. Range and Speed

The remote control offers a range of up to 25 meters. The Monster Truck can achieve a maximum speed of 4 km/h.

Maintenance

1. Cleaning

For cleaning, use a soft, dry cloth. This product is designed for household use. Avoid exposure to excessive moisture or extreme temperatures, which can damage electronic components or plastic parts.

2. Part Replacement

Spare parts are available for a period of 1 year from the date of purchase. Refer to the official CaDA website or contact customer support for information on obtaining replacement parts.

Troubleshooting

• Model not responding: Check battery levels in both the model's battery box and the remote control. Ensure proper pairing between the remote control and the model as per the instruction manual.
• Reduced performance: Ensure all connections are secure and that no debris is obstructing moving parts. Check for any damaged components.
• Lights not working: Verify that the battery box is properly connected and powered.
• If issues persist, refer to the detailed assembly instructions for potential missed steps or incorrect connections during construction.

Specifications

Warranty and Support

Spare parts for the CaDA Monster Truck C61008W are available for 1 year from the date of purchase. For further assistance, technical support, or inquiries regarding parts, please contact CaDA customer support through their official channels.
