1. Introduction
This user manual provides essential information for the proper installation, operation, and maintenance of your Fdit Intake and Exhaust Valve Kit. Designed as original equipment manufacturer (OEM) accessories, these valves are crucial components for 170F/GX210 cylinder 2.5kw-3kw gasoline generators, ensuring stable performance and long service life. This kit is suitable for various applications including agriculture, fishery, animal husbandry, aquaculture, and forestry.
2. Safety Information
Always prioritize safety when working with engine components. Improper handling or installation can lead to injury or damage to equipment.
- Ensure the generator engine is completely off and cooled down before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Refer to your generator's specific service manual for detailed disassembly and reassembly procedures.
- Keep all tools and parts organized to prevent loss or damage.
- If unsure about any step, consult a qualified technician.
3. Product Overview
The Fdit Intake and Exhaust Valve Kit consists of precision-engineered valves designed to regulate the flow of gases within the engine cylinder. Each kit includes both intake and exhaust valves, crafted for durability and optimal engine performance.
Figure 3.1: Overview of the Fdit Intake and Exhaust Valve Kit components.
Figure 3.2: Detailed dimensions of the exhaust and inlet valves. The exhaust valve measures 62mm (2.4in) in length with a 25mm (1in) head diameter, and the inlet valve measures 64mm (2.5in) in length with a 27mm (1.1in) head diameter.
4. Installation (Setup)
Installation of the intake and exhaust valves requires careful attention to detail and adherence to the generator manufacturer's guidelines. This section provides general steps; always consult your specific generator's service manual for precise instructions.
- Preparation: Ensure the engine is cool and the spark plug wire is disconnected. Remove any components obstructing access to the cylinder head and valve assembly.
- Valve Removal: Carefully remove the old or damaged valves. This typically involves compressing the valve springs and removing the valve keepers, then extracting the valve. Note the orientation of each valve (intake vs. exhaust).
- Inspection: Inspect the valve guides and valve seats for wear or damage. Clean any carbon deposits from the cylinder head and valve areas.
- New Valve Installation: Lubricate the stems of the new Fdit valves with clean engine oil. Insert the new valves into their respective guides (intake valve into the intake port, exhaust valve into the exhaust port).
- Spring and Keeper Installation: Reinstall the valve springs, retainers, and valve keepers. Ensure the keepers are properly seated in the valve stem grooves. Use a valve spring compressor tool for safe installation.
- Valve Clearance Adjustment: After installation, it is critical to adjust the valve clearance (tappet gap) according to your generator's service manual specifications. Incorrect clearance can lead to poor engine performance or damage.
- Reassembly: Reassemble all removed components, ensuring all fasteners are tightened to the manufacturer's specified torque.

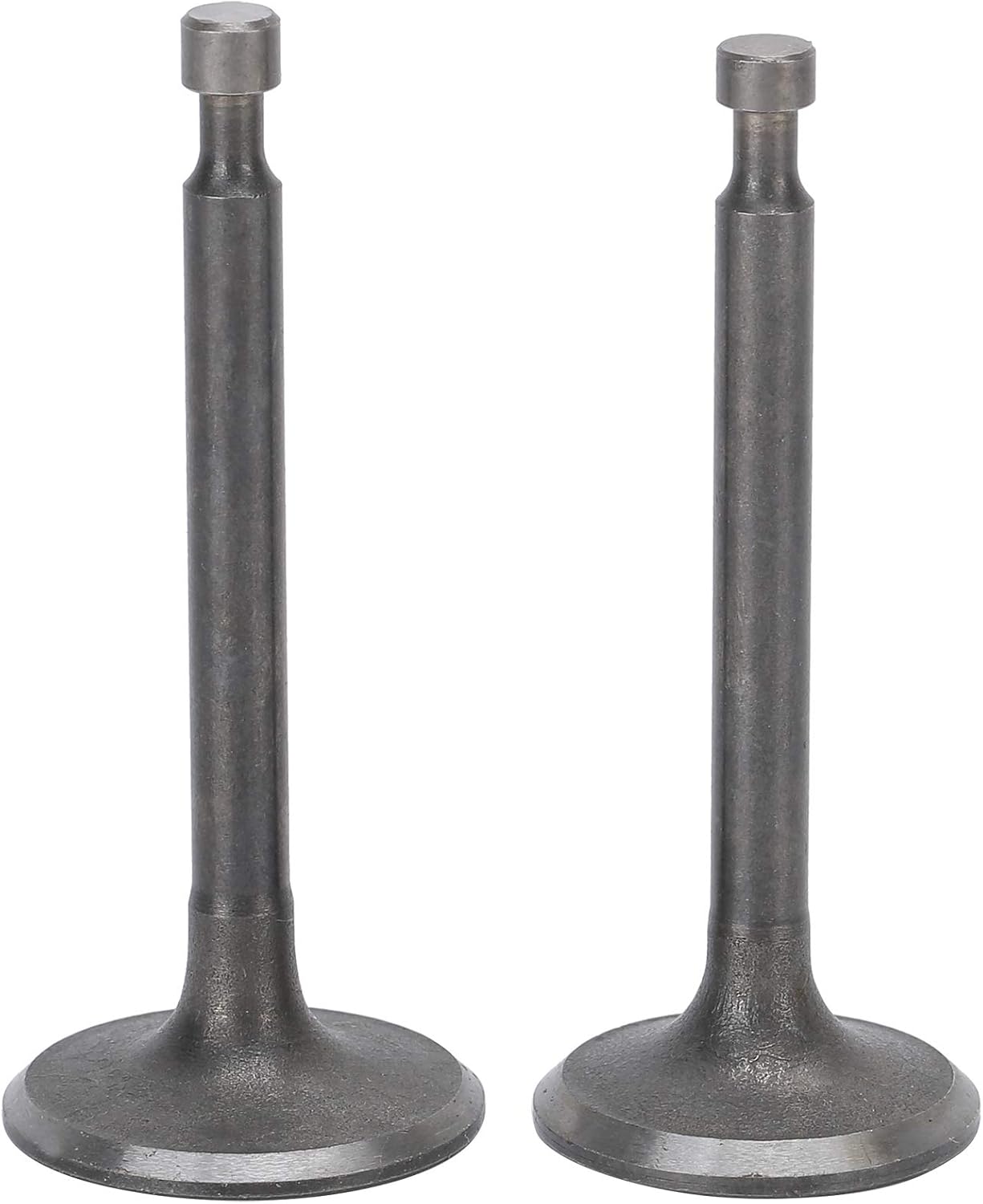

Figure 4.1: New intake and exhaust valves ready for installation into the cylinder head.
5. Operation (Function)
Once properly installed, the Fdit intake and exhaust valves function automatically as part of the engine's four-stroke cycle. They are critical for the efficient operation of your gasoline generator.
- Intake Valve: Opens during the intake stroke to allow the air-fuel mixture to enter the combustion chamber.
- Exhaust Valve: Opens during the exhaust stroke to allow spent combustion gases to exit the combustion chamber.
- Sealing: Both valves must seal tightly against their respective seats during the compression and power strokes to ensure proper compression and prevent loss of power.
Proper valve function is essential for the generator's power output, fuel efficiency, and emissions control.
6. Maintenance
Regular maintenance of your generator, including periodic inspection of valve components, will ensure the longevity and optimal performance of your Fdit valves.
- Valve Clearance Check: Periodically check and adjust valve clearance as specified in your generator's service manual. Incorrect clearance can lead to premature wear or engine damage.
- Carbon Buildup: Over time, carbon deposits can accumulate on valve heads and stems. During major engine services, inspect for excessive carbon and clean if necessary.
- Valve Seat Wear: Inspect valve seats for pitting or wear. Severely worn seats may require professional reconditioning or replacement of the cylinder head.
- Valve Stem Seals: While not part of this kit, valve stem seals are crucial for preventing oil consumption. Inspect them for deterioration and replace if needed during valve service.
7. Troubleshooting
Issues related to intake and exhaust valves often manifest as engine performance problems. Here are some common symptoms and potential valve-related causes:
| Symptom | Potential Valve-Related Cause | Action |
|---|---|---|
| Loss of Engine Power / Low Compression | Improper valve clearance, worn valve seats, bent valve, broken valve spring. | Check and adjust valve clearance. Inspect valves and seats for wear or damage. |
| Engine Misfires / Rough Running | Sticking valve, carbon buildup on valve stem/seat, bent valve. | Inspect for carbon buildup. Check valve movement. |
| Excessive Engine Noise (Tapping/Clicking) | Excessive valve clearance, worn valve train components. | Check and adjust valve clearance. Inspect rocker arms, pushrods. |
| Smoke from Exhaust (Blue/White) | Worn valve stem seals (not part of this kit, but related). | Inspect and replace valve stem seals if necessary. |
For complex issues or if you are unsure about diagnosis, it is recommended to seek assistance from a qualified engine mechanic.
8. Specifications
Key specifications for the Fdit Intake and Exhaust Valve Kit:
- Brand: Fdit
- Model Number: Fdit9onz5x2ta01021
- Valve Type: Intake and Exhaust Valve Kit
- Compatibility: 170F/GX210 Cylinder 2.5kw-3kw Gasoline Generators
- Item Dimensions (L x W x H): 3.94 x 3.15 x 1.18 inches
- Item Weight: 3.17 ounces
- Inlet Connection Size: 2.5 Inches
- Outlet Connection Type: G Connector
- Number of Ports: 2
- Outlet Connection Size: 2.5 Inches
- Specification Met: OEM
- Item Package Quantity: 1 (set of valves)
- Batteries Required/Included: No
9. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact the manufacturer, Fdit, directly. You can often find support information on the brand's official website or through the retailer where the product was purchased.
