1. Introduction
Thank you for purchasing the TRUSTECH Evaporative Air Cooler. This appliance is designed to provide a cool and humidified environment, functioning as both an air cooler and a tower fan. It features a bladeless design for safety, multiple wind speeds, a 12-hour timer, and remote control operation. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using this appliance.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
- Always unplug the appliance from the power outlet before cleaning, servicing, or relocating.
- Do not immerse the appliance in water or other liquids.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Use only on a stable, level surface.
- Do not block air openings or operate near flammable materials.
- Ensure the voltage indicated on the appliance corresponds to the local mains voltage before connecting the appliance.
3. Package Contents
- TRUSTECH Evaporative Air Cooler Unit
- Remote Control
- Ice Boxes (quantity may vary, typically two)
- User Manual
4. Product Overview
Familiarize yourself with the components of your air cooler.
Image Description: A white, sleek, bladeless evaporative air cooler. Airflow is depicted coming from the circular opening. A white remote control and two blue ice boxes resting on ice cubes are shown to the left of the unit. This image illustrates the main unit, its remote, and the included ice boxes.
- Control Panel: Located on the top of the unit, with touch-sensitive buttons for power, speed, mode, timer, and oscillation.
- Air Outlet: The circular opening at the front where cool air is expelled.
- Water Tank: Located at the bottom, accessible for filling with water and ice boxes. Capacity: 4 Liters.
- Remote Control Receiver: Small sensor on the unit to receive signals from the remote.
- Power Cord: For connecting to an electrical outlet.
5. Setup
- Unpacking: Carefully remove the air cooler and all accessories from the packaging. Retain packaging for future storage or transport.
- Placement: Place the air cooler on a firm, level surface. Ensure there is adequate space around the unit for proper airflow. Do not place it directly against a wall or furniture.
- Fill Water Tank:
- Locate the water tank at the bottom of the unit.
- Pull out the water tank.
- Fill the tank with clean, cool water. Do not exceed the "MAX" fill line.
- For enhanced cooling, place the provided ice boxes (after freezing them) or ice cubes into the water tank.
- Carefully slide the water tank back into the unit until it is securely in place.
- Power Connection: Plug the power cord into a standard 120V AC electrical outlet.
6. Operating Instructions
The air cooler can be operated using the control panel on the unit or the remote control.
6.1 Control Panel & Remote Control
Image Description: The TRUSTECH Evaporative Air Cooler shown in a living room setting with a family. Icons below the unit illustrate its multiple functions: Cooler, Swing, Timer, Speed, and ON/OFF. This highlights the various operational modes of the device.
- Power Button (⏻): Press to turn the unit ON or OFF.
- Speed Button (💨): Press repeatedly to cycle through wind speeds: Low, Middle, High.
- Mode Button (❄️): Activates or deactivates the cooling/humidifying function.
- Timer Button (⏱️): Press to set the operating time from 1 to 12 hours. Each press adds 1 hour.
- Oscillation/Swing Button (🔄): Press to activate or deactivate the 360° oscillation feature, distributing air more widely.
6.2 Wind Speed Adjustment
Image Description: The TRUSTECH Evaporative Air Cooler with visual representations of its three speed settings: High (family in living room), Middle (woman reading), and Low (child sleeping). This demonstrates the versatility of the fan's speed for different activities.
The air cooler offers 3 wind speeds: Low, Middle, and High. Adjust the speed according to your comfort level and the room's requirements.
6.3 Timer Setting

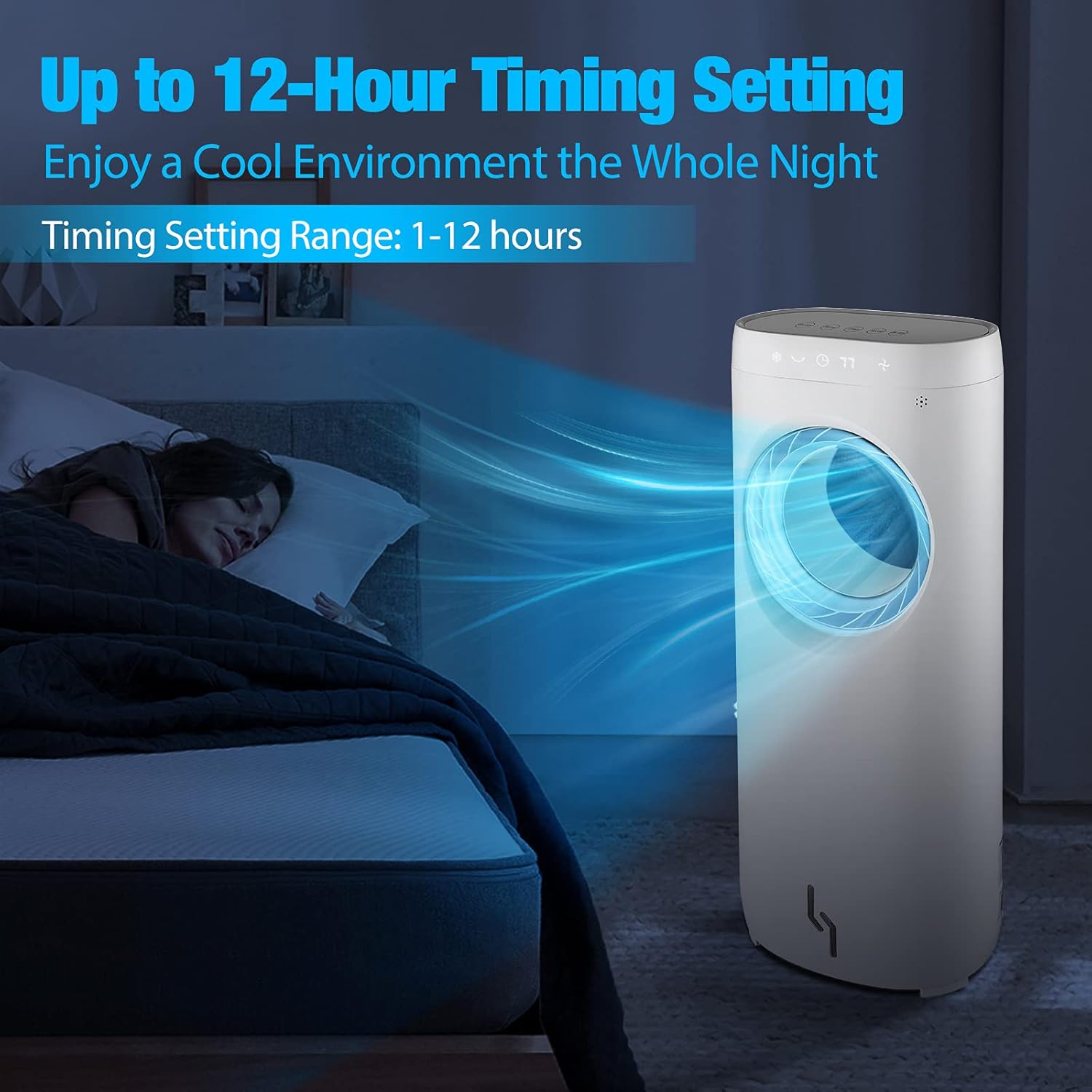

Image Description: The TRUSTECH Evaporative Air Cooler operating in a bedroom at night, with a person sleeping. Text indicates "Up to 12-Hour Timing Setting" and "Timing Setting Range: 1-12 hours," highlighting the sleep timer feature.
The timer function allows you to set the unit to automatically turn off after a specified period, from 1 to 12 hours. This is useful for energy saving or for ensuring the unit turns off after you fall asleep.
6.4 Oscillation Feature
Image Description: The TRUSTECH Evaporative Air Cooler in a room with a mother and two children playing. An arrow graphic around the unit indicates "360° Rotation" and "8-meter Remote Control," demonstrating its wide air distribution and remote accessibility.
Activate the 360° oscillation to distribute cool air evenly across a larger area of the room. This feature helps to cool the space more effectively.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air cooler.
- Cleaning the Exterior: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Cleaning the Water Tank:
- Unplug the unit before cleaning.
- Remove the water tank and empty any remaining water.
- Clean the tank with mild soap and water. Rinse thoroughly to remove any soap residue.
- Allow the tank to air dry completely before reinserting it into the unit.
- Clean the water tank regularly (e.g., weekly) to prevent mold and mildew growth.
- Storage: If the unit will not be used for an extended period, empty and clean the water tank, then store the unit in a cool, dry place, preferably in its original packaging.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply. Power cord not properly plugged in. |
Check if the unit is plugged into a working outlet. Ensure the power cord is securely connected. |
| No cool air. | Water tank is empty. Cooling/Humidifying mode is not activated. Ice boxes not used or not frozen. |
Fill the water tank with water. Press the Mode button to activate cooling. Ensure ice boxes are frozen and placed in the water tank. |
| Weak airflow. | Air inlet/outlet blocked. Fan speed set too low. |
Ensure nothing is obstructing the air inlets or outlets. Increase the fan speed using the Speed button. |
| Remote control not working. | Batteries are dead or incorrectly inserted. Obstruction between remote and unit. |
Replace batteries (1 Lithium Metal battery required). Ensure there is a clear line of sight to the unit's receiver. |
| Unusual noise. | Unit not on a level surface. Water tank not properly seated. |
Place the unit on a stable, level surface. Re-seat the water tank securely. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | TRUSTECH |
| Model Name | WTF-010L |
| Mounting Type | Tower Fan |
| Special Feature | Bladeless |
| Color | White |
| Controls Type | Remote |
| Reservoir Capacity | 4 Liters |
| Product Dimensions | 27"D x 38"W x 82.5"H |
| Item Weight | 13.07 pounds |
| Voltage | 120 Volts (AC) |
| Included Components | Remote Control |
| Remote Control Distance | Up to 8m (26.25 ft.) |
| Timer Setting | Up to 12 Hours |
10. Warranty and Support
This TRUSTECH Evaporative Air Cooler comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage resulting from:
- Accident, misuse, abuse, or alteration.
- Unauthorized repair or modification.
- Failure to follow operating instructions.
- Normal wear and tear.
For warranty claims or technical support, please contact TRUSTECH customer service. Please have your model number (WTF-010L) and proof of purchase ready.
No official support contact information (phone, email, website) was provided in the product data. Please refer to the product packaging or purchase platform for specific contact details.
