TOMATE MYC-03 Money/Banknote Counting Machine

1. Introduction

Thank you for choosing the TOMATE MYC-03 Money/Banknote Counting Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and keep it for future reference.

The MYC-03 is engineered for high-speed, accurate counting of banknotes, featuring integrated counterfeit detection to enhance security and efficiency in cash handling operations.

2. Safety Instructions

• Power Supply: Always connect the machine to a grounded power outlet with the specified voltage (110V AC).
• Environment: Do not expose the machine to water, excessive humidity, or extreme temperatures. Operate in a clean, dry environment.
• Handling: Avoid dropping or subjecting the machine to strong impacts. Do not attempt to open the casing or repair the machine yourself. Refer to qualified service personnel.
• Cleaning: Always unplug the machine from the power outlet before cleaning or performing any maintenance.
• Children: Keep the machine out of reach of children to prevent accidents.
• Ventilation: Ensure proper ventilation around the machine to prevent overheating. Do not block ventilation openings.

3. Product Overview

The TOMATE MYC-03 is a compact and efficient banknote counting machine. Below are its key components and features:

• Hopper: Where banknotes are loaded for counting.
• Stacker: Where counted banknotes are collected.
• Control Panel: Features buttons for various functions and numerical input.
• Display: Shows the count, error codes, and operational status.
• Power Switch: To turn the machine ON or OFF.
• Power Inlet: For connecting the power cord.
• Counterfeit Detection: Utilizes UV (Ultraviolet) light to detect fake banknotes.

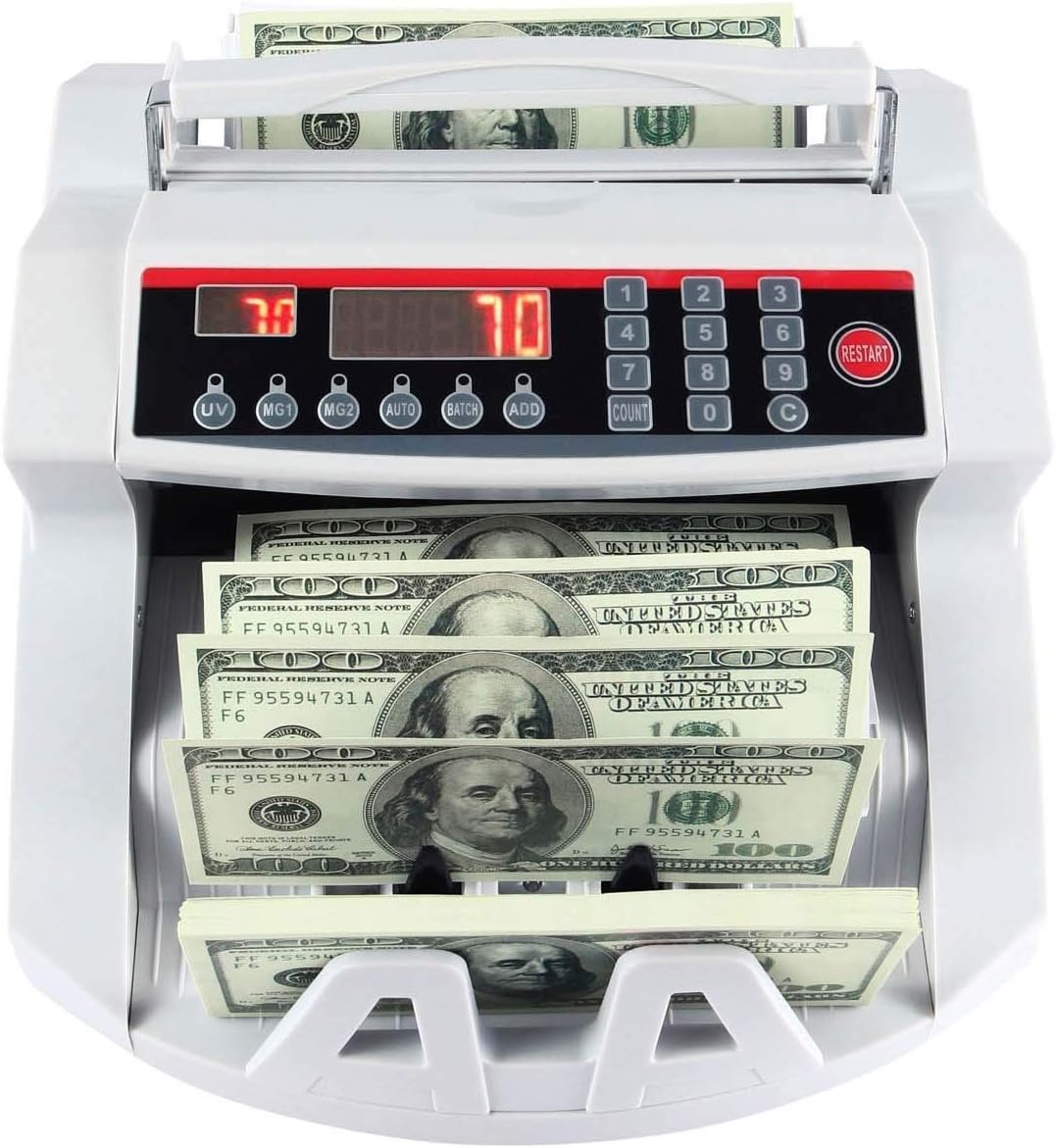

Image: Front view of the MYC-03 machine, showing the hopper, stacker, and control panel with banknotes in place.

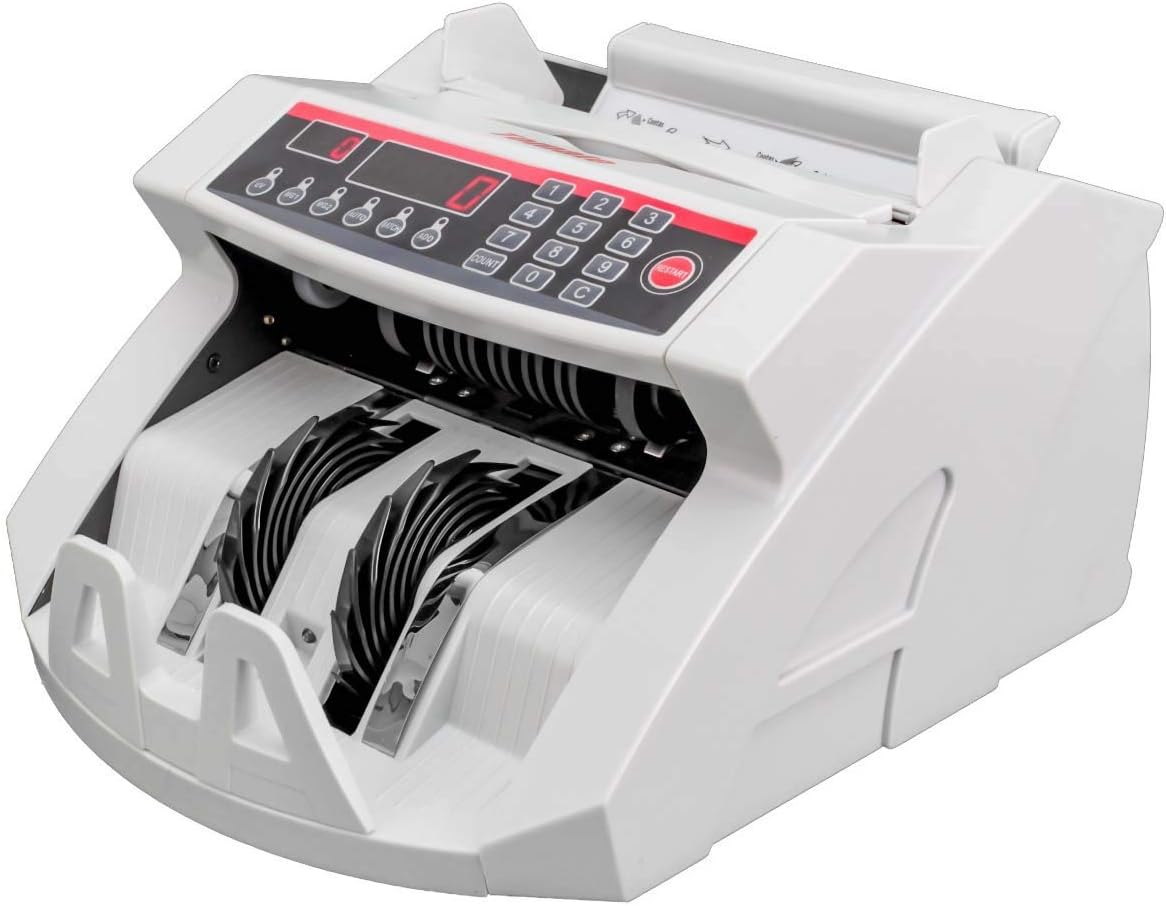

Image: Angled view of the MYC-03, illustrating its overall structure and components.

4. Setup

1. Unpacking: Carefully remove the machine and all accessories from the packaging. Retain the packaging for future transport or storage.
2. Placement: Place the MYC-03 on a stable, flat, and dry surface, ensuring there is adequate space around it for ventilation and operation.
3. Power Connection: Connect one end of the provided power cord to the power inlet on the back of the machine. Plug the other end into a standard 110V AC grounded power outlet.

Image: Rear view of the MYC-03, indicating the power input port and the main power switch.

5. Operating Instructions

5.1 Powering On/Off

• To turn ON the machine, flip the power switch located on the rear of the unit to the 'ON' position. The display will illuminate.
• To turn OFF the machine, flip the power switch to the 'OFF' position.

5.2 Loading Banknotes

• Ensure banknotes are neatly stacked and free from folds, tears, or foreign objects.
• Place the stack of banknotes into the hopper, ensuring they are aligned properly.

5.3 Counting Operation

• Once banknotes are loaded, the machine may automatically begin counting, or you may need to press the 'START' button on the control panel.
• The display will show the number of banknotes counted.
• After counting, remove the banknotes from the stacker.

5.4 Counterfeit Detection

The MYC-03 is equipped with UV (Ultraviolet) detection technology. This feature operates automatically during the counting process to identify suspicious banknotes. If a suspected counterfeit note is detected, the machine will typically stop, and an error code or indicator will appear on the display. Remove the suspicious note and resume counting.

Image: Visual representation of the counterfeit detection capability, distinguishing genuine from fake banknotes.

Image: The MYC-03 machine in operation, potentially with an external display for enhanced visibility of the count.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your MYC-03 machine.

• Exterior Cleaning: Use a soft, dry, lint-free cloth to wipe the exterior surfaces of the machine. Do not use abrasive cleaners or solvents.
• Sensor Cleaning: Dust and debris can accumulate on the sensors, affecting counting accuracy. Gently clean the sensors with a soft brush or compressed air. Always unplug the machine before cleaning sensors.
• Internal Cleaning: For thorough internal cleaning, it is recommended to consult a qualified technician or refer to specific instructions if provided by the manufacturer.
• Storage: If storing the machine for an extended period, unplug it, clean it thoroughly, and store it in its original packaging in a dry, cool place.

7. Troubleshooting

Below are common issues and their potential solutions:

8. Specifications

9. Warranty and Support

For technical support, service, or warranty inquiries regarding your TOMATE MYC-03 Money/Banknote Counting Machine, please contact the retailer from whom you purchased the product or refer to the manufacturer's official website for customer service contact information.

Please have your product model number (MYC-03) and purchase details ready when contacting support.
