1. Introduction
Thank you for choosing Lezonic Solar String Lights. This product is designed to provide ambient lighting for various indoor and outdoor settings. Featuring 50 super bright LED crystal ball bulbs and a high-efficiency solar panel, these lights offer an energy-saving and versatile lighting solution. The 7-meter (23-foot) string is equipped with 8 distinct lighting modes and an IP65 waterproof rating, ensuring durability and performance in diverse weather conditions.
Please read this manual carefully before installation and use to ensure proper operation and longevity of your solar string lights.
2. Safety Instructions
- Ensure the solar panel is installed in a location that receives direct sunlight for at least 6-8 hours daily to maximize charging efficiency.
- Do not immerse the solar panel or the string lights in water, despite their waterproof rating. The IP65 rating protects against splashes and rain, not submersion.
- Keep the product away from open flames or high heat sources.
- Do not attempt to disassemble or modify the product. This may void the warranty and pose safety risks.
- Keep out of reach of children.
- Handle the LED bulbs with care to avoid damage.
3. Package Contents
Verify that all components are present in your package:
- 1 x Lezonic Solar String Lights (50 LED Crystal Ball Bulbs, 7 meters)
- 1 x Solar Panel with integrated battery
- 1 x Ground Stake (for solar panel mounting)
- 1 x User Manual (this document)
- Expansion Screws (for alternative mounting)
4. Setup Instructions
Follow these steps to set up your Lezonic Solar String Lights:
- Assemble the Solar Panel: Attach the ground stake to the solar panel unit. Ensure it is securely fastened.
- Position the Solar Panel: Choose a location for the solar panel that receives maximum direct sunlight throughout the day (at least 6-8 hours). Avoid shaded areas from trees, buildings, or other obstructions. The panel can be angled up to 150 degrees for optimal sun exposure.
- Install the String Lights: Uncoil the string lights carefully. You can drape them around trees, along fences, on patios, decks, balconies, or any desired indoor/outdoor area. The flexible wire allows for easy shaping and arrangement.
- Initial Charge: Before first use, ensure the solar panel is exposed to direct sunlight for a full day (8-10 hours) with the power switch in the 'ON' position to allow the battery to fully charge.

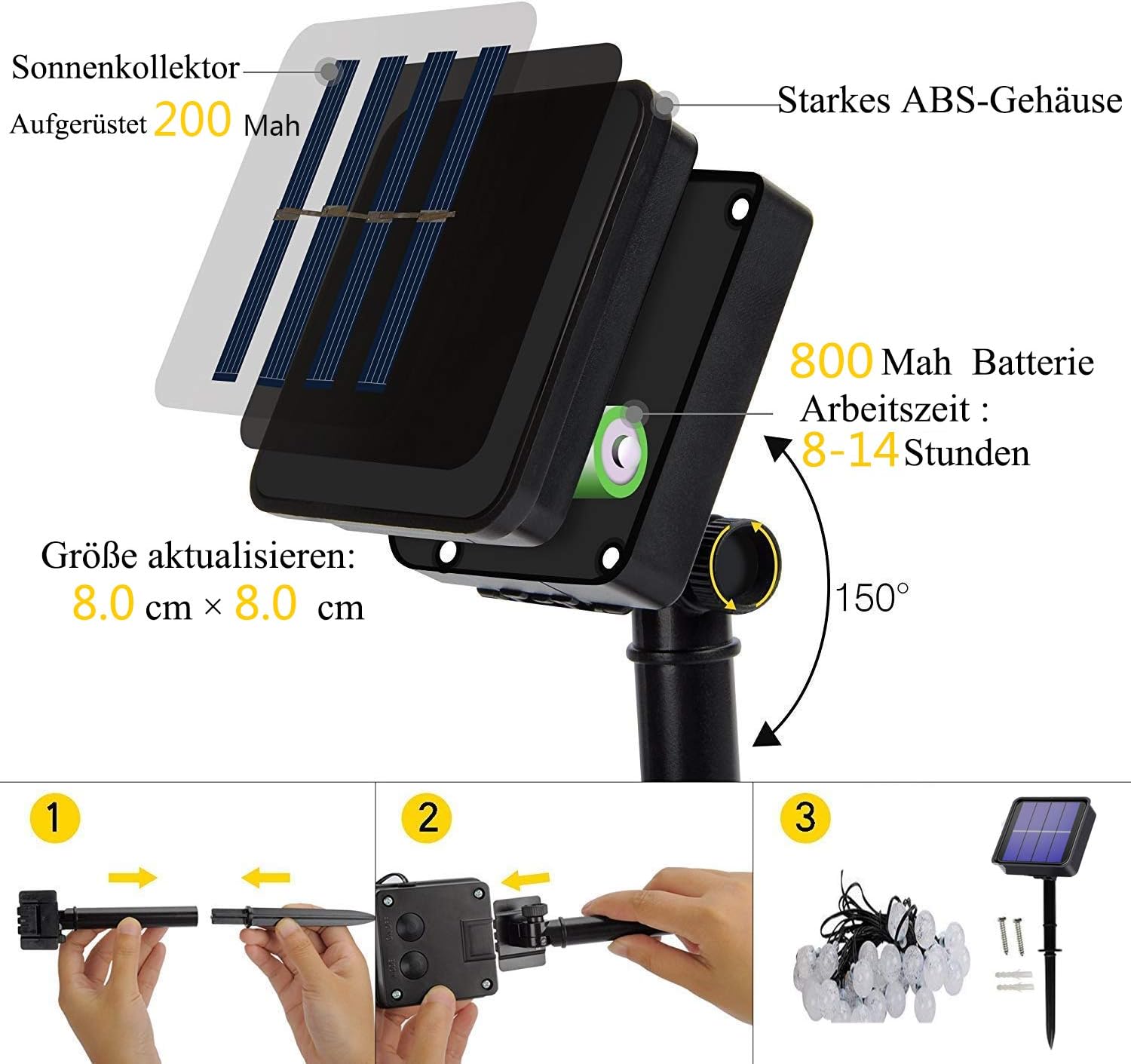

Image: Step-by-step diagram illustrating how to connect the ground stake to the solar panel and attach the string lights.
Image: The solar panel unit with its adjustable angle and ground stake, demonstrating its function during daylight for charging and at night for illumination.
5. Operating Instructions
The solar string lights are equipped with two control buttons located on the back of the solar panel unit:
- ON/OFF Switch: Press this button to turn the lights on or off. For automatic operation (lights turn on at dusk and off at dawn), ensure this switch is in the 'ON' position.
- MODE Button: Press this button to cycle through the 8 available lighting modes. The built-in memory chip will remember your last selected mode for the next use.
Lighting Modes:
The 8 lighting modes include:
- Combination
- Fireflies Flashing
- Waves
- Fading
- Chasing/Flashing
- Slow Fade
- Twinkle/Flash
- Steady On
Image: Examples of the solar string lights installed in various outdoor settings, showcasing their flexible arrangement and warm illumination.
6. Maintenance
- Cleaning the Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures optimal sunlight absorption and charging efficiency.
- Weather Resistance: The lights are designed with an IP65 waterproof rating, making them resistant to rain and splashes. However, for prolonged periods of extreme weather (e.g., heavy snow, strong winds), it is advisable to bring the lights indoors to extend their lifespan.
- Storage: If storing the lights for an extended period, ensure the solar panel is fully charged before storage. Store in a cool, dry place.
Image: A close-up view of one of the crystal ball LED bulbs, showing its waterproof construction with water droplets on the surface.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on at night. |
|
|
| Lights turn off unexpectedly or flicker. |
|
|
| Lights do not remember the last selected mode. |
|
|
8. Specifications
| Brand: | Lezonic |
| Model: | B08SWF13F6 |
| Light Source Type: | LED |
| Number of LEDs: | 50 |
| Light Color: | Warm White (3000 Kelvin) |
| String Length: | 7 meters (approx. 23 feet) |
| Power Source: | Solar Powered |
| Battery Capacity: | 800 mAh |
| Charging Time: | 5-8 hours (direct sunlight) |
| Working Time: | 6-10 hours (at night, fully charged) |
| Waterproof Rating: | IP65 |
| Control Method: | Button Control (on solar panel) |
| Usage: | Indoor/Outdoor |
| Package Dimensions: | 20.1 x 17.7 x 5.8 cm |
| Package Weight: | 570 grams |
9. Customer Support
Lezonic is committed to providing high-quality products and excellent customer service. If you have any questions, concerns, or encounter any issues with your solar string lights, please do not hesitate to contact us.
Please reach out to us directly through your order details on the platform where you made your purchase. We aim to respond to all inquiries within 12 hours and resolve any product-related problems promptly.
For more information or assistance, please refer to the contact details provided with your purchase or on the product listing page.
