NKF NS-RC03A-13 Remote Control User Manual

1. Introduction

This manual provides instructions for the NKF NS-RC03A-13 replacement remote control. This remote is designed to operate various Insignia LCD LED TV models without the need for programming or pairing. Simply install batteries, and the remote is ready for use.

2. Product Overview

The NS-RC03A-13 remote control features a standard layout for easy navigation and control of your Insignia television. Key functions include power, channel selection, volume adjustment, input source selection, and menu navigation.

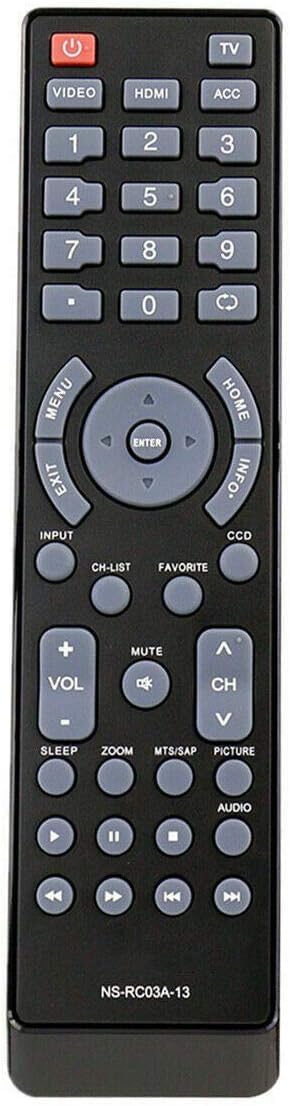

Figure 1: Front view of the NS-RC03A-13 remote control.

Figure 2: Back view of the NS-RC03A-13 remote control with battery compartment open.

3. Setup

3.1 Battery Installation

1. Locate the battery compartment on the back of the remote control.
2. Press down on the latch and slide the battery cover off.
3. Insert two (2) new AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery cover back into place until it clicks securely.

Note: Batteries are not included with the remote control. Always use new AAA alkaline batteries for optimal performance.

4. Operating Instructions

4.1 Initial Use

Once batteries are installed, the NS-RC03A-13 remote control is ready for immediate use. No programming or pairing is required.

4.2 Basic Functions

• Power (Red Button): Turns the TV on or off.
• Number Buttons (0-9): Directly select TV channels.
• VOL +/-: Adjusts the volume level.
• CH +/-: Changes TV channels sequentially.
• MUTE: Mutes or unmutes the TV audio.
• INPUT/VIDEO/HDMI: Selects the video input source (e.g., HDMI 1, AV, Component).
• MENU/HOME: Accesses the TV's main menu or smart TV home screen.
• Navigation Buttons (Up/Down/Left/Right/ENTER): Navigate through TV menus and confirm selections.
• EXIT: Exits the current menu or on-screen display.
• INFO: Displays information about the current program or input.

4.3 Compatible TV Models

This remote control is compatible with a wide range of Insignia LCD LED TV models, including but not limited to:

• NS-19E320A13, NS-22E340A13, NS-24E340A13, NS-24L240A13
• NS-32D120A13, NS-32E320A13, NS-32E320A13A, NS-32E321A13, NS-32E440A13
• NS-32L120A13, NS-32L121A13, NS-32L240A13, NS-39D240A13, NS-39E340A13
• NS-39E480A13, NS-39L240A13, NS-40L240A13, NS-40L240A13A, NS-42D240A13
• NS-42E440A13, NS-42E470A13, NS-42E480A13, NS-42L260A13, NS-46E340A13
• NS-46E480A13, NS-46E480A13A, NS-46E481A13, NS-46L240A13, NS-50L240A13
• NS-55E480A13, NS-55E480A13A, NS-55L260A13, NS-55L260A13A, NS-65D260A13
• NS-29L120A13, NS29L120A13

5. Maintenance

5.1 Cleaning

To clean the remote control, gently wipe it with a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials, as these may damage the remote's surface or internal components.

5.2 Battery Replacement

Replace batteries when the remote's performance diminishes or it stops responding. Always replace both batteries at the same time with new AAA alkaline batteries. Do not mix old and new batteries or different types of batteries.

6. Troubleshooting

• Remote not responding:
  • Check if the batteries are inserted correctly with the correct polarity.
  • Replace old batteries with new AAA alkaline batteries.
  • Ensure there are no obstructions between the remote control and the TV's infrared sensor.
  • Make sure you are within the effective operating range of the TV.
• Specific buttons not working:
  • Clean the remote control to remove any dirt or debris that might be obstructing the buttons.
  • If only certain buttons are unresponsive after checking batteries and cleaning, the remote may require replacement.

7. Specifications

8. Support

For any questions or concerns regarding the NS-RC03A-13 remote control, please contact the seller directly. They are committed to resolving any issues you may encounter.
