Important Safety Information
Please read these instructions carefully before installing and using your appliance. Keep this manual for future reference. Failure to follow these safety instructions could result in fire, electric shock, or injury.
- Ensure the appliance is disconnected from the power supply before performing any maintenance or cleaning.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
- This appliance is intended for household use only.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
1. Setup and Installation
1.1 Unpacking
Carefully remove all packaging materials. Check the appliance for any signs of damage. Report any damage to your retailer immediately.
1.2 Placement
Place the freezer on a firm, level surface away from direct sunlight, heat sources (e.g., ovens, radiators), and extreme cold. Ensure adequate ventilation around the appliance. The installation type is freestanding.

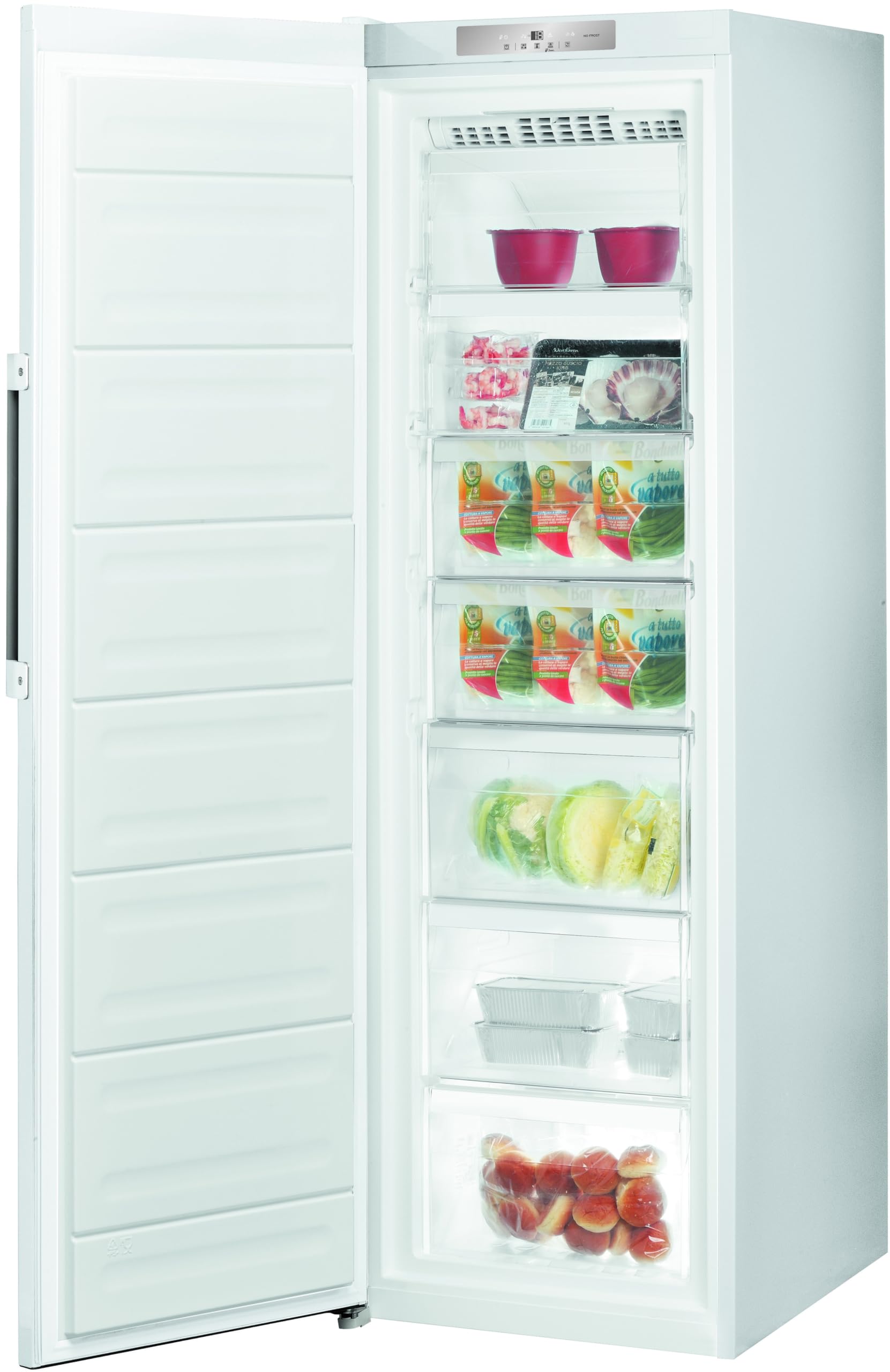

Image of the Indesit UI8F1CW1 vertical freezer, showing its exterior design and compact form factor suitable for freestanding placement.
1.3 Leveling
Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. This prevents vibrations and noise.
1.4 Initial Cleaning
Before first use, clean the interior and exterior of the freezer with a damp cloth and a mild detergent. Rinse and dry thoroughly.
1.5 Power Connection
Connect the appliance to a grounded electrical outlet. Ensure the voltage matches the appliance's requirements (220 Volts). Allow the freezer to stand for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
2. Operating Instructions
2.1 First Use
After plugging in the freezer, allow it to run empty for several hours (e.g., 4-6 hours) to reach the optimal operating temperature before loading food.
2.2 Temperature Control
The temperature control dial is typically located inside the freezer compartment. Turn the dial to adjust the temperature. A lower number usually indicates a warmer temperature, and a higher number indicates a colder temperature. Refer to the markings on your specific model for precise settings.
2.3 Food Storage
- Always store food in sealed containers or freezer bags to prevent dehydration and odor transfer.
- Do not place hot food directly into the freezer; allow it to cool down first.
- Avoid overloading the freezer, as this can impede air circulation and reduce freezing efficiency. The total capacity is 260 liters.
- Organize food to allow for easy access and to minimize the time the door is open. The door orientation is left-handed.
2.4 Defrosting
Depending on the model, your freezer may require manual defrosting. When ice accumulation reaches approximately 5-10 mm thickness, defrost the appliance. To defrost:
- Unplug the freezer from the power outlet.
- Remove all food items and store them in a cool place or another freezer.
- Leave the freezer door open to allow ice to melt naturally. Place towels or a tray at the bottom to collect water.
- Once defrosted, clean and dry the interior thoroughly before plugging it back in and returning food.
3. Care and Maintenance
3.1 Cleaning the Interior
Clean the interior regularly with a solution of mild detergent and warm water. Avoid abrasive cleaners or solvents. Ensure the appliance is unplugged before cleaning.
3.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. For stainless steel surfaces (door material), use a specialized stainless steel cleaner if necessary. The door material is stainless steel.
3.3 Power Saving Tips
- Ensure the door seal is clean and intact to prevent cold air leakage.
- Do not open the door more often than necessary.
- Allow hot food to cool before placing it in the freezer.
- Defrost regularly if your model is not frost-free.
4. Troubleshooting Guide
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer is not operating. | No power supply; power cord not plugged in; circuit breaker tripped. | Check power connection; check circuit breaker; test outlet with another appliance. |
| Freezer is not cold enough. | Temperature setting too high; door opened too frequently; excessive food load; poor ventilation. | Adjust temperature setting; ensure door is closed properly; reduce food load; ensure proper clearance around the appliance. |
| Excessive noise. | Appliance not level; objects vibrating against the freezer; fan obstruction. | Level the appliance using the adjustable feet; remove any objects touching the freezer; check for fan obstructions. |
| Water on the floor. | Drain hole blocked (if applicable); door not sealing properly during defrost. | Clear any blockages in the drain hole; ensure door seal is clean and intact. |
5. Product Specifications
- Brand: Indesit
- Model: UI8F1CW1
- Type: Vertical Freezer
- Capacity: 260 Liters
- Dimensions (D x W x H): 50 cm x 50 cm x 28 cm
- Weight: 37.5 kg
- Voltage: 220 Volts
- Annual Power Consumption: 303 kWh
- Door Material: Stainless Steel
- Door Orientation: Left
- Installation Type: Freestanding
- Country of Origin: Spain
- GTIN (Global Trade Item Number): 08050147606612
6. Warranty Information
This Indesit appliance comes with a standard manufacturer's warranty. The duration and terms of the warranty may vary by region and retailer. Please refer to the warranty card included with your purchase or contact your retailer for specific details regarding warranty coverage and claims. Keep your proof of purchase for warranty purposes.
7. Customer Support
For further assistance, technical support, or to schedule a service appointment, please contact Indesit customer service. You can find contact information on the official Indesit website or through your local retailer. When contacting support, please have your appliance model number (UI8F1CW1) and serial number ready.
