Introduction
This manual provides detailed instructions for the safe and efficient use of your Browin 313016 Stainless Steel Ham Cooker Set. Please read all instructions carefully before first use and retain this manual for future reference.
Image: The complete Browin 313016 Stainless Steel Ham Cooker Set, including the ham cooker, outer pot, and thermometer, displayed with prepared sliced ham and fresh parsley.
The Browin 313016 Ham Cooker is designed for preparing homemade ham, roulades, breakfast meats, and vegetarian dishes. Its innovative design ensures even cooking and juicy results. Made from high-quality stainless steel, it is suitable for food contact and can be used on electric, induction, and gas stoves.
Product Components
The Browin 313016 Ham Cooker Set includes the following components:
- Ham Cooker Cylinder: The main container for the meat.
- Press Plate with Spring: Used to compress the meat inside the cylinder.
- Lid for Ham Cooker: Secures the press plate.
- Outer Pot: A larger pot designed to hold the ham cooker, creating a water jacket for even cooking.
- Pot Thermometer: For monitoring the internal temperature during cooking.

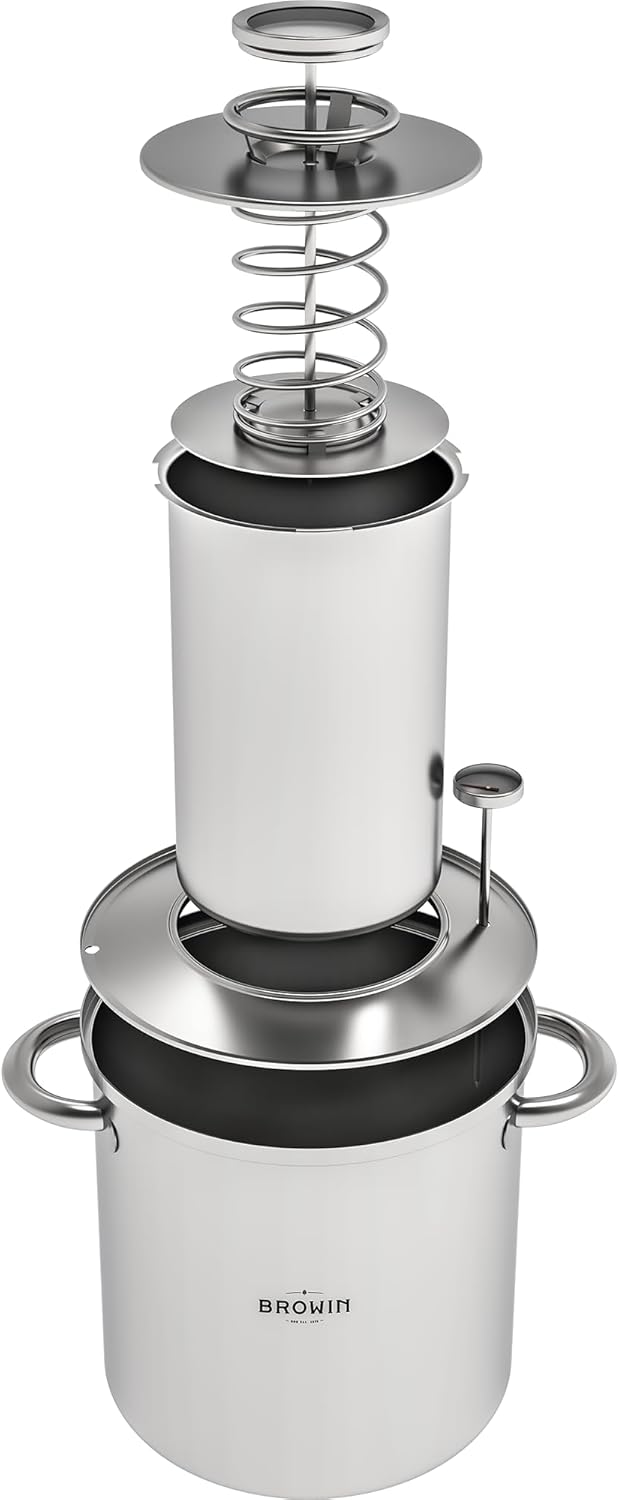

Image: An exploded diagram illustrating the individual components of the ham cooker set, including the outer pot, inner ham cooker, press plate with spring, and lid.
Setup
- Unpack Components: Carefully remove all parts from the packaging.
- Initial Cleaning: Before first use, wash all components (ham cooker cylinder, press plate, lid, outer pot, and thermometer) with warm soapy water. Rinse thoroughly and dry completely.
- Prepare Ingredients: Prepare your chosen meat or vegetarian ingredients according to your recipe. Ensure the ingredients are cut to a size that fits within the ham cooker cylinder.
- Lining (Optional): For easier removal and cleaning, you may line the inside of the ham cooker cylinder with a heat-resistant cooking bag or foil before adding ingredients.
- Fill the Cooker: Place the prepared ingredients into the ham cooker cylinder. Ensure the maximum capacity of 1.5 kg is not exceeded.
- Apply Pressure: Place the press plate with the spring on top of the ingredients. Press down firmly to compress the contents. Secure the lid onto the ham cooker cylinder, ensuring the spring is compressed and the lid is locked in place.
Image: A step-by-step diagram illustrating the process of filling the ham cooker with meat, applying the press, and placing the assembled cooker into the outer pot for cooking.
Operating Instructions
- Place Ham Cooker in Outer Pot: Insert the filled and assembled ham cooker cylinder into the outer pot. The ham cooker is designed to rest on a flange, preventing it from touching the bottom of the outer pot.
- Add Water: Fill the outer pot with water, ensuring the water level surrounds the ham cooker but does not overflow. This creates a 'water jacket' for gentle and even cooking.
- Insert Thermometer: Place the pot thermometer into the designated opening on the ham cooker lid or clip it to the side of the outer pot, ensuring the probe is immersed in the water or meat (depending on the thermometer type and desired measurement).
- Cooking: Place the outer pot on a suitable stove (electric, induction, or gas). Heat the water to the desired cooking temperature, typically between 75-85°C (167-185°F) for ham, and maintain this temperature throughout the cooking process. Refer to your recipe for specific temperature and time requirements.
- Monitor Temperature: Regularly check the thermometer to ensure the water temperature remains consistent. Adjust heat as necessary.
- Cooling: Once cooking is complete, carefully remove the outer pot from the heat. Allow the ham cooker to cool down completely before opening. For best results, refrigerate the ham cooker with its contents for several hours or overnight to allow the ham to set.
- Remove Ham: Once cooled and set, remove the lid and press plate. Invert the ham cooker to gently slide out the cooked ham. If a cooking bag was used, carefully cut it open.
Image: The Browin Ham Cooker Set placed on an induction hob, ready for the cooking process, with the thermometer inserted into the lid.
Image: Hands demonstrating the compression of meat inside the ham cooker using the spring-loaded press plate before securing the lid.
Image: A person carefully removing the perfectly formed, cooked ham from the ham cooker onto a cutting board, ready for slicing.
Maintenance and Cleaning
Proper maintenance ensures the longevity and hygiene of your ham cooker set.
- Immediate Cleaning: After each use, disassemble all components and wash them promptly.
- Hand Washing: Wash all parts with warm water and a mild dish soap. Use a soft sponge or brush to remove any food residue. Rinse thoroughly to remove all soap.
- Dishwasher Safe: All stainless steel components of the Browin 313016 Ham Cooker Set are dishwasher safe. Place them on the top rack if possible to prevent damage.
- Drying: Dry all components completely before storing to prevent water spots or corrosion.
- Storage: Store the ham cooker set in a dry place.
Image: The disassembled components of the Browin Ham Cooker Set, including the inner cylinder and press, placed inside a dishwasher for convenient cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Ham is not firm enough. | Insufficient cooking time or temperature; not enough compression; not cooled properly. | Ensure correct cooking temperature (75-85°C) and duration. Increase compression. Allow to cool completely in the refrigerator before unmolding. |
| Meat sticks to the cooker. | Cooker not properly greased or lined; ingredients too sticky. | Use a cooking bag or lightly grease the inside of the cylinder before filling. Ensure the ham is fully cooled before removal. |
| Water in outer pot boils dry. | Heat too high; insufficient water added initially. | Reduce heat to maintain a gentle simmer, not a rolling boil. Ensure adequate water level at the start and check periodically. |
Specifications
- Model: 313016
- Brand: Browin
- Material: High-Quality Stainless Steel (18/8)
- Capacity: 1.5 kg (maximum)
- Color: Silver
- Finish Type: Polished
- Item Weight: 1140 Grams
- Oven Safe: No
- Suitable for Hob: Yes (Electric, Induction, Gas)
- Dishwasher Safe: Yes
Image: Technical diagram displaying the key dimensions of the ham cooker components, including the height and diameter of both the inner cooker and the outer pot.
Warranty and Support
Information regarding product warranty and customer support is not provided in the available product data. Please refer to the retailer or manufacturer's official website for details on warranty coverage and how to contact customer service for assistance.
