Victor Reinz 11-10312-01 Engine Intake Manifold Gasket Set Instruction Manual

Reliable Sealing Solutions for Engine Performance

Product Overview

Victor Reinz 11-10312-01 Engine Intake Manifold Gasket Set

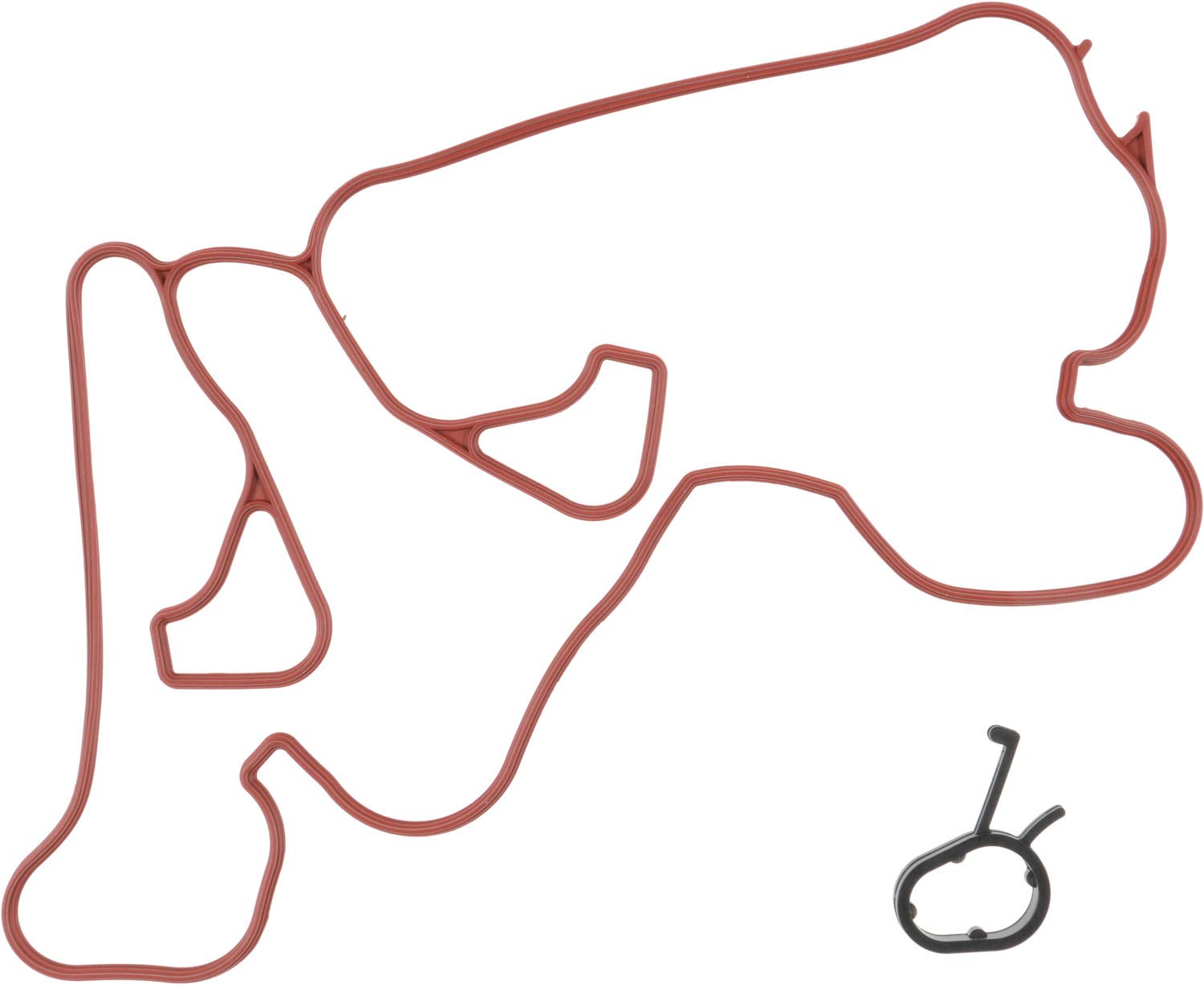

Image: Victor Reinz 11-10312-01 Engine Intake Manifold Gasket Set. This image displays the complete gasket set, including multiple gasket components designed for the intake manifold.

The Victor Reinz 11-10312-01 Engine Intake Manifold Gasket Set is designed to provide a reliable seal for your engine's intake manifold. These gaskets are engineered to withstand harsh operating environments, including exposure to fuel, air, coolant, oil, and extended-life anti-freeze. Victor Reinz utilizes a wide range of gasket materials and constructions to ensure optimal performance for various engine types, including import, domestic, heavy cast iron, and lightweight aluminum.

What's in the Box

  • One (1) Victor Reinz 11-10312-01 Engine Intake Manifold Gasket Set

Key Features

  • Engineered for Durability: Designed to withstand harsh engine environments, including exposure to extended-life anti-freeze.
  • OE Quality: Manufactured to original equipment (OE) quality standards, ensuring reliable performance and a precise fit.
  • Comprehensive Design: Victor Reinz engineers select the best design from a broad range of gasket materials and constructions for specific engine applications.

Installation Guidelines

Proper installation of the intake manifold gasket set is crucial for optimal engine performance and to prevent leaks. Always refer to your vehicle's specific service manual for detailed, step-by-step instructions and torque specifications. The following general guidelines apply:

  1. Preparation: Ensure the mating surfaces of the intake manifold and cylinder head are thoroughly cleaned and free of old gasket material, debris, oil, or coolant.
  2. Gasket Placement: Carefully position the Victor Reinz 11-10312-01 gaskets onto the cylinder head or intake manifold, ensuring correct alignment with all bolt holes and ports. These gaskets feature an FKM (Viton) sealing medium on an aluminized steel carrier, designed for a robust seal.
  3. Fastener Installation: Install the intake manifold and fasteners according to the manufacturer's recommended sequence and torque specifications. The gaskets include compression limiters to help prevent over-tightening.
  4. Final Checks: After installation, perform a thorough check for proper fitment and ensure all connections are secure.

Video: MaxDry STL Intake Manifold Gaskets Overview by Victor Reinz. This video provides an overview of the features and benefits of MaxDry STL intake manifold gaskets, highlighting their construction and sealing capabilities. It demonstrates the physical characteristics of the gasket components.

Operation and Function

Once installed, the Victor Reinz 11-10312-01 Intake Manifold Gasket Set functions to create a tight seal between the engine's intake manifold and cylinder head. This seal is critical for maintaining proper air-fuel mixture delivery to the combustion chambers, preventing vacuum leaks, and ensuring efficient engine operation. The robust design and materials of these gaskets are intended to provide long-term sealing integrity under varying engine conditions.

Maintenance

Intake manifold gaskets are generally considered maintenance-free components once properly installed. However, regular engine inspections can help identify potential issues early. Look for signs of leaks around the intake manifold, such as coolant, oil, or vacuum leaks. Any signs of leakage may indicate a compromised gasket and require further investigation and replacement.

Troubleshooting Common Issues

If you experience engine performance issues after gasket installation, consider the following common troubleshooting steps:

  • Vacuum Leaks: Symptoms like rough idle, misfires, or a "hissing" sound can indicate a vacuum leak. Recheck all intake manifold fasteners for proper torque and inspect the gasket for any signs of damage or improper seating.
  • Coolant/Oil Leaks: Visible fluid leaks around the intake manifold area suggest a sealing issue. Ensure the gasket surfaces were clean and dry during installation and that the manifold was torqued correctly.
  • Check Engine Light: A check engine light accompanied by specific diagnostic trouble codes (DTCs) related to engine performance or fuel trim can sometimes be linked to intake manifold leaks. Consult a professional mechanic for diagnosis.

For persistent issues, professional diagnosis and repair are recommended.

Specifications

Attribute Detail
Brand Victor Reinz
Model Number 11-10312-01
Manufacturer Part Number 11-10312-01
OEM Part Numbers MS19455, MS94191
Material Aluminum
Item Weight 2.08 ounces
Package Dimensions 4.8 x 4.8 x 1.38 inches
ASIN B08SS4LSWV
UPC 023913654672
Date First Available January 12, 2021

Warranty and Support

For specific warranty information regarding the Victor Reinz 11-10312-01 Engine Intake Manifold Gasket Set, please refer to the documentation included with your purchase or visit the official Victor Reinz website. For technical support or inquiries, contact Victor Reinz customer service.
