Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your DS18 DX2 Deluxe 6.5-inch 2-Way Car Audio Component Speaker System. This system is designed to deliver high-quality audio performance in automotive environments.
What's in the Box
- (2) 6.5-inch Woofers
- (2) 1.18-inch Tweeters
- (2) 2-Way Passive Crossovers
- User Manual
Image: The complete DS18 DX2 Deluxe component speaker system, including two woofers, two tweeters, and two crossovers.
Setup and Installation
Professional installation is highly recommended for optimal performance and to prevent damage to the components or your vehicle's electrical system. Ensure the vehicle's battery is disconnected before beginning any installation.
Woofer Installation
The 6.5-inch woofers feature a carbon fiber cone and rubber surround. They are designed for a front mount baffle cutout of 5.59 inches (142 mm) and a mounting depth of 2.85 inches (72.5 mm). Connect the speaker wires to the push terminals on the woofer, ensuring correct polarity.
Image: Close-up of the DS18 DX2 woofer, highlighting its carbon fiber cone and robust construction.
Image: Diagram showing the overall diameter, mounting depth, and front mount baffle cutout dimensions for the DX2 woofer.
Tweeter Installation
The 1.18-inch tweeters are designed for clear high-frequency reproduction. They require a front mount baffle cutout of 1.85 inches (47 mm) and a mounting depth of 0.7 inches (18 mm). Connect the tweeter wires to the appropriate terminals on the passive crossover.
Image: Close-up of the DS18 DX2 tweeter, featuring its neodymium magnet and sleek design.
Crossover Installation and Adjustment
The 2-way passive crossovers manage the audio signal distribution to the woofers and tweeters. Connect the input from your amplifier to the "IN+" and "IN-" terminals. Connect the woofers to the "WF+" and "WF-" terminals, and the tweeters to the "TW+" and "TW-" terminals. The crossover features multiple dB selections (0dB, -2dB, -4dB) for tweeter attenuation, allowing you to fine-tune the high-frequency output to match your listening preferences and vehicle acoustics.

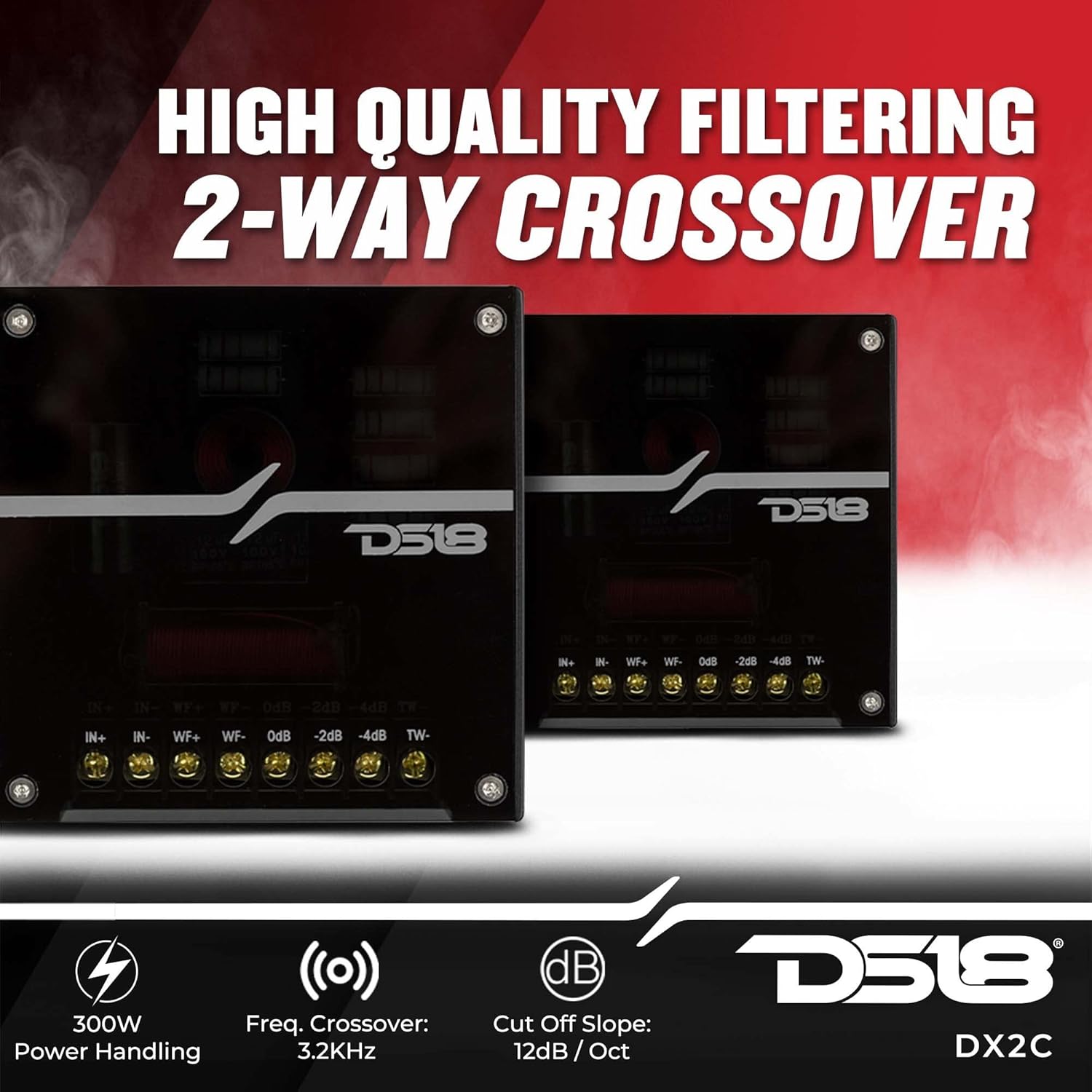

Image: The DS18 DX2 2-way passive crossover, showing input and output terminals and dB adjustment options.
Video: An unboxing and specifications overview of the DS18 DX2 component speaker system, demonstrating the components and their features.
Operating Instructions
Once installed, ensure all connections are secure and correct. Start with your amplifier's gain settings at their lowest point and gradually increase them to achieve the desired volume without distortion. The DX2 system is designed for optimal performance with appropriate power matching.
- Power Handling: Avoid exceeding the rated power handling of the speakers to prevent damage. The woofers handle 100W AES (200W Program, 400W Peak) and the tweeters handle 15W AES (30W Program, 60W Peak). The crossover can handle up to 300W.
- Impedance: The system components are 4 Ohms nominal impedance. Ensure your amplifier is stable at this impedance.
- Frequency Response: The woofer operates effectively from 45 Hz, and the tweeter from 800 Hz up to 20 kHz. The crossover is set at 3.8 kHz.
Maintenance
To ensure the longevity and performance of your DS18 DX2 speaker system, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to gently wipe down the speaker cones and surrounds. Avoid using harsh chemicals or abrasive materials.
- Environmental Conditions: These speakers are not waterproof. Avoid exposing them to excessive moisture or direct water contact.
- Inspection: Periodically check all wiring connections for tightness and signs of corrosion. Ensure mounting hardware remains secure.
Troubleshooting
If you experience issues with your speaker system, refer to the following common problems and solutions:
- No Sound:
- Check all power and signal connections to the amplifier and speakers.
- Verify the amplifier is powered on and receiving a signal.
- Ensure the head unit (source) is functioning correctly.
- Distorted Sound:
- Reduce the volume level on your head unit or amplifier.
- Check amplifier gain settings; they may be set too high.
- Inspect speaker wires for shorts or damage.
- Verify correct polarity for all speaker connections.
- One Speaker Not Working:
- Check the specific speaker's wiring and connection to the crossover.
- Test the speaker with a known working audio source if possible.
If problems persist, consult a professional car audio technician.
Specifications
Woofer (DX2W)
| Feature | Value |
|---|---|
| Nominal Diameter | 6.5 inches (165 mm) |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 100 Watts |
| Program Power Handling | 200 Watts |
| Peak Power Handling | 400 Watts |
| Sensitivity (1W/1M) | 89 dB |
| Frequency Response | 45 Hz - 12 kHz |
| Cone Material | Carbon Fiber |
| Surround Material | Rubber |
| Overall Diameter | 6.49 inches (165 mm) |
| Front Mount Baffle Cutout | 5.59 inches (142 mm) |
| Mounting Depth | 2.85 inches (72.5 mm) |
Tweeter (DX2T)
| Feature | Value |
|---|---|
| Nominal Diameter | 1.18 inches (30 mm) |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 15 Watts |
| Program Power Handling | 30 Watts |
| Peak Power Handling | 60 Watts |
| Sensitivity (1W/1M) | 90 dB |
| Frequency Response | 800 Hz - 20 kHz |
| Recommended High Pass Crossover | 3.8 kHz |
| Overall Diameter | 2 inches (51 mm) |
| Front Mount Baffle Cutout | 1.85 inches (47 mm) |
| Mounting Depth | 0.7 inches (18 mm) |
Crossover (DX2C)
| Feature | Value |
|---|---|
| Passive Crossover Ways | 2 Ways |
| Crossover Frequency | 3.8 kHz |
| Power Handling | 300 Watts |
| Cut Off Slope | 12dB/Oct |
| Overall Length | 4.3 inches (110 mm) |
| Overall Depth | 4.3 inches (110 mm) |
| Overall Height | 1.37 inches (35 mm) |
Warranty Information
The DS18 DX2 Deluxe 6.5-inch 2-Way Car Audio Component Speaker System comes with a Limited Warranty. For complete details regarding warranty coverage, terms, and conditions, please refer to the official DS18 website or contact DS18 customer support directly. Keep your proof of purchase for warranty claims.
Support
For technical assistance, installation questions, or further product information, please visit the official DS18 website or contact their customer support team. You can find contact details on the DS18 website or in the product packaging.
