Orbegozo SVT 1000 Vertical Steam Iron User Manual

1. Introduction

Thank you for choosing the Orbegozo SVT 1000 Vertical Steam Iron. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and keep them for future reference.

2. Safety Instructions

• Always ensure the voltage indicated on the appliance matches your local mains voltage before connecting.
• Do not immerse the appliance, power cord, or plug in water or any other liquid.
• Keep the appliance out of reach of children and pets.
• Unplug the appliance from the power outlet when not in use, before filling or emptying the water tank, and before cleaning.
• Use caution when handling hot steam. Keep hands and face away from the steam nozzle during operation.
• Do not direct steam at people, animals, or electrical appliances.
• The appliance features an overheating protection system. If it overheats, it will automatically shut off. Allow it to cool down before resuming use.
• Only use the appliance for its intended purpose as described in this manual.
• Do not operate the appliance with a damaged cord or plug, or if it has been dropped or damaged in any way. Contact authorized service personnel for repair.

3. Product Overview

Familiarize yourself with the components of your Orbegozo SVT 1000 Vertical Steam Iron.

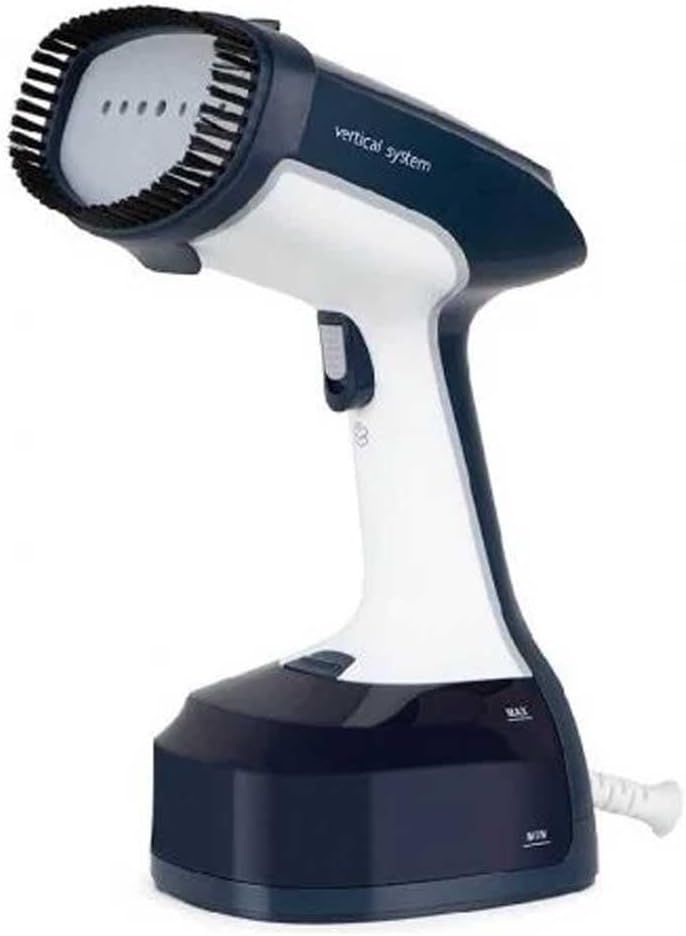

Image 1: The Orbegozo SVT 1000 Vertical Steam Iron. This image shows the dark blue and white handheld unit with its steam head, handle, and water tank base. A brush attachment is visible on the steam head.

Key Components:

• Steam Head with Brush Attachment: For effective wrinkle removal and fabric care.
• Handle: Ergonomically designed for comfortable grip.
• Steam Trigger/Lock Button: To activate steam and lock for continuous steam.
• Water Tank (Removable): Located at the base, with MIN/MAX indicators.
• Power Cord: 2-meter swivel cord for flexible use.
• Measuring Cup: For easy filling of the water tank.

4. Setup

Before using your vertical steam iron for the first time, follow these steps:

1. Unpack: Carefully remove all packaging materials and check for any damage.
2. Fill Water Tank:
   • Ensure the appliance is unplugged.
   • Remove the 280 ml water tank from the base.
   • Open the water tank cap.
   • Using the provided measuring cup, fill the tank with distilled or demineralized water up to the MAX line. Do not overfill.
   • Close the water tank cap securely and reinsert the tank into the base until it clicks into place.
3. Attach Accessories: If desired, attach the brush accessory to the steam head by aligning it and pressing firmly until it locks.
4. Initial Use (Priming): For the first use, or if the iron has not been used for a long time, allow it to steam for a few minutes on an old cloth to remove any manufacturing residues.

5. Operating Instructions

Follow these steps to effectively use your vertical steam iron:

1. Power On: Plug the appliance into a suitable electrical outlet. The indicator light will illuminate, signaling that the iron is heating up.
2. Quick Heating: The 1630W power ensures rapid heating. The iron will be ready for use in a few seconds.
3. Select Steam Level: The appliance offers 2 steam output levels: normal and strong. Select the appropriate level based on the fabric type and wrinkle severity.
4. Steam Application:
   • Hold the garment taut with one hand.
   • Hold the steam iron vertically, keeping the steam head a few centimeters away from the fabric.
   • Press the steam trigger to release steam.
   • For continuous steam, press and slide the steam trigger lock button. Release the lock to stop continuous steam.
   • Move the steam head slowly over the fabric, from top to bottom.
5. Fabric Suitability: This vertical steam iron is suitable for all types of fabrics. Always test on an inconspicuous area first, especially for delicate materials.
6. After Use: Unplug the appliance and allow it to cool down completely before storing.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your appliance.

1. Cool Down: Always ensure the appliance is unplugged and completely cool before cleaning.
2. Empty Water Tank: Remove the water tank and empty any remaining water. Rinse the tank with clean water.
3. Clean Exterior: Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or solvents.
4. Clean Steam Head: Use a damp cloth to wipe the steam head. If the brush attachment is dirty, remove it and rinse under water, then allow it to dry completely before reattaching.
5. Descaling: Over time, mineral deposits may build up in the water tank and internal components, especially if tap water is used. To descale, fill the water tank with a mixture of 50% white vinegar and 50% water. Operate the steamer until half of the solution is used, then unplug and let it sit for 30 minutes. Finish steaming the remaining solution, then rinse the tank and steam with clean water several times. Perform descaling every few months, or more frequently if you notice reduced steam output.
6. Storage: Store the appliance in a cool, dry place, away from direct sunlight.

7. Troubleshooting

If you encounter issues with your Orbegozo SVT 1000, refer to the following table:

If the problem persists after trying these solutions, please contact Orbegozo customer support.

8. Specifications

• Brand: Orbegozo
• Model Number: SVT 1000
• Power: 1630 Watts
• Voltage: 230 Volts
• Water Tank Capacity: 280 Milliliters
• Product Dimensions (L x W x H): 26 x 10.9 x 45 cm
• Item Weight: 945 grams
• Cord Length: 2 meters
• Steam Levels: 2 (Normal, Strong)
• Features: Quick heating, Continuous steam lock, Overheating protection system, Removable water tank.

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Orbegozo website. Keep your proof of purchase for any warranty claims.
