Hama Bluetooth Speaker Pipe 2.0 Instruction Manual
Model: 00188200
1. Introduction
Thank you for choosing the Hama Bluetooth Speaker Pipe 2.0. This portable, splash-proof speaker is designed to deliver high-quality audio with convenience and durability. Please read this instruction manual carefully to ensure proper use and to maximize the lifespan of your device. Keep this manual in a safe place for future reference.
2. Safety Instructions
- Do not open the device or continue to operate it if it becomes damaged.
- Do not use the product in areas where the use of electronic devices is not permitted.
- Protect the product from dirt, moisture, and overheating.
- Only use the product for its intended purpose.
- Do not drop the product and do not expose it to any major shocks.
- Dispose of packaging material immediately according to locally applicable regulations.
- Do not modify the product in any way. Doing so voids the warranty.
- The product is IPX4 splash-proof. Do not submerge it in water.
3. Package Contents
Please check that the package contains the following items:
- 1 x Hama Bluetooth Speaker Pipe 2.0 (Black)
- 1 x USB-C Charging Cable
- 1 x Instruction Manual
4. Product Overview

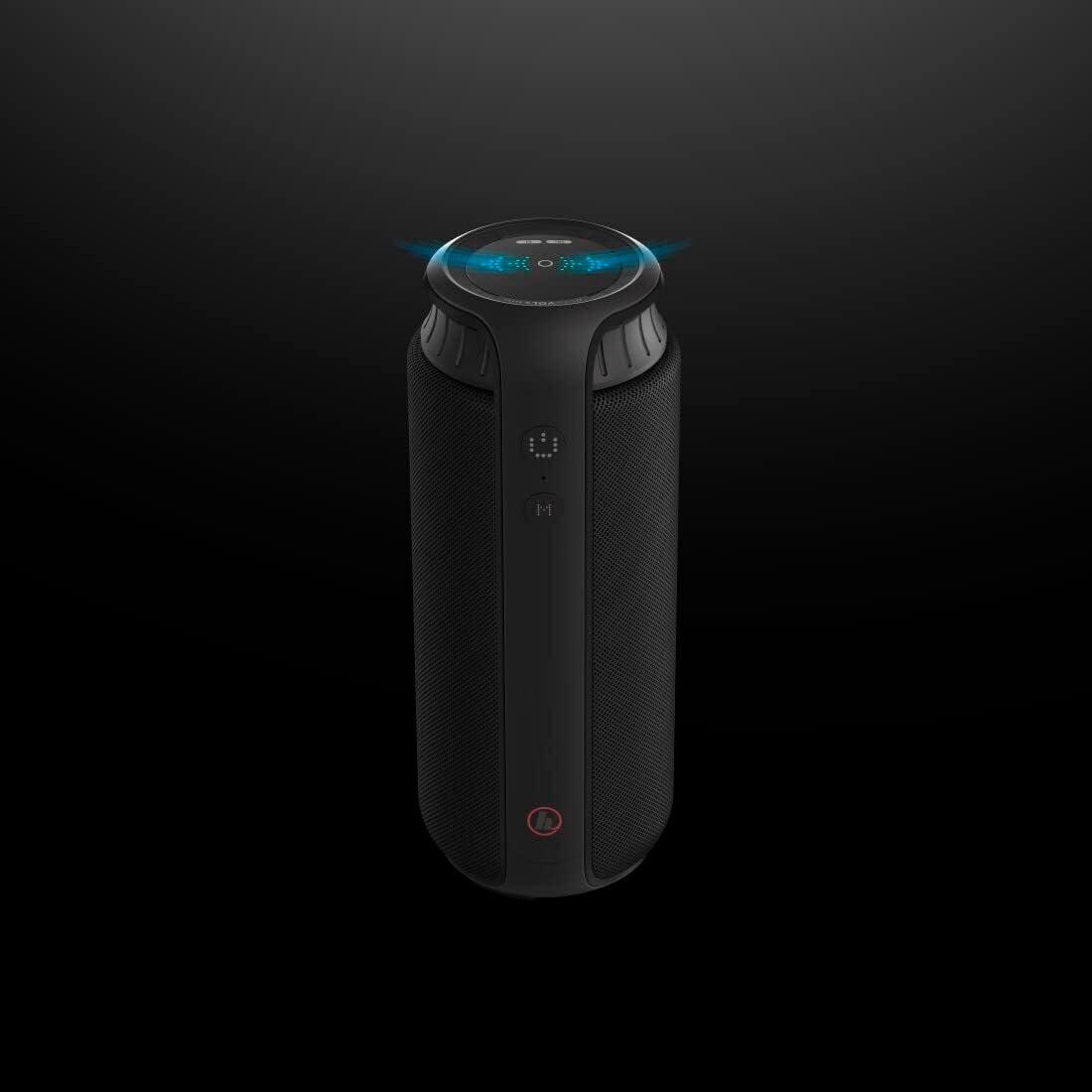

Figure 1: Front view of the Hama Pipe 2.0 Bluetooth Speaker, showcasing its cylindrical design and control panel.
Figure 2: Close-up of the speaker's top touch panel with illuminated controls, indicating power and mode buttons.
The Hama Pipe 2.0 features a sleek, cylindrical design with a touch-sensitive control panel located on the top. The main body is covered in a durable, splash-proof material. Key components include:
- Touch Panel: For controlling playback, volume, and modes.
- Power Button: To turn the speaker on/off.
- Mode Button (M): To switch between Bluetooth and AUX input.
- LED Indicator: Displays battery status and connection mode.
- USB-C Port: For charging the speaker.
- AUX Input: For wired audio connection.
5. Setup
5.1 Charging the Speaker
Before first use, fully charge the speaker. Connect the supplied USB-C charging cable to the speaker's USB-C port and the other end to a suitable USB power adapter (not included) or a computer's USB port. The LED indicator will show the charging status. A full charge takes approximately 4 hours and provides up to 12 hours of playtime.
5.2 Powering On/Off
To power on the speaker, press and hold the Power button on the touch panel until the LED indicator lights up. To power off, press and hold the Power button again until the LED indicator turns off.
6. Operating the Speaker
6.1 Bluetooth Pairing
- Ensure the speaker is powered on and in Bluetooth pairing mode (the LED indicator will flash blue). If not, press the Mode button (M) to switch to Bluetooth mode.
- On your smartphone, tablet, or laptop, enable Bluetooth and search for available devices.
- Select "Hama Pipe 2.0" from the list of devices.
- Once successfully paired, the LED indicator will glow solid blue, and you will hear a confirmation sound.
6.2 AUX Connection
To connect a device via AUX, plug a 3.5mm audio cable (not included) into the speaker's AUX input port and the other end into your audio source. The speaker will automatically switch to AUX mode, or you may need to press the Mode button (M).
6.3 Controls
The touch panel on top of the speaker allows for easy control:
- Play/Pause: Tap the Play/Pause icon.
- Volume Up/Down: Swipe clockwise/counter-clockwise on the circular touch area or tap the +/- icons.
- Next/Previous Track: Swipe left/right on the touch area or tap the skip icons.
- Mode (M) Button: Short press to switch between Bluetooth and AUX modes.
6.4 Audio Features
The Hama Pipe 2.0 delivers 24 Watts of maximum output power with a 2.0 channel spatial sound configuration, providing a rich audio experience. It features a 2-inch subwoofer for enhanced bass.
6.5 Water Resistance (IPX4)
Figure 3: The Hama Pipe 2.0 speaker positioned safely near water, highlighting its IPX4 splash-proof design suitable for outdoor use.
The speaker is rated IPX4, meaning it is protected against splashing water from any direction. This makes it suitable for outdoor use or near water sources like pools, but it should not be submerged in water.
7. Maintenance
- Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
- Ensure no water gets into the product.
- Store the speaker in a cool, dry place when not in use for extended periods.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not turn on. | Battery is depleted. | Charge the speaker fully. |
| No Bluetooth connection. | Speaker not in pairing mode; device Bluetooth off; too far from speaker. | Ensure speaker is in pairing mode (flashing blue LED). Turn on Bluetooth on your device. Move device closer to speaker (within 10m). |
| No sound from speaker. | Volume too low; incorrect input mode; audio cable not connected properly. | Increase volume on speaker and connected device. Press Mode button (M) to select correct input. Reconnect AUX cable securely. |
| Poor sound quality. | Bluetooth interference; low battery. | Move speaker away from other electronic devices. Charge the speaker. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Name | Pipe 2.0 |
| Model Number | 00188200 |
| Brand | Hama |
| Connectivity Technology | Bluetooth, USB (for charging), AUX |
| Compatible Devices | Laptop, Smartphone, Tablet |
| Speaker Type | Component |
| Maximum Output Power | 24 Watts |
| Audio Output Mode | Stereo |
| Spatial Sound Channel Configuration | 2.0 |
| Subwoofer Diameter | 2 Inches |
| Control Type | Touchpad |
| Battery Playtime | 12 Hours |
| Battery Charging Time | 4 Hours |
| Battery Capacity | 2000 mAh (approx.) |
| Maximum Range (Bluetooth) | 10 Meters |
| Water Resistance | IPX4 (Splash-proof) |
| Product Dimensions (LxWxH) | 7.9 x 7.5 x 19 cm (approx.) |
| Product Weight | 580 Grams |
| Material | Plastic or Rubber |
10. Warranty and Support
Hama GmbH & Co KG provides a manufacturer's warranty for this product. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Hama website. For technical support, troubleshooting assistance, or service inquiries, please contact Hama customer service through their official channels. Keep your proof of purchase for warranty claims.
