1. Introduction
Thank you for choosing the Fohën Flagro 3-in-1 Instant Boiling Water Tap. This manual provides essential information for the safe installation, operation, and maintenance of your new tap. Please read these instructions carefully before installation and retain them for future reference.
The Fohën Flagro tap delivers standard hot and cold water, along with instant boiling water, all from a single, elegant unit. Its polished chrome finish and advanced features are designed to enhance your kitchen experience.
2. Safety Information
WARNING: Boiling water is extremely hot and can cause severe burns. Always exercise caution when operating the boiling water function.
- Ensure the tap is installed by a qualified professional in accordance with local plumbing and electrical regulations.
- Do not allow children to operate the boiling water function without adult supervision. The tap features a child-safe spring lock for added protection.
- Regularly inspect the tap and connections for any signs of damage or leaks.
- Do not attempt to repair the unit yourself. Contact qualified service personnel for assistance.
- Ensure adequate ventilation around the under-sink boiler unit.

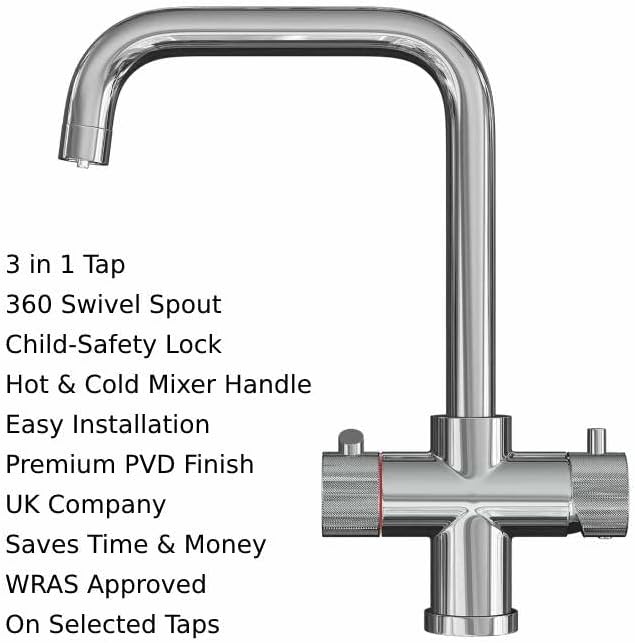

3. Product Features
The Fohën Flagro 3-in-1 Instant Boiling Water Tap offers a range of features designed for convenience and safety:
- 3-in-1 Functionality: Delivers instant boiling water, standard hot water, and standard cold water.
- Polished Chrome Finish: Durable and aesthetically pleasing surface.
- Adjustable Temperature: Touch screen display allows temperature adjustment from 75°C to 98°C for boiling water.
- 360-Degree Swivel Spout: Provides flexibility and ease of use for various sink configurations.
- Child-Safe Spring Lock: A safety mechanism on the boiling water dispenser handle prevents accidental activation.
- Mixer Handle: Separate lever for standard hot and cold water.
- Premium PVD Finish: Ensures longevity and resistance to wear.
4. Setup and Installation
Installation of the Fohën Flagro 3-in-1 Instant Boiling Water Tap system should only be performed by a qualified plumber or installer. This section provides a general overview.
4.1 Components
- Fohën Flagro 3-in-1 Tap
- 2.4 Litre Boiler Unit with Touch Control Display
- Carbon Filter
- Connection Hoses and Fittings
4.2 Installation Steps (Overview)
- Prepare the Sink Area: Ensure sufficient space under the sink for the boiler unit and filter.
- Mount the Tap: Secure the 3-way mixer tap onto the sink or countertop.
- Connect Water Lines: Connect the standard hot and cold water lines to the tap's mixer handle.
- Install Boiler Unit: Position the 2.4-liter boiler unit under the sink.
- Install Carbon Filter: Connect the carbon filter in line with the cold water supply to the boiler.
- Connect Boiler to Tap: Connect the dispensed boiling water feed from the boiler to the tap.
- Electrical Connection: Plug the boiler unit into a suitable mains power supply.
- Test for Leaks: Slowly turn on the water supply and check all connections for leaks.
- Initial Fill and Flush: Follow boiler instructions for initial filling and flushing to remove air and any manufacturing residues.
5. Operating Instructions
5.1 Standard Hot and Cold Water
To dispense standard hot or cold water, use the mixer lever handle located on the tap. Move the handle left for hot water, right for cold water, and adjust its position for desired temperature and flow.
5.2 Instant Boiling Water
The boiling water function is controlled by the textured handle, typically on the opposite side of the mixer lever, and features a child-safe mechanism.
- Activate Child-Safe Lock: Push the textured handle down and then rotate it to engage the boiling water flow.
- Dispense Water: Boiling water will flow from the spout. Release the handle to stop the flow. The spring lock will automatically re-engage.
- Adjust Temperature: The boiler unit features a touch control display to set the desired boiling water temperature between 75°C and 98°C. Refer to the boiler unit's specific instructions for temperature adjustment.
6. Maintenance
6.1 Cleaning the Tap
- Clean the polished chrome finish with a soft, damp cloth and mild soap.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Regular cleaning helps maintain the tap's appearance and hygiene.
6.2 Carbon Filter Replacement
The carbon filter helps improve water quality and protect the boiler unit from scale buildup. The filter typically needs to be replaced every 6-12 months, depending on water hardness and usage. Refer to the filter's specific instructions for replacement procedures.
6.3 Descaling the Boiler Unit
In hard water areas, descaling of the boiler unit may be required periodically. Consult the boiler unit's manual for descaling instructions and recommended descaling agents.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No boiling water dispensed | Boiler not powered; child-safe lock not engaged; boiler empty; temperature set too low. | Check power supply to boiler; ensure child-safe lock is correctly operated; check boiler water level; adjust temperature setting on boiler. |
| Water flow is weak | Blocked filter; kinked hose; low water pressure. | Replace carbon filter; check hoses for obstructions; verify household water pressure. |
| Water leaking from tap/connections | Loose connections; damaged O-rings/seals. | Turn off water supply and tighten connections; contact a qualified plumber for inspection and repair. |
| Boiling water not hot enough | Temperature setting too low; boiler fault. | Increase temperature setting on the boiler unit; if problem persists, contact support. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Fohën |
| Model | Flagro |
| Color | Polished Chrome |
| Style | Top Load |
| Finish | Polished |
| Number of Pieces | 3 (Tap, Boiler, Filter) |
| Mounting Type | Surface Mount |
| Boiling Water Temperature | Adjustable 75°C to 98°C |
| Spout Rotation | 360 Degrees |
| ASIN | B08SCJYZ8H |
9. Warranty Information
Specific warranty details for the Fohën Flagro 3-in-1 Instant Boiling Water Tap are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for comprehensive information regarding coverage, terms, and conditions.
10. Customer Support
If you require further assistance, have questions not covered in this manual, or need to report a fault, please contact Fohën customer support or your authorized retailer. Have your product model and purchase date ready when contacting support.
For the most up-to-date contact information, please visit the official Fohën website.
