Rolanstar Lift Top Coffee Table Instruction Manual

1. Introduction

Thank you for choosing the Rolanstar Lift Top Coffee Table. This versatile furniture piece is designed to enhance your living space with its ergonomic lift-top, ample storage, and durable construction. This manual provides detailed instructions for assembly, operation, and maintenance to ensure safe and optimal use of your new coffee table.

Figure 1.1: Rolanstar Lift Top Coffee Table in its extended position, revealing internal storage and open drawers.

2. Important Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Pinch Hazard: The lift-top mechanism may pose a pinch risk. Keep hands and fingers clear of moving parts when raising or lowering the tabletop.
• Secure Fasteners: Ensure all hinges and fasteners are securely tightened during assembly and periodically check for looseness.
• Weight Limit: Do not exceed the maximum weight limit of 100 lbs (45 kg) on the tabletop. Overloading can cause structural failure.
• Stability: Use caution when adjusting table height to maintain stability. Avoid placing heavy objects on the extended tabletop that could cause tipping.
• Assembly: Assembly should be performed by at least two people to ensure safety and ease of handling, especially when attaching the lift-top.
• Children and Pets: Keep children and pets away from the table during assembly and operation of the lift-top mechanism.

3. Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

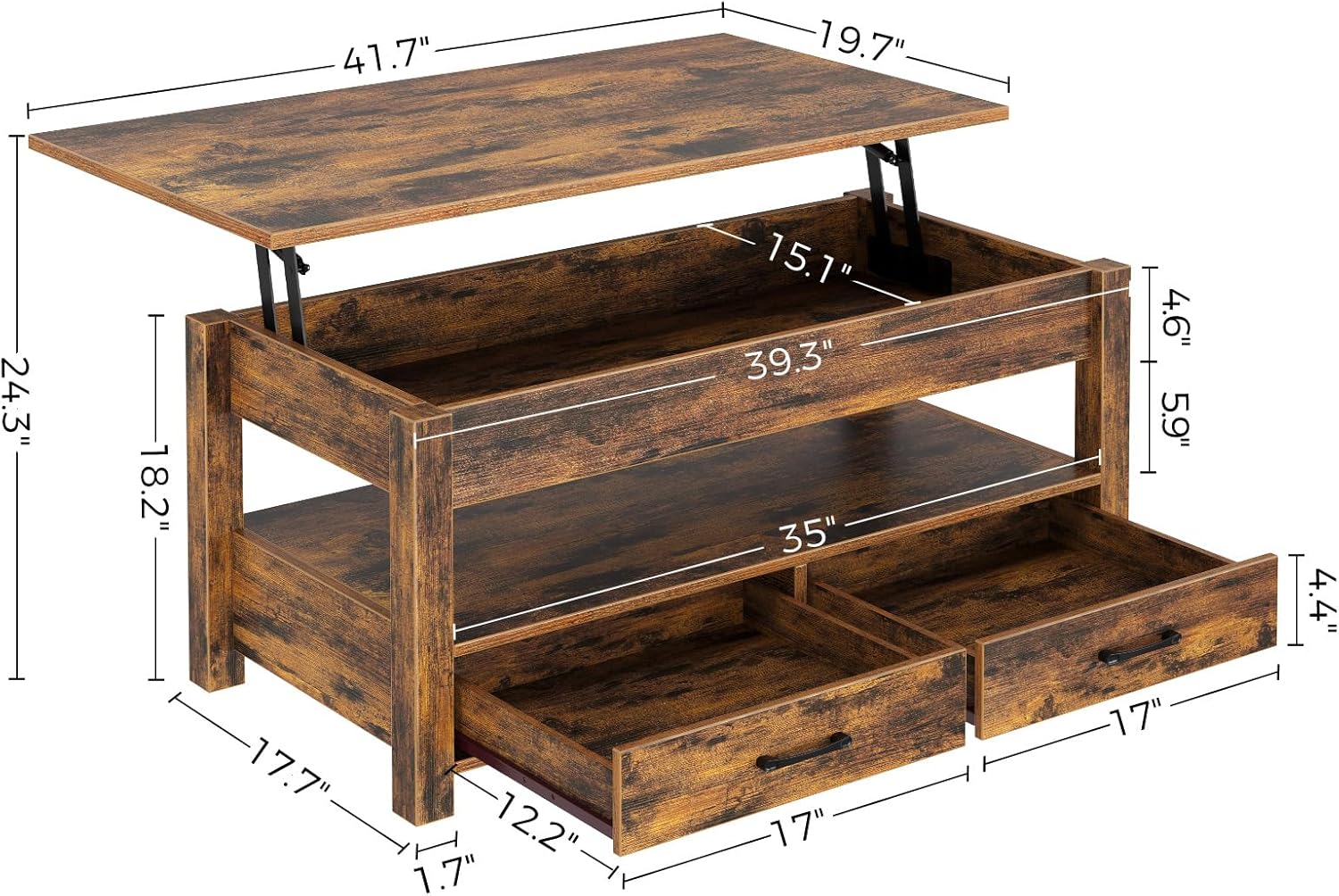

Figure 3.1: Product dimensions and key components.

4. Setup and Assembly

Assembly typically takes approximately 30 minutes with the provided tools. For best results, assemble on a soft, clean surface to prevent scratches. It is recommended to have two people for assembly.

1. Unpack and Identify: Carefully unpack all components and lay them out. Refer to the "Package Contents" section and the included Assembly Guide (Part F) to identify each part.
2. Assemble Main Frame: Follow the step-by-step diagrams in the Assembly Guide to connect the side, back, and front panels of the main frame using the provided hardware (Part H). Ensure all connections are snug.
3. Install Bottom Shelf: Secure the bottom shelf (Part C) into the designated slots or with the specified hardware within the main frame.
4. Attach Lift Mechanism: Install the lift mechanism hardware (Part E) to the main frame according to the instructions. Pay close attention to the orientation for "A style" or "B style" installation, which determines the lift direction (forward or backward).
5. Attach Tabletop: With assistance, carefully align and attach the lift-top tabletop (Part A) to the installed lift mechanism. Secure it firmly with the provided screws.
6. Assemble Drawers: Assemble the two storage drawers (Part D) following the instructions. Ensure the drawer slides are correctly oriented for smooth operation.
7. Insert Drawers: Slide the assembled drawers into their respective compartments in the main frame.
8. Final Check: Once assembled, gently test the lift-top mechanism and drawers for smooth operation. Verify all screws and fasteners are tight.

Figure 4.1: Choose between A or B style for lift-top installation based on your preference.

5. Operating Instructions

5.1 Lift-Top Operation

The Rolanstar Coffee Table features an ergonomic lift-top design, allowing you to raise the tabletop to a comfortable height for working, dining, or other activities while seated on your sofa.

• To Raise: Gently pull the front edge of the tabletop upwards. The spring hinges will assist in lifting the top smoothly and quietly. Continue lifting until it locks into the fully extended position.
• To Lower: Apply gentle downward pressure to the center of the tabletop. The mechanism will smoothly retract. Guide the tabletop down until it rests flush with the main frame. Ensure hands are clear of the mechanism during lowering.

Figure 5.1: The lift-top provides a convenient raised surface for various activities.

5.2 Storage Compartments

This coffee table offers multiple storage solutions to keep your living area organized.

• Hidden Compartment: Located directly beneath the lift-top, this compartment is accessible when the tabletop is raised. It is ideal for storing items you use frequently but prefer to keep out of sight, such as magazines, remote controls, or small electronics.
• Storage Drawers: Two smooth-gliding wooden drawers are provided at the base of the table. These are perfect for organizing smaller items, stationery, or personal belongings.
• Open Shelf: The lower open shelf offers easy access storage for books, decorative items, or larger accessories.

Figure 5.2: Utilize the hidden compartment, drawers, and open shelf for efficient storage.

6. Maintenance and Care

Proper care will extend the life and maintain the appearance of your Rolanstar Coffee Table.

• Cleaning: For general cleaning, wipe the surface with a damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Immediately wipe dry with a clean, soft cloth to prevent water spots or damage to the melamine veneer.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, strong solvents, or polishes containing silicone, as these can damage the finish.
• Spills: Wipe up spills immediately to prevent staining, especially on the rustic brown finish.
• Heat and Moisture: Avoid placing hot items directly on the surface. Use coasters for drinks and trivets for hot dishes. Protect the table from excessive moisture.
• Regular Checks: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.

7. Troubleshooting

If you encounter any issues with your coffee table, refer to the common problems and solutions below.

8. Specifications

Figure 8.1: Key features and specifications of the coffee table.

9. Warranty and Support

Rolanstar is committed to providing high-quality products and customer satisfaction.

• Return Policy: This product is eligible for a 30-day easy return policy. Please refer to your purchase platform for specific return instructions and conditions.
• Customer Support: For any questions, concerns, or assistance with assembly or product issues, please contact Rolanstar customer support. Contact information can typically be found on the packaging, the seller's store page, or your purchase confirmation.
• Protection Plans: Extended protection plans may be available for purchase. Check your retailer's website for details on 2-year or 3-year protection plans.

For more information, visit the official Rolanstar Store on Amazon.
