WLIVE Semi-Double Bed Frame Instruction Manual

1. Introduction

Thank you for purchasing the WLIVE Semi-Double Bed Frame. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

The WLIVE Semi-Double Bed Frame is designed to offer a comfortable and stable sleeping solution with added convenience. Its features include a breathable mesh bed base, a spacious headboard with integrated power outlets, and generous under-bed storage space.

Image: The WLIVE Semi-Double Bed Frame with a mattress and bedding, showcasing its design and under-bed storage potential in a modern bedroom.

2. Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Always assemble the bed frame on a soft, clean surface to prevent scratches.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum load capacity of 200 kg (440 lbs).
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Do not stand or jump on the bed frame.
• Use the bed frame only for its intended purpose.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged:

• Headboard (with integrated shelf and 2-port outlet)
• Side Rails (Left and Right)
• Center Support Beams
• Bed Base Mesh Panels
• Legs and Support Feet
• Hardware Pack (screws, bolts, washers, Allen wrench, spanner)
• Instruction Manual

If any items are missing or damaged, please contact WLIVE customer support.

4. Assembly Instructions

Assembly is designed to be straightforward. Follow these steps in order for a smooth setup. It is recommended to have two people for assembly, though one person can manage.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface. Refer to the parts list to identify each piece.
2. Assemble the Headboard: Attach the headboard frame to the main headboard panel. Ensure the 2-port outlet is correctly oriented. The headboard can be attached to either the left or right side of the bed frame based on your preference.
3. Connect Side Rails: Attach the side rails to the headboard and footboard using the provided bolts. Do not fully tighten yet.
4. Install Center Support Beams: Secure the center support beams to the designated slots on the side rails.
5. Place Bed Base Mesh Panels: Carefully place the mesh bed base panels onto the frame. Ensure they sit securely within the frame. The mesh design promotes air circulation and prevents dampness, contributing to a comfortable sleep.
6. Attach Legs and Support Feet: Fasten all legs and central support feet to the frame.
7. Final Tightening: Once all parts are in place and aligned, systematically tighten all bolts and screws using the provided tools. Ensure all connections are firm and stable.

Image: Visual guide illustrating the step-by-step assembly process of the bed frame, highlighting key connection points.

Image: Close-up views showing the ease of assembly and the design feature that prevents the mattress from slipping.

5. Operating Instructions

5.1 Headboard Shelf and Outlet

The integrated headboard features an 18cm wide shelf, perfect for placing personal items such as smartphones, tablets, glasses, or a clock. It also includes a convenient 2-port power outlet (1500W total) for charging your electronic devices while you rest. The outlet can be installed on either the left or right side during assembly to suit your needs.

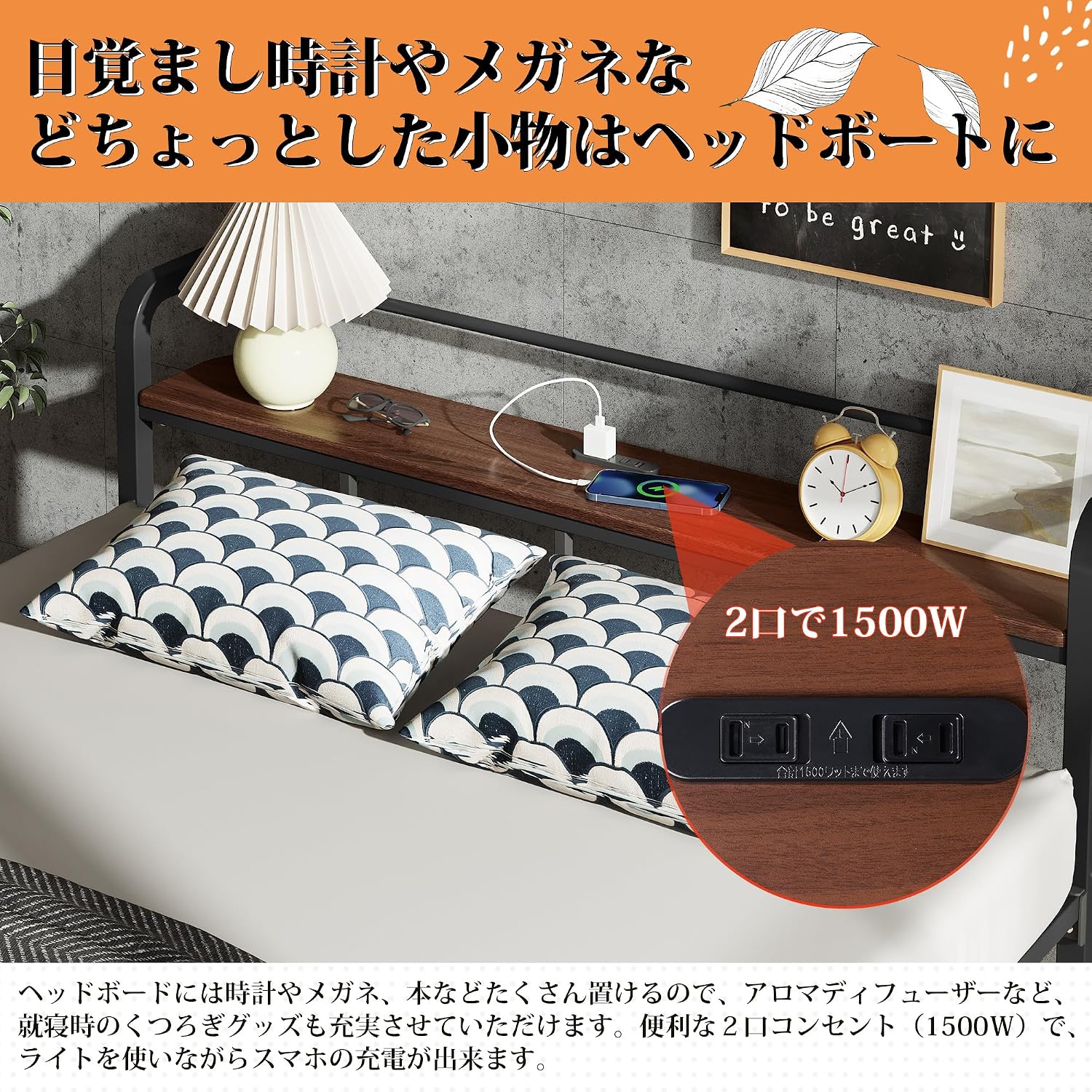

Image: The headboard shelf with a lamp, smartphone charging, and an alarm clock, demonstrating the utility of the integrated outlet.

5.2 Under-Bed Storage

The bed frame provides approximately 31cm (12.2 inches) of clearance underneath, offering ample space for storage. This area can be utilized for storage boxes, seasonal clothing, or other items, helping to maximize your room's space. The height also allows for easy access for vacuum cleaners and robot vacuums for convenient cleaning.

Image: A hand placing a storage box under the bed, illustrating the 31cm clearance available for storage.

6. Maintenance

To ensure the longevity and optimal performance of your WLIVE bed frame, follow these maintenance guidelines:

• Cleaning: Wipe the metal frame and headboard shelf with a dry cloth. For stubborn dirt, use a slightly damp cloth and dry immediately. Avoid abrasive cleaners or harsh chemicals.
• Tightening: Periodically check all bolts and screws (every 3-6 months) and re-tighten them to maintain stability and prevent creaking.
• Ventilation: The mesh bed base is designed for excellent ventilation, which helps prevent moisture buildup and mold. Ensure adequate airflow around and under the bed.

Image: The mesh bed base with arrows indicating airflow, accompanied by icons representing good air circulation, mold prevention, and enhanced comfort.

7. Troubleshooting

If you encounter any issues with your bed frame, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact WLIVE customer support.

8. Specifications

Image: A diagram showing the key dimensions of the bed frame and its impressive 400kg load capacity (note: product specification states 200kg, diagram might be for a different variant or maximum tested load).

Image: The bed frame highlighting its robust construction and 400kg load capacity, with a close-up of the thick 32mm pipes for stability.

9. Warranty and Support

WLIVE offers a one-year warranty for this product. For warranty claims, technical support, or any inquiries regarding your bed frame, please contact WLIVE customer support through the retailer where you purchased the product or visit the official WLIVE store page.

WLIVE Official Store: Visit WLIVE Store on Amazon.co.jp

Please have your purchase receipt and model number (ACH622BL) ready when contacting support.
