VENZ Indoor Camera R4040-V2 User Manual

Product Overview

The VENZ Indoor Camera R4040-V2 is a 1080P HD home security camera designed for indoor use. It features 360° pan-tilt-zoom (PTZ) capabilities, two-way audio, motion detection, and night vision, making it suitable for monitoring babies, pets, or general home security.

Key Features

• 1080P HD Resolution: Provides clear and smooth video.
• 360° PTZ Functionality: Offers 360° horizontal rotation and 104° vertical view for comprehensive coverage.
• Two-Way Audio: Built-in microphone and speaker for communication.
• Motion Detection & Tracking: Sends instant alerts and tracks detected movement.
• Night Vision: IR LEDs provide clear vision up to 28 feet in low light.
• Multiple Storage Options: Supports cloud storage and up to 128GB Micro SD card (not included).
• Voice Control Compatibility: Works with Echo Show/Spot/Fire TV and Google Nest Hub/Chromecast.

Image: The VENZ Indoor Camera R4040-V2, a white dome-shaped camera, shown next to a smartphone displaying live feed of a dog and a cat, illustrating its use for pet monitoring.

What's in the Box

Verify that all components are present before proceeding with installation.

• Smart PTZ camera x 1
• USB cable x 1
• User manual x 1
• Mounting bracket x 1
• Adapter x 1
• Screw bag x 1
• Punched sticker x 1
• Reset pin x 1

Setup Guide

1. Powering On the Camera

1. Connect the provided USB cable to the camera's power port.
2. Plug the USB cable into the adapter.
3. Plug the adapter into a standard electrical outlet (DC 5V).
4. Wait for the camera's indicator light to flash, indicating it is ready for setup.

2. App Installation and Account Creation

The VENZ Indoor Camera operates via the Woox Home App.

• Download the "Woox Home" app from the Google Play Store or Apple App Store.
• Open the app and register for a new account if you don't have one, or log in with existing credentials.

Image: The Woox Home App logo, indicating compatibility with Amazon Alexa and Google Assistant, and showing the app interface on a smartphone and a smart display.

3. Adding the Camera to the App

1. In the Woox Home app, tap the "+" icon to add a new device.
2. Select "Camera" or "Security Camera" from the device list.
3. Follow the on-screen instructions to connect the camera to your 2.4GHz Wi-Fi network. Ensure your Wi-Fi password is correct.
4. The app will display a QR code. Position your camera to scan this QR code from your phone screen. Hold the phone approximately 6-8 inches (15-20 cm) from the camera lens.
5. Once the camera successfully scans the QR code, it will emit a confirmation sound. Tap "I heard a prompt" in the app.
6. The camera will then connect to your Wi-Fi network. Once connected, you can name your camera and begin using it.

Image: A hand holding a smartphone displaying a QR code, with the VENZ Indoor Camera positioned to scan it, illustrating the quick setup process.

4. Mounting the Camera (Optional)

The camera can be placed on a flat surface or mounted to a wall or ceiling using the included bracket.

1. Choose a suitable location for mounting, ensuring it has a clear view and is within Wi-Fi range.
2. Use the punched sticker to mark the drilling positions on the wall/ceiling.
3. Drill holes and insert the wall anchors.
4. Attach the mounting bracket to the wall/ceiling using the provided screws.
5. Secure the camera onto the mounting bracket by twisting it into place.

Operating the Camera

Live View and PTZ Control

• Open the Woox Home app and select your camera from the device list.
• The live video feed will appear.
• Use the on-screen joystick or directional arrows to pan (rotate horizontally 360°) and tilt (rotate vertically 104°) the camera lens.

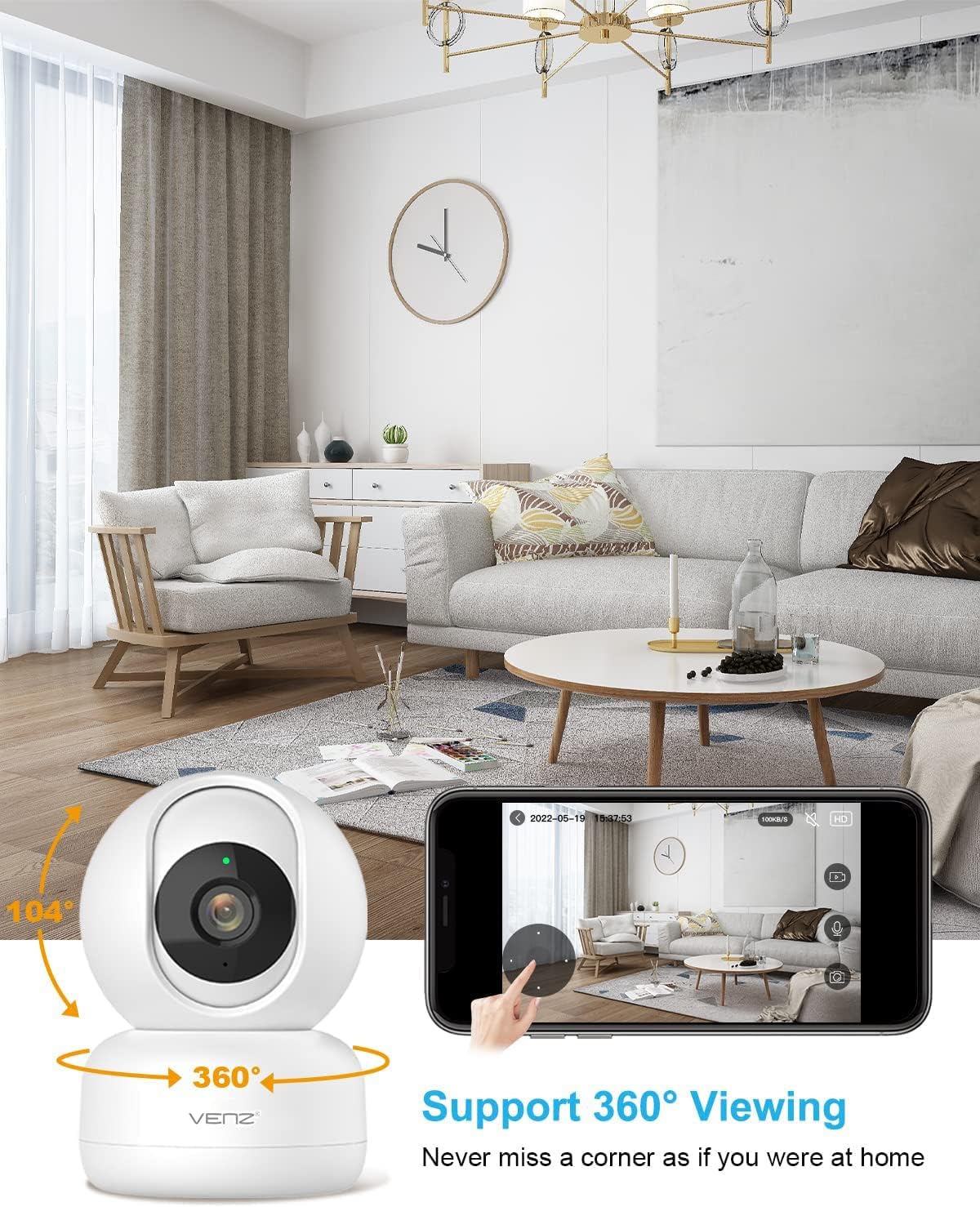

Image: The VENZ Indoor Camera with arrows indicating its 360-degree horizontal rotation and 104-degree vertical tilt capabilities, alongside a smartphone displaying the live view interface.

Two-Way Audio

• While in live view, tap the microphone icon in the app to speak through the camera.
• Tap the speaker icon to listen to audio from the camera's surroundings.

Image: Illustrations showing a woman speaking into her phone and a child interacting with a dog near the camera, demonstrating the two-way audio communication feature.

Motion Detection and Tracking

• Navigate to the camera settings within the Woox Home app.
• Enable "Motion Detection" to receive instant alerts on your phone when movement is detected.
• Activate "Motion Tracking" for the camera to automatically follow and keep the detected subject within its field of view.
• Adjust sensitivity levels and set activity areas as needed.

Image: A child and an adult entering a room, with the camera's motion tracking feature highlighted by red boxes, and a smartphone displaying a "Motion Tracking Detection" notification from the Woox Home app.

Image: Two cats in a living room, with one jumping and the other sitting, demonstrating the camera's motion tracking capability by highlighting the subjects with yellow crosses, and a smartphone showing real-time motion detection notifications.

Night Vision

• The camera automatically switches to night vision mode in low-light conditions.
• Infrared LEDs provide clear black-and-white video up to 28 feet (8.5 meters).

Image: A split image showing a baby sleeping in a crib in a dark room (top, black and white) and a woman viewing a clear image on her phone in bed (bottom), illustrating the camera's clear night vision capability.

Storage and Playback

• Micro SD Card: Insert a Micro SD card (up to 128GB, not included) into the camera's slot for local storage of recordings.
• Cloud Storage: Subscribe to the optional cloud storage service via the Woox Home app for secure, encrypted data storage.
• Access recorded footage through the "Playback" or "History" section in the app.

Image: The VENZ Indoor Camera with an arrow pointing to its Micro SD card slot and a cloud icon with a shield, illustrating both local (Micro SD) and cloud storage options for recording and playback.

Multi-User and Multi-Device Access

• Share camera access with family members through the Woox Home app.
• The app supports viewing multiple Wi-Fi cameras simultaneously (up to 4 live videos on one screen).

Maintenance

• Cleaning: Use a soft, dry cloth to clean the camera lens and body. Avoid abrasive cleaners or solvents.
• Firmware Updates: Regularly check for and install firmware updates through the Woox Home app to ensure optimal performance and security.
• Network Stability: Ensure your Wi-Fi network is stable and strong to prevent connection issues and maintain continuous monitoring.
• SD Card Management: If using a Micro SD card, periodically check its storage capacity and format it if necessary to prevent data corruption.

Troubleshooting

Specifications

Warranty and Support

Warranty Information

Specific warranty details are typically provided with your purchase documentation or on the manufacturer's official website. Please refer to the warranty card included in your product packaging for the most accurate and up-to-date information regarding coverage and duration.

Customer Support

For technical assistance, troubleshooting, or any inquiries regarding your VENZ Indoor Camera, please visit the official VENZ website or contact their customer support team. You can often find contact information (email, phone, or support portal) on the product packaging or the brand's online presence.

Visit the official VENZ Store for more information and support: VENZ Store on Amazon
